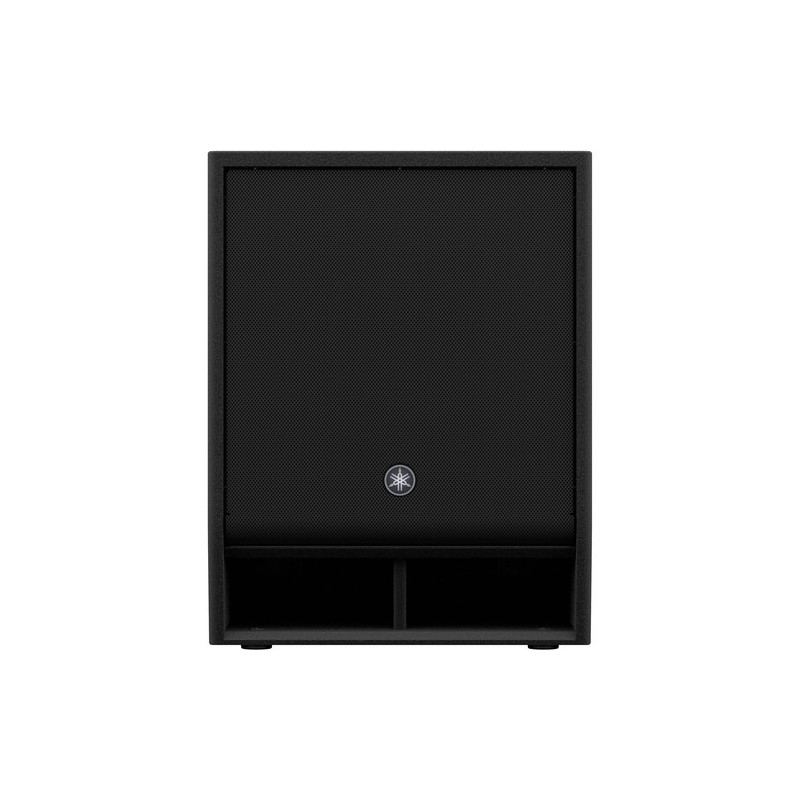

Yamaha CXS15XLF - 800W 15 inches Passive Subwoofer (Black)
1025032
4957812622196

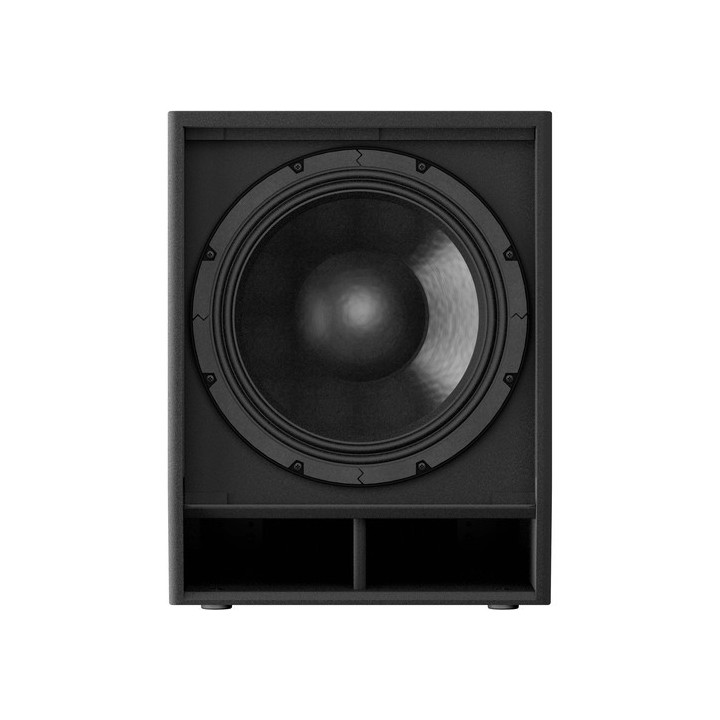

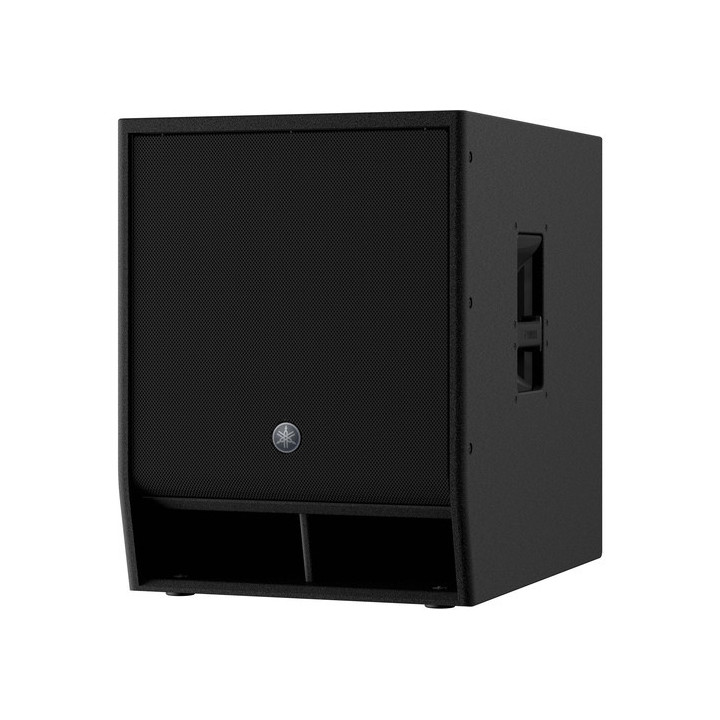

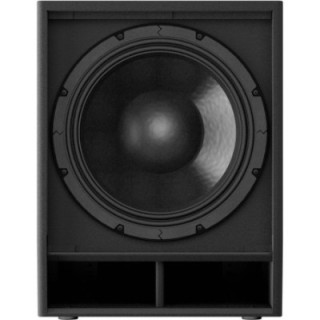

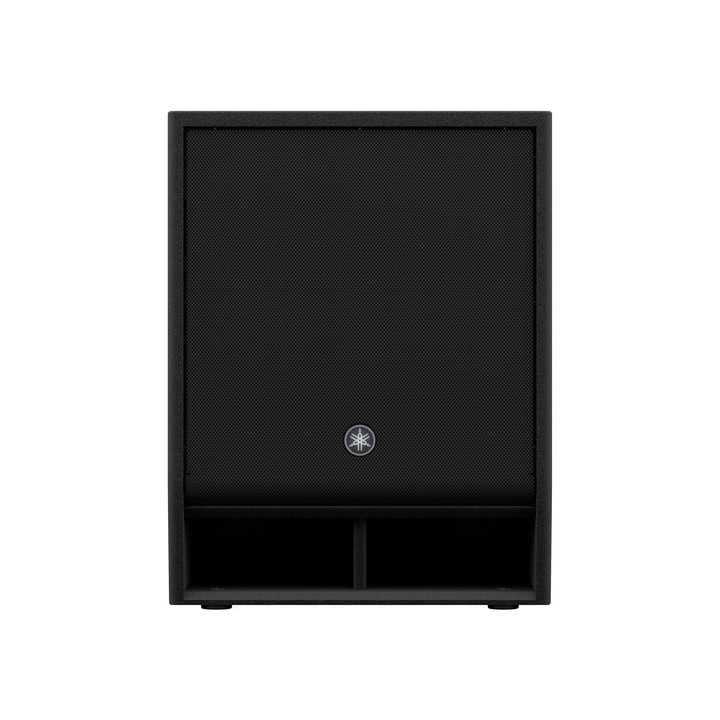

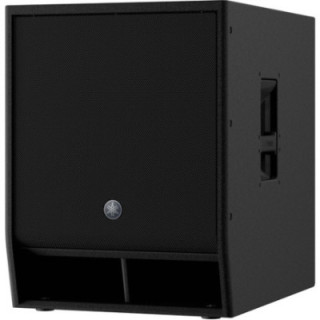

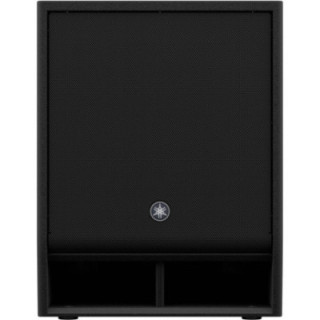

The black Yamaha CXS15XLF is a passive subwoofer designed for extending the low frequency of full-range speakers and is well suited for use with any of the CZR-series passive loudspeakers. The subwoofer requires 800W of power to drive the 15 inches woofer, providing a frequency range of 33 Hz to 150 Hz (-10 dB) with a maximum SPL of 130 dB.
Visuals Price
954.80 CHF
VAT excl.
1,032.14 CHF Inc. VAT
Manufacturer price 1 085,00 CHF VAT excluded
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Yamaha 15-inch 800W passive subwoofer (black)
The Yamaha CXS15XLF black is a passive subwoofer designed to extend the bass frequencies of full-range speakers and is ideally suited for use with any passive speaker in the CZR series. The subwoofer requires 800W of power to drive the 15" woofer, offering a frequency range of 33 Hz to 150 Hz (-10 dB) with a maximum SPL of 130 dB.

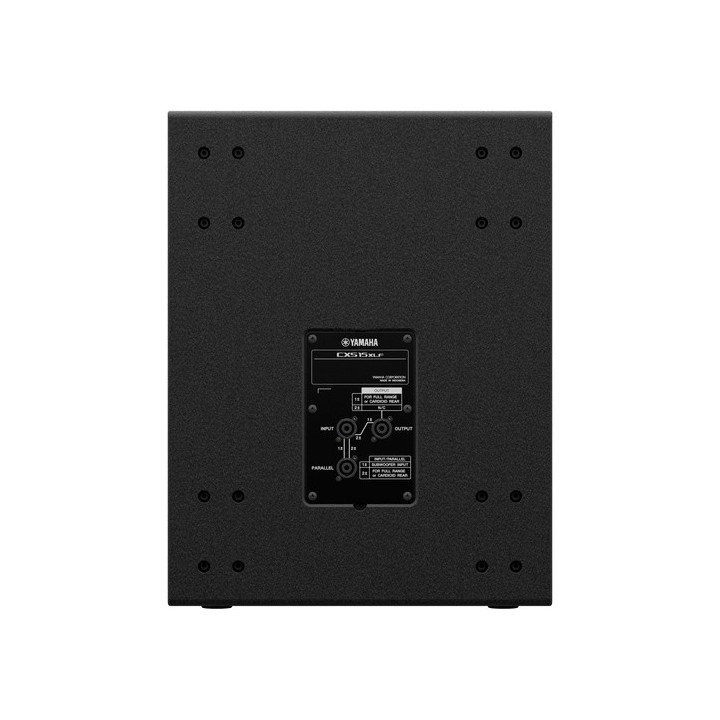

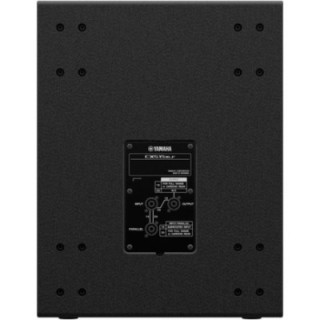

Yamaha recommends using a DSP speaker processor or a power amplifier with built-in DSP, such as Yamaha's PX series amplifiers, to adjust filters, limiting and equalisation for optimal performance. Additionally, two or more subwoofers can be deployed in a cardioid configuration (DSP-dependent), which can effectively reduce stage volume while increasing the low-frequency output directed towards the audience. The rear panel features three Neutrik speakON NL4MP connectors, configured with two input/parallel connectors for multiple subwoofers plus one output connector for flexible configuration with CZR full-range speakers or cardioid mode setup. The Yamaha CXS15XLF is equipped with a 35mm pole socket and an M20 threaded socket to support a full-range speaker.
Features
- Passive bass-reflex subwoofer
- Woofer: 15" with 4" voice coil
- Ideal for extending the bass frequencies of all full-range speakers
- Maximum SPL: 130 dB
- Frequency range (-10 dB): 33 to 150 Hz
- 800W high-power input (PGM)
- Cardioid mode possible with processors or power amplifiers with built-in DSP
- 3 x speakON NL4MP (2 x parallel, 1 x output)
- Lightweight yet highly durable plywood enclosure with premium polyurea coating
- Dual pole socket
The Yamaha CXS15XLF black is a passive subwoofer designed to extend the bass frequencies of full-range speakers and is ideally suited for use with any passive speaker in the CZR series. The subwoofer requires 800W of power to drive the 15" woofer, offering a frequency range of 33 Hz to 150 Hz (-10 dB) with a maximum SPL of 130 dB.
Yamaha recommends using a DSP speaker processor or a power amplifier with built-in DSP, such as Yamaha's PX series amplifiers, to adjust filters, limiting and equalisation for optimal performance. Additionally, two or more subwoofers can be deployed in a cardioid configuration (DSP-dependent), which can effectively reduce stage volume while increasing the low-frequency output directed towards the audience. The rear panel features three Neutrik speakON NL4MP connectors, configured with two input/parallel connectors for multiple subwoofers plus one output connector for flexible configuration with CZR full-range speakers or cardioid mode setup. The Yamaha CXS15XLF is equipped with a 35mm pole socket and an M20 threaded socket to support a full-range speaker.
Features
- Passive bass-reflex subwoofer
- Woofer: 15" with 4" voice coil
- Ideal for extending the bass frequencies of all full-range speakers
- Maximum SPL: 130 dB
- Frequency range (-10 dB): 33 to 150 Hz
- 800W high-power input (PGM)
- Cardioid mode possible with processors or power amplifiers with built-in DSP
- 3 x speakON NL4MP (2 x parallel, 1 x output)
- Lightweight yet highly durable plywood enclosure with premium polyurea coating
- Dual pole socket
|
|
Specifications |
|
|
PA speaker |
|
|
|
Configuration |
Passive subwoofer |
|
|
Speaker type |
Bass-reflex subwoofer enclosure |
|
|
Total power |
400 W RMS |
|
|
System impedance |
8 Ohms (nominal) |
|
|
Speakers |
|
|
|
Low-frequency speaker |
1 x 15" / 381 mm Woofer |
|
|
Low-frequency voice coil |
4" / 101.6 mm |
|
|
Magnet |
Ferrite |
|
|
Performance |
|
|
|
Frequency response |
33 Hz to 150 Hz -10 dB |
|
|
Maximum SPL |
130 dB (peak) |
|
|
Speaker sensitivity |
98 dB |
|
|
Connectivity |
|
|
|
Audio inputs/outputs |
2 x speakON NL4 Input/Link |
|
|
Physical |
|
|
|
Mounting |
1 x Pole socket 1.4" / 35 mm (top) |
|
|
Handles |
1 on each side |
|
|
Construction material |
Plywood |
|
|
Dimensions |
17.7 x 23.1 x 23.6" / 450 x 587 x 600 mm |
|
|
Weight |
78.5 lb / 35.6 kg |
The black Yamaha CXS15XLF is a passive subwoofer designed for extending the low frequency of full-range speakers and is well suited for use with any of the CZR-series passive loudspeakers. The subwoofer requires 800W of power to drive the 15 inches woofer, providing a frequency range of 33 Hz to 150 Hz (-10 dB) with a maximum SPL of 130 dB.
