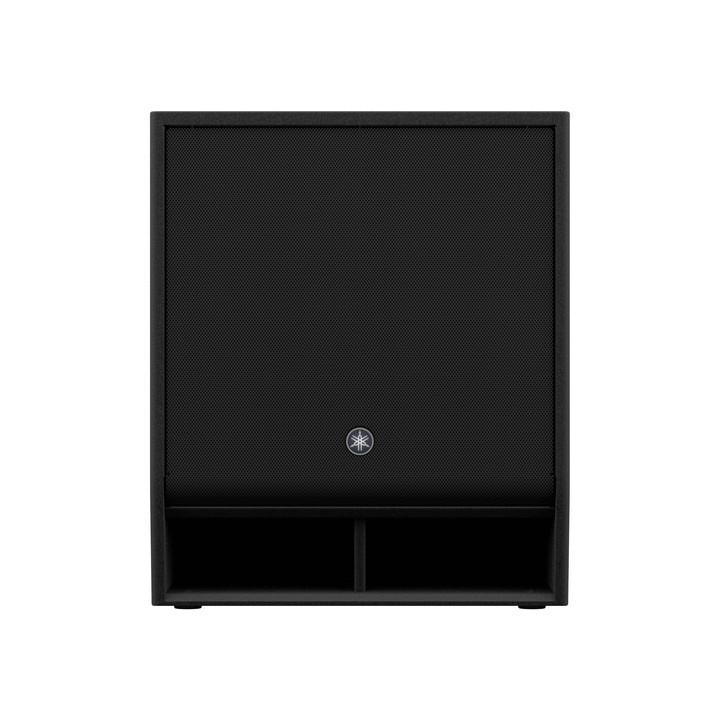

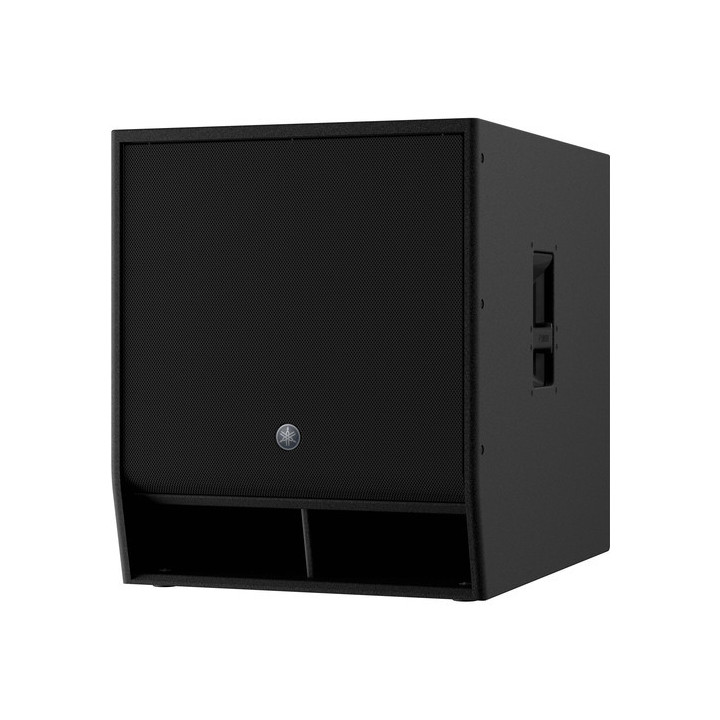

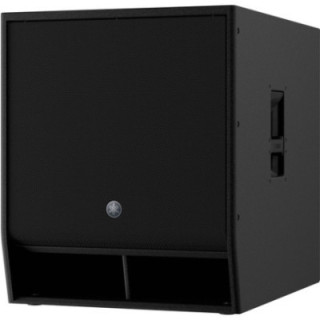

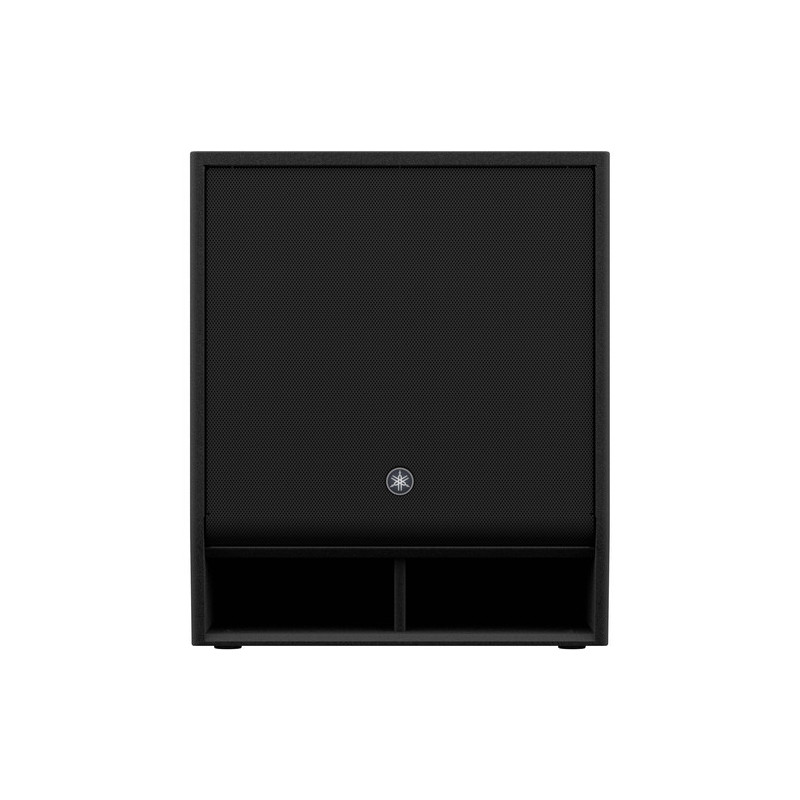

Yamaha CXS18XLF - 1000W 18 inches Passive Subwoofer (Black)
1,154.85 CHF Inc. VAT
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
The Yamaha CXS18XLF in black is a passive subwoofer designed to extend the low frequencies of full-range speakers and is perfectly suited for use with any powered speaker in the CZR series. The subwoofer requires 1000W of power to drive the 18" woofer, offering a frequency range of 32 Hz to 150 Hz (-10 dB) with a maximum SPL of 133 dB.

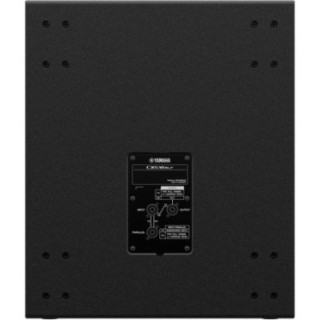

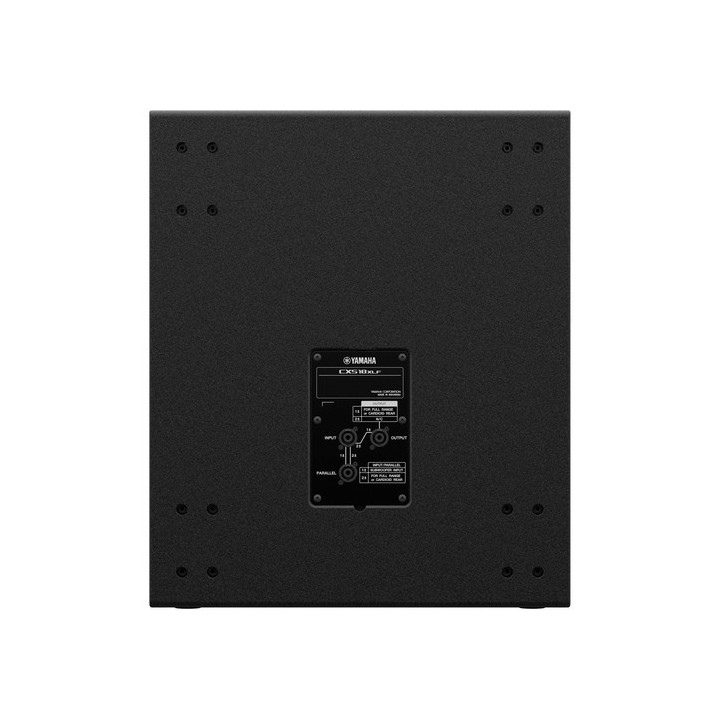

Yamaha recommends using a DSP speaker processor or a power amplifier with built-in DSP, such as Yamaha's PX series amplifiers, to adjust filters, limiting and equalisation for optimum performance. Additionally, two or more subwoofers can be deployed in a cardioid configuration (depending on the DSP), which can effectively reduce stage volume while increasing low-frequency output directed towards the audience. The rear panel features three Neutrik speakON NL4MP connectors, configured with two input/parallel connectors for multiple subwoofers plus one output connector for flexible configuration to CZR full-range speakers or a cardioid mode configuration. The Yamaha CXS18XLF is fitted with a 35 mm pole socket and an M20 threaded socket to support a full-range speaker.
Features
- Passive bass-reflex subwoofer

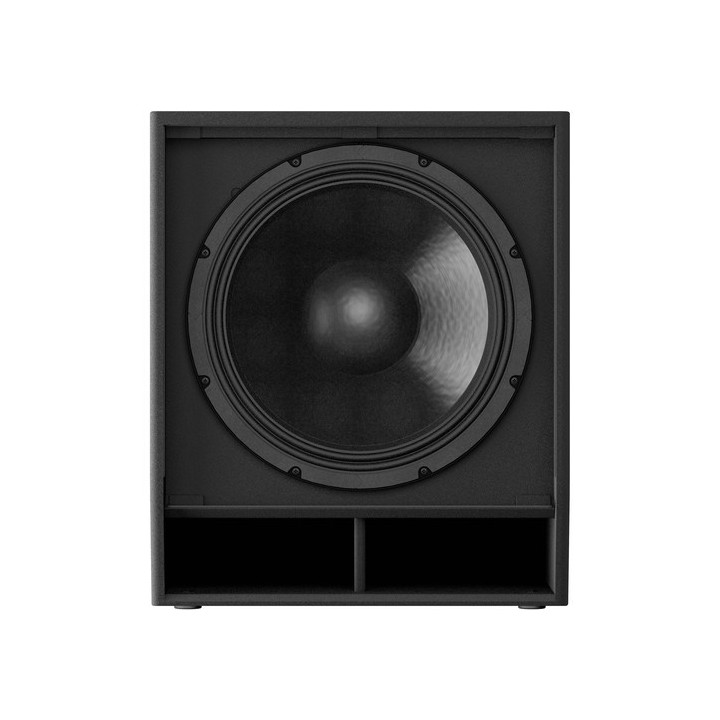

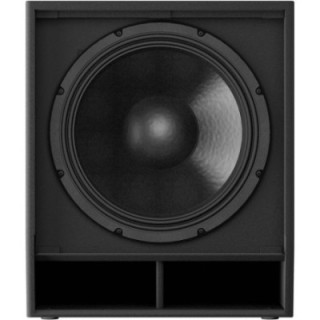

- Woofer: 18" with 4" voice coil
- Ideal for extending the low frequencies of all full-range speakers
- Maximum SPL: 133 dB
- Frequency range (-10 dB): 32 to 150 Hz
- 1000W (PGM) high-power input
- Cardioid mode possible with processors or power amplifiers with built-in DSP
- 3 x speakON NL4MP (2 x parallel, 1 x output)
- Lightweight yet highly durable plywood cabinet with premium Polyurea coating
- Dual pole socket
|
|
Specifications |
|
|
PA Speaker |
|
|
|
Configuration |
Passive Subwoofer |
|
|
Speaker Type |
Bass-Reflex Subwoofer |
|
|
Total Power |
500 W RMS |
|
|
System Impedance |
8 Ohms (nominal) |
|
|
Speakers |
|
|
|
Low-Frequency Speaker |
1 x 18" / 457.2 mm woofer |
|
|
Low-Frequency Voice Coil |
4" / 101.6 mm |
|
|
Magnet |
Ferrite |
|
|
Performance |
|
|
|
Frequency Range |
32 Hz to 150 Hz -10 dB |
|
|
Maximum SPL |
133 dB (Peak) |
|
|
Speaker Sensitivity |
100 dB |
|
|
Connectivity |
|
|
|
Audio Inputs/Outputs |
2 x speakON NL4 Input/Through |
|
|
Physical Characteristics |
|
|
|
Mounting |
1 x 1.4" / 35 mm pole socket (top) |
|
|
Handles |
1 on each side |
|
|
Construction Material |
Plywood |
|
|
Dimensions |
21.7 x 25.9 x 28.3" / 550 x 657 x 720 mm |
|
|
Weight |
96.1 lb / 43.6 kg |
