Yamaha CZR10 - 2-Way Loudspeaker
908.47 CHF Inc. VAT
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks

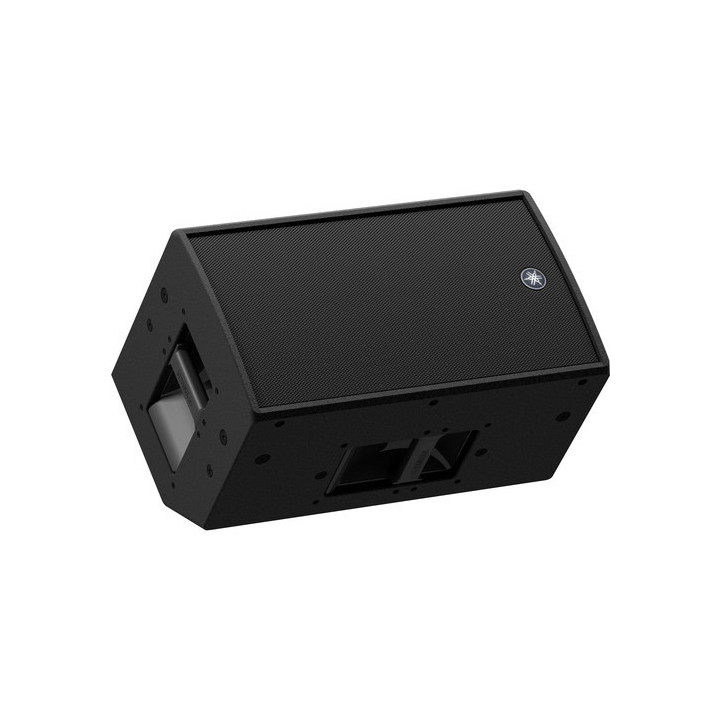

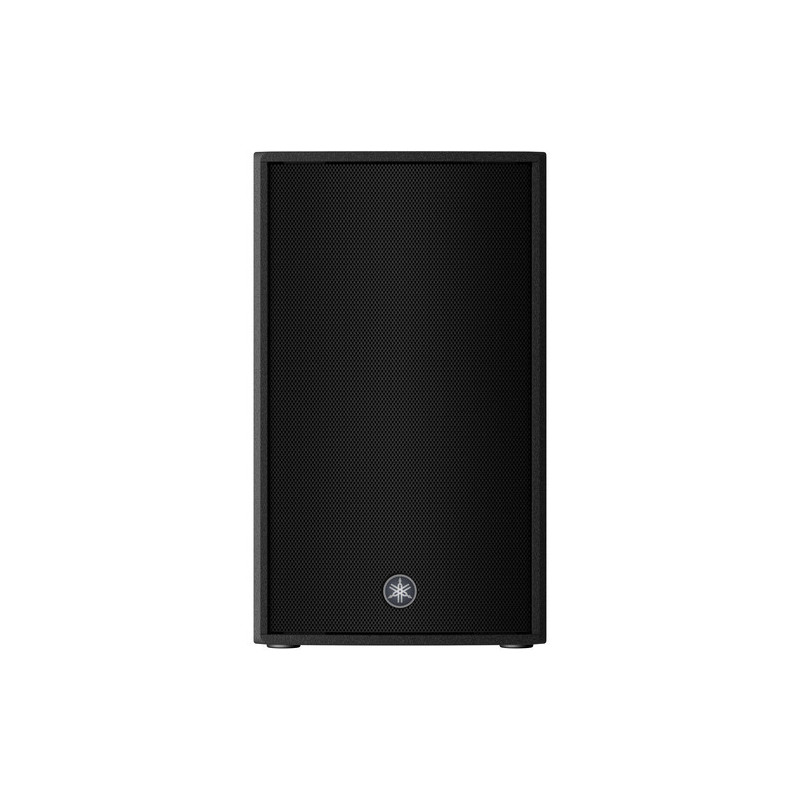

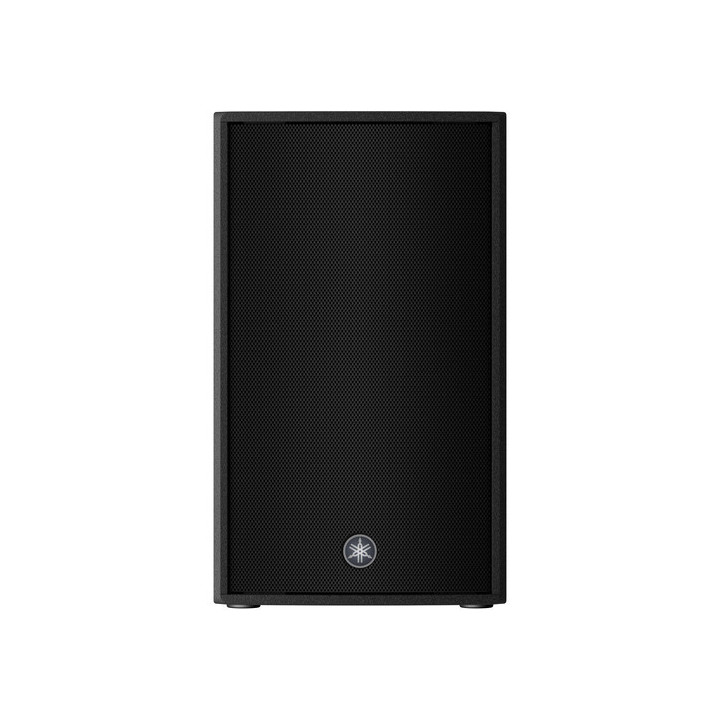

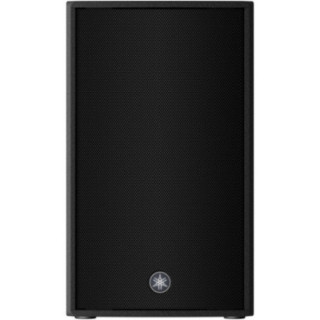

The Yamaha CZR10 black is a passive 2-way enclosure designed for front-of-house/FOH and stage monitor applications. From live bands at open-air festivals to club DJs, the enclosure is perfectly suited to a variety of live sound reinforcement environments and fixed installations. The CZR10 requires 700 W of power to drive the 10" woofer and the 2" compression driver, which combined deliver a frequency range of 43 Hz to 20 kHz (-10 dB) with a maximum SPL of 127 dB. The rotatable horn allows vertical or horizontal mounting to better adapt to the acoustic dimensions of a venue. The constant directivity (CD) horn has been designed to provide uniform and consistent coverage across the intended coverage area, minimising the common attenuation found in conventional horn designs.

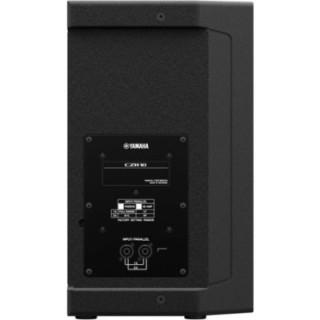

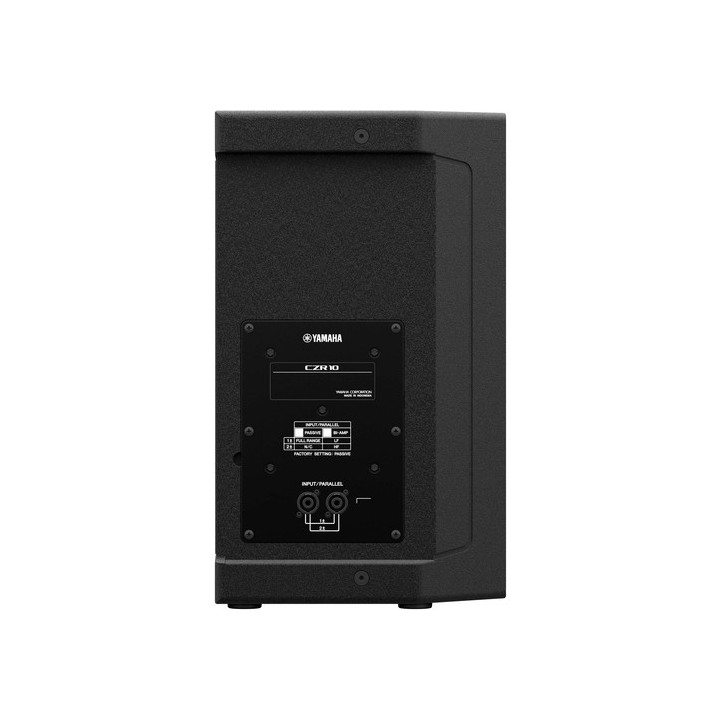

To maximise performance, the CZR10 can be configured for bi-amplification, allowing two independent amplification channels to drive the woofer and compression driver separately. Yamaha recommends using a DSP speaker processor or a power amplifier with built-in DSP, such as Yamaha's PX series amplifiers, to adjust filters, limiting and equalisation to ensure optimal performance. The rear panel features two Neutrik speakON NL4MP connectors, wired in parallel and allowing the daisy-chaining of additional enclosures. There are eight M10 rigging points and two M8 rigging points for permanent installations, as well as two pole cups (0° & -7°) for mobile deployment.
Features
- 2-way enclosure

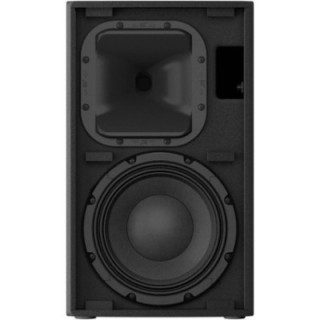

- HF: 1" compression driver with 2" voice coil, titanium diaphragm and neodymium magnet
- LF: 10" with cast aluminium chassis, 3" voice coil and neodymium magnet
- Wide-dispersion CD horn waveguide
- 700 W (PGM) power handling
- Bi-amplification compatible

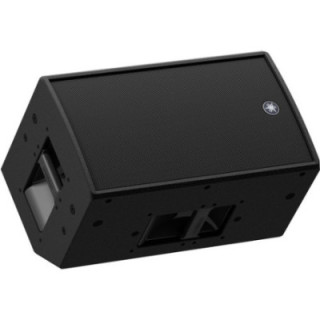

- Stage monitor angle allowing mirror configuration
- Rotatable horn
- Lightweight yet highly durable plywood enclosure with premium Polyurea coating
- Dual-angle pole cup
|
|
Specifications |
|
|
PA Speaker |
|
|
|
Configuration |
Passive 2-way |
|
|
Enclosure Type |
Bass-reflex enclosure |
|
|
Total Power |
Passive : |
|
|
System Impedance |
8 Ohms (Passive) |
|
|
Drivers |
|
|
|
HF Driver |
1 x Titanium compression driver with rotatable horn and 1" / 25.4 mm throat |
|
|
High-frequency voice coil |
2" / 50.8 mm |
|
|
LF Driver |
1 x 10" / 25.4 cm Woofer |
|
|
Low-frequency voice coil |
3" / 76.2 mm |
|
|
Magnet |
HF : |
|
|
Performance |
|
|
|
Frequency Range |
43 Hz to 20 kHz -10 dB |
|
|
Maximum SPL |
127 dB SPL (Peak, Passive) |
|
|
Coverage Angle |
90° H x 60° V (Rotatable horn) |
|
|
Enclosure Sensitivity |
Passive : |
|
|
Connectivity |
|
|
|
Audio Inputs/Outputs |
2 x speakON NL4 |
|
|
Signal Processing |
|
|
|
Filter |
2.5 kHz |
|
|
Physical Specifications |
|
|
|
Mounting |
2 x Pole cup 1.4" / 35 mm (Dual angle, Top) |
|
|
Stage Monitor Angle |
50° |
|
|
Handles |
1 x Each side |
|
|
Construction Material |
Plywood |
|
|
Dimensions |
315 x 537 x 345 mm |
|
|
Weight |
14 kg |
