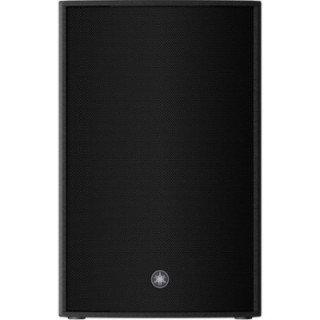

Yamaha CZR12 - 2-Way Loudspeaker
1,030.24 CHF Inc. VAT
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks

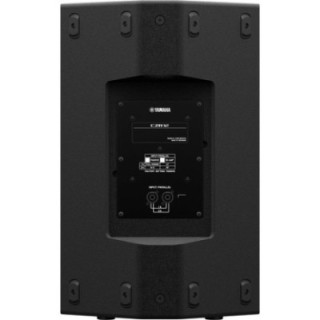

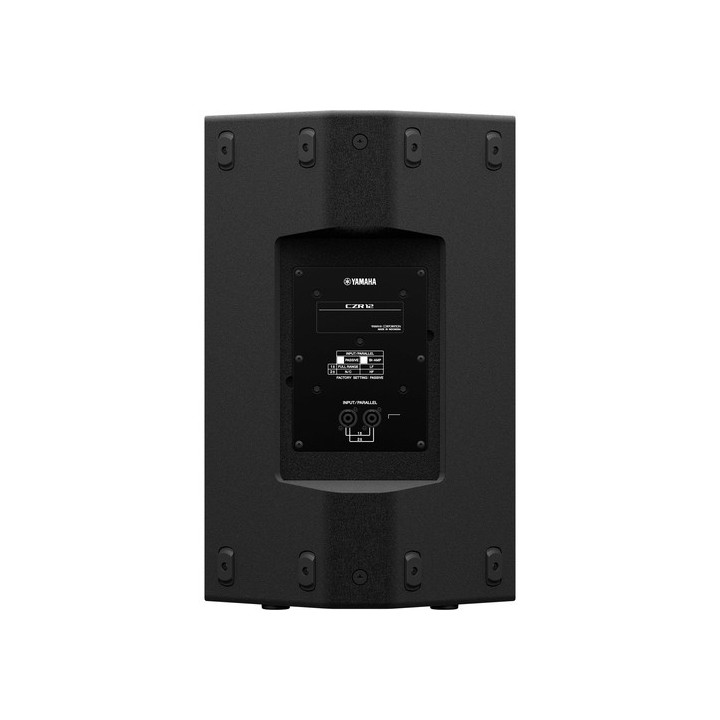

The Yamaha CZR12 black passive 2-way loudspeaker is designed for front-of-house/FOH and stage monitor applications. From bands performing at outdoor festivals to club DJs, this loudspeaker is perfectly suited to a variety of live sound reinforcement environments and fixed installations. The CZR12 requires 800 W of power to drive the 12" woofer and 2" compression driver, which combine to deliver a frequency response of 43 Hz to 20 kHz (-10 dB) with a maximum SPL of 129 dB. The rotatable horn allows vertical or horizontal mounting to better suit the acoustic dimensions of a venue. The constant directivity (CD) horn has been designed to provide uniform and balanced coverage across the intended coverage area, minimising the level loss common in conventional horn designs. To maximise performance, the CZR12 can be configured for bi-amplification, allowing two independent amplification channels to separately power the woofer and compression driver. Yamaha recommends using a DSP loudspeaker processor or a power amplifier with built-in DSP, such as Yamaha's PX series amplifiers, to adjust filters, limiting and equalisation for optimum performance. The rear panel features two Neutrik SpeakON NL4MP connectors, wired in parallel and allowing additional loudspeakers to be connected in series. There are twelve M10 rigging points for permanent installations as well as two pole cup sockets (0 and -7°) for mobile deployment. Features - 2-way loudspeaker - HF: 1" throat compression driver, 2" voice coil, titanium diaphragm and neodymium magnet - LF: 12" with die-cast aluminium frame, 3" voice coil and neodymium magnet - Wide-dispersion CD waveguide horn - 800 W power handling (PGM) - Bi-amplification compatible - Mirror configuration possible in stage monitor mode - Rotatable horn - Lightweight yet highly durable plywood cabinet with premium Polyurea coating - Dual-angle pole cup
|
|
Specifications |
|
|
PA loudspeaker |
|
|
|
Configuration |
2-way passive |
|
|
Loudspeaker type |
Bass-reflex loudspeaker |
|
|
Total power |
Passive : 400 W RMS 800 W Programme 1600 W Peak Bi-amp / LF : 400 W RMS 800 W Programme 1600 W Peak Bi-amp / HF : 50 W RMS 100 W Programme 200 W Peak |
|
|
System impedance |
8 Ohms (passive) LF : 8 Ohms (bi-amp) HF : 16 Ohms (bi-amp) |
|
|
Loudspeakers |
|
|
|

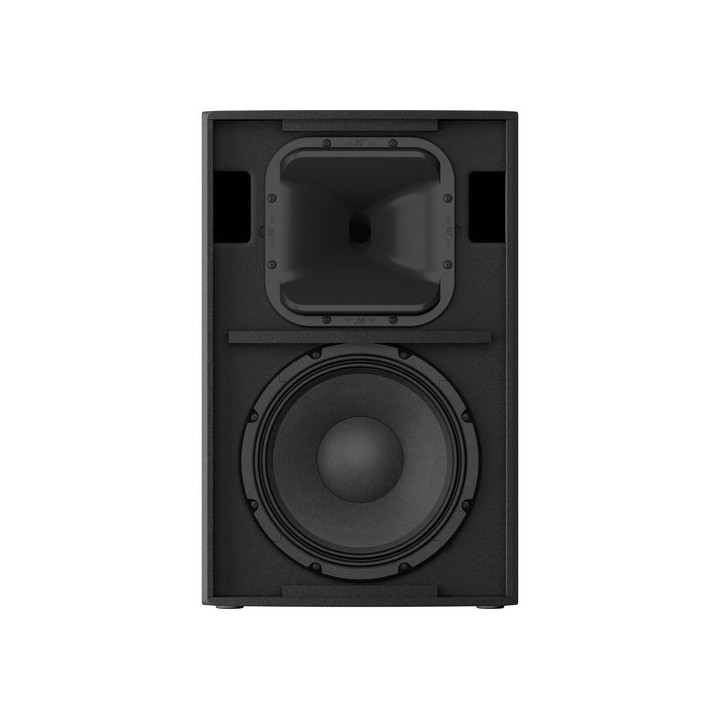

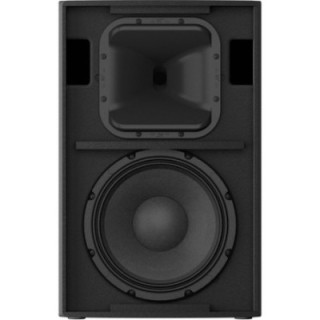

Tweeter |
1 rotatable titanium compression driver with 1" / 25.4 mm throat |
|
|
HF voice coil |
2" / 50.8 mm |
|
|
Woofer |
1 x 12" / 30.5 cm Woofer |
|
|
LF voice coil |
3" / 76.2 mm |
|
|
Magnet |
HF : Neodymium LF : Neodymium |
|
|
Performance |
|
|
|
Frequency response |
43 Hz to 20 kHz -10 dB |
|
|
Maximum SPL |
129 dB SPL (Peak, Passive) 129 dB (LF, Peak, Bi-Amp) 131 dB SPL (HF, Peak, Bi-Amp) |
|
|
Coverage angle |
90° H x 60° V (rotatable horn) 60° H x 90° V (monitor) |
|
|
Loudspeaker sensitivity |
Passive : 97 dB SPL Bi-amp/LF : 97 dB Bi-amp/HF : 108 dB SPL |
|
|
Connectivity |
|
|
|
Audio inputs/outputs |
2 x speakON NL4 |
|
|
Signal processing |
|
|
|
Filter |
2 kHz |
|
|
Physical characteristics |
|
|
|
Mounting |
12 x M10 rigging points 2 x 1.4" / 35 mm pole cup sockets (dual angle, top) |
|
|

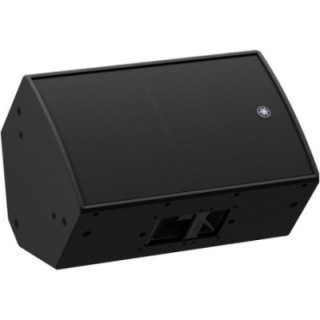

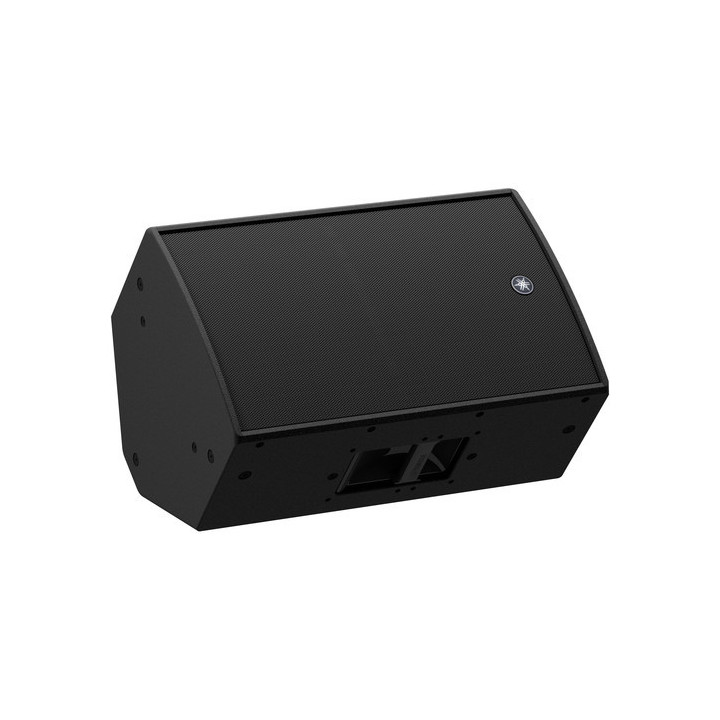

Monitor angle |
50° |
|
|
Handles |
1 on each side |
|
|
Construction material |
Plywood |
|
|
Dimensions |
16.1 x 25.4 x 15.5" / 410 x 646 x 394 mm |
|
|
Weight |
39.7 lb / 18 kg |
