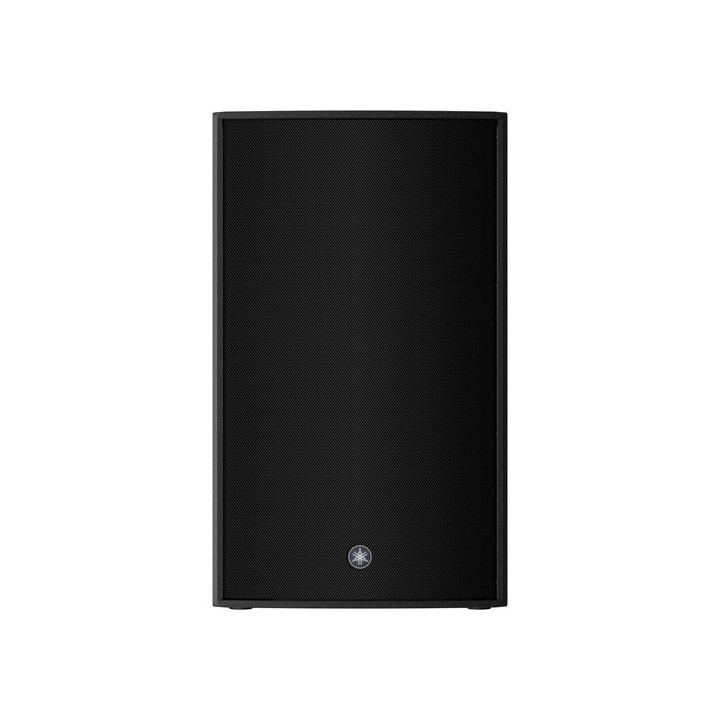

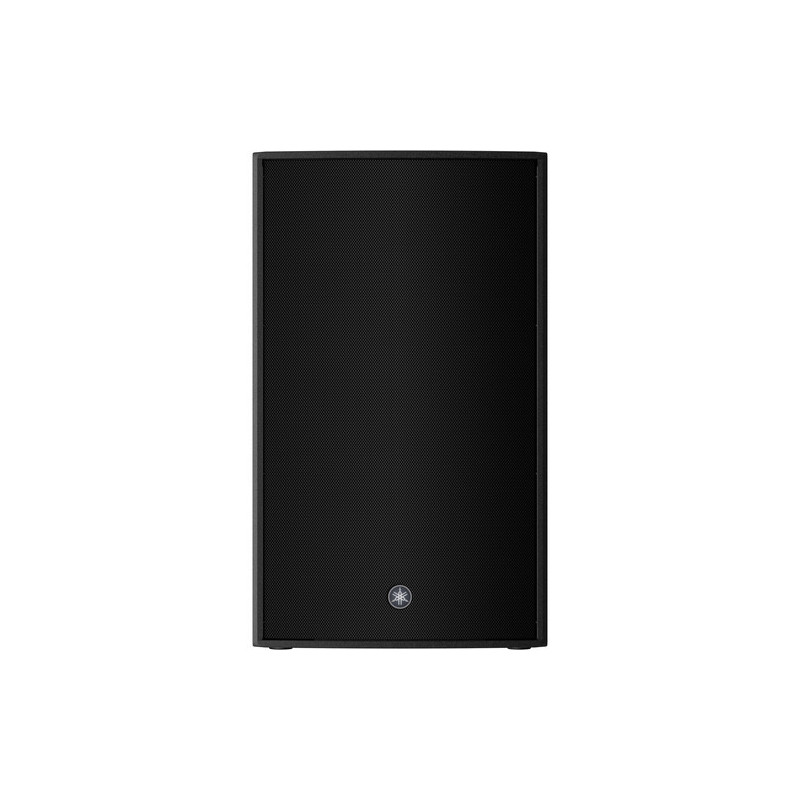

Yamaha CZR15 - 2-Way Loudspeaker
1,152.95 CHF Inc. VAT
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks

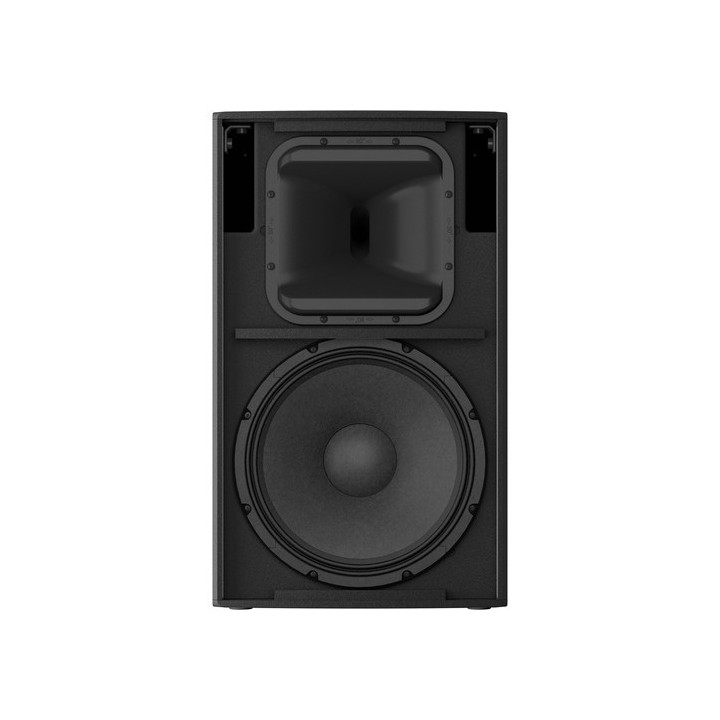

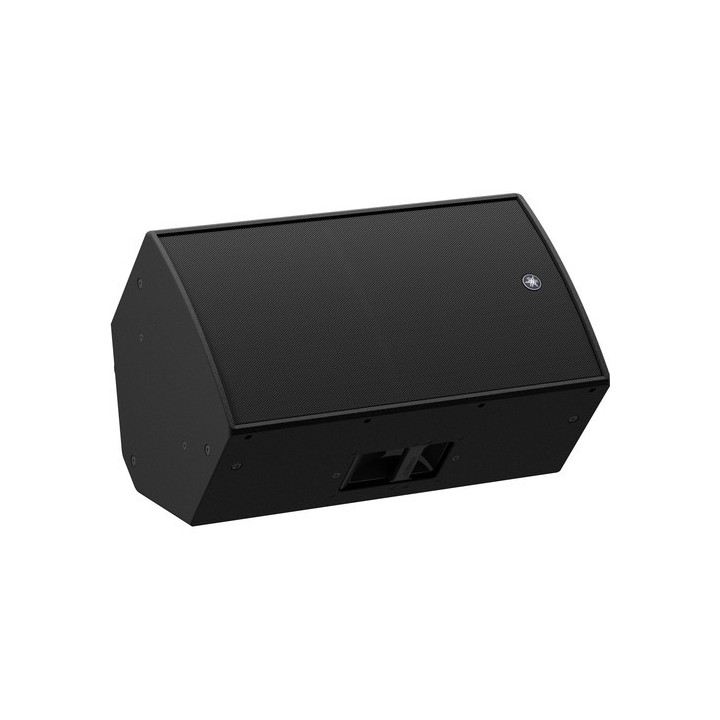

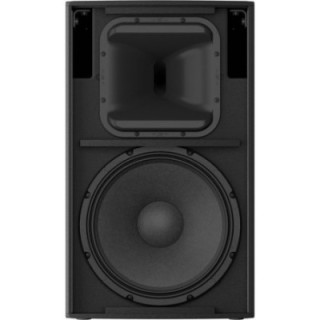

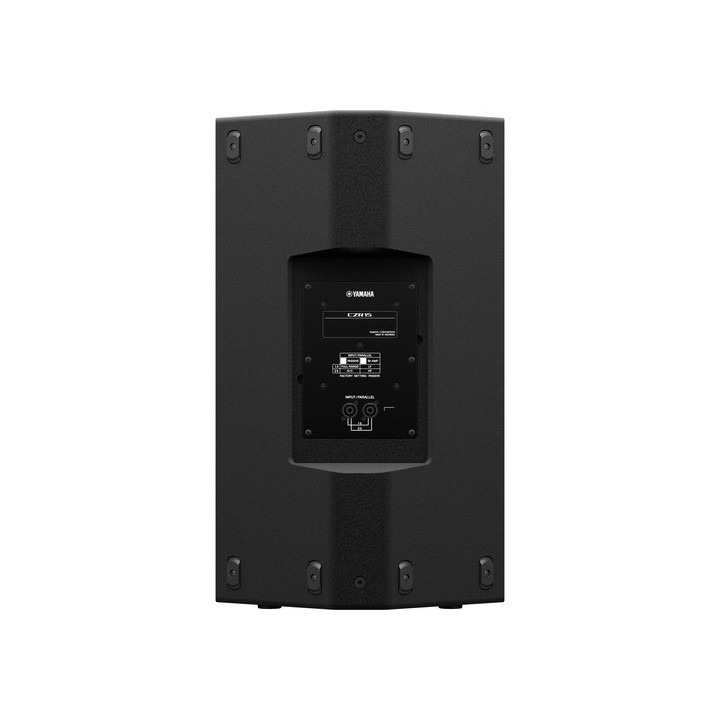

The Yamaha CZR15 Black is a passive 2-way loudspeaker designed for main/front-of-house and stage monitor applications. From live bands at outdoor festivals to club DJs, the speaker is perfectly suited to a variety of live sound environments and installations. The CZR15 requires 800 W of power to drive the 15" woofer and 2" compression driver, which combine to deliver a frequency range of 43 Hz to 20 kHz (-10 dB) with a maximum SPL of 129 dB. The rotatable horn allows for vertical or horizontal mounting to better adapt to the acoustic dimensions of a room. The constant directivity (CD) horn has been designed to provide uniform and balanced coverage across the intended coverage area, minimising the common attenuation found in conventional horn designs., To maximise performance, the CZR15 can be configured for bi-amplification, allowing two independent amplification channels to separately power the woofer and compression driver. Yamaha recommends using a DSP speaker processor or a power amplifier with built-in DSP, such as Yamaha's PX series amplifiers, to adjust filters, limiting and equalisation for optimal performance. The rear panel features two Neutrik speakON NL4MP connectors, configured in parallel and allowing additional speakers to be daisy-chained. There are twelve M10 rigging points for permanent installations as well as two pole-mount positions (0 & -7°) for mobile deployment., Features, - 2-way loudspeaker, - HF: Compression driver with 1" throat, 2" voice coil, titanium diaphragm and neodymium magnet, - LF: 15" with die-cast aluminium chassis, 3" voice coil and neodymium magnet, - Wide-dispersion CD waveguide horn, - 800 W power handling (PGM) and bi-amp compatible, - Stage monitor configuration allowing mirror installation, - Rotatable horn, - Lightweight yet highly durable plywood enclosure with premium Polyurea coating, - Dual-angle pole mount
|
|
Specifications |
|
|
PA Speaker |
|
|
|
Configuration |
2-way passive |
|
|
Speaker Type |
Bass-reflex enclosure |
|
|
Total Power |
Passive :, 400 W RMS, 800 W Programme, 1600 W Peak, Bi-Amp / LF :, 400 W RMS, 800 W Programme, 1600 W Peak, Bi-Amp / HF :, 50 W RMS, 100 W Programme, 200 W Peak |
|
|
System Impedance |
8 Ohms (Passive), LF :, 8 Ohms (Bi-Amp), HF :, 16 Ohms (Bi-Amp) |
|
|
Speakers |
|
|
|
HF Driver |
1 x Rotatable titanium compression driver with 1" / 25.4 mm throat |
|
|
HF Voice Coil |
2" / 50.8 mm |
|
|
LF Driver |
1 x 15" / 381 mm Woofer |
|
|
LF Voice Coil |
3" / 76.2 mm |
|
|
Magnet |
HF :, Neodymium, LF :, Neodymium |
|
|
Performance |
|
|
|
Frequency Range |
43 Hz to 20 kHz -10 dB |
|
|
Maximum SPL |
129 dB SPL (Peak, Passive), 131 dB (LF, Peak, Bi-Amp), 131 dB SPL (HF, Peak, Bi-Amp) |
|
|
Coverage Angle |
90° H x 50° V (Rotatable horn), 90° H x 50° V (Monitor) |
|
|
Speaker Sensitivity |
Passive :, 97 dB SPL, Bi-Amp/LF :, 99 dB, Bi-Amp/HF :, 108 dB SPL |
|
|
Connectivity |
|
|
|
Audio Inputs/Outputs |
2 x speakON NL4 |
|
|
Signal Processing |
|
|
|
Filter |
2 kHz |
|
|
Physical |
|
|
|
Mounting |
12 x M10 rigging points, 2 x pole-cup mounts 1.4" / 35 mm (Dual angle, Top) |
|
|
Monitor Angle |
50° |
|
|
Handles |
1 x each side |
|
|
Construction Material |
Plywood |
|
|
Dimensions |
17.7 x 30 x 18.1" / 450 x 762 x 460 mm |
|
|
Weight |
47 lb / 21.3 kg |
