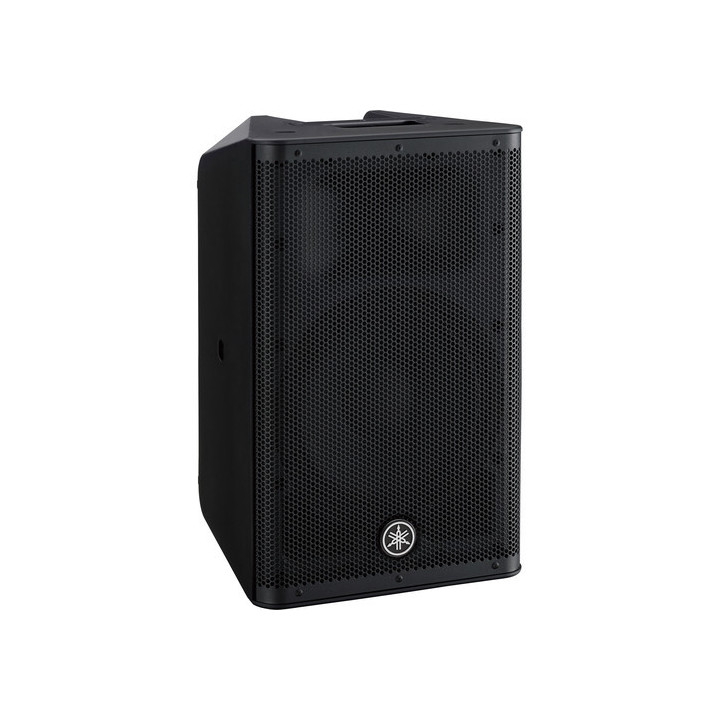

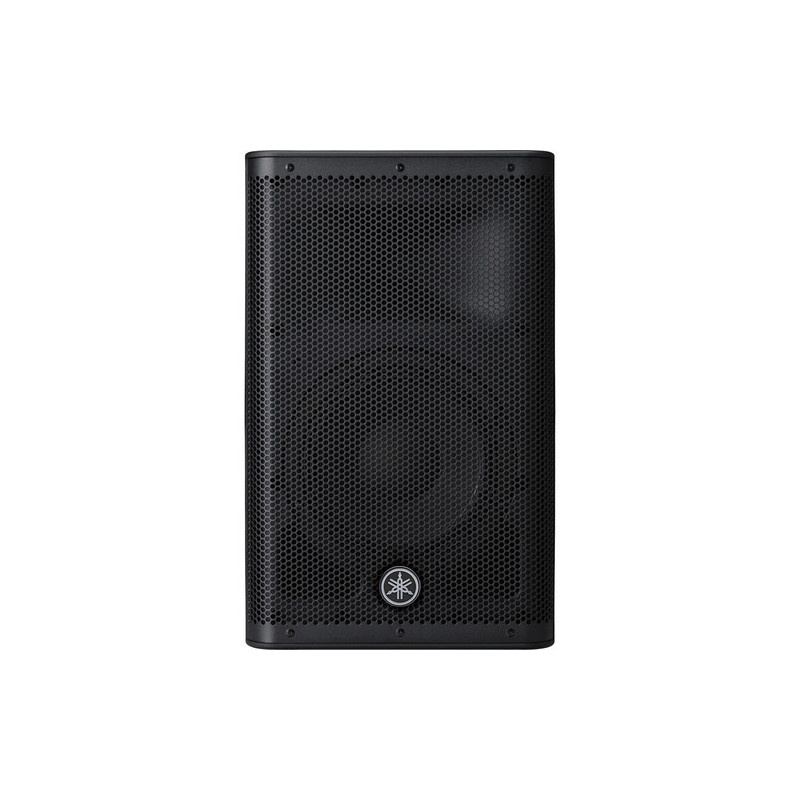

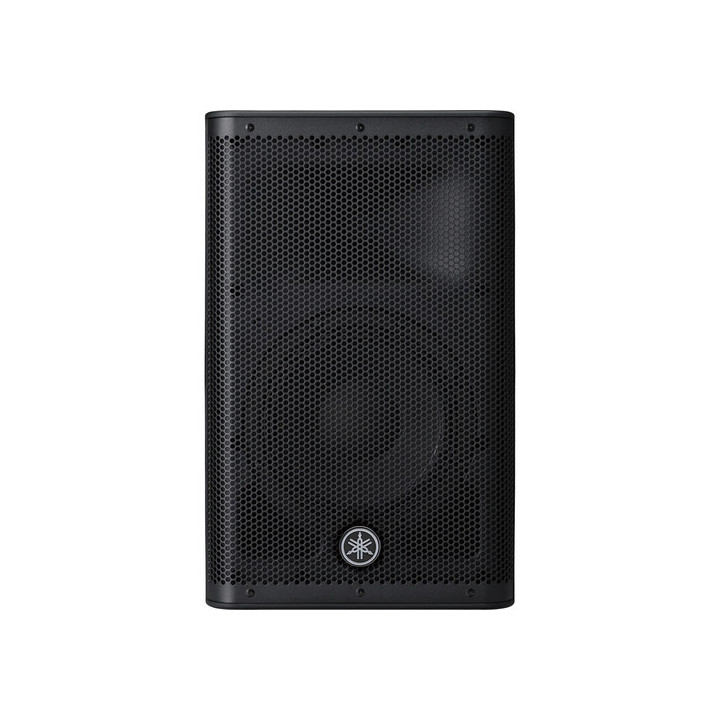

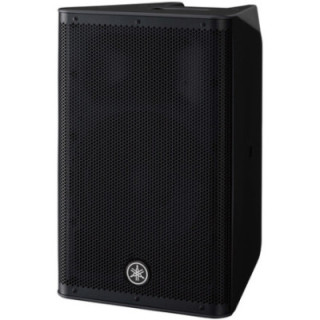

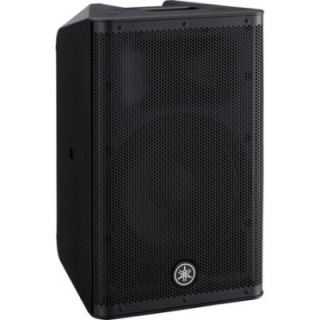

Yamaha DXR10MKII - 10 inches 2-way Powered Loudspeaker
722.97 CHF Inc. VAT
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
The Yamaha DXR10mkII 15" 1100 W active 2-way loudspeaker delivers clear sound and extremely high output levels in a discreet and durable design, ideal for live sound reinforcement applications requiring full-bandwidth audio reproduction. The loudspeaker features a robust ABS construction with a bass-reflex design for improved low-frequency performance with reduced turbulence. The high-power 15" woofer and 1.75" compression tweeter deliver high-resolution sound with an extended frequency response and deep bass. The built-in DSP uses a FIR-X linear phase filter for ultra-smooth active filtering, while protection circuits optimise and protect the loudspeaker's performance.

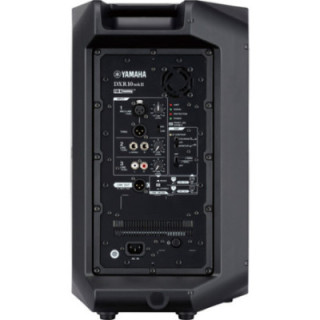

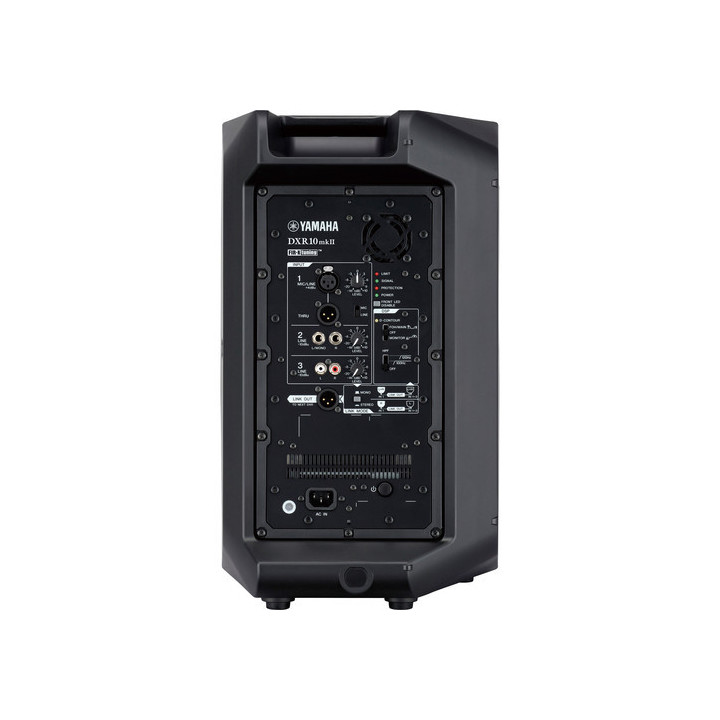

The loudspeaker features a Class D bi-amplified design that delivers a combined peak output power of 1100 W for powerful performance with minimal distortion. The built-in D-contour processor allows you to use the loudspeaker as a main/FOH system or as a stage monitor. The rear panel features XLR, 6.35 mm jack and RCA inputs, as well as thru and XLR output connectors for broad compatibility with various professional audio systems and devices.
The loudspeaker can be placed on the floor or on stage, but also offers convenient mounting options. A dual 35 mm pole mount allows the loudspeaker to be mounted on a subwoofer with a horizontal or 7° downward tilt, while M8 suspension points allow for flown installation. An optional U-bracket is available separately for wall mounting. The Yamaha DXR10mkII is supplied with a mains power cable.
Features
- 10" powered loudspeaker with 1100 W Class D amplifier
- Achieves high SPL levels with remarkable clarity across its entire frequency response
- 1.75" neodymium high-frequency compression driver and 10" high-power woofer combined for an extended frequency response with powerful bass
- Frequency response: 56 Hz to 20 kHz
- Max SPL: 132 dB
- 48-bit precision DSP processing for clear high-definition sound and intelligent dynamic control with built-in D-Contour
- Durable and compact ABS enclosure
- Symmetrical design for use as a mirrored stage monitor
- FIR-X tuning
- Proprietary sound processing technology using a linear phase FIR filter delivering high-quality, high-resolution sound with a smooth frequency response unaffected by phase interference near the active crossover point
- D-CONTOUR (dynamic contour)
- D-CONTOUR is a multiband compressor that dynamically controls the level of each frequency range according to the application and characteristics of human hearing
- FOH/MAIN: for use as a main loudspeaker
- MONITOR: optimised for use as a stage monitor
- Mixing/LINK functionality
- Features a mixing function, allowing sounds to be mixed by directly inputting three channel signals into the unit
- The LINK function allows you to easily set up a stereo or dual mono sound system using two DXR mkII loudspeakers
- Advanced DSP-controlled protection system
- Powerful protection circuits ensure safe protection within the loudspeaker unit, amplifier unit and power supply unit
- The protection functionality promotes optimal performance from each component and optimal reliability without distortion, even in demanding environments
|
|
Technical specifications |
|
|
PA loudspeaker |
|
|
|
Configuration |
Active 2-way bi-amplification |
|
|
Loudspeaker type |
Bass-reflex enclosure |
|
|
Total power |
1100 W peak |
|
|
Amplifier power |
LF : |
|
|
Amplifier class |
Class D |
|
|
Transducers |
|
|
|
Tweeter |
1 x 1.75" / 44.45 mm compression driver with 1" / 25 mm horn |
|
|
Woofer |
1 x 10" / 25.4 cm woofer |
|
|
LF voice coil |
2" / 5.08 cm |
|
|
Magnet |
HF : |
|
|
Performance |
|
|
|
Frequency response |
56 Hz to 20 kHz -10 dB |
|
|
Maximum SPL |
132 dB SPL |
|
|
Coverage angle |
90° H x 60° V (horn) |
|
|
Input sensitivity |
Line input : |
|
|
Maximum input level |
Line input : |
|
|
I/O Impedance |
XLR mic input : |
|
|
Protection |
AC coupling, overload filter, DC protection |
|
|
Connectivity |
|
|
|
Audio I/O |
1 x XLR input |
|
|
Signal processing |
|
|
|
Active crossover filter |
2.3 kHz |
|
|
Filters |
2 x high-pass : |
|
|
Dynamic processing |
Compression, multiband limiter |
|
|
Digital signal processing |
48-bit DSP: FIR filter, room settings |
|
|
Max. sampling rate/resolution |
48 kHz / 24-bit |
|
|
Power supply |
|
|
|
Mains power supply |
Universal : |
|
|
Mains connector |
1 x IEC input |
|
|
Power consumption |
90 W |
|
|
Physical characteristics |
|
|
|
Mounting |
2 x M8 (top) |
|
|
Monitor angle |
50° |
|
|
Handles |
1 x top |
|
|
Cooling |
Fan (variable speed) |
|
|
Construction material |
ABS |
|
|
Dimensions |
12 x 19.8 x 12.2" / 305 x 502 x 310 mm |
|
|
Weight |
30.6 lb / 13.9 kg |
