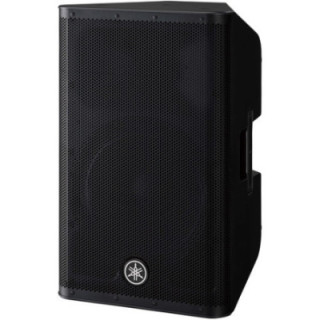

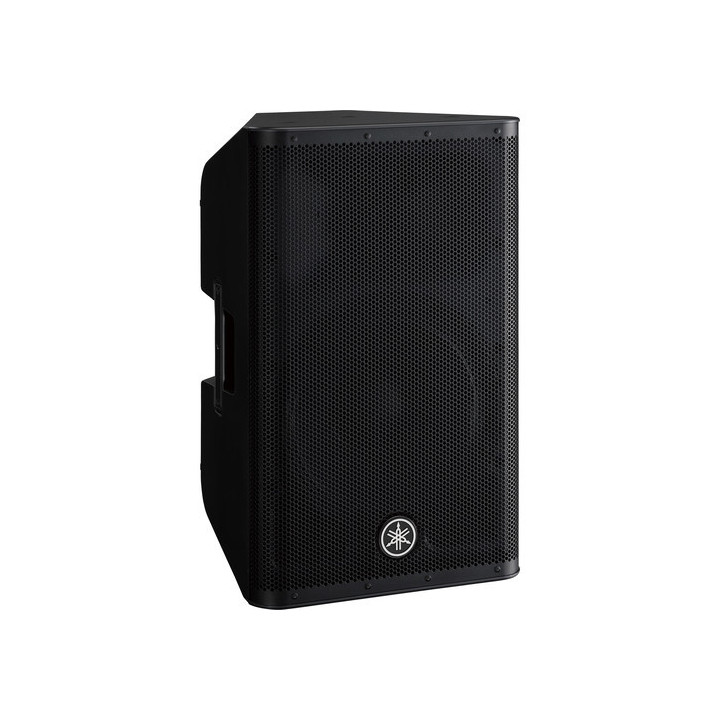

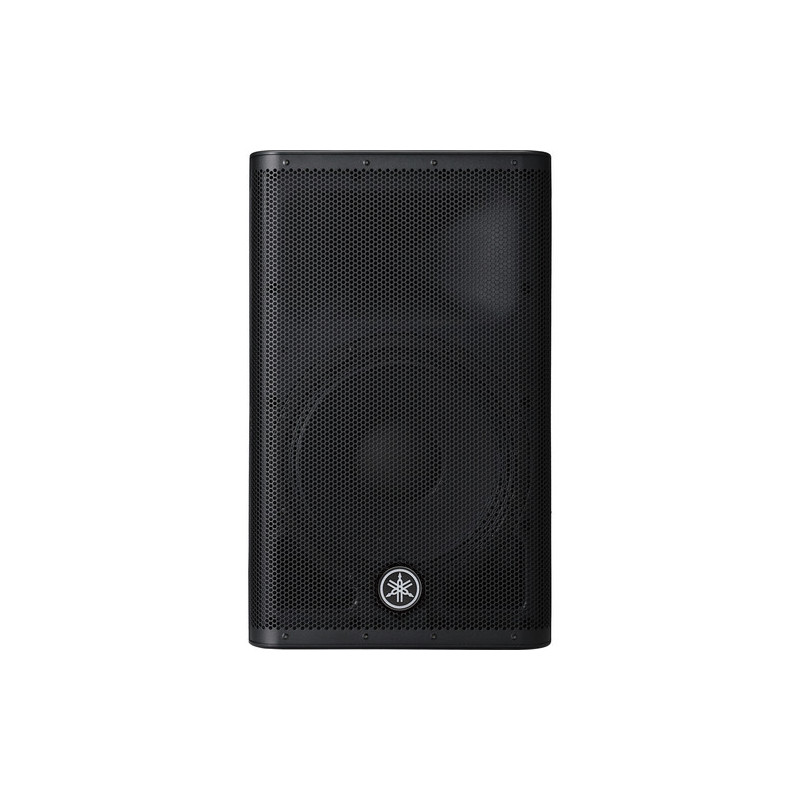

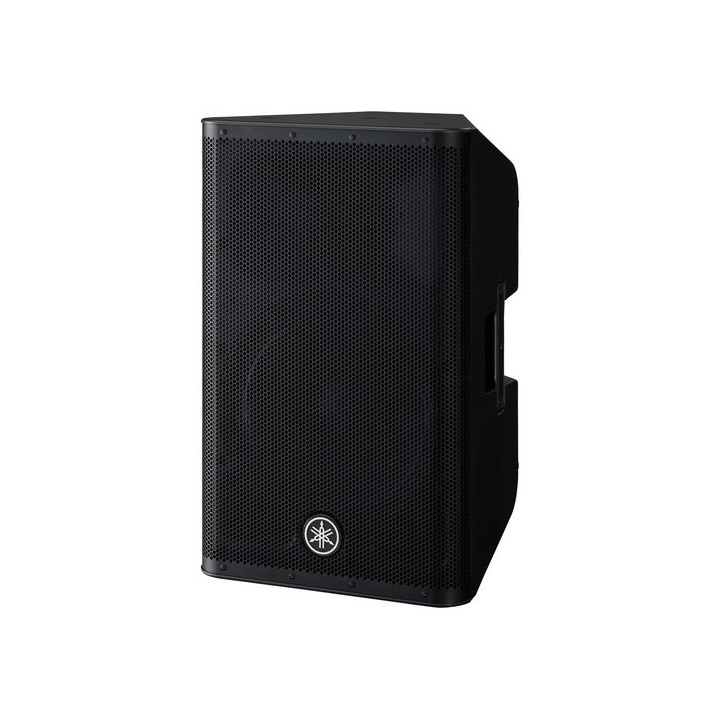

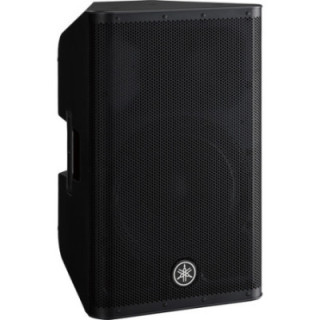

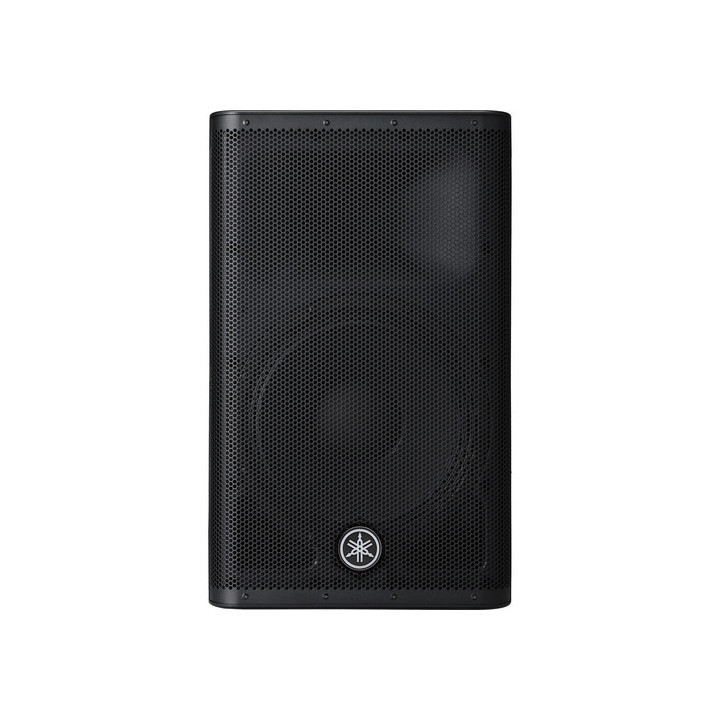

Yamaha DXR12MKII - 12 inches 2-way Powered Loudspeaker
785.76 CHF Inc. VAT
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
The Yamaha DXR12mkII is a 15" 1100 W 2-way active speaker that delivers clear sound and extremely high output levels in a discreet and durable design, ideal for PA applications requiring wide-band audio reproduction. The speaker features a robust ABS construction with a bass-reflex design to enhance low-frequency performance with reduced turbulence. The high-power 15" woofer and 1.75" compression tweeter deliver high-resolution sound with an extended frequency response and deep bass. The built-in DSP uses an FIR-X linear phase filter for ultra-smooth crossover, while the protection circuits optimise and protect the speaker's performance.

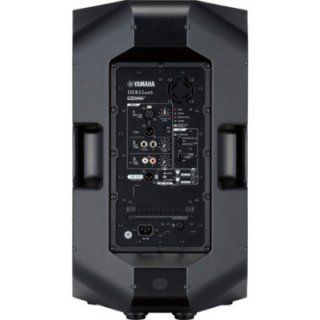

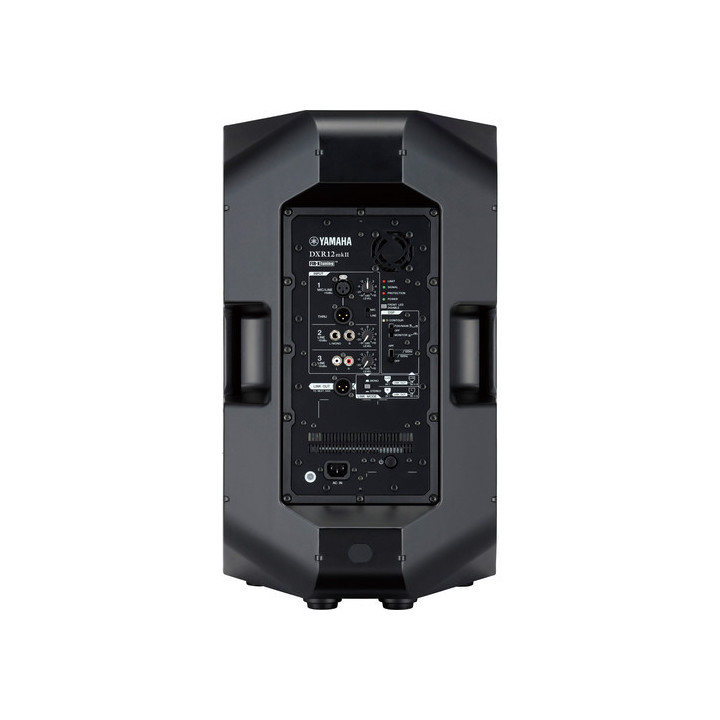

The speaker features a Class D bi-amplified design that provides a combined peak output power of 1100 W for powerful performance with minimal distortion. The built-in D-contour processor allows you to use the speaker as a main/front-of-house speaker or as a stage monitor. The rear panel includes XLR, 6.35 mm jack and RCA inputs, as well as XLR thru and link output connectors for broad compatibility with a variety of professional audio systems and devices.
The speaker can be placed on the floor or on stage, but also features convenient mounting options. A 35 mm dual pole cup socket allows you to mount the speaker on a subwoofer with a horizontal or 7° downward tilt, while M10 mounting points allow for suspended installation. An optional U-bracket is available separately for wall mounting. The Yamaha DXR12mkII comes with a power cable.
Features
- 12" powered speaker with 1100 W Class D amplifier
- Achieves high SPL output level with remarkable clarity throughout its frequency response
- 1.75" neodymium high-frequency compression driver and high-power 12" woofer combined for extended frequency response with powerful bass
- Frequency range: 52 Hz to 20 kHz
- Max SPL: 134 dB
- 48-bit precision DSP processing for clear, high-definition sound and intelligent dynamic control with built-in D-Contour
- Durable and compact ABS enclosure
- Symmetrical design for use as a stage monitor in mirror mode
FIR-X Tuning
- Proprietary sound processing technology using a linear phase FIR filter providing high-quality, high-resolution sound with a smooth frequency response unaffected by phase interference near the crossover point
- D-CONTOUR (Dynamic CONTOUR)
- D-CONTOUR is a multiband compressor that dynamically controls the level of each frequency range according to the application and characteristics of human hearing
- FOH/MAIN: For use as a main speaker
- MONITOR: Optimised for use as a stage monitor
- Mixing/LINK Functionality
- Features mixing functionality, allowing you to mix sounds by directly injecting three channel signals into the unit
- The LINK function allows you to easily set up a stereo or dual mono audio system using two DXR mkII units
- Advanced DSP-controlled protection system
- Powerful protection circuits ensure safe protection in the speaker unit, amplification unit and power supply unit
- The protection functionality promotes optimal performance from each component and maximum reliability without distortion even in demanding environments
|
|
Specifications |
|
|
PA speaker |
|
|
|
Configuration |
2-way active |
|
|
Enclosure type |
Bass-reflex enclosure |
|
|
Total power |
1100 W peak |
|
|
Amplifier power |
LF: |
|
|
Amplifier class |
Class D |
|
|
Drivers |
|
|
|
HF driver |
1 x 44.45 mm / 1.75" compression driver with 25 mm / 1" horn |
|
|
LF driver |
1 x Woofer 30.48 cm / 12" |
|
|
LF voice coil |
6.35 cm / 2.5" |
|
|
Magnet |
HF: |
|
|
Performance |
|
|
|
Frequency range |
52 Hz to 20 kHz -10 dB |
|
|
Maximum SPL |
134 dB SPL |
|
|
Coverage angle |
90° H x 60° V (horn) |
|
|
Input sensitivity |
Line input: |
|
|
Maximum input level |
Line input: |
|
|
I/O impedance |
XLR mic input: |
|
|
Protections |
AC coupling, overload active filter, DC fault |
|
|
Connectivity |
|
|
|
Audio I/O |
1 x XLR input |
|
|
Signal processing |
|
|
|
Active filter |
2.1 kHz |
|
|
Filters |
2 x High-pass: |
|
|
Dynamic processing |
Compression, multiband limiter |
|
|
Digital signal processing |
48-bit DSP: FIR filter, venue presets |
|
|
Maximum sampling rate/resolution |
48 kHz / 24 bits |
|
|
Power supply |
|
|
|
AC mains power supply |
Universal: |
|
|
Mains power connector |
1 x IEC Input |
|
|
Power consumption |
110 W |
|
|
Physical characteristics |
|
|
|
Mounting |
2 x M10 (top) |
|
|
Monitor angle |
50° |
|
|
Handles |
2 x on each side |
|
|
Cooling |
Fan (variable speed) |
|
|
Construction material |
ABS |
|
|
Dimensions |
362 x 601 x 350 mm / 14.3 x 23.7 x 13.8" |
|
|
Weight |
18.6 kg / 41 lb |
