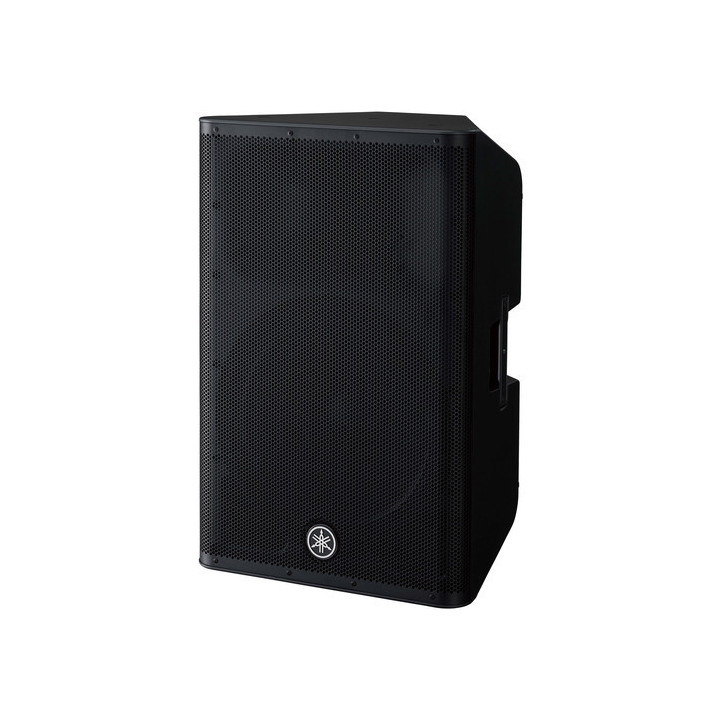

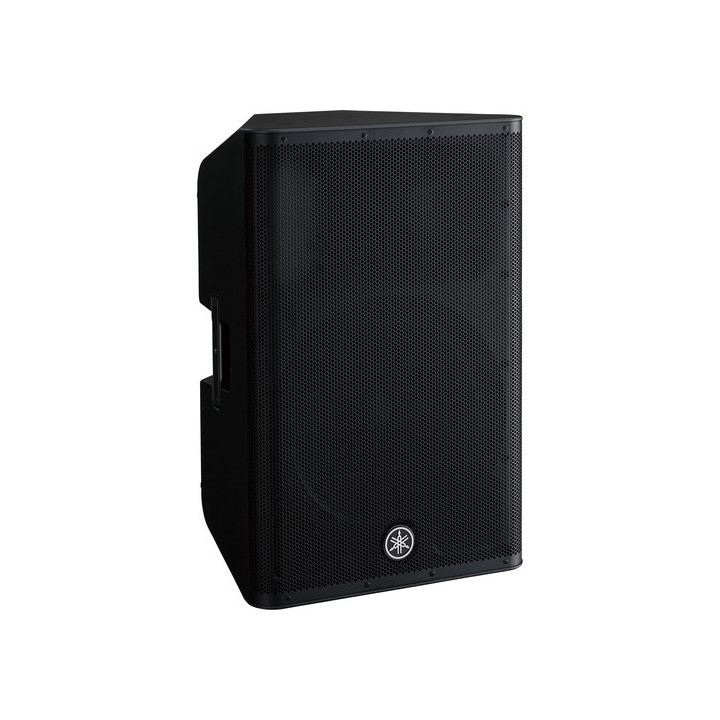

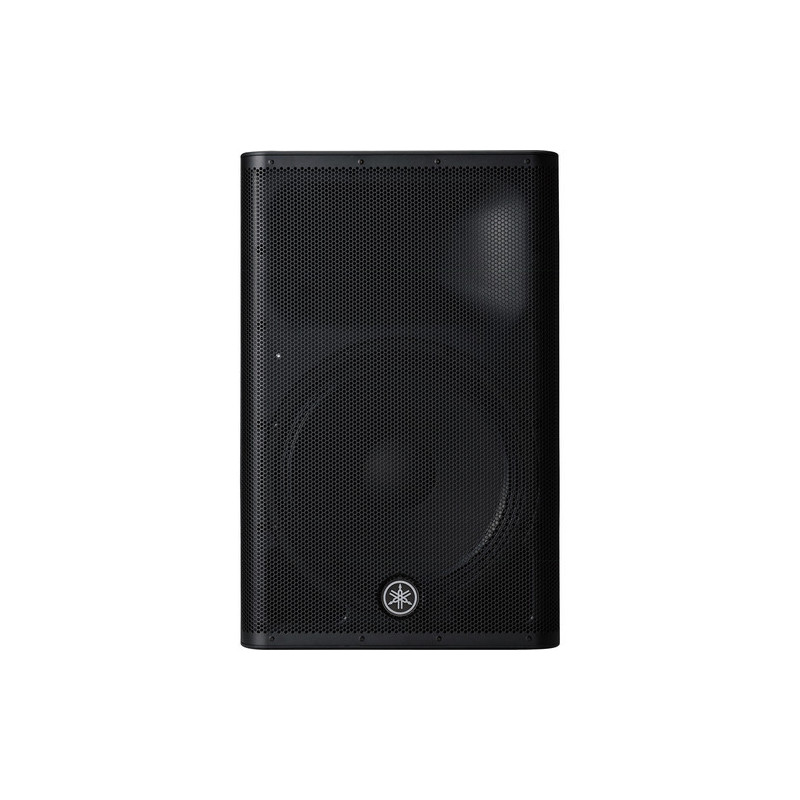

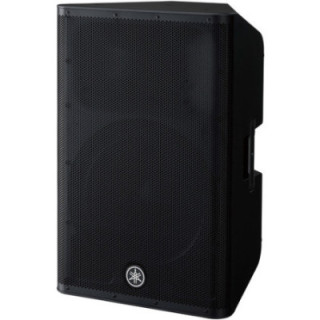

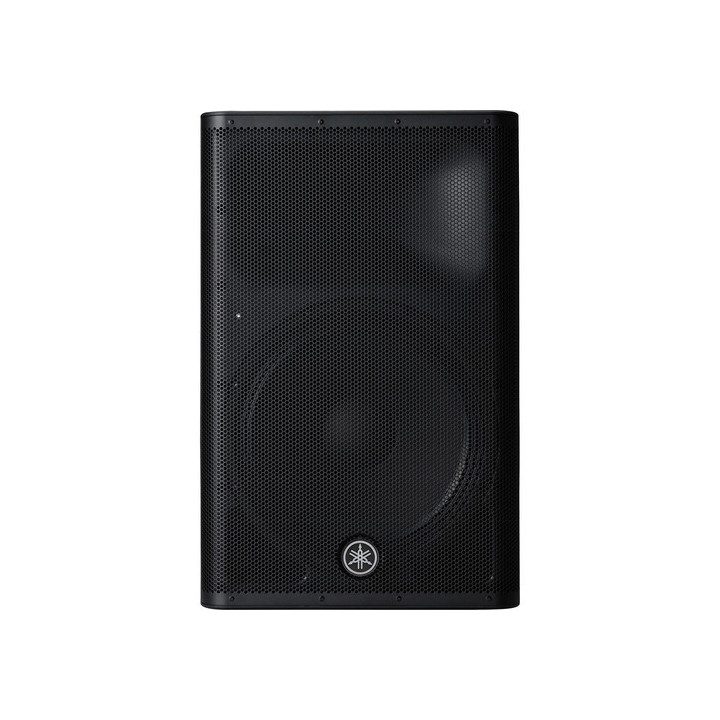

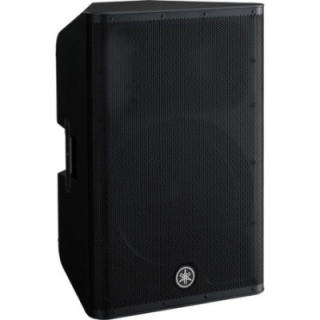

Yamaha DXR15MKII - 15 inches 2 way Powered Loudspeaker
876.13 CHF Inc. VAT
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks

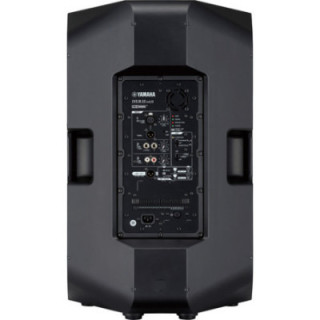

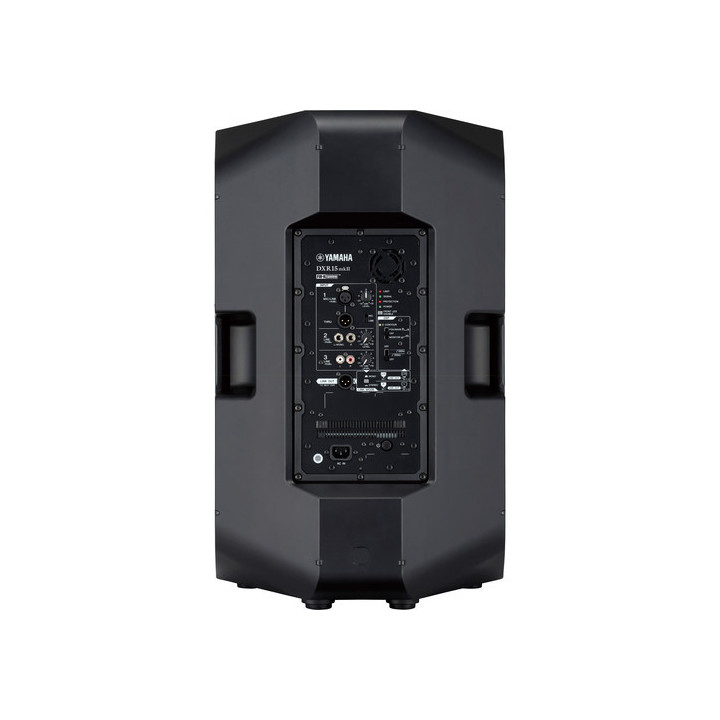

The Yamaha DXR15mkII is a 15" 1100 W 2-way active speaker that delivers clear sound and extremely high output levels in a discreet and durable design, ideal for live sound reinforcement applications requiring full-band audio reproduction. The speaker features a robust ABS construction with a bass-reflex design for improved low-frequency performance with reduced turbulence. The 15" high-power woofer and 1.75" compression tweeter deliver high-resolution audio with an extended frequency response and deep bass. The integrated DSP uses an FIR-X linear filter for ultra-smooth crossover filtering, while the protection circuits optimise and protect the speaker's performance., The speaker features a Class D bi-amplified design that provides a combined peak output power of 1100 W for powerful performance with minimal distortion. The integrated D-contour processor allows you to use the speaker as a main/front-of-house speaker or as a floor monitor. The rear panel includes XLR, 6.35 mm jack and RCA inputs, as well as XLR through and output connectors for broad compatibility with a variety of professional audio systems and devices., The speaker can be placed on the floor or on stage, but also offers convenient mounting options. A 35 mm dual pole cup allows the speaker to be mounted on a subwoofer in a horizontal or 7° tilted orientation relative to the floor, while M10 suspension points allow for flown installation. An optional U-bracket is available separately for wall mounting. The Yamaha DXR15mkII comes with a power cable., Features, - 15" powered speaker with 1100 W Class D amplifier, - Achieves high SPL levels with remarkable clarity across its entire frequency response, - A 1.75" neodymium high-frequency compression driver and 15" high-power woofer combine for an extended frequency response with powerful bass, - Bandwidth: 49 Hz to 20 kHz, - Max SPL: 134 dB, - Precision 48-bit DSP processing for clear, high-definition sound and integrated intelligent D-Contour dynamic control, - Durable and compact ABS enclosure, - Symmetrical design for floor monitor in mirror mode, - FIR-X tuning, - Proprietary sound processing technology using a linear-phase FIR filter delivering high-quality, high-resolution sound with a smooth frequency response unaffected by phase interference near the crossover point, - D-CONTOUR (Dynamic CONTOUR), - D-CONTOUR is a multiband compressor that dynamically controls the level of each frequency range according to the application and human auditory characteristics, - FOH/MAIN: For use as a main speaker, - MONITOR: Optimised for use as a floor monitor, - Mixing/LINK functionality, - Features a mixing function, allowing sound mixing by directly inputting three channel signals into the unit, - The LINK function allows you to easily set up a stereo or dual mono sound system using two DXR mkII, - Advanced DSP-controlled protection system, - Powerful protection circuits ensure safe protection in the speaker unit, amplifier unit and power supply unit, - The protection functionality promotes optimal performance of each component and optimal reliability without distortion even in demanding environments
|
|
Specifications |
|
|
PA speaker |
|
|
|
Configuration |
2-way active |
|
|
Speaker type |
Bass-reflex speaker |
|
|
Total power |
1100 W peak, 700 W RMS |
|
|
Amplifier rated power |
LF :, 950 W peak, 600 W RMS, HF :, 150 W peak, 100 W RMS |
|
|
Amplifier class |
Class D |
|
|
Speakers |
|
|
|
High-frequency driver |
1 x 1.75" / 44.45 mm compression driver with 1" / 25 mm horn |
|
|
Low-frequency driver |
1 x 15" / 38.1 cm woofer |
|
|
LF voice coil |
2.5" / 6.35 cm |
|
|
Magnet |
HF :, Neodymium, LF :, Ferrite |
|
|
Performance |
|
|
|
Frequency response |
49 Hz to 20 kHz -10 dB |
|
|
Maximum SPL |
134 dB SPL |
|
|
Coverage angle |
90° H x 60° V (Horn) |
|
|
Input sensitivity |
Line input :, +1 dBu (Max), Mic input :, -32 dBu (Max), Line input :, -13 dBu (Max), Mic input :, -22 dBu (Centre), Line input :, +11 dBu (Centre), Line input :, -3 dBu (Centre) |
|
|
Maximum input level |
Line input :, +24 dBu (Balanced), Mic input :, +20 dBu (Balanced), Line input :, +16 dBu (Unbalanced) |
|
|
I/O impedance |
XLR mic input :, 12 kilohms (Balanced, Mono), XLR line input :, 8 kilohms (Balanced, Mono), TRS 6.35 mm jack line input :, 40 kilohms (Unbalanced, Stereo), 20 kilohms (Unbalanced, Mono) |
|
|
Protection |
AC coupling, crossover filter overload, DC fault |
|
|
Connectivity |
|
|
|
Audio inputs/outputs |
1 x XLR input, 2 x 6.35 mm jack inputs, 2 x RCA inputs, 1 x XLR through output, 1 x XLR link output |
|
|
Signal processing |
|
|
|
Filter |
2.1 kHz |
|
|
Filters |
2 x high-pass :, 100 Hz, 24 dB/Octave, 120 Hz, 24 dB/Octave |
|
|
Dynamic processing |
Compression, multiband limiter |
|
|
Digital signal processing |
48-bit DSP: FIR filter, room settings |
|
|
Maximum sampling frequency/resolution |
48 kHz / 24 bits |
|
|
Power supply |
|
|
|
Mains power input |
Universal :, 100 to 240 VAC, 50 / 60 Hz |
|
|
Mains power connector |
1 x IEC input |
|
|
Power consumption |
110 W |
|
|
Physical characteristics |
|
|
|
Mounting |
2 x M10 (Top), 1 x M10 (Rear), 1 x pole mount socket 1.38" / 35 mm (Dual angle) |
|
|
Monitoring angle |
50° |
|
|
Handles |
2 on each side |
|
|
Cooling |
Fan (Variable speed) |
|
|
Construction material |
ABS |
|
|
Dimensions |
17.5 x 27.6 x 15" / 445 x 700 x 380 mm |
|
|
Weight |
48.1 lb / 21.8 kg |
