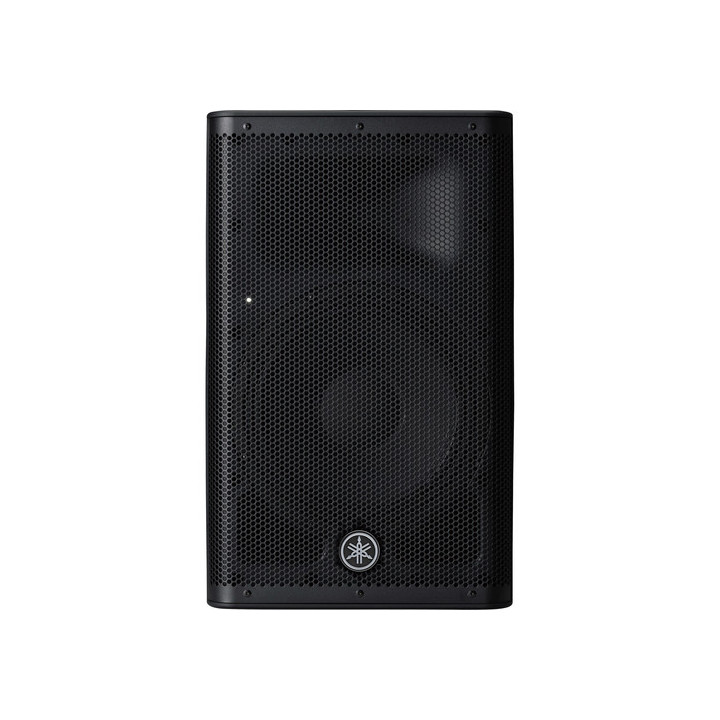

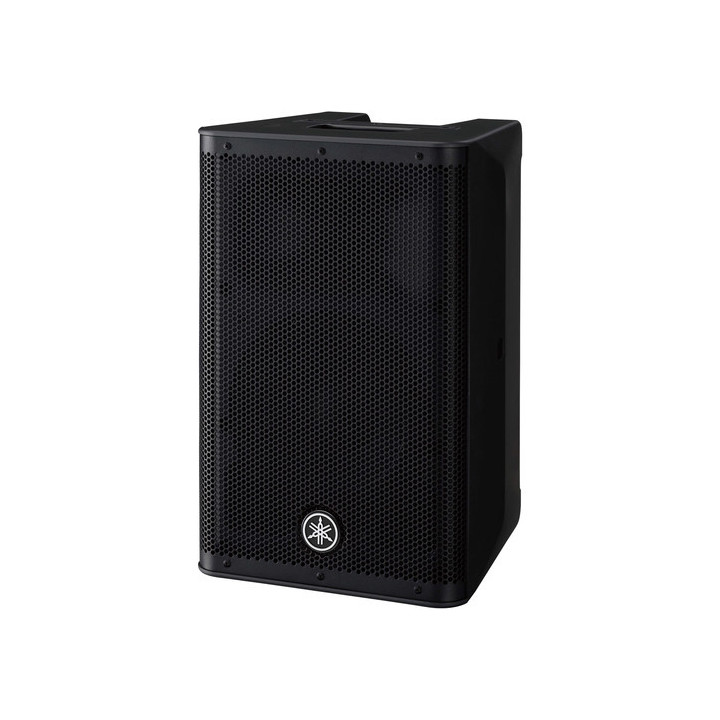

Yamaha DXR8MKII - 8 inches 2-way Powered Loudspeaker
632.60 CHF Inc. VAT
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
The Yamaha DXR8mkII is a 15" 1100W 2-way active speaker that delivers clear sound and extremely high output levels in a discreet and durable design, ideal for live sound reinforcement applications requiring wide-band audio reproduction. The speaker features a robust ABS construction with a bass-reflex design for improved bass performance with reduced turbulence. The high-power 15" woofer and 1.75" compression tweeter deliver high-resolution audio with a wide frequency response and deep bass. The built-in DSP uses an FIR-X linear phase filter for ultra-smooth filtering, while protection circuits optimise and protect the speaker's performance.,

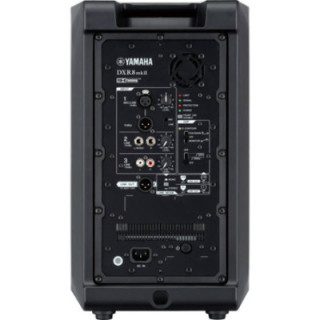

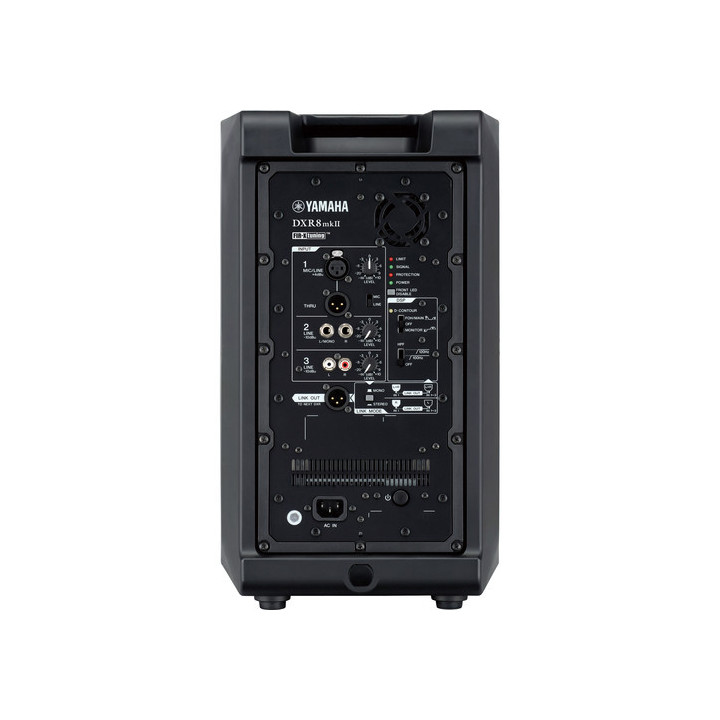

The speaker features a Class D bi-amplified design that provides a combined peak output power of 1100W for powerful performance with minimal distortion. The built-in D-contour processor allows you to use the speaker as a main/front-of-house speaker or as a stage monitor. The rear panel features XLR, 6.35 mm jack and RCA inputs, as well as XLR through and output connectors for broad compatibility with a variety of professional audio systems and devices.,
The speaker can be placed on the floor or on stage, but also features useful mounting options. A dual 35 mm pole mount allows you to mount the speaker on a subwoofer with a horizontal or 7° downward tilt, while M8 rigging points allow for flown installation. An optional U-bracket is available separately for wall mounting. The Yamaha DXR8mkII comes with a power cable.,
Features,
- 8" powered speaker with 1100W Class D amplifier,
- Achieves a high SPL output level with remarkable clarity across its entire frequency response,
- 1.75" neodymium high-frequency compression driver and high-power 8" woofer combined for a wide frequency response with powerful bass,
- Frequency range: 57 Hz to 20 kHz,
- Max SPL: 130 dB,
- 48-bit precision DSP processing for clear high-definition sound and integrated intelligent D-Contour dynamic control,
- Durable and compact ABS enclosure,
- Symmetrical design for use in mirror mode as a stage monitor,
- FIR-X tuning,
- Proprietary sound processing technology using a linear phase FIR filter delivering high-quality, high-resolution sound with a smooth frequency response unaffected by phase interference near the crossover point,
- D-CONTOUR (Dynamic Contour),
- D-CONTOUR is a multiband compressor that dynamically controls the level of each frequency range according to the application and characteristics of human hearing,
- FOH/MAIN: For use as a main speaker,
- MONITOR: Optimised for use as a stage monitor,
- Mixing/LINK functionality,
- Features mixing capabilities, allowing you to mix sounds by directly inputting three channel signals into the unit,
- The LINK function allows you to easily set up a stereo or dual mono audio system using two DXR mkII units,
- Advanced DSP-controlled protection system,
- Powerful protection circuits ensure safe protection within the speaker unit, amplifier unit and power supply unit,
- The protection functionality promotes optimal performance from each component and optimal reliability without distortion even in demanding environments
|
|
Specifications |
|
|
PA speaker |
|
|
|
Configuration |
2-way active |
|
|
Speaker type |
Bass-reflex enclosure |
|
|
Total power |
1100 W peak, |
|
|
Rated amplifier power |
LF:, |
|
|
Amplifier class |
Class D |
|
|
Loudspeakers |
|
|
|
Tweeter |
1 x 1.75" / 44.45 mm Compression driver with 1" / 25 mm throat |
|
|
Low-frequency loudspeaker |
1 x Woofer 8" / 20.32 cm |
|
|
LF voice coil |
2" / 5.08 cm |
|
|
Magnet |
HF:, |
|
|
Performance |
|
|
|
Frequency range |
57 Hz to 20 kHz -10 dB |
|
|
Maximum SPL |
130 dB SPL |
|
|
Coverage angle |
90° H x 60° V (Horn) |
|
|
Input sensitivity |
Line input:, |
|
|
Maximum input level |
Line input:, |
|
|
Input/output impedance |
XLR mic input:, |
|
|
Protection |
AC coupling, Active filter overload, DC fault |
|
|
Connectivity |
|
|
|
Audio inputs/outputs |
1 x XLR input, |
|
|
Signal processing |
|
|
|
Active crossover |
2.4 kHz |
|
|
Filters |
2 x High-pass:, |
|
|
Dynamic processing |
Compression, Multiband limiter |
|
|
Digital signal processing |
48-bit DSP: FIR filter, Venue settings |
|
|
Maximum sampling frequency/resolution |
48 kHz / 24 bit |
|
|
Power supply |
|
|
|
AC mains power supply |
Universal:, |
|
|
Mains power connector |
1 x IEC input |
|
|
Power consumption |
90 W |
|
|
Physical |
|
|
|
Mounting |
2 x M8 (top), |
|
|
Handles |
1 x Top |
|
|
Cooling |
Fan (variable speed) |
|
|
Construction material |
ABS |
|
|
Dimensions |
11 x 18 x 11" / 280 x 458 x 280 mm |
|
|
Weight |
28.2 lb / 12.8 kg |
|
|
Mounting |
2 x M8 (top), |
