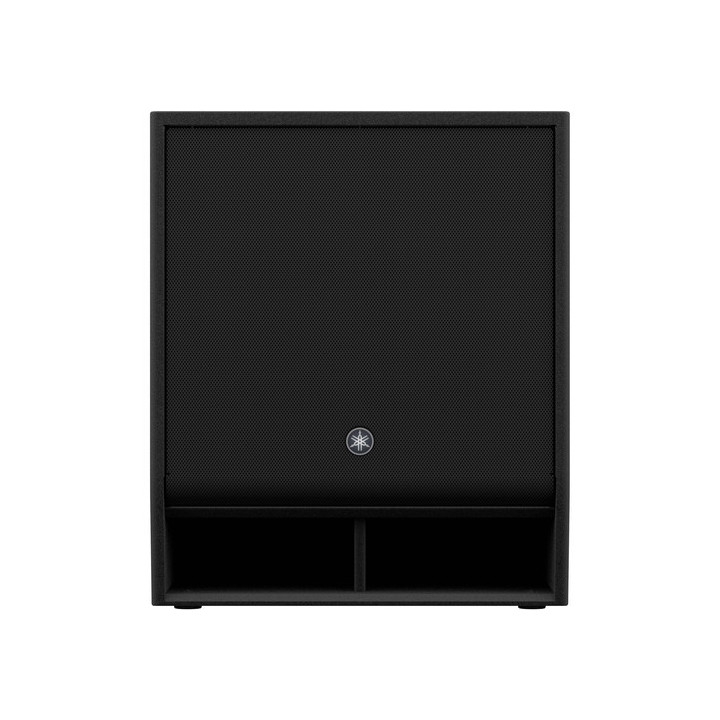

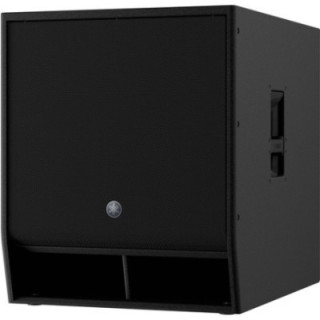

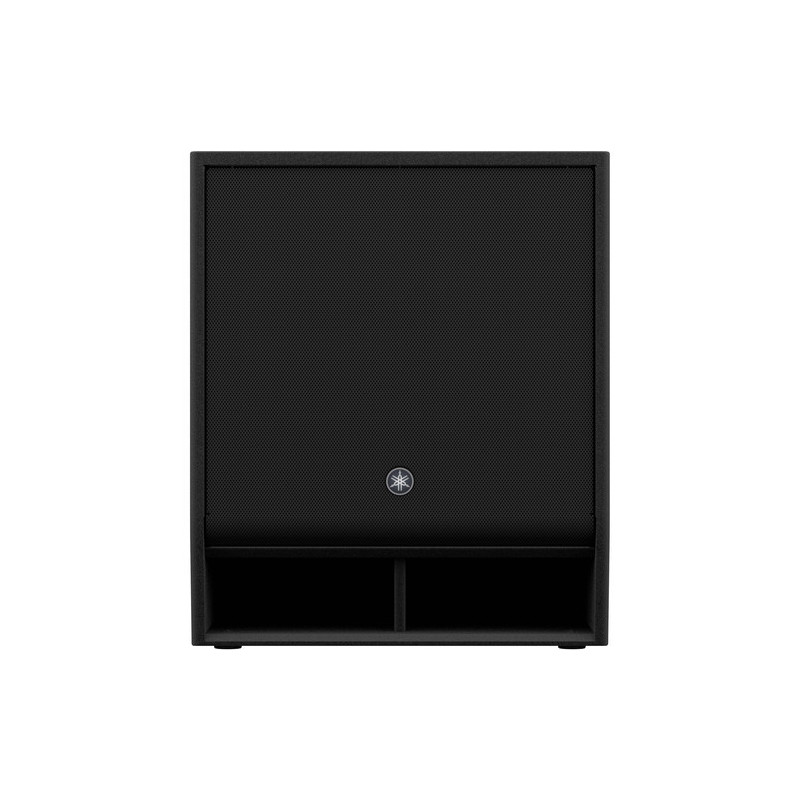

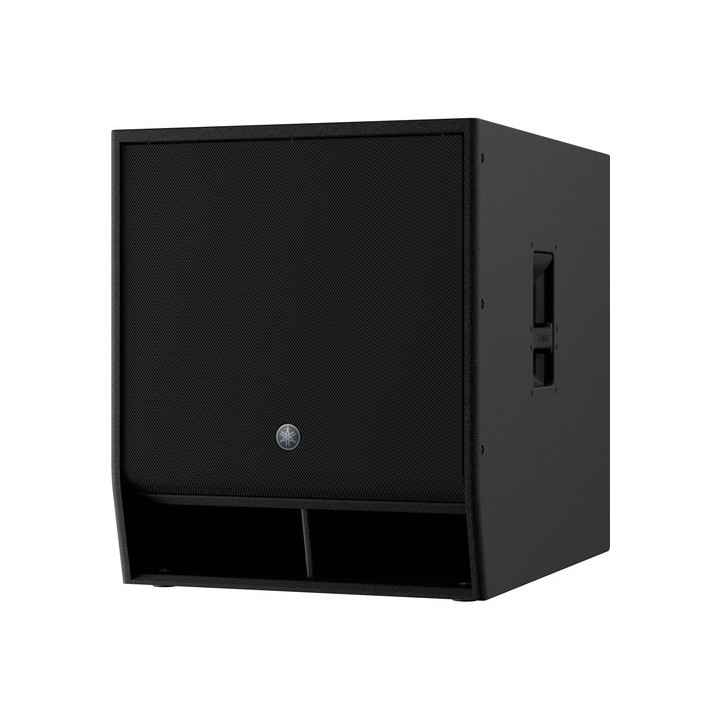

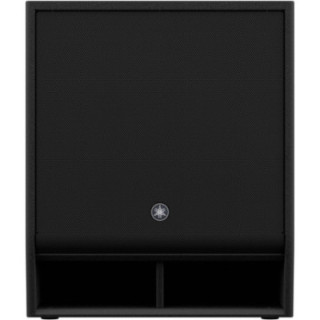

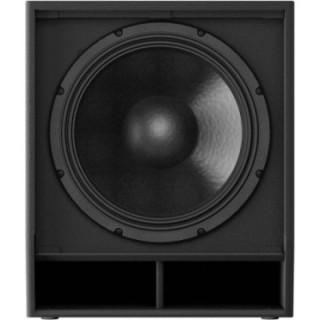

Yamaha DXS18XLF - 1600W 18 inches Powered Subwoofer, black
1,717.06 CHF Inc. VAT
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks

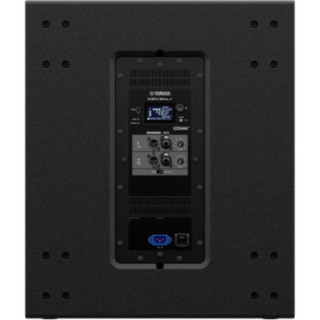

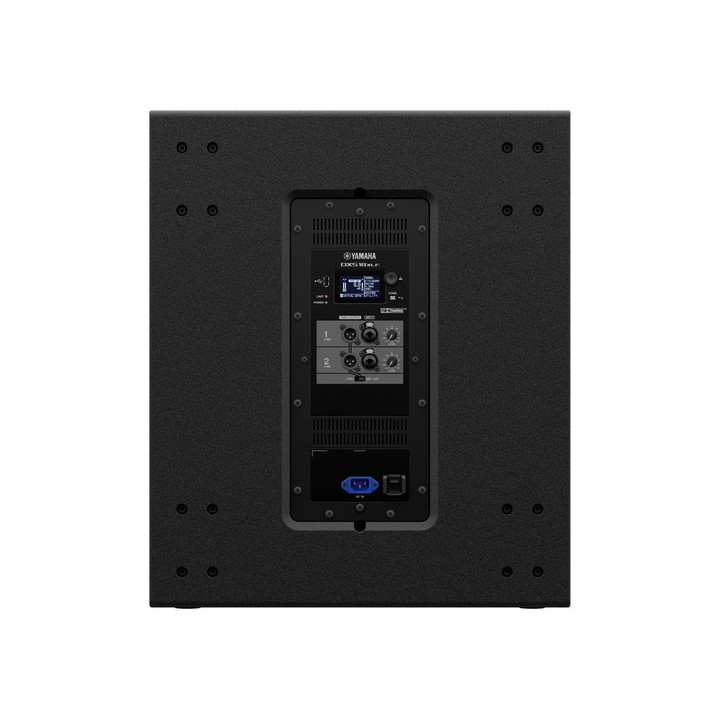

The Yamaha DXS18XLF black is a powered subwoofer designed to extend the low frequencies of full-range speakers and is perfectly suited for use with any powered speaker in the DZR series. The 1600W Class D amplifier powers the 18" woofer to provide a frequency range of 30 to 150 Hz (-10 dB) with a maximum sound pressure level of 136 dB.nnThe built-in 96 kHz D-XSUB LF processor offers total bass management. Normal mode is ideal for a balanced low-frequency response, while Boost mode provides tighter and more focused bass with a bit more punch. The Xtended LF mode lowers the bass frequencies even further for a big sound in the low end. When using two or more subwoofers, selecting Cardioid mode can effectively reduce the volume on stage, while increasing the low-frequency output directed towards the audience.nnThe rear panel offers two XLR-1/4" combo inputs with XLR thru/out outputs and dedicated level controls. A USB port allows for system updates and preset configuration and saving. The Yamaha DXS18XLF comes with a standard IEC power cord.nnFeaturesn- Powered bass-reflex subwoofern- Woofer: 18" with 4" voice coiln- Ideal for extending low frequencies of all full-range speakersn- Maximum sound pressure level: 136 dBn- Frequency range (-10 dB): 30 to 150 Hzn- High-power 1600W Class D amplifier modulen- Lightweight yet highly durable plywood cabinet with premium polyurea coatingnnD-XSUB LF Processingn- DXS XLF subwoofers are driven by powerful 96 kHz DSP processors and use a dynamic equalisern- Built-in D-XSUB LF processing offers total low-frequency managementn- Normal mode: Set for an ideally balanced low-frequency responsen- Boost mode: Provides tighter and more focused bass with a bit more punchn- Xtended LF mode: Lowers the bass frequencies even further for a big sound in the low endn- Cardioid mode:n- Works with two or more subwoofersn- Effectively reduces sound pressure on stage while increasing low-frequency output directed towards the audiencen- Results in a much cleaner on-stage monitoring environmentnnDSP Protectionn- DSP protection functions for maximum output and component longevityn- Active subwoofers ensure that the combination of transducer and amplifier is matched and optimised for the best possible performancen- During development, Yamaha measured and tested the durability of each transducer and the overall amplifier output to define optimal limiting points using precise DSP controln- Using many of the same protection functions used in high-end professional power amplifiers, Yamaha's DSP constantly monitors the status of power supply, power amplifiers, transducers, and signal levels to protect each component to maintain optimal performance while extending the life and usability of components
|
|
Specifications |
|
|
PA speaker |
|
|
|
Configuration |
Active subwoofer |
|
|
Speaker type |
Bass-reflex subwoofer |
|
|
Total power |
1600 W peaknttt1200 W RMS |
|
|
Amplifier class |
Class D |
|
|
Speakers |
|
|
|
Low-frequency speaker |

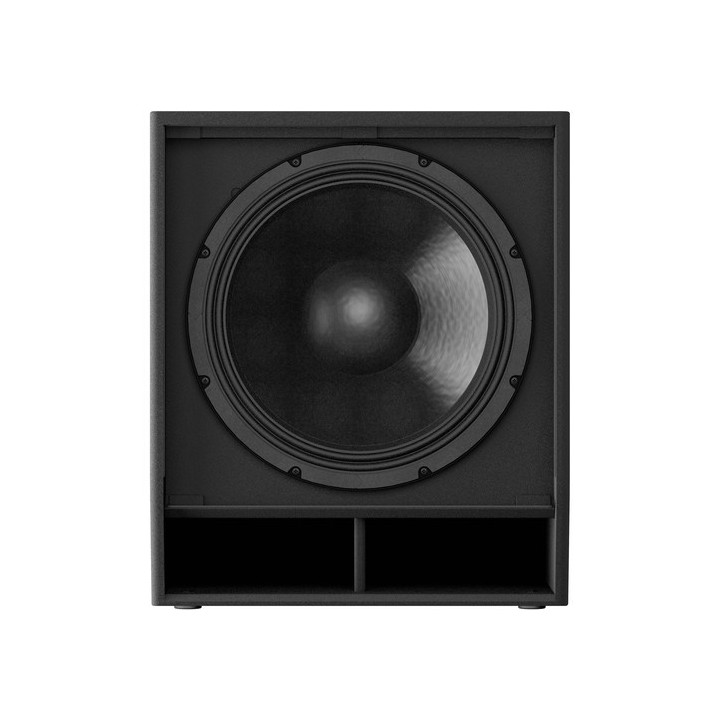

1 x 18" / 457.2 mm Woofer |
|
|
Low-frequency voice coil |
4" / 101.6 mm |
|
|
Magnet |
Ferrite |
|
|
Performance |
|
|
|
Frequency range |
30 Hz to 150 Hz -10 dB |
|
|
Maximum sound pressure level |
136 dB |
|
|
Maximum input level |
Line input:nttt+24 dBu |
|
|
Input/output impedance |
Input:nttt20 kilohms |
|
|
Connectivity |
|
|
|
Audio Inputs/Outputs |
2 x XLR-1/4" combo balanced/unbalanced 3-pin female inputsnttt2 x XLR balanced 3-pin male outputs |
|
|
USB |
1 x USB Type-A (External memory, Host connection) |
|
|
Signal processing |
|
|
|
Maximum sampling rate/resolution |
96 kHz |
|
|
Power |
|
|
|
AC power supply |
Universal:nttt100 to 240 VAC, 50 / 60 Hz |
|
|
AC power connector |
1 x IEC (lockable) |
|
|
Power consumption |
40 W (Idle)nttt180 W (1/8 power) |
|
|
Physical characteristics |
|
|
|
Mounting |
1 x 1.4" / 35 mm pole socket (Top)nttt1 x M20 pole socket (Top) |
|
|
Handles |
1 x On each side |
|
|
Cooling |
Fan (Variable speed) |
|
|
Construction material |
Plywood |
|
|
Dimensions |
21.7 x 25.9 x 28.3" / 550 x 657 x 720 mm |
|
|
Weight |
107.8 lb / 48.9 kg |
