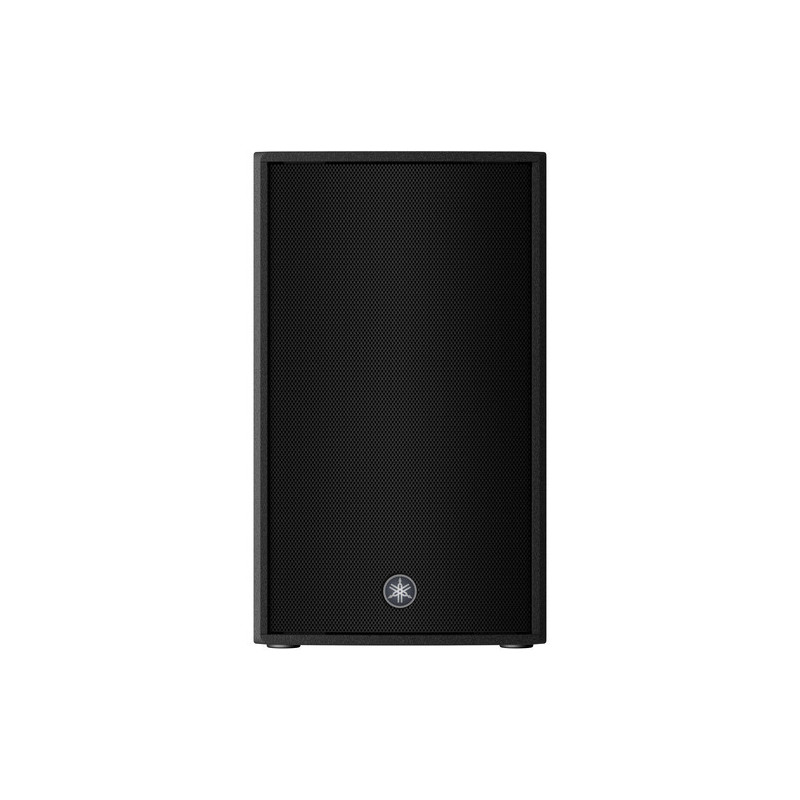

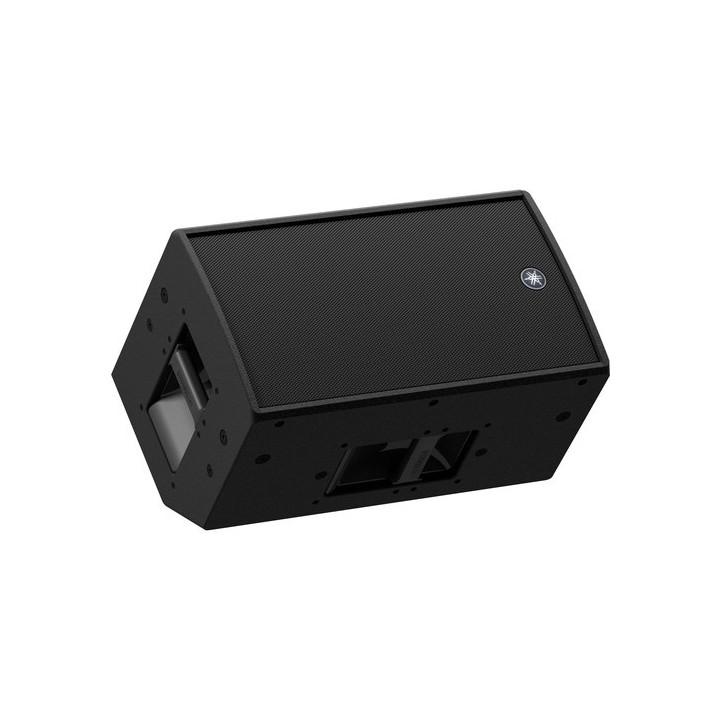

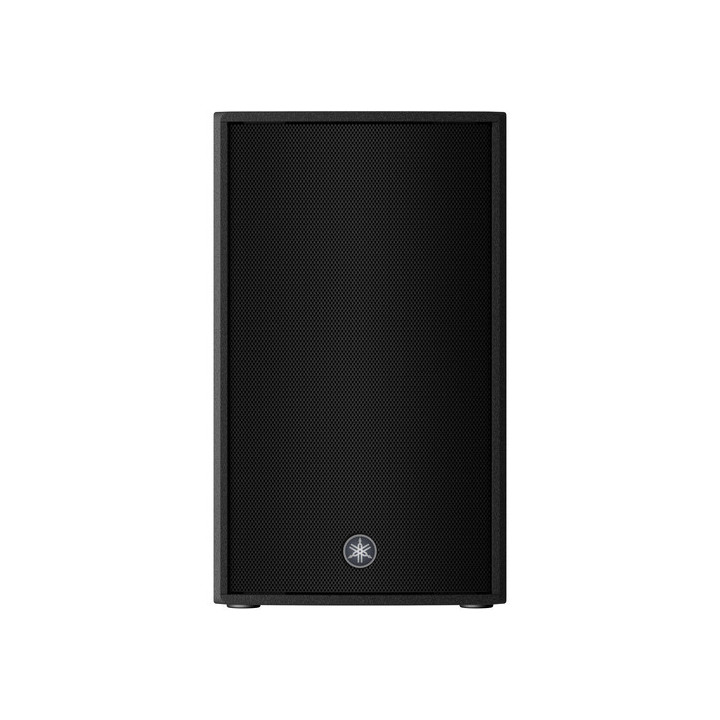

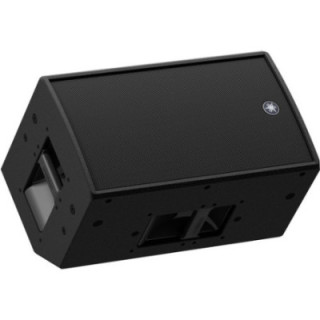

Yamaha DZR10 - 2 way powered loudspeaker
1,267.10 CHF Inc. VAT
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
The Yamaha DZR10 black is a 2-way powered speaker designed for front-of-house/main and stage monitor applications. The 2000 W bi-amplified Class D amplifier powers the 10" woofer and the 2" compression driver, which combine to deliver a frequency response of 44 Hz to 20 kHz (-10 dB) with a maximum SPL of 137 dB. The rotatable horn allows vertical or horizontal mounting to better suit the acoustic dimensions of a room. The constant-directivity horn has been designed to provide uniform and consistent coverage over the intended dispersion area, minimising the common attenuation of conventional horns.
The built-in 96 kHz DSP processor uses advanced FIR filters for crossover filtering and corrective equalisation. With FIR filters, the DZR10 is capable of producing a smooth frequency response for remarkable clarity and sound imaging without phase distortion. The built-in LCD screen allows users to easily navigate through the various DSP functions, load presets and adjust the parametric equaliser, delay and routing. D-CONTOUR is an intelligent multi-band compressor that ensures the DZR10's sound remains consistent and clear regardless of the intensity of use. FOH/Main mode emphasises low frequencies to compensate for the bass typically lost when speakers are flown, while Monitor mode is optimised for stage monitor use by attenuating problematic low frequencies that can be amplified by floor reflection and by smoothing a wide frequency range to provide the clarity demanded by professionals for their stage monitors.

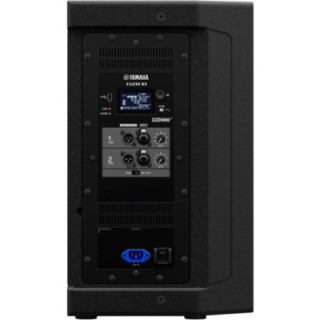

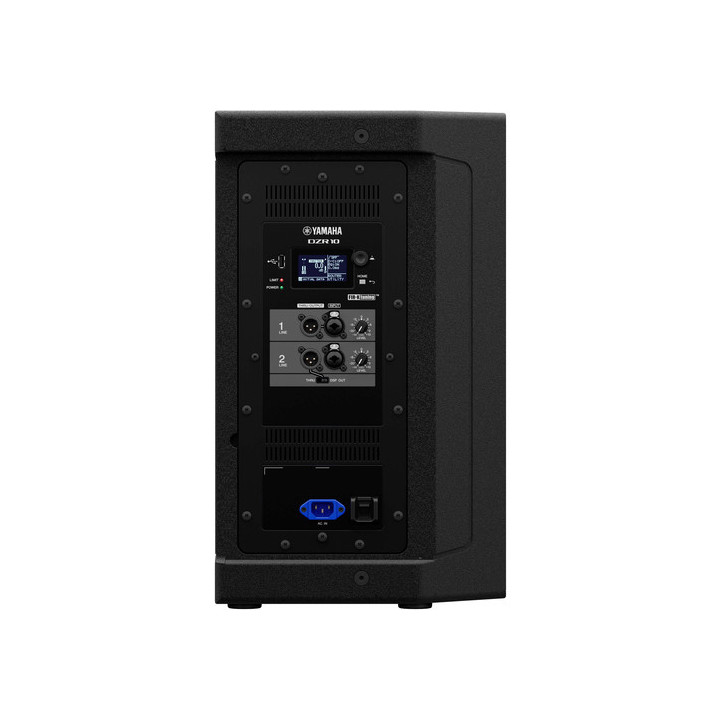

The rear panel features two XLR-1/4" combo inputs with XLR thru/out outputs and dedicated level controls. A USB port allows system updates and preset configuration and storage. The Yamaha DZR10 comes supplied with a standard IEC power cable.
Features
- 2-way powered speaker
- HF: 2"
- LF: 10"
- Ideal for FOH/main or stage monitor applications
- Maximum SPL: 137 dB
- Frequency response (-10 dB): 44 Hz to 20 kHz
- 2000 W high-power Class D amplifier module
- Stage monitor setting
- Lightweight yet highly durable plywood cabinet with premium Polyurea coating

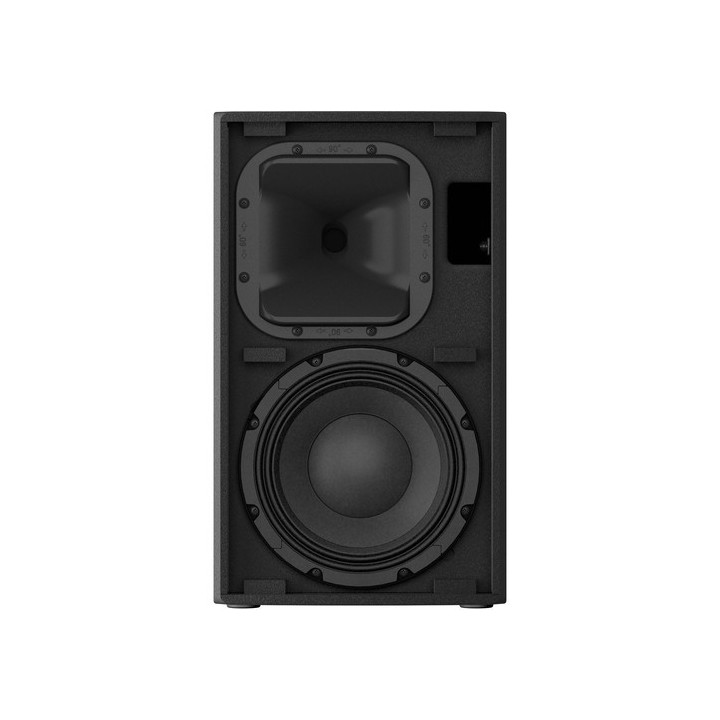

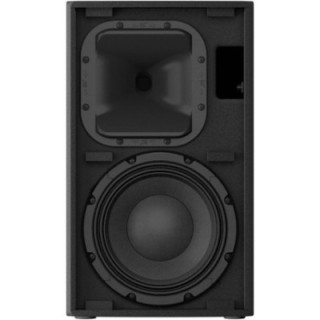

- Rotatable horn
- Various U-bracket mounting options (UB-DZR) for flying allow highly flexible speaker installation and placement
Advanced FIR-X Tuning
- 96 kHz DSP processors help focus the DZR10's output power into a high-resolution sound with ultra-low latency
- Yamaha's advanced FIR-X tuning significantly enhances their proprietary FIR-X technology, which uses linear-phase FIR filters for crossover filtering and corrective equalisation
- By using FIR filters, Yamaha has been able to achieve a very smooth frequency response for remarkable clarity and sound imaging without phase distortion
- Precise EQ filtering is also provided for fine adjustment to achieve optimal clarity and SPL without signal degradation
- A built-in LCD screen allows users to easily navigate through the various DSP functions, load presets and make precise adjustments to the parametric equaliser, delay and routing
- Store up to 8 user presets to save your own parameter adjustments, or use factory presets optimised for combined use of the DZR and DXS XLF series
- Users can easily transfer saved settings to a USB drive
D-Contour
- D-CONTOUR is an intelligent multi-band compressor that ensures your DZR's sound remains consistent and clear regardless of the intensity of use
- By constantly monitoring the output of multiple frequency bands and applying optimal equalisation adjustments for each, even the highest output levels maintain exceptional clarity and musicality
- D-CONTOUR offers settings for FOH/Main and Monitor modes
- FOH/Main: Emphasises low frequencies to compensate for the bass typically missing when speakers are used in a flown configuration
- Monitor: Optimised for stage monitor use by attenuating problematic low frequencies that can be amplified by floor reflection, and by smoothing a wide frequency range to help provide clarity
- Presets were created by conducting countless listening tests with qualified sound engineers to ensure consistent sound with low distortion at any output level
DSP Protection
- DSP protection functions for maximum output and component longevity
- Active speakers ensure that the combination of transducers and amplifiers is matched and optimised for the best possible performance
- During development, Yamaha measured and tested the durability of each transducer and the overall amplifier output to define optimal limiting points using precise DSP control
- By using many protection functions identical to those used in high-end professional amplifiers, Yamaha's DSP constantly monitors the status of the power supply, amplifiers, transducers and signal levels to protect each component in order to maintain optimal performance whilst extending component lifespan and ease of use
|
|
Specifications |
|
|
PA speaker |
|
|
|
Configuration |
2-way active |
|
|
Speaker type |
Bass reflex speaker |
|
|
Total power |
2000 W peak |
|
|
Amplifier rated power |
LF : |
|
|
Amplifier class |
Class D |
|
|
Speakers |
|
|
|
HF speaker |
1 x Titanium compression driver with 1" / 25.4 mm horn |
|
|
HF voice coil |
2" / 50.8 mm |
|
|
LF speaker |
1 x 10" / 25.4 cm woofer |
|
|
LF voice coil |
3" / 76.2 mm |
|
|
Magnet |
HF : |
|
|
Performance |
|
|
|
Frequency response |
44 Hz to 20 kHz -10 dB |
|
|
Maximum SPL |
137 dB |
|
|
Coverage angle |
90° H x 60° V (Rotatable horn) |
|
|
Maximum input level |
Line input : |
|
|
I/O impedance |
Input : |
|
|
Connectivity |
|
|
|
Audio I/O |
2 x Balanced/unbalanced female XLR-1/4" 3-pin combo inputs |
|
|
USB |
1 x USB Type-A (External memory, host connection) |
|
|
Signal processing |
|
|
|
Crossover frequency |
1.8 kHz |
|
|
Maximum sample rate/resolution |
96 kHz |
|
|
Power supply |
|
|
|
AC mains power supply |
Universal : |
|
|
Mains power connector |
1 x IEC (lockable) |
|
|
Power consumption |
45 W (idle) |
|
|
Physical characteristics |
|
|
|
Mounting |
2 x Pole mount socket 1.4" / 35 mm (Dual angle, bottom) |
|
|
Monitor angle |
50° |
|
|
Handles |
1 x Each side |
|
|
Cooling |
Fan (Variable speed) |
|
|
Construction material |
Plywood |
|
|
Dimensions |
12.4 x 21.1 x 13.6" / 315 x 535.9 x 345.4 mm |
|
|
Weight |
39.5 lb / 17.9 kg |
