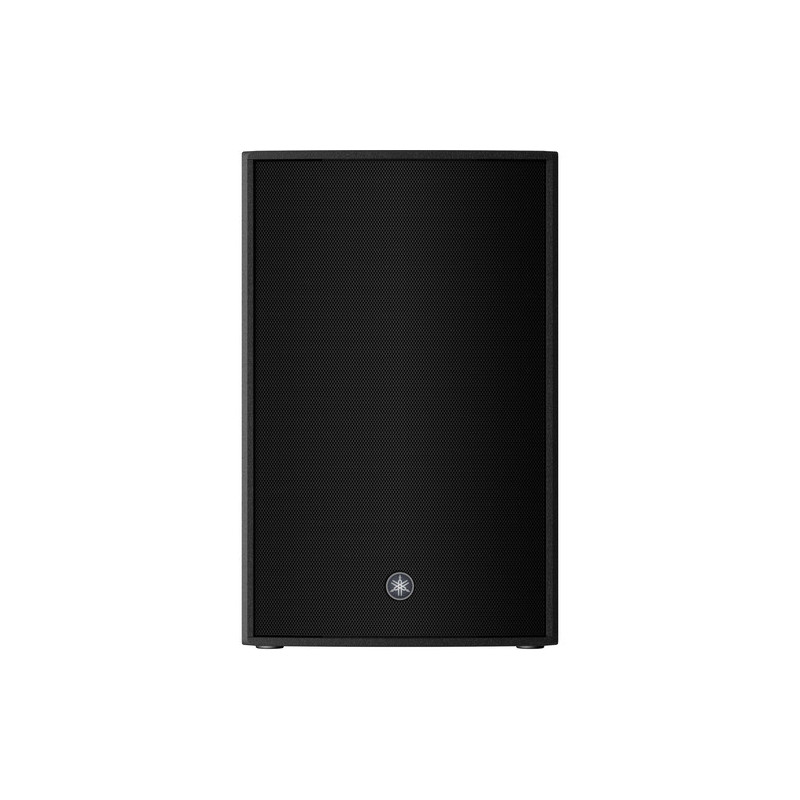

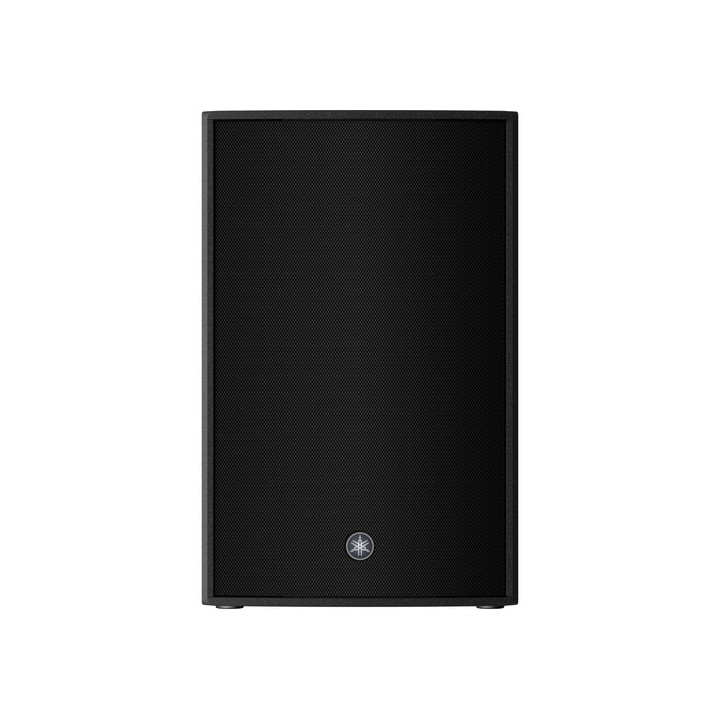

Yamaha DZR12 - 2 way powered loudspeaker
1,387.92 CHF Inc. VAT
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks

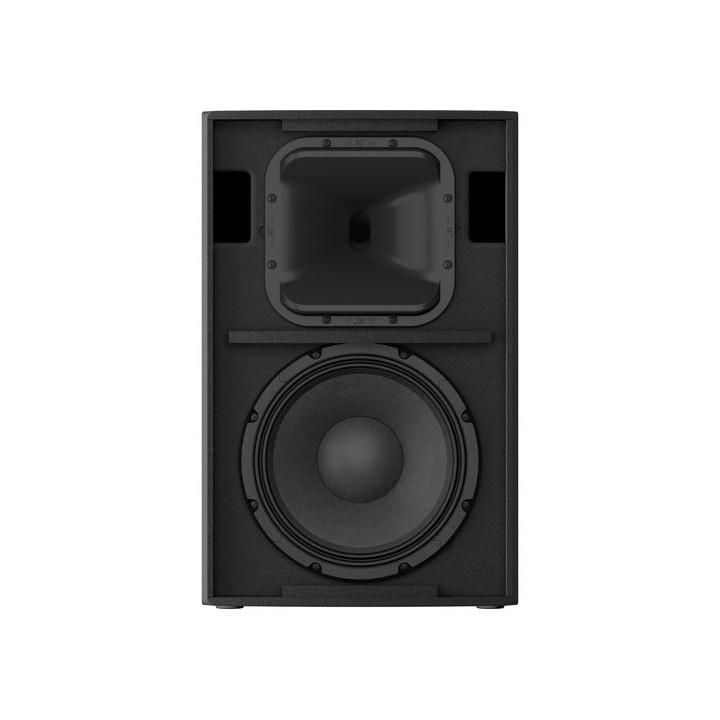

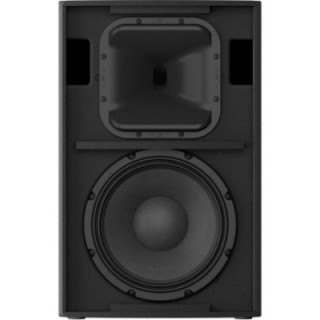

The Yamaha DZR12 black is a 2-way active speaker designed for FOH and stage monitor applications. The bi-amplified Class-D 2000W amplification powers the 12" woofer and 2" compression driver, which combine to offer a frequency range of 39 Hz to 20 kHz (-10 dB) with a maximum SPL of 139 dB. The rotatable horn allows for vertical or horizontal mounting to better adapt to a room's acoustic dimensions. The constant directivity horn was designed to provide uniform and balanced coverage over the intended coverage area, minimising the common attenuation in conventional horn designs., The built-in 96 kHz DSP processor uses advanced FIR filters for crossover and corrective equalisation. With FIR filters, the DZR12 is capable of producing a smooth frequency response for remarkable clarity and sound imaging without phase distortion. The onboard LCD screen allows users to easily navigate through various DSP functions, load presets, and adjust parametric EQ, delay, and routing. D-CONTOUR is an intelligent multi-band compressor that ensures the DZR12's sound remains consistent and clear regardless of the intensity of use. The FOH/Main mode boosts low frequencies to compensate for bass typically lost when speakers are flown, while the Monitor mode is optimised for stage monitor use by attenuating problematic low frequencies that can be amplified by floor reflection, and smoothing a wide range of frequencies to offer the clarity demanded by professionals from their stage monitors., The rear panel offers two XLR-1/4" combo inputs with XLR thru/out outputs and dedicated level controls. A USB port allows for system updates and preset configuration and saving. The Yamaha DZR12 comes with a standard IEC power cord., Features, - 2-way active speaker, - HF: 2", - LF: 12", - Ideal for FOH or stage monitor applications, - Maximum SPL: 139 dB, - Frequency range (-10 dB): 39 Hz to 20 kHz, - High-power 2000W Class-D amplification module, - Stage monitor setting allows for mirror configuration, - Lightweight yet highly durable plywood cabinet with premium grade Polyurea coating, - Rotatable horn, Advanced FIR-X tuning, - 96 kHz DSP processors help focus the DZR12's output power into high-resolution sound with ultra-low latency, - Yamaha's Advanced FIR-X tuning significantly improves their proprietary FIR-X technology that uses linear phase FIR filters for crossover and corrective equalisation, - By using FIR filters, Yamaha was able to achieve very smooth frequency response for remarkable clarity and sound imaging without phase distortion, - Precise EQ filtering is also provided for fine adjustment to achieve ideal clarity and SPL without signal degradation, - An onboard LCD screen allows users to easily navigate through various DSP functions, load presets, and make precise adjustments to PEQ, delay, and routing, - Store up to 8 user presets to save your own parameter adjustments, or use the optimised factory presets dedicated to using the DZR and DXS XLF series in combination, - Users can easily transfer saved settings to a USB drive, D-Contour, - D-CONTOUR is an intelligent multi-band compressor that ensures your DZR's sound remains consistent and clear regardless of the intensity of use, - By constantly monitoring the output of multiple frequency bands and applying optimum EQ adjustments for each, even the highest output levels maintain exceptional clarity and musicality, - D-CONTOUR offers settings for both FOH/Main and Monitor modes, - FOH/Main: Boosts low frequencies to compensate for bass typically missing when speakers are used in a flown configuration, - Monitor: Optimised for floor monitor use by attenuating problematic low frequencies that can be amplified by floor reflection, and smoothing a wide range of frequencies to help deliver more clarity, - Presets were created by carrying out countless listening tests with skilled sound engineers to ensure consistent sound with low distortion at any output level, DSP Protection, - DSP protection functions for maximum output and component longevity, - Powered speakers ensure that the combination of transducers and amplifiers is matched and optimised for the best possible performance, - During development, Yamaha measured and tested the durability of each transducer and overall amplifier output to set optimum limiter points using precise DSP control, - Using many of the same protection functions used in high-end professional amplifiers, Yamaha's DSP constantly monitors the status of power supply, power amplifiers, transducers, and signal levels to protect each component to maintain optimum performance while extending the life and usability of the components
|
|
Specifications |
|
|
PA speaker |
|
|
|
Configuration |
2-way active |
|
|
Speaker Type |
Bass-Reflex Speaker |
|
|
Total Power |
2000 W peak, 950 W RMS |
|
|
Amplifier Rated Power |
LF:, 1000 W peak, 850 W RMS, HF:, 1000 W peak, 100 W RMS |
|
|
Amplifier Class |
Class-D |
|
|
Drivers |
|
|
|
HF Driver |
1 x Titanium compression driver with rotatable horn and 1" / 25.4 mm throat |
|
|
HF Voice Coil |
2" / 50.8 mm |
|
|
Low-Frequency Driver |
1 x 12" / 30.5 cm Woofer |
|
|
LF Voice Coil |
3" / 76.2 mm |
|
|
Magnet |
HF:, Neodymium, LF:, Neodymium |
|
|
Performance |
|
|
|
Frequency Range |
39 Hz to 20 kHz -10 dB |
|
|
Maximum SPL |
139 dB |
|
|
Coverage Angle |

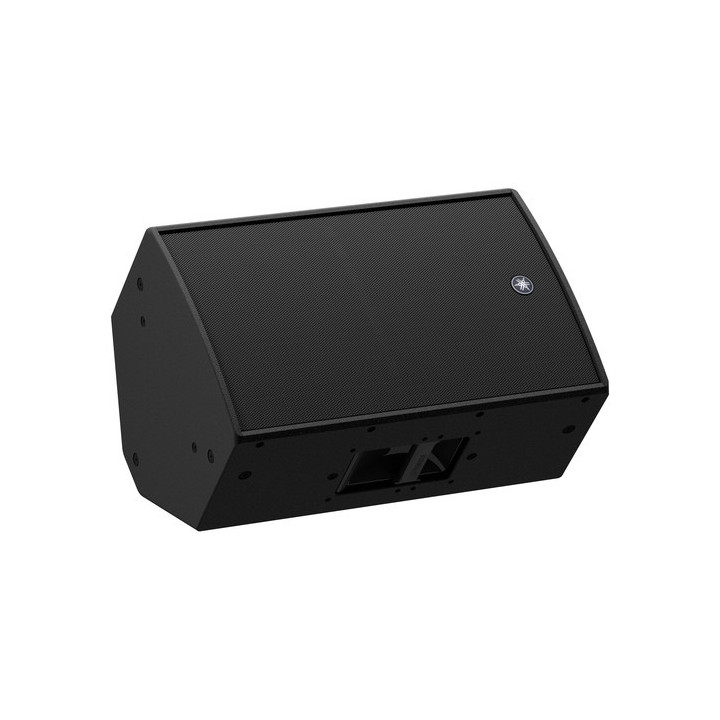

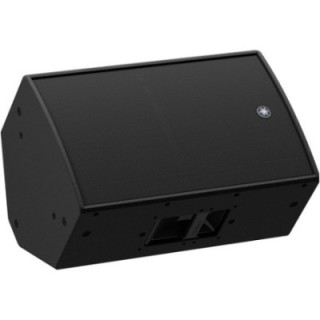

90° H x 60° V (Rotatable horn), 60° H x 90° V (Monitor) |
|
|
Maximum Input Level |
Line input:, +24 dBu |
|
|
I/O Impedance |
Input:, 20 Kilohms |
|
|
Connectivity |
|
|
|
Audio I/O |

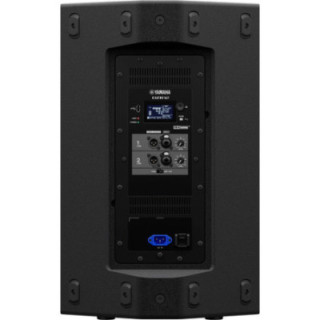

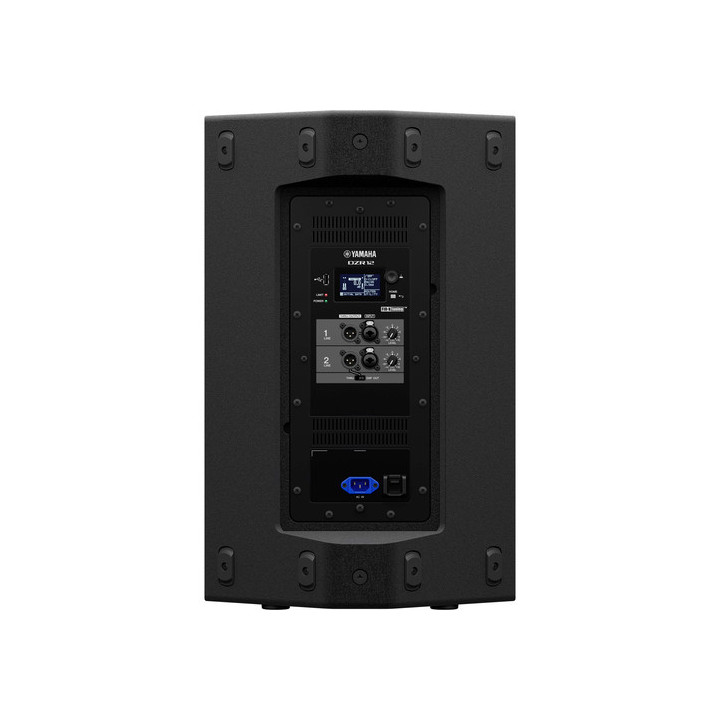

2 x XLR-1/4" 3-pin female balanced/unbalanced combo (input), 2 x XLR 3-pin male balanced (output) |
|
|
USB |
1 x USB Type-A (External memory, host connection) |
|
|
Signal Processing |
|
|
|
Crossover |
1.8 kHz |
|
|
Maximum Sampling Frequency/Resolution |
96 kHz |
|
|
Power Supply |
|
|
|
AC Power |
Universal:, 100 to 240 VAC, 50 / 60 Hz |
|
|
AC Power Connector |
1 x IEC (lockable) |
|
|
Power Consumption |
45 W (idle), 150 W (1/8 power) |
|
|
Physical Characteristics |
|
|
|
Mounting |
12 x M10 rigging points, 2 x 1.4" / 35 mm pole mount socket (dual-angle, bottom) |
|
|
Monitor Angle |
50° |
|
|
Handles |
1 x on each side |
|
|
Cooling |
Fan (variable speed) |
|
|
Construction Material |
Plywood |
|
|
Dimensions |
16.1 x 25.4 x 15.5" / 410 x 646 x 394 mm |
|
|
Weight |
47.2 lb / 21.4 kg |
