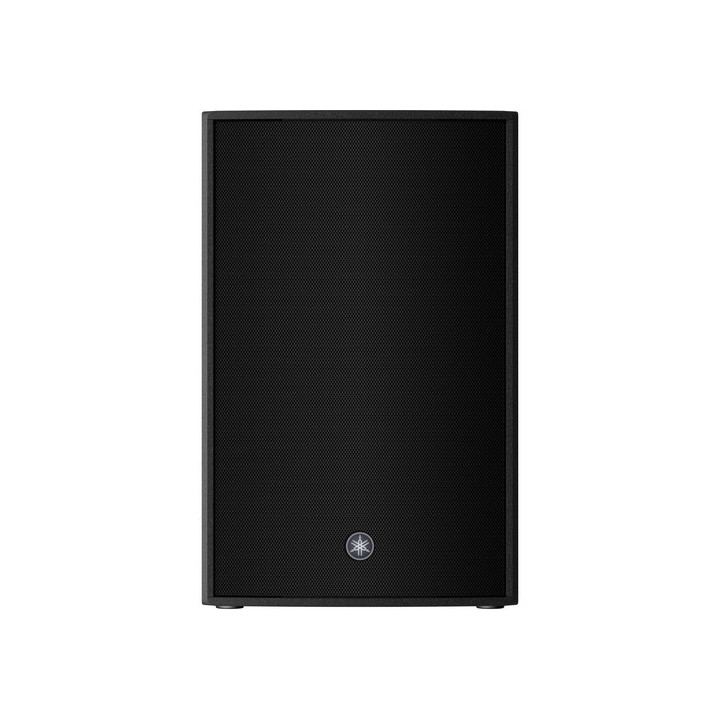

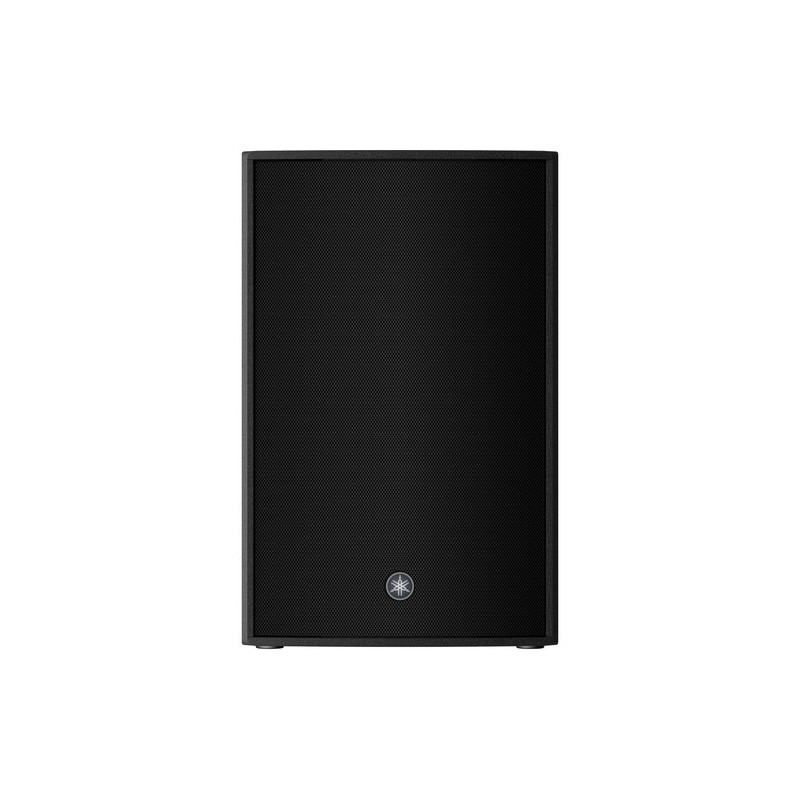

Yamaha DZR12-D - 2 way powered loudspeaker
1025049
4957812636582
2 way powered loudspeaker 1 x 12 inches / 1 x 2 inches, 2000W, Class D amplification, 139dB SPL, 96kHz DSP, D-CONTOUR, Advanced FIR-X, LCD screen, optional moving heads, DANTE 2 In 2 Out
Visuals Price
1,507.44 CHF
VAT excl.
1,629.54 CHF Inc. VAT
Manufacturer price 1 713,00 CHF VAT excluded
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Yamaha 2 Way Powered Loudspeaker

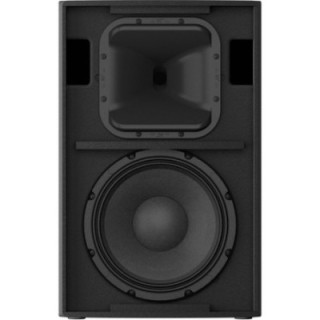

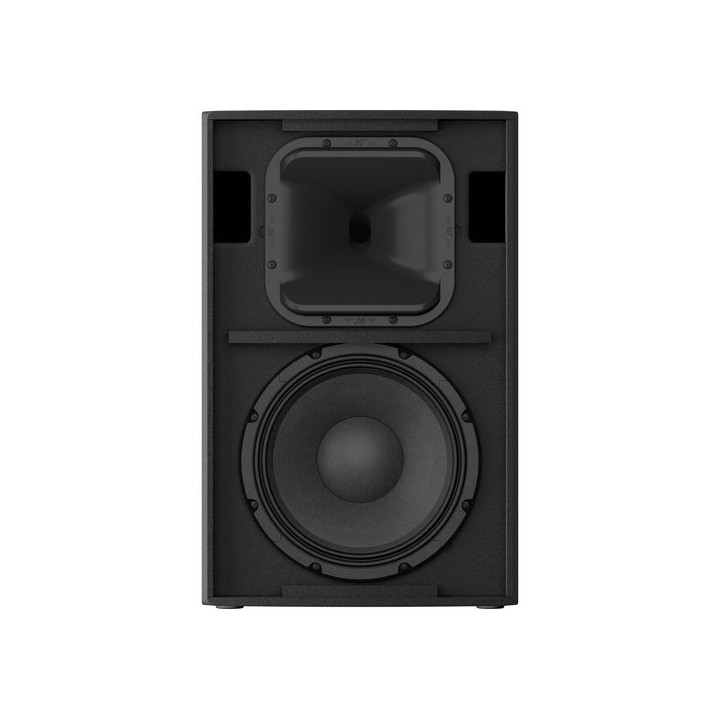

The black Yamaha DZR12-D is a Dante-equipped, 2-way powered loudspeaker designed for main/FOH and floor monitor applications. The 2000W Class-D bi-amp powers the 12" woofer and 2" compression driver, which combine to provide a frequency range of 39 Hz to 20 kHz (-10 dB) with a maximum SPL of 139 dB. The rotatable horn allows for vertical or horizontal mounting to further adapt it to the acoustic dimensions of a venue. The constant directivity horn was designed with the goal of providing smooth, level coverage across the intended coverage area, minimizing roll-off that is common in conventional horn designs.
The onboard 96 kHz DSP processor utilizes Advanced FIR filters for the crossover network and corrective EQ. With the FIR filters, the DZR12-D is able to produce a smooth frequency response for remarkable clarity and sound imaging without phase distortion. The onboard LCD screen allows users to easily navigate the variety of DSP functions, load presets, and adjust PEQ, delay, and routing. The D-CONTOUR is an intelligent multiband compressor that ensures the DZR12-D's sound stays consistent and clear no matter how hard you drive them. The FOH/Main mode boosts the lower frequencies to compensate for low-end that is typically lost when flying speakers, while the Monitor mode is optimized for floor monitoring application by taming problematic low frequencies that can be enhanced by floor reflection, and smoothing a wide range of frequencies to deliver the clarity professionals demand from their stage monitors.

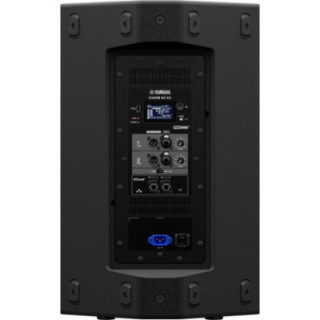

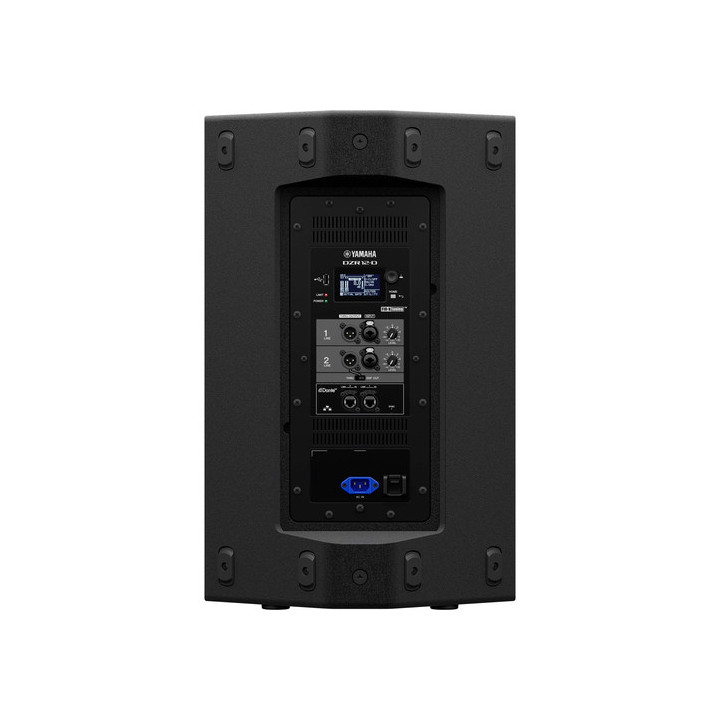

The rear panel offers two combo XLR-1/4" inputs with XLR thru/outputs and dedicated level controls. A USB port allows for system upgrades and preset configuration and backups. The DZR12-D is equipped with an additional panel with two etherCON connectors (2-in/2-out) for interfacing with other Dante-compatible equipment such as other speakers and Yamaha's CL/QL/TF digital mixing consoles. The Yamaha DZR12-D ships with a standard IEC power cord.
Features
- 2-way powered loudspeaker
- HF: 2"
- LF: 12"
- Ideal for FOH/Main or floor monitor applications
- Maximum SPL: 139 dB
- Frequency range (-10 dB): 39 Hz to 20 kHz
- High-power 2000W Class-D amplifier module

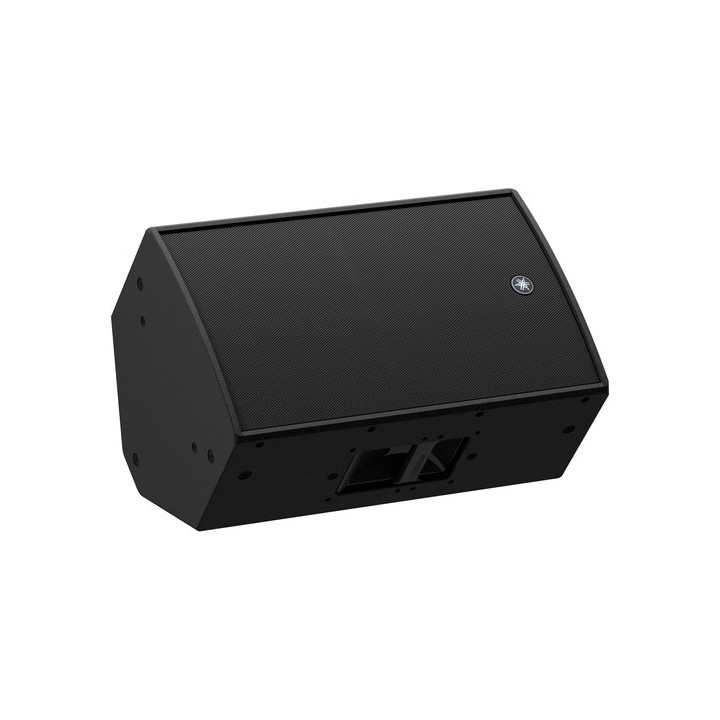

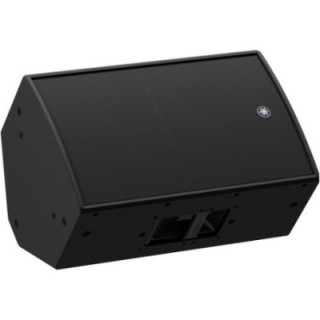

- Floor monitoring setting enables mirroring configuration
- Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
- Rotatable horn
Advanced FIR-X Tuning
- 96 kHz DSP processors help focus the power output of the DZR12 into high-resolution sound with super-low latency
- Yamaha's Advanced FIR-X tuning improves significantly on their proprietary FIR-X tuning technology which utilizes linear phase FIR filters for the crossover network and correct EQ
- Using FIR filters, Yamaha was able to realize very smooth frequency response for remarkable clarity and sound imaging without phase distortion
- Accurate EQ filtering is also provided for pinpoint adjustment to realize ideal clarity and SPL without signal degradation
- An onboard LCD screen allows users to easily navigate the variety of DSP functions, load presets, and make precise adjustments to PEQ, delay, and routing
- Store up to 8 user presets to save your own parameter adjustments, or use the optimized dedicated factory presets for using DZR and DXS XLF - Series in combination
- Users can easily transfer saved settings to a USB flash drive
D-Contour
- D-CONTOUR is an intelligent multiband compressor that ensures your DZR's sound stays consistent and clear no matter how hard you drive them
- By constantly monitoring the output of multiple frequency bands and applying the optimum EQ adjustments for each, even the highest output levels maintain outstanding clarity and musicality
- D-CONTOUR provides settings for the FOH/Main and Monitor modes
- FOH/Main: Boosts the lower frequencies to compensate for low end that is typically missing when speakers are used in suspended applications
- Monitor: Optimized for floor monitoring application by taming down problematic low frequencies that can be enhanced by floor reflection, and smoothing a wide range of frequencies to help deliver clarity
- Presets were created by performing countless listening tests with skilled sound engineers to ensure consistent sound with low distortion at any output level
DSP Protection
- DSP protection functions for maximum output and component longevity
- Active loudspeakers ensure the combination of transducers and amplifiers are matched and optimized for the best possible performance
- During development, Yamaha measured and tested the durability of each transducer and the overall amplifier output to set optimal limiter points using precise DSP control
- Employing many of the same protection functions used in high-end professional power amplifiers, Yamaha's DSP consistently monitors the status of the power supply, power amplifiers, transducers, and signal levels to protect each component in order to maintain optimum performance while extending component life and usability
Dante
- Dante enables smart system integration with Yamaha consoles and other Dante devices via the Dante I/O (2-in/2-out), which also features SRC (sample rate conversion) allowing 48 kHz device compatibility
- Patching is simplified considerably with Yamaha CL/QL digital mixing consoles from the I/O device display
- TF console users can select Quick Config for surprisingly fast, easy set up and operation of a sophisticated sound reinforcement system
- Combining the Analog I/O with Dante I/O, opens up flexible routing and system configuration options
- The Dante break-IN and break-OUT function add even more flexibility by acting as a simple I/O box
- Yamaha's customizable control panel software "ProVisionare Control" for windows and "ProVisionare Touch" for iPad are also Dante compatible, adding more simple remote management of your sound reinforcement system
The black Yamaha DZR12-D is a Dante-equipped, 2-way powered loudspeaker designed for main/FOH and floor monitor applications. The 2000W Class-D bi-amp powers the 12" woofer and 2" compression driver, which combine to provide a frequency range of 39 Hz to 20 kHz (-10 dB) with a maximum SPL of 139 dB. The rotatable horn allows for vertical or horizontal mounting to further adapt it to the acoustic dimensions of a venue. The constant directivity horn was designed with the goal of providing smooth, level coverage across the intended coverage area, minimizing roll-off that is common in conventional horn designs.
The onboard 96 kHz DSP processor utilizes Advanced FIR filters for the crossover network and corrective EQ. With the FIR filters, the DZR12-D is able to produce a smooth frequency response for remarkable clarity and sound imaging without phase distortion. The onboard LCD screen allows users to easily navigate the variety of DSP functions, load presets, and adjust PEQ, delay, and routing. The D-CONTOUR is an intelligent multiband compressor that ensures the DZR12-D's sound stays consistent and clear no matter how hard you drive them. The FOH/Main mode boosts the lower frequencies to compensate for low-end that is typically lost when flying speakers, while the Monitor mode is optimized for floor monitoring application by taming problematic low frequencies that can be enhanced by floor reflection, and smoothing a wide range of frequencies to deliver the clarity professionals demand from their stage monitors.
The rear panel offers two combo XLR-1/4" inputs with XLR thru/outputs and dedicated level controls. A USB port allows for system upgrades and preset configuration and backups. The DZR12-D is equipped with an additional panel with two etherCON connectors (2-in/2-out) for interfacing with other Dante-compatible equipment such as other speakers and Yamaha's CL/QL/TF digital mixing consoles. The Yamaha DZR12-D ships with a standard IEC power cord.
Features
- 2-way powered loudspeaker
- HF: 2"
- LF: 12"
- Ideal for FOH/Main or floor monitor applications
- Maximum SPL: 139 dB
- Frequency range (-10 dB): 39 Hz to 20 kHz
- High-power 2000W Class-D amplifier module
- Floor monitoring setting enables mirroring configuration
- Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
- Rotatable horn
Advanced FIR-X Tuning
- 96 kHz DSP processors help focus the power output of the DZR12 into high-resolution sound with super-low latency
- Yamaha's Advanced FIR-X tuning improves significantly on their proprietary FIR-X tuning technology which utilizes linear phase FIR filters for the crossover network and correct EQ
- Using FIR filters, Yamaha was able to realize very smooth frequency response for remarkable clarity and sound imaging without phase distortion
- Accurate EQ filtering is also provided for pinpoint adjustment to realize ideal clarity and SPL without signal degradation
- An onboard LCD screen allows users to easily navigate the variety of DSP functions, load presets, and make precise adjustments to PEQ, delay, and routing
- Store up to 8 user presets to save your own parameter adjustments, or use the optimized dedicated factory presets for using DZR and DXS XLF - Series in combination
- Users can easily transfer saved settings to a USB flash drive
D-Contour
- D-CONTOUR is an intelligent multiband compressor that ensures your DZR's sound stays consistent and clear no matter how hard you drive them
- By constantly monitoring the output of multiple frequency bands and applying the optimum EQ adjustments for each, even the highest output levels maintain outstanding clarity and musicality
- D-CONTOUR provides settings for the FOH/Main and Monitor modes
- FOH/Main: Boosts the lower frequencies to compensate for low end that is typically missing when speakers are used in suspended applications
- Monitor: Optimized for floor monitoring application by taming down problematic low frequencies that can be enhanced by floor reflection, and smoothing a wide range of frequencies to help deliver clarity
- Presets were created by performing countless listening tests with skilled sound engineers to ensure consistent sound with low distortion at any output level
DSP Protection
- DSP protection functions for maximum output and component longevity
- Active loudspeakers ensure the combination of transducers and amplifiers are matched and optimized for the best possible performance
- During development, Yamaha measured and tested the durability of each transducer and the overall amplifier output to set optimal limiter points using precise DSP control
- Employing many of the same protection functions used in high-end professional power amplifiers, Yamaha's DSP consistently monitors the status of the power supply, power amplifiers, transducers, and signal levels to protect each component in order to maintain optimum performance while extending component life and usability
Dante
- Dante enables smart system integration with Yamaha consoles and other Dante devices via the Dante I/O (2-in/2-out), which also features SRC (sample rate conversion) allowing 48 kHz device compatibility
- Patching is simplified considerably with Yamaha CL/QL digital mixing consoles from the I/O device display
- TF console users can select Quick Config for surprisingly fast, easy set up and operation of a sophisticated sound reinforcement system
- Combining the Analog I/O with Dante I/O, opens up flexible routing and system configuration options
- The Dante break-IN and break-OUT function add even more flexibility by acting as a simple I/O box
- Yamaha's customizable control panel software "ProVisionare Control" for windows and "ProVisionare Touch" for iPad are also Dante compatible, adding more simple remote management of your sound reinforcement system
|
|
Specifications |
|
|
PA Speaker |
|
|
|
Configuration |
Active 2-Way |
|
|
Enclosure Type |
Bass-Reflex Loudspeaker |
|
|
Total Power Capacity |
2000 W Peak |
|
|
Amplifier Power Rating |
LF: |
|
|
Amplifier Class |
Class-D |
|
|
Drivers |
|
|
|
HF Driver |
1 x Rotatable Horn Titanium Compression Driver with 1" / 25.4 mm Throat |
|
|
HF Voice Coil |
2" / 50.8 mm |
|
|
LF Driver |
1 x 12" / 30.5 cm Woofer |
|
|
LF Voice Coil |
3" / 76.2 mm |
|
|
Magnet |
HF: |
|
|
Performance |
|
|
|
Frequency Range |
39 Hz to 20 kHz -10 dB |
|
|
Maximum SPL |
139 dB |
|
|
Coverage Angle |
90° H x 60° V (Rotatable Horn) |
|
|
Max Input Level |
Line Input: |
|
|
I/O Impedance |
Input: |
|
|
Connectivity |
|
|
|
Audio I/O |
2 x Combo XLR-1/4" 3-Pin Female Balanced/Unbalanced Input |
|
|
Network I/O |
2 x etherCON (Dante) |
|
|
USB |
1 x USB Type-A (External Memory, Host Connection) |
|
|
Signal Processing |
|
|
|
Crossover |
1.8 kHz |
|
|
Max Sample Rate/Resolution |
96 kHz |
|
|
Power |
|
|
|
AC Input Power |
Universal: |
|
|
AC Power Connector |
1 x IEC (Locking) |
|
|
Power Consumption |
45 W (Idle) |
|
|
Physical |
|
|
|
Mounting |
12 x M10 Fly Point |
|
|
Monitor Angle |
50° |
|
|
Handles |
1 x Each Side |
|
|
Cooling |
Fan (Variable Speed) |
|
|
Construction Material |
Plywood |
|
|
Dimensions |
16.1 x 25.4 x 15.5" / 410 x 646 x 394 mm |
|
|
Weight |
47.2 lb / 21.4 kg |
2 way powered loudspeaker 1 x 12 inches / 1 x 2 inches, 2000W, Class D amplification, 139dB SPL, 96kHz DSP, D-CONTOUR, Advanced FIR-X, LCD screen, optional moving heads, DANTE 2 In 2 Out
