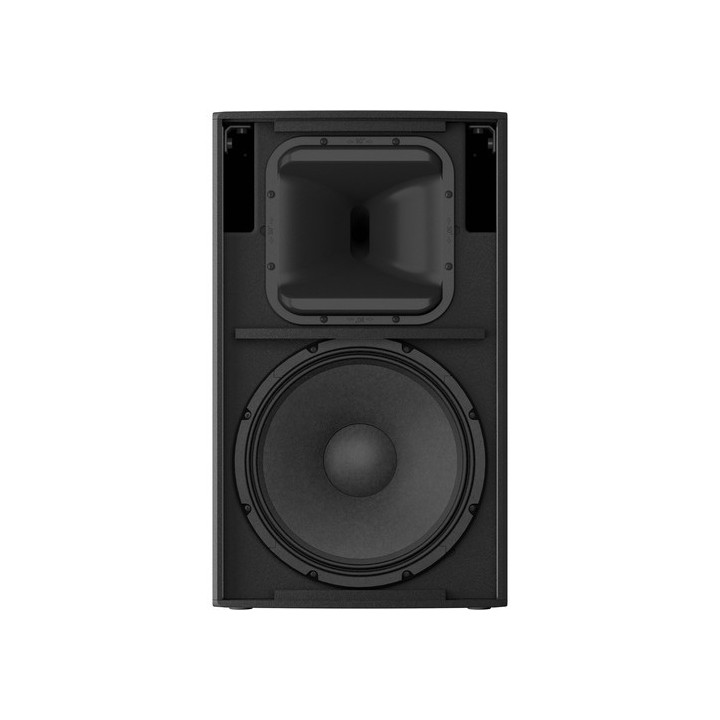

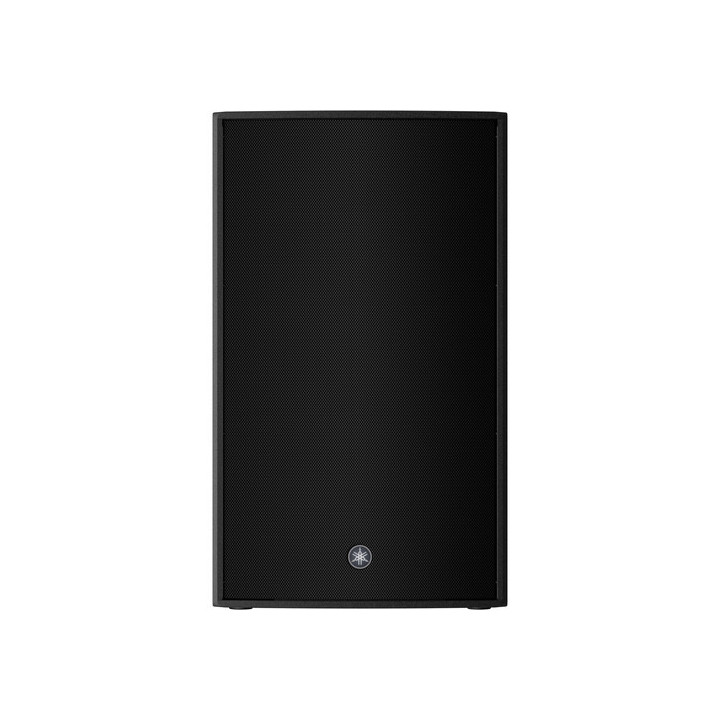

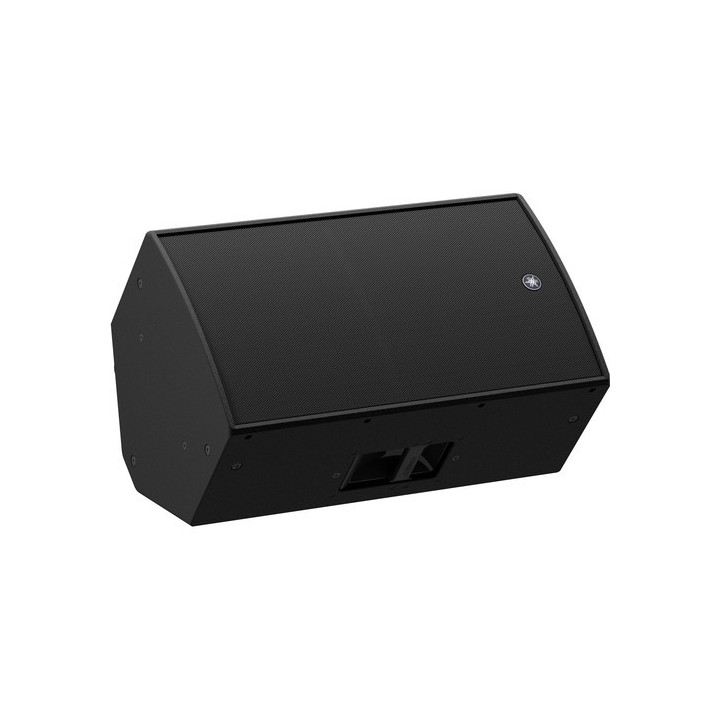

Yamaha DZR15-D - 2 way powered loudspeaker
1025051
4957812636513
2 way powered loudspeaker 1 x 15 inches / 1 x 2 inches, 2000W, Class D amplification, 139dB SPL, 96kHz DSP, D-CONTOUR, Advanced FIR-X, LCD screen, optional moving heads, DANTE 2 In 2 Out
Visuals Price
1,676.40 CHF
VAT excl.
1,812.19 CHF Inc. VAT
Manufacturer price 1 905,00 CHF VAT excluded
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Yamaha 2-way powered loudspeaker
The Yamaha DZR15-D Black is a Dante-compatible 2-way powered loudspeaker designed for front-of-house (FOH) and stage monitor applications. The 2000 W Class D bi-amplified design powers the 15" woofer and 2" compression driver, combining a frequency range of 34 Hz to 20 kHz (-10 dB) with a maximum SPL of 139 dB. The rotatable horn allows vertical or horizontal mounting to better adapt to the acoustic dimensions of a venue. The constant-directivity horn has been designed to provide uniform coverage over the intended coverage area, minimising the attenuation common in conventional horn designs. The built-in 96 kHz DSP processor uses advanced FIR filters for crossover filtering and corrective equalisation. With FIR filters, the DZR15-D is capable of producing a smooth frequency response for remarkable clarity and sonic imaging without phase distortion. The built-in LCD display allows users to easily navigate through the various DSP functions, load presets and adjust parametric equalisation, delay and routing. D-CONTOUR is an intelligent multi-band compressor that ensures the sound of the DZR15-D remains consistent and clear, regardless of how hard it is pushed. FOH/Main mode boosts the low frequencies to compensate for the bass generally lost when loudspeakers are flown, whilst Monitor mode is optimised for stage monitor use by controlling the problematic low frequencies that can be amplified by floor reflection, and by smoothing a wide frequency range to deliver the clarity that professionals demand from their stage monitors. The rear panel offers two XLR-Jack 6.35 mm combo inputs with XLR thru/out outputs and dedicated level controls. A USB port allows system updates and preset configuration and saving. The DZR15-D is equipped with an additional panel featuring two etherCON connectors (2-in/2-out) for interfacing with other Dante-compatible equipment such as other loudspeakers and Yamaha CL/QL/TF digital mixing consoles. The Yamaha DZR15-D is supplied with a standard IEC power cable. Features - 2-way powered loudspeaker - HF: 2" - LF: 15" - Ideal for front-of-house (FOH) or stage monitor applications - Maximum SPL: 139 dB - Frequency range (-10 dB): 34 Hz to 20 kHz - 2000 W Class D high-power amplifier module - Stage monitor setting allowing mirror configuration - Lightweight yet very robust plywood cabinet with premium polyurea coating - Rotatable horn Advanced FIR-X Tuning - The 96 kHz DSP processors help focus the output power of the DZR15 into a high-resolution sound with ultra-low latency - Yamaha's advanced FIR-X tuning significantly enhances their proprietary FIR-X technology, which uses linear-phase FIR filters for crossover filtering and corrective equalisation - By using FIR filters, Yamaha has been able to achieve a very smooth frequency response for remarkable clarity and sonic imaging without phase distortion - Precise EQ filtering is also provided for fine-tuning to achieve ideal clarity and SPL without signal degradation - A built-in LCD display allows users to easily navigate through the various DSP functions, load presets and make precise adjustments to parametric equalisation, delay and routing - Store up to 8 user presets to save your own parameter adjustments, or use dedicated optimised factory presets to use the DZR and DXS XLF series in combination - Users can easily transfer saved settings to a USB flash drive D-Contour - D-CONTOUR is an intelligent multi-band compressor that ensures the sound of your DZR remains consistent and clear, regardless of how hard it is pushed - By constantly monitoring the output of multiple frequency bands and applying optimal equalisation adjustments for each, even the highest output levels maintain exceptional clarity and musicality - D-CONTOUR offers settings for FOH/Main and Monitor modes - FOH/Main: Boosts the low frequencies to compensate for the bass generally absent when loudspeakers are used in a flown configuration - Monitor: Optimised for stage monitor use by controlling the problematic low frequencies that can be amplified by floor reflection, and by smoothing a wide frequency range to help deliver clarity - Presets were created by conducting countless listening tests with qualified sound engineers to ensure consistent sound with low distortion at any output level DSP Protection - DSP protection functions for maximum output and component longevity - Active loudspeakers ensure that the combination of transducers and amplifiers is matched and optimised to achieve the best possible performance - During development, Yamaha measured and tested the durability of each transducer and the overall amplifier output to define optimal limiting points using precise DSP control - By employing the many protection functions used in high-end professional amplifiers, Yamaha's DSP continuously monitors the state of the power supply, power amplifiers, transducers and signal levels to protect each component in order to maintain optimal performance whilst extending the lifespan and use of the components Dante - Dante enables intelligent system integration with Yamaha consoles and other Dante devices via Dante I/O (2-in/2-out), which also includes SRC (sample rate conversion) allowing compatibility with 48 kHz devices - Cabling is considerably simplified with Yamaha CL/QL digital mixing consoles from the I/O device display - TF console users can select Quick Config for surprisingly fast and easy setup and use of a sophisticated sound system - The combination of analogue I/O with Dante I/O opens up flexible routing and system configuration options - The Dante break-IN and break-OUT function adds even more flexibility by acting as a simple I/O box - Yamaha's customisable control software "ProVisionare Control" for Windows and "ProVisionare Touch" for iPad are also Dante-compatible, adding simpler remote management of your sound system
The Yamaha DZR15-D Black is a Dante-compatible 2-way powered loudspeaker designed for front-of-house (FOH) and stage monitor applications. The 2000 W Class D bi-amplified design powers the 15" woofer and 2" compression driver, combining a frequency range of 34 Hz to 20 kHz (-10 dB) with a maximum SPL of 139 dB. The rotatable horn allows vertical or horizontal mounting to better adapt to the acoustic dimensions of a venue. The constant-directivity horn has been designed to provide uniform coverage over the intended coverage area, minimising the attenuation common in conventional horn designs. The built-in 96 kHz DSP processor uses advanced FIR filters for crossover filtering and corrective equalisation. With FIR filters, the DZR15-D is capable of producing a smooth frequency response for remarkable clarity and sonic imaging without phase distortion. The built-in LCD display allows users to easily navigate through the various DSP functions, load presets and adjust parametric equalisation, delay and routing. D-CONTOUR is an intelligent multi-band compressor that ensures the sound of the DZR15-D remains consistent and clear, regardless of how hard it is pushed. FOH/Main mode boosts the low frequencies to compensate for the bass generally lost when loudspeakers are flown, whilst Monitor mode is optimised for stage monitor use by controlling the problematic low frequencies that can be amplified by floor reflection, and by smoothing a wide frequency range to deliver the clarity that professionals demand from their stage monitors. The rear panel offers two XLR-Jack 6.35 mm combo inputs with XLR thru/out outputs and dedicated level controls. A USB port allows system updates and preset configuration and saving. The DZR15-D is equipped with an additional panel featuring two etherCON connectors (2-in/2-out) for interfacing with other Dante-compatible equipment such as other loudspeakers and Yamaha CL/QL/TF digital mixing consoles. The Yamaha DZR15-D is supplied with a standard IEC power cable. Features - 2-way powered loudspeaker - HF: 2" - LF: 15" - Ideal for front-of-house (FOH) or stage monitor applications - Maximum SPL: 139 dB - Frequency range (-10 dB): 34 Hz to 20 kHz - 2000 W Class D high-power amplifier module - Stage monitor setting allowing mirror configuration - Lightweight yet very robust plywood cabinet with premium polyurea coating - Rotatable horn Advanced FIR-X Tuning - The 96 kHz DSP processors help focus the output power of the DZR15 into a high-resolution sound with ultra-low latency - Yamaha's advanced FIR-X tuning significantly enhances their proprietary FIR-X technology, which uses linear-phase FIR filters for crossover filtering and corrective equalisation - By using FIR filters, Yamaha has been able to achieve a very smooth frequency response for remarkable clarity and sonic imaging without phase distortion - Precise EQ filtering is also provided for fine-tuning to achieve ideal clarity and SPL without signal degradation - A built-in LCD display allows users to easily navigate through the various DSP functions, load presets and make precise adjustments to parametric equalisation, delay and routing - Store up to 8 user presets to save your own parameter adjustments, or use dedicated optimised factory presets to use the DZR and DXS XLF series in combination - Users can easily transfer saved settings to a USB flash drive D-Contour - D-CONTOUR is an intelligent multi-band compressor that ensures the sound of your DZR remains consistent and clear, regardless of how hard it is pushed - By constantly monitoring the output of multiple frequency bands and applying optimal equalisation adjustments for each, even the highest output levels maintain exceptional clarity and musicality - D-CONTOUR offers settings for FOH/Main and Monitor modes - FOH/Main: Boosts the low frequencies to compensate for the bass generally absent when loudspeakers are used in a flown configuration - Monitor: Optimised for stage monitor use by controlling the problematic low frequencies that can be amplified by floor reflection, and by smoothing a wide frequency range to help deliver clarity - Presets were created by conducting countless listening tests with qualified sound engineers to ensure consistent sound with low distortion at any output level DSP Protection - DSP protection functions for maximum output and component longevity - Active loudspeakers ensure that the combination of transducers and amplifiers is matched and optimised to achieve the best possible performance - During development, Yamaha measured and tested the durability of each transducer and the overall amplifier output to define optimal limiting points using precise DSP control - By employing the many protection functions used in high-end professional amplifiers, Yamaha's DSP continuously monitors the state of the power supply, power amplifiers, transducers and signal levels to protect each component in order to maintain optimal performance whilst extending the lifespan and use of the components Dante - Dante enables intelligent system integration with Yamaha consoles and other Dante devices via Dante I/O (2-in/2-out), which also includes SRC (sample rate conversion) allowing compatibility with 48 kHz devices - Cabling is considerably simplified with Yamaha CL/QL digital mixing consoles from the I/O device display - TF console users can select Quick Config for surprisingly fast and easy setup and use of a sophisticated sound system - The combination of analogue I/O with Dante I/O opens up flexible routing and system configuration options - The Dante break-IN and break-OUT function adds even more flexibility by acting as a simple I/O box - Yamaha's customisable control software "ProVisionare Control" for Windows and "ProVisionare Touch" for iPad are also Dante-compatible, adding simpler remote management of your sound system
|
|
Specifications |
|
|
PA loudspeaker |
|
|
|
Configuration |
Active bi-amplification |
|
|
Loudspeaker type |
Bass reflex cabinet |
|
|
Total power handling |
2000 W peak 950 W RMS |
|
|
Amplifier power |
LF: 1000 W peak 850 W RMS HF: 1000 W peak 100 W RMS |
|
|
Amplifier class |
Class D |
|
|
Loudspeakers |
|
|
|
Tweeter |
1 x rotatable horn with titanium compression driver with 1" / 25.4 mm throat |
|
|
Tweeter voice coil |
2" / 50.8 mm |
|
|
Woofer |
1 x woofer 15" / 381 mm |
|
|
Bass driver voice coil |
3" / 76.2 mm |
|
|
Magnet |
HF: Neodymium LF: Neodymium |
|
|
Performance |
|
|
|
Frequency range |
34 Hz to 20 kHz -10 dB |
|
|
Maximum SPL |
139 dB |
|
|
Coverage angle |
90° H x 50° V (rotatable horn) 50° H x 90° V (monitor) |
|
|
Maximum input level |
Line input : +24 dBu |
|
|
I/O impedance |
Input: 20 kilohms |
|
|
Connectivity |
|
|
|
Audio I/O |
2 x XLR-Jack 6.35 mm combo inputs 2 x XLR outputs |
|
|
Network I/O |
2 x etherCON (Dante) |
|
|
USB |
1 x USB Type-A (external memory, host connection) |
|
|
Signal processing |
|
|
|
Filter |
1.7 kHz |
|
|
Sample rate / Maximum resolution |
96 kHz |
|
|
Power supply |
|
|
|
Mains power supply |
Universal : 100 to 240 V AC, 50 / 60 Hz |
|
|
Mains power connector |
1 x IEC (lockable) |
|
|
Power consumption |
45 W (standby) 150 W (1/8 power) |
|
|
Physical |
|
|
|
Installation |
12 x M10 rigging points 2 x 35 mm pole mount socket (dual angle, bottom) |
|
|
Handles |
1 x each side |
|
|
Cooling |
Fan (variable speed) |
|
|
Construction material |
Plywood |
|
|
Dimensions |
17.7 x 30 x 18.1" / 450 x 761 x 460 mm |
|
|
Weight |
55.6 lb / 25.2 kg |
2 way powered loudspeaker 1 x 15 inches / 1 x 2 inches, 2000W, Class D amplification, 139dB SPL, 96kHz DSP, D-CONTOUR, Advanced FIR-X, LCD screen, optional moving heads, DANTE 2 In 2 Out
