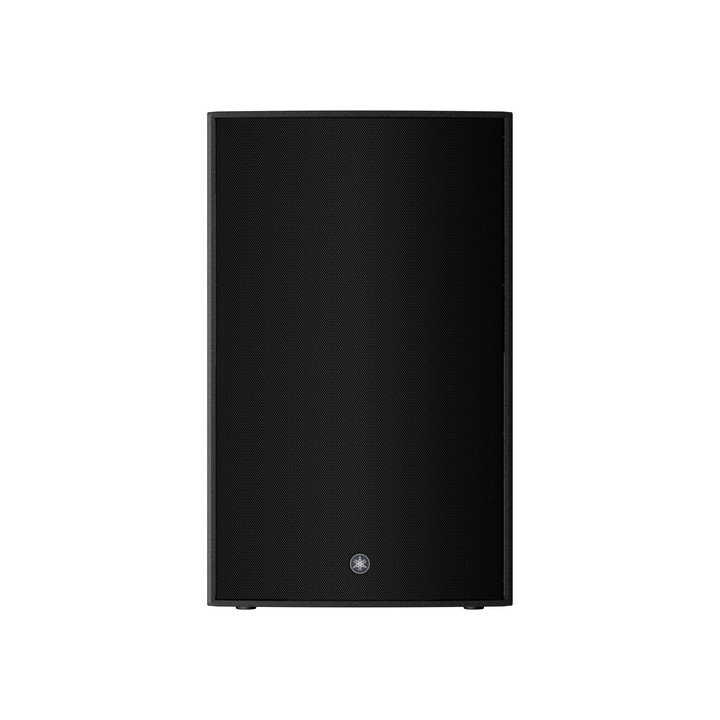

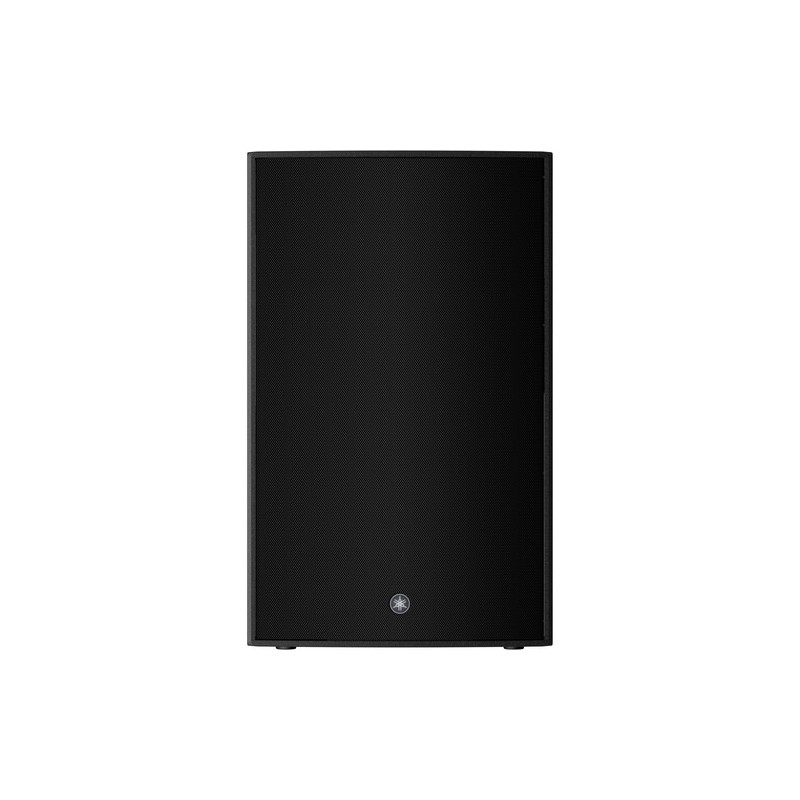

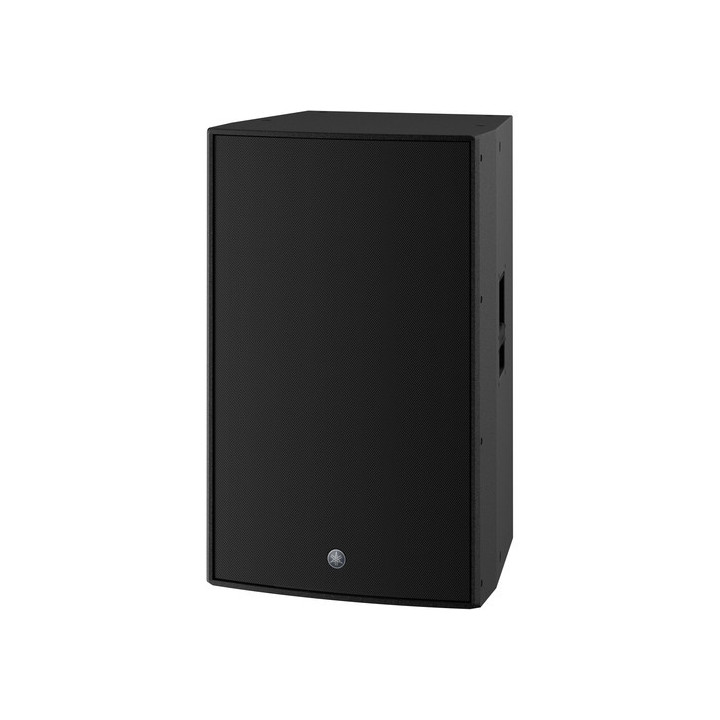

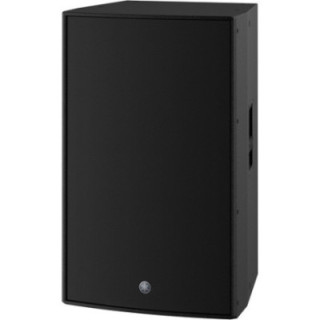

Yamaha DZR315 - 3 way powered loudspeaker
1,933.95 CHF Inc. VAT
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks

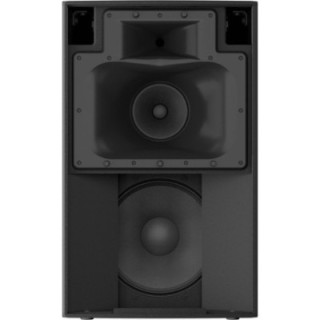

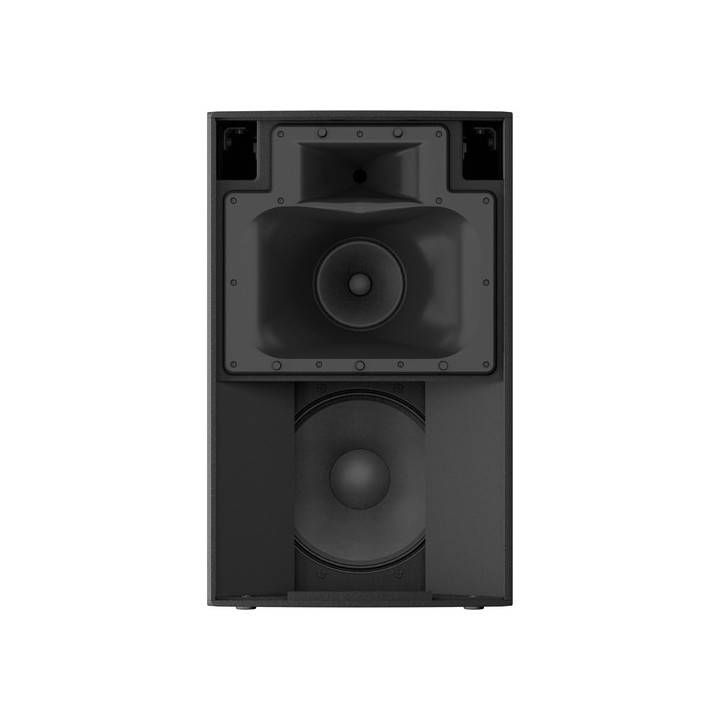

The Yamaha DZR315 in black is a 3-way powered speaker designed for main/front-of-house applications. The 2000 W Class D bi-amplified amplifier powers the 15" woofer, the 8" midrange speaker and the 2" compression driver, which combine to deliver a frequency range of 31 Hz to 20 kHz (-10 dB) with a maximum SPL of 143 dB.
The built-in 96 kHz DSP processor uses advanced FIR filters for active crossover filtering and corrective equalisation. Thanks to FIR filters, the DZR315 is capable of producing a smooth frequency response for remarkable clarity and sonic imaging without phase distortion. The built-in LCD display allows users to easily navigate the various DSP functions, load presets and adjust parametric equalisation, delay and routing. D-CONTOUR is an intelligent multi-band compressor that ensures the DZR315's sound remains consistent and clear regardless of the power used. The FOH/Main mode boosts the low frequencies to compensate for the bass typically lost when speakers are flown.

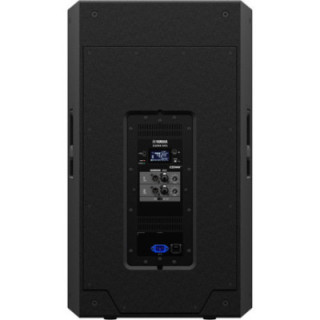

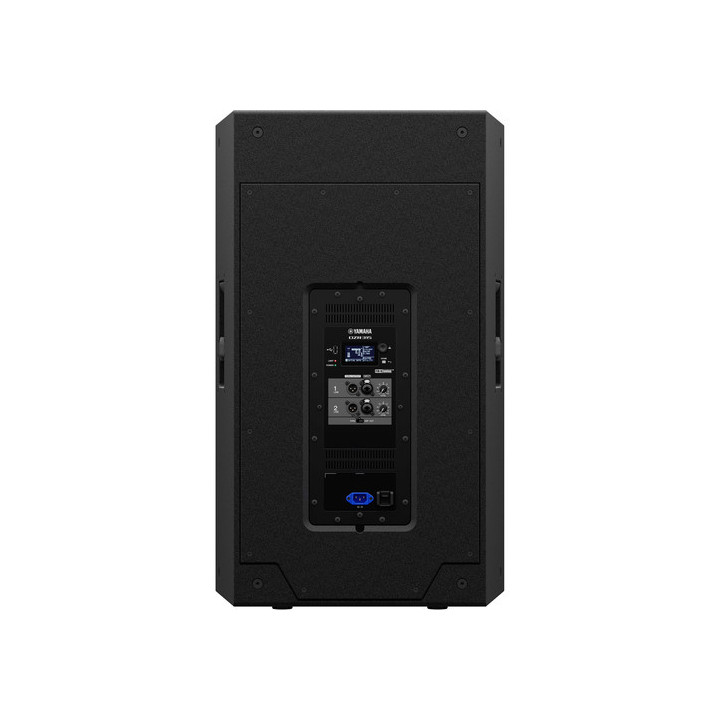

The rear panel offers two XLR-6.35 mm jack combo inputs with parallel XLR outputs and dedicated level controls. A USB port allows system updates and preset configuration and storage. The Yamaha DZR315 comes supplied with a standard IEC power cable.
Features
- 3-way powered speaker
- HF: 2"
- MF: 8"
- LF: 15"
- Ideal for main/front-of-house PA
- Maximum SPL: 143 dB
- Frequency range (-10 dB): 31 Hz to 20 kHz
- 2000 W Class D high-power amplifier module
- Lightweight yet highly durable plywood cabinet with premium polyurea coating
Advanced FIR-X Tuning
- 96 kHz DSP processors help focus the DZR315's output power into a high-resolution sound with ultra-low latency
- Yamaha's Advanced FIR-X Tuning significantly improves upon their proprietary FIR-X tuning technology, which uses linear-phase FIR filters for active crossover filtering and corrective equalisation
- By using FIR filters, Yamaha was able to achieve a very smooth frequency response for remarkable clarity and sonic imaging without phase distortion
- Precise EQ filtering is also provided for fine adjustment to achieve optimal clarity and SPL without signal degradation
- A built-in LCD display allows users to easily navigate the various DSP functions, load presets and make precise adjustments to parametric equalisation, delay and routing
- Save up to 8 user presets to store your own parameter adjustments, or use dedicated factory presets optimised for combined use of the DZR and DXS XLF series
- Users can easily transfer saved settings to a USB drive
D-Contour
- D-CONTOUR is an intelligent multi-band compressor that ensures your DZR's sound remains consistent and clear regardless of the power used
- By constantly monitoring the output of multiple frequency bands and applying optimal equalisation adjustments for each, even the highest output levels maintain exceptional clarity and musicality
- D-CONTOUR provides settings for the FOH/Main mode, which boosts the low frequencies to compensate for the bass typically absent when speakers are used in a flown configuration
- Presets were created by conducting countless listening tests with qualified sound engineers to ensure consistent sound with low distortion at all output levels
DSP Protection
- DSP protection functions for maximum output and component longevity
- Powered speakers ensure that the combination of transducers and amplifiers is matched and optimised for the best possible performance
- During development, Yamaha measured and tested the durability of each transducer and the overall amplifier output to define optimal limiting points using precise DSP control
- By using many protection functions found in high-end professional power amplifiers, Yamaha's DSP constantly monitors the status of the power supply, power amplifiers, transducers and signal levels to protect each component in order to maintain optimal performance while extending component lifespan and ease of use
|
|
Specifications |
|
|
PA speaker |
|
|
|
Configuration |
3-way active |
|
|
Enclosure type |
Bass-reflex cabinet |
|
|
Total admissible power |
2000 W peak |
|
|
Amplifier rated power |
LF: |
|
|
Amplifier class |
Class D |
|
|
Speakers |
|
|
|
High-frequency speaker |
1 x titanium compression driver with 1" / 25.4 mm horn |
|
|
HF voice coil |
2" / 50.8 mm |
|
|
Midrange speaker |
1 x 8" / 203.2 mm Cone |
|
|
MF voice coil |
1.5" / 38.1 mm |
|
|
Low-frequency speaker |
1 x 15" / 381 mm Woofer |
|
|
LF voice coil |
3" / 76.2 mm |
|
|
Magnet |
HF : |
|
|
Performance |
|
|
|
Frequency range |
31 Hz to 20 kHz -10 dB |
|
|
Maximum SPL |
143 dB |
|
|
Coverage angle |
75° H x 50° V |
|
|
Maximum input level |
Line input: |
|
|
Input/output impedance |
Input: |
|
|
Connectivity |
|
|
|
Audio inputs/outputs |
2 x balanced/unbalanced female XLR-6.35 mm jack combo inputs |
|
|
USB |
1 x USB Type-A (external storage, host connection) |
|
|
Signal processing |
|
|
|
Filter |
Low-pass: |
|
|
Maximum sample rate/resolution |
96 kHz |
|
|
Power supply |
|
|
|
AC mains power supply |
Universal: |
|
|
Mains power connector |
1 x IEC (lockable) |
|
|
Power consumption |
45 W (idle) |
|
|
Physical characteristics |
|
|
|
Mounting |
16 x M10 rigging points |
|
|
Handles |
1 on each side |
|
|
Cooling |
Fan (variable speed) |
|
|
Construction material |
Plywood |
|
|
Dimensions |
21.7 x 35.3 x 20.5" / 550 x 897 x 520 mm |
|
|
Weight |
91.7 lb / 41.6 kg |
