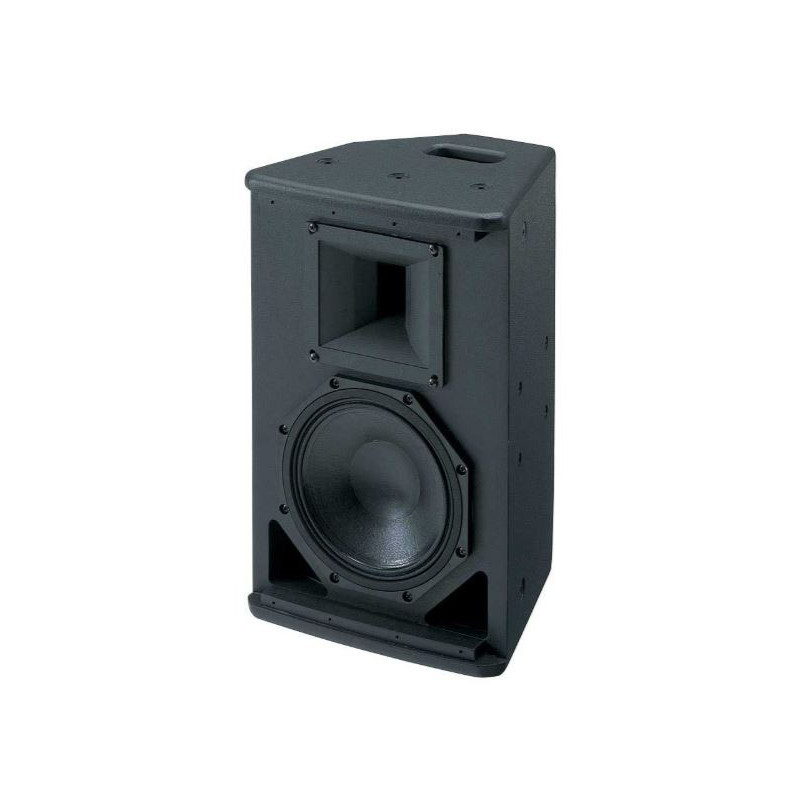

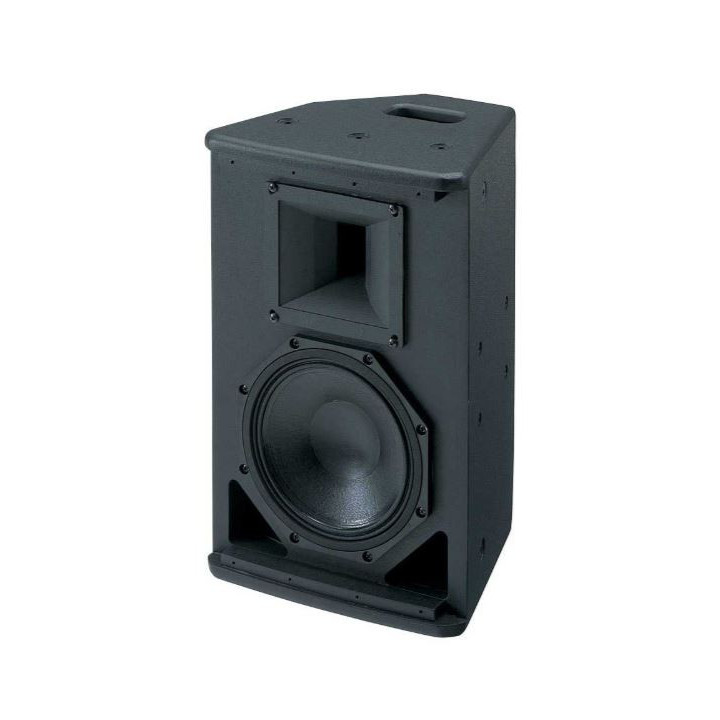

Yamaha IF2108 - 8 inches 2-Way Installation Speaker, Black
966.50 CHF Inc. VAT
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
The IF2208 and IF2108 are versatile and very compact 2-way full-range speaker systems. The IF2208 is equipped with two 8-inch woofers. The IF2108 is equipped with a single 8-inch woofer. The IF2108 is ideal for use under balconies, on stands or as a stage monitor. The rotatable horn allows for vertical or horizontal orientation of the speaker. Multiple suspension points are provided for an exceptionally wide range of installation options.
Features
- Ideal for medium to large-scale installations.
- Consistent phase response throughout the series.
- A wide selection of dispersion characteristics for long-throw, short-throw and long/short-throw use.
- Standard U-bracket and array frame hardware available for maximum installation convenience and efficiency.
- Switchable mono and bi-amplification modes.
- Certified EASE measurement and prediction data. Including polar diagrams, CAD files and DXF data.
- High-strength 11-ply/5/8" thick Finnish birch plywood construction on most models.
- Grilles have 63% transparency for better sound clarity.
- Speakers include a terminal block and Neutrik NL4 connector with parallel connections.
- Horns are made of fibre-reinforced plastic to minimise unwanted resonances.
- The entire range of speakers incorporates rotatable horns, where space dictates speaker orientation.
- High-frequency drivers are equipped with one-piece titanium diaphragms formed to precise tolerances for high performance, endurance and superior sound quality.
|
|
Features |
|
|
Amplification mode |
Passive |
|
|
Nominal impedance |
8 ohms |
|
|
Nominal coverage (H x V, -6 dB) |
90° x 60°, can be rotated to 60° x 90° |
|
|
Frequency response (-10 dB) |
55 Hz-19k Hz |
|
|
Nominal power |
NOISE 100W; PGM 200W; MAX 400W |
|
|
Sensitivity (1 W@1 m) |
95dB SPL |
|
|
Calculated peak |
121dB SPL |
|
|
Calculated continuous |
115dB SPL |
|
|
Components (LF) |
8" woofer with 2" voice coil |
|
|
Components (HF) |
Rotatable constant directivity horn, 1" (25 mm) exit, 1.7" (44 mm) voice coil compression driver |
|
|
Shape |
Multi-angle corner |
|
|
Material |
5/8 inch (16 mm), 11-ply Finnish birch plywood |
|
|
Grille |
16 gauge perforated steel grilles with powder coating, lined with acoustically transparent reticulated foam |
|
|
Connectors |
2 x Neutrik NL4 and terminal block, wired in parallel |
|
|
Rigging hardware |
11x M10, 6x M8 |
|
|
Pole mounts |
One |
|
|
Handle |
One |
|
|
Dimensions (H x W x D) |
17.6" (448 mm) x 11.1" (283 mm) x 9.8" (250 mm) |
|
|
Weight |
31 lbs (14 kg) |
