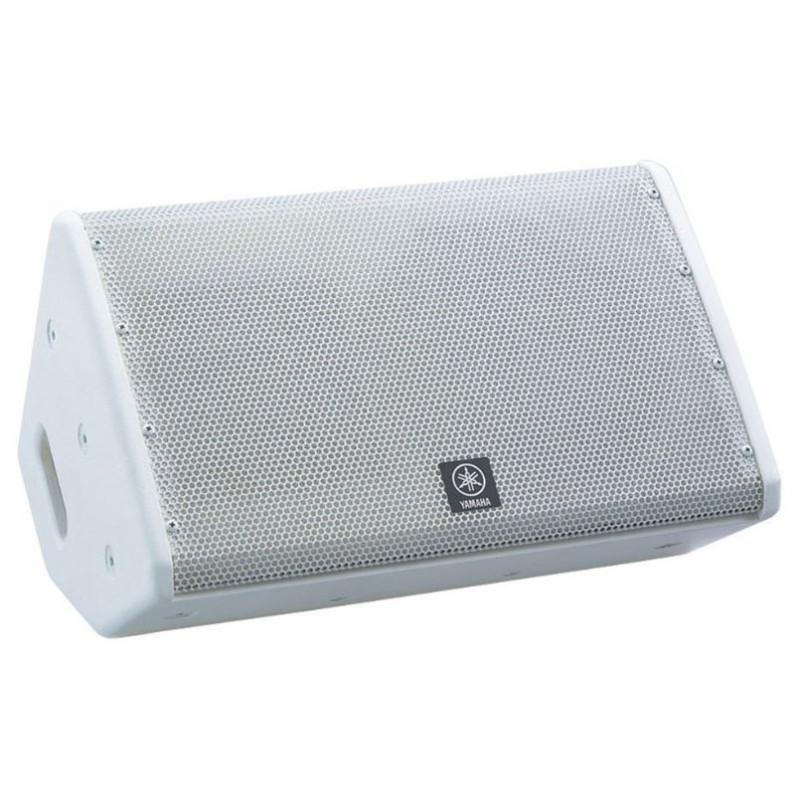

Yamaha IF2108W - 8 inches 2-Way Installation Speaker, White
966.50 CHF Inc. VAT
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Yamaha's Installation series speakers address many important challenges that give them unprecedented performance and handling characteristics for sound reinforcement applications, including permanent installations. In particular, phase characteristics have remained smooth and consistent throughout the series, allowing you to combine speakers to suit any system and venue without creating hot spots and dead zones due to phase interference. And of course, the sound quality is superb across the entire reproduction range, allowing the full impact of the source material to reach the audience without dilution.
Features
- Ideal for medium to large-scale installations.
- Uniform phase response throughout the series.
- Wide choice of dispersion characteristics for long-throw, short-throw and long/short-throw use.
- Standard U-bracket mounting hardware and array frame available for maximum installation convenience and efficiency.
- Switchable mono and bi-amplification operating modes.
- EASE-certified measurement and prediction data. Including polar diagrams, CAD files and DXF data.
- 11-ply Finnish birch construction, 5/8" thick on most models.
- Grilles have 63% transparency for improved sound clarity.
- Speakers include a terminal block and Neutrik NL4 with parallel connections.
- Horns are manufactured from fibre-reinforced plastic to minimise unwanted resonances.
- The entire speaker range incorporates rotatable horns, when available space dictates speaker orientation.
- Tweeter drivers feature single-piece titanium diaphragms formed to precise tolerances for high performance, high durability and superior sound quality.
|
|
Specifications |
|
|
Amplification mode |
Passive |
|
|
Nominal impedance |
8 ohms |
|
|
Nominal coverage (H x V, -6 dB) |
90° x 60°, can be rotated to 60° x 90° |
|
|
Frequency range (-10 dB) |
55 Hz-19 kHz |
|
|
Rated power |
NOISE 100 W; PGM 200 W; MAX 400 W |
|
|
Sensitivity (1 W@1 m) |
95 dB SPL |
|
|
Calculated peak |
121 dB SPL |
|
|
Calculated continuous |
115 dB SPL |
|
|
Components (LF) |
8" woofer with 2" voice coil |
|
|
Components (HF) |
Rotatable constant-directivity horn, 25 mm (1") outlet, compression driver with 44 mm (1.7") voice coil |
|
|
Shape |
Multi-angle tilt |
|
|
Material |
11-ply Finnish birch, 16 mm (5/8 inch) |
|
|
Grille |
16-gauge perforated steel grilles with powder coating, lined with acoustically transparent reticulated foam |
|
|
Connectors |
2 x Neutrik NL4 and terminal block, wired in parallel |
|
|
Rigging hardware |
11x M10, 6x M8 |
|
|
Pole mount brackets |
One |
|
|
Handle |
One |
|
|
Dimensions (H x W x D) |
448 mm (17.6") x 283 mm (11.1") x 250 mm (9.8") |
|
|
Weight |
14 kg (31 lbs) |
