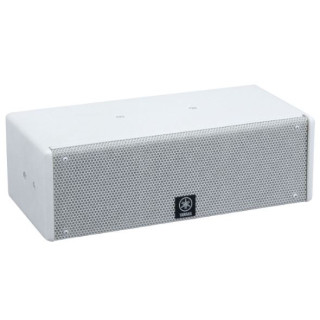

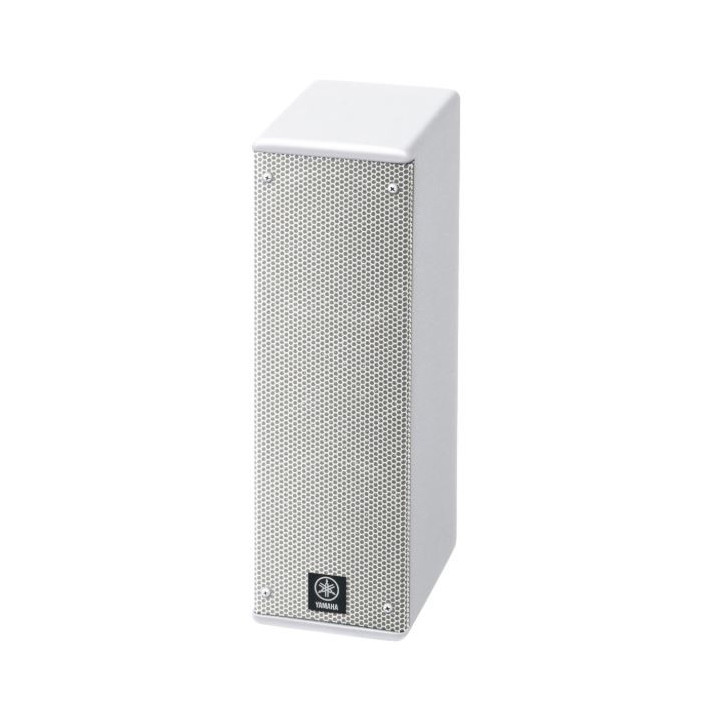

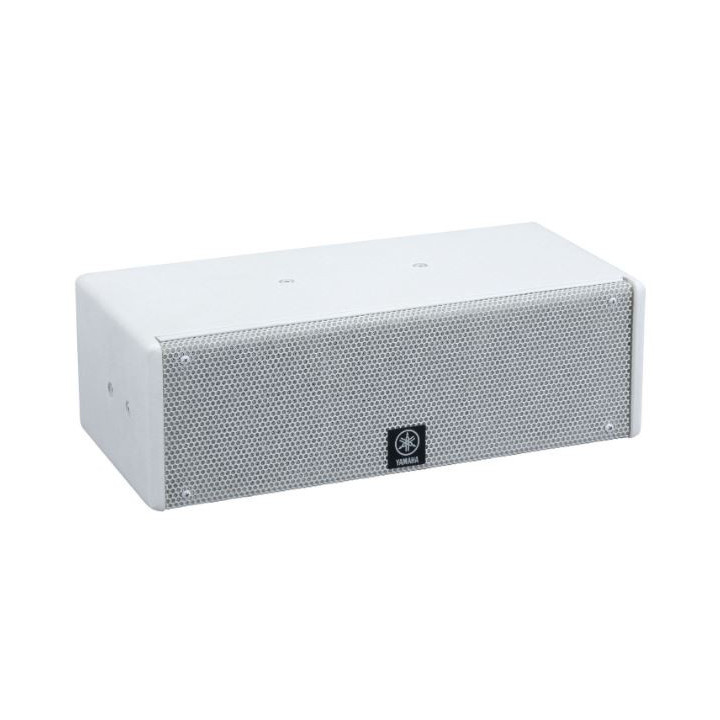

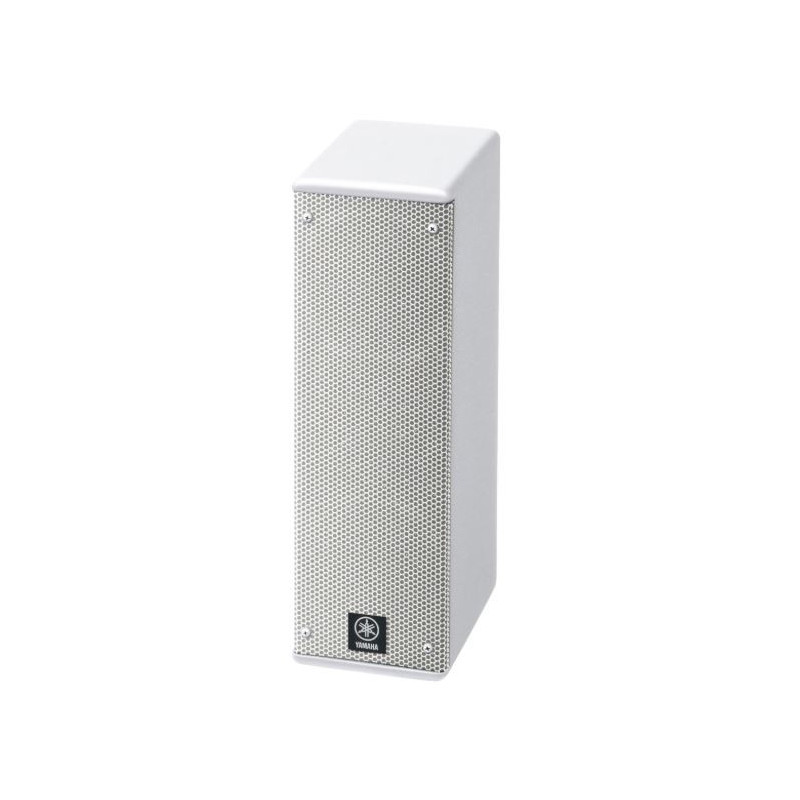

Yamaha IF2205W - Dual 5 inches 2-Way Installation Speaker, White
843.79 CHF Inc. VAT
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Yamaha's Installation series speakers address several critical challenges that give them unprecedented performance and handling characteristics for sound reinforcement applications, including permanent installations. In particular, the phase characteristics have remained smooth and consistent throughout the series, allowing you to combine speakers to suit any system and venue without creating hot and dead spots due to phase interference. And of course, the sound quality is superb across the entire reproduction range, so the full impact of the source material reaches the audience without dilution.
Features
- Matched sonic and phase characteristics with all other models in the Installation series
- Two 5" woofers plus a 1" high-frequency compression driver with 1" output
- 90º x 60º dispersion pattern
- Horn can be rotated 90 degrees, allowing vertical or horizontal mounting
- Six 8 mm screw suspension points (M8) and two 6 mm screw suspension points (M6) provided for flexible rigging
- Terminal block connectors
|
|
Specifications |
|
|
Operating mode |
Passive |
|
|
Nominal impedance |
8 ohms |
|
|
Nominal coverage (H x V, -6 dB) |
90° x 60°, can be rotated to 60° x 90° |
|
|
Frequency response (-10 dB) |
65 Hz-19k Hz |
|
|
Nominal power |
NOISE 100W; PGM 200W; MAX 400W |
|
|
Sensitivity (1 W@1 m) |
89 dB SPL |
|
|
Calculated peak |
115 dB SPL |
|
|
Calculated continuous |
109 dB SPL |
|
|
Components (LF) |
2x 5" woofer with 1" voice coil |
|
|
Components (HF) |
Rotatable constant-directivity horn |
|
|
Shape |
Rectangular |
|
|
Material |
9-ply 1/2-inch (12 mm) Finnish birch plywood |
|
|
Grille |
16-gauge perforated steel grilles with powder coating, lined with acoustically transparent reticulated foam |
|
|
Connectors |
Terminal block |
|
|
Rigging hardware |
6x M8, 2x M6 |
|
|
Optional accessories |
UB2205(W) |
|
|
Dimensions (H x W x D) |
5.8" (146 mm) x 18" (457 mm) x 8.9" (226 mm) |
|
|
Weight |
17 lbs (7.5 kg) |
