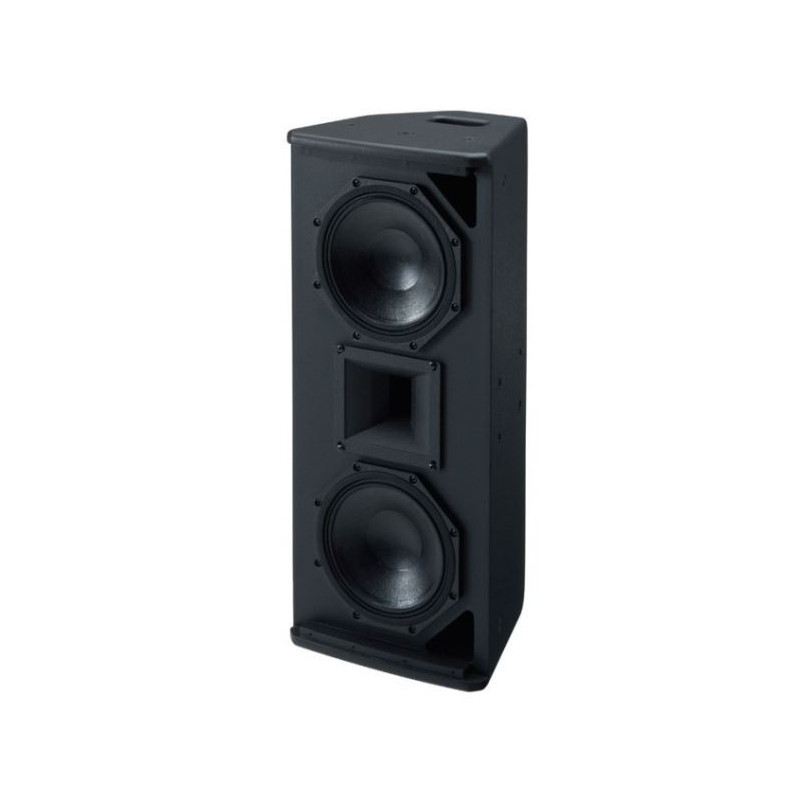

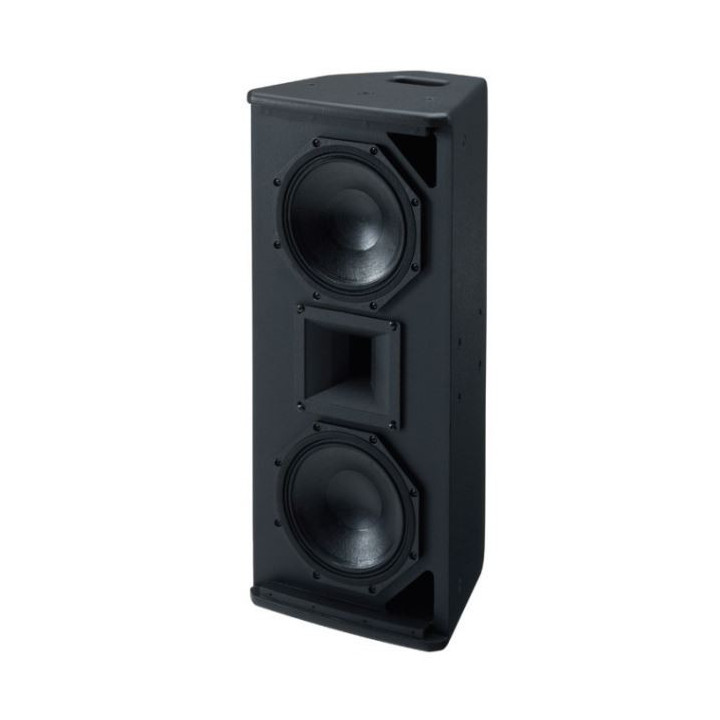

Yamaha IF2208 - Dual 8 inches 2-Way Installation Speaker, Black
1,292.79 CHF Inc. VAT
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Yamaha's Installation series speakers meet many important criteria that give them unprecedented performance and handling characteristics for live sound applications, including permanent installations. Phase characteristics in particular have been kept smooth and consistent throughout the series, allowing you to mix and match speakers to suit any system and venue without creating hot spots and dead zones caused by phase interference. And of course, the sound quality is superb across the entire reproduction range, so that the full impact of the source material reaches the audience without dilution.
Features
- 90º x 60º dispersion pattern
- The horn can be rotated 90 degrees, allowing vertical or horizontal mounting
- Multi-angle cabinet design enabling stage monitor applications
- 1.75" high-frequency compression driver with 1" exit
- Eleven 10 mm (M10) screw suspension points and six 8 mm (M8) screw points provided for flexible rigging
- Two Neutrik NL4 connectors and terminal blocks wired in parallel
|
|
Specifications |
|
|
Amplification mode |
Passive |
|
|
Nominal impedance |
8 ohms |
|
|
Nominal coverage (H x V, -6 dB) |
90° x 60°, can be rotated to 60° x 90° |
|
|
Frequency response (-10 dB) |
55 Hz-19k Hz |
|
|
Nominal power |
NOISE 200W; PROG 400W; MAX 800W |
|
|
Sensitivity (1 W at 1 m) |
95dB SPL |
|
|
Calculated peak |
124dB SPL |
|
|
Continuous power |
118dB SPL |
|
|
Components (LF) |
2x 8" woofer 2" voice coil |
|
|
Components (HF) |
Rotatable constant-directivity horn, 25 mm (1") throat, compression driver with 44 mm (1.7") voice coil |
|
|
Shape |
Multi-angle wedge |
|
|
Material |
11-ply 16 mm (5/8 inch) Finnish birch plywood |
|
|
Grille |
16-gauge perforated steel grilles with powder-coated finish, accompanied by acoustically transparent reticulated foam |
|
|
Connectors |
2 x Neutrik NL4 and terminal block, wired in parallel |
|
|
Rigging hardware |
11x M10, 6x M8 |
|
|
Mounting brackets |
One |
|
|
Handle |
One |
|
|
Dimensions (H x W x D) |
673 mm (26.5") x 283 mm (11.1") x 250 mm (9.8") |
|
|
Weight |
19 kg (42 lbs) |
