Mackie - 2300W 15 inches 3-Way Professional Powered Loudspeaker

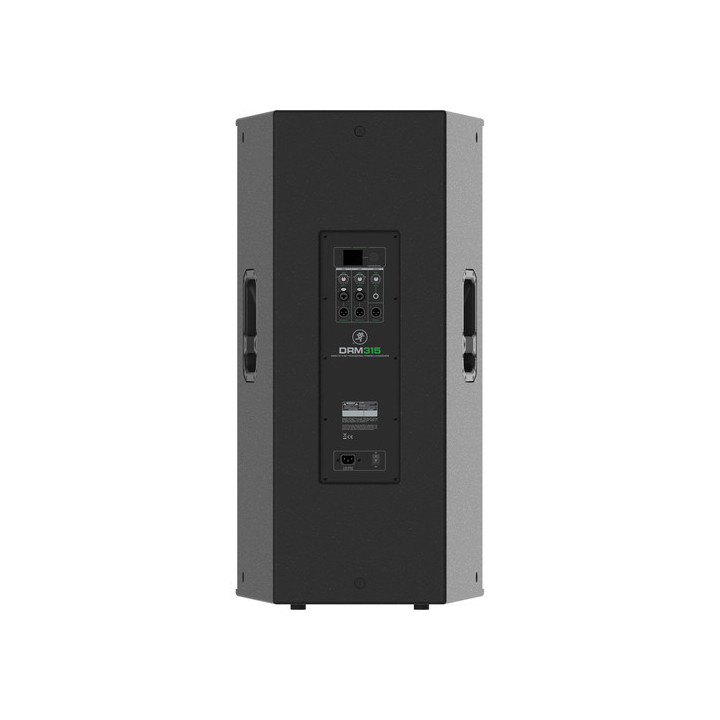

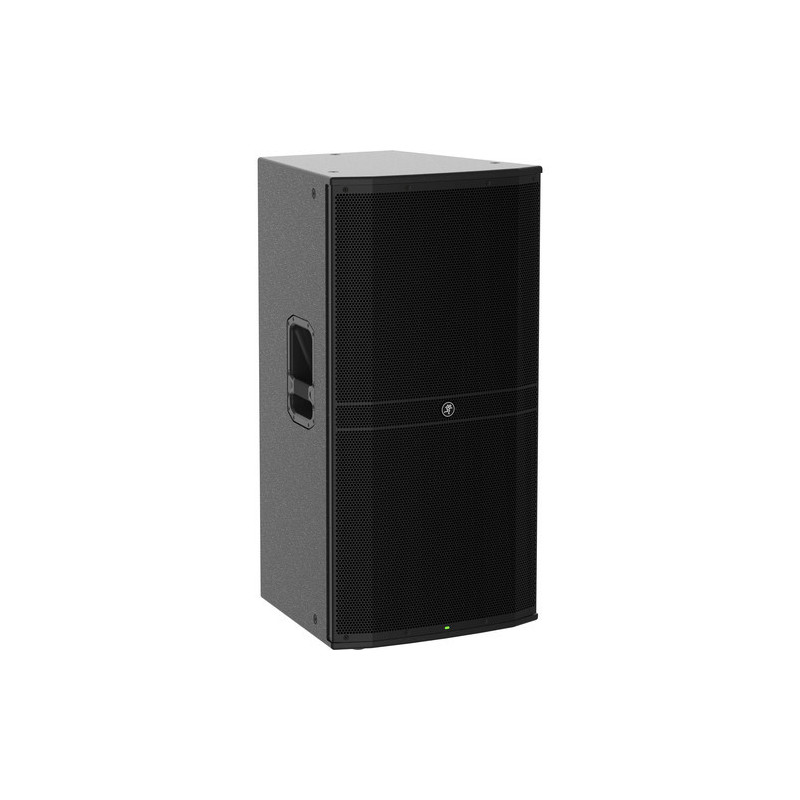

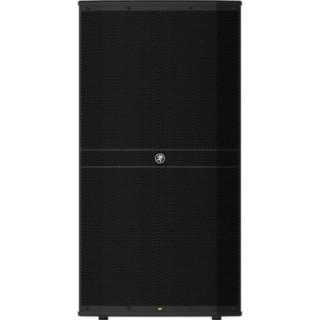

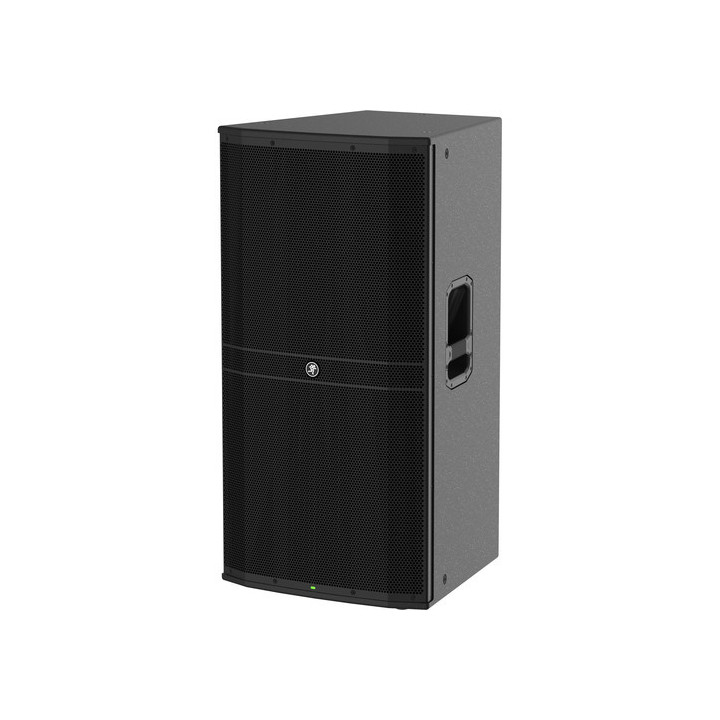

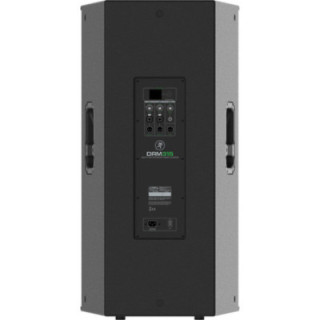

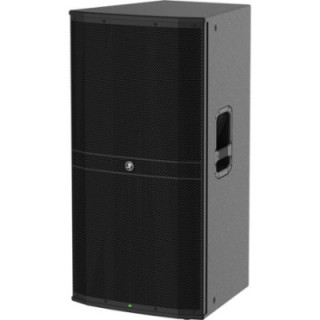

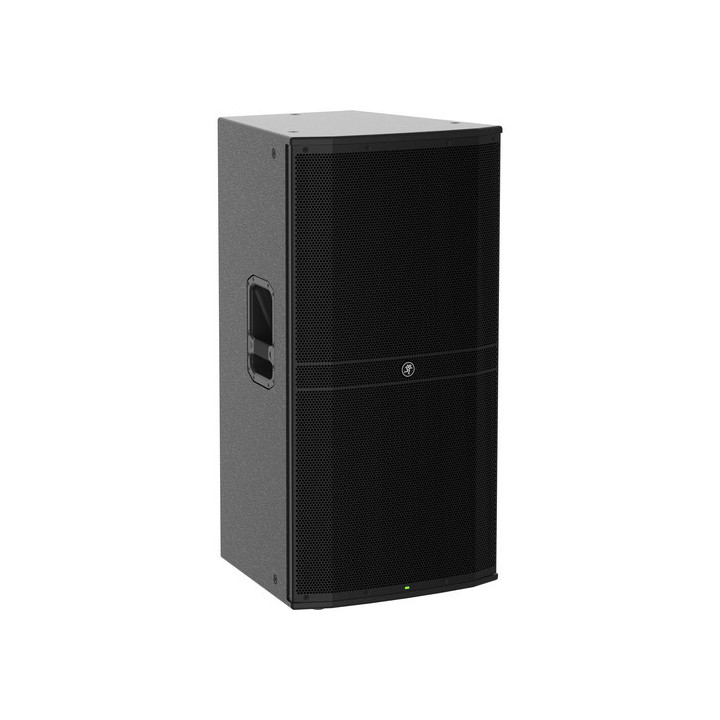

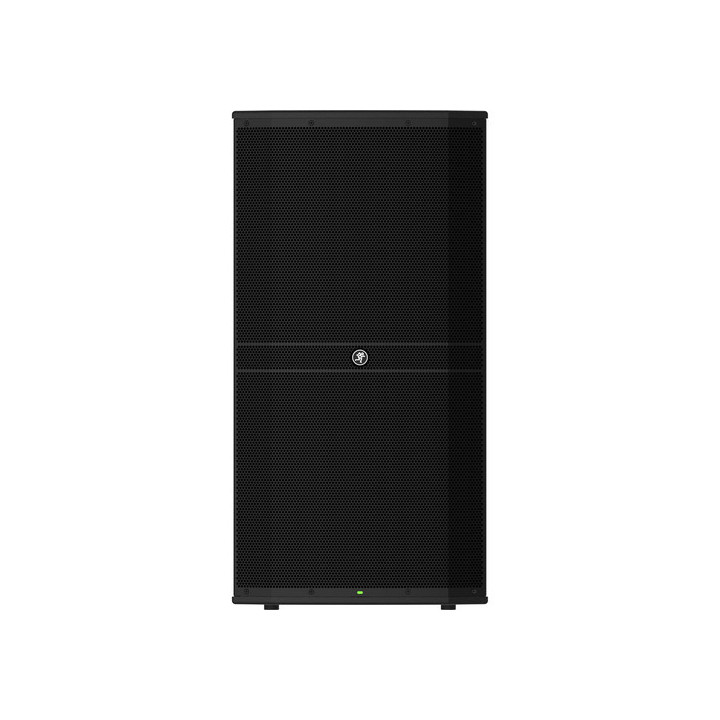

Mackie DRM315 - 2300W 15 inches 3-Way Professional Powered Loudspeaker
1025282
0663961056211
The Mackie DRM315 is a 2300W 15 inches powered loudspeaker designed for medium-sized theaters, large music venues, and outdoor sporting events as well as DJs, large clubs, houses of worship, rental systems, and more.
Visuals Price
1,155.99 CHF
VAT excl.
1,249.63 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 2 to 3 weeks
-
In-store pickup
- Available in 2 to 3 weeks
Mackie 3-way 15-inch 2300 W professional powered speaker
The Mackie DRM315 is a 15" 2300 W powered speaker designed for mid-sized theatres, large concert halls and outdoor sporting events, as well as DJs, large clubs, houses of worship, rental systems, and more. The integrated Class D amplifier uses professional protection and Power Factor Correction (PFC) technology to ensure optimal performance, while the Advanced Impulse DSP provides acoustic correction and time alignment via precisely tuned FIR filters for clear and punchy sound. The DRM control panel features a high-contrast colour display for quick access to EQ, vocal modes and more.
A professional 15" woofer, a 6.5" mid-range transducer and a 1.4" compression driver are housed in the 15 mm plywood enclosure with textured coating, together delivering a frequency range of 35 Hz to 20 kHz (-10 dB) with a peak SPL of 137 dB. The rear panel includes two XLR-1/4" combo inputs and accepts mic, line and instrument signals. In addition, a dedicated 3.5 mm stereo auxiliary input is available for connecting portable music devices. The versatile speaker features a dual-angle pole mount that provides optimal coverage and minimal reflections in most venues. The Mackie DRM315 has a rotatable horn allowing the speaker to be flown horizontally and vertically via twelve integrated M10 rigging points.
Features
- High-efficiency 2300 W Class D amplifier providing sufficient headroom for professional applications
- Universal power supply (100-240 VAC) with Power Factor Correction technology ensuring consistent performance even with unstable mains power
- Next-generation protection circuit protecting transducers and ensuring optimal performance in all applications
- Advanced Impulse DSP module
- Precision passive filters and transducer time alignment delivering reference-quality sound, consistent across the entire frequency range
- Linear-phase FIR filtering significantly reducing inherent anomalies, phase issues and muddy mids for crystal-clear sound
- The DRM control panel features a high-contrast colour display for easy single-button access to configuration, processing and more
- View current EQ and vocal mode, high-resolution metering, and more from a single overview window
- Application- and venue-specific modes offer easy sound reinforcement with minimal setup time. Available modes: Live, Club and Speech plus independent Sub option
- Adjustable 3-band parametric equaliser allowing additional customisation and tuning for your application and venue
- Alignment delay control for delayed stacks
- Save and recall up to 6 user presets for various applications and venues
- Screen saver plus brightness and contrast control
- System lock with 4-digit code
- Two independent inputs supporting mic, line and instrument signals, plus a dedicated 3.5 mm stereo auxiliary input
- Premium speaker components and enclosure design
- Tour-grade 15 mm plywood construction and internal bracing delivering optimal acoustic performance with tour-grade textured coating and robust powder-coated steel grille
- Single-port design delivering exceptionally smooth yet punchy low-frequency response while providing forced air cooling directly to the internal amplifier
- The complete rotatable waveguide assembly allows horizontal flown orientation while maintaining maximum coverage
- The 1.4" titanium diaphragm compression driver is perfectly matched to the amplifier for maximum transparency and clarity
- The 6.5" mid-range transducer delivers incredible mid-range clarity for punchy reproduction of vocals and instruments
- The 15" high-excursion woofer offers increased sensitivity, low-frequency response and reliability to withstand the most demanding applications
- Versatile configuration options
- Pole mount allows easy mounting on a DRM18S subwoofer
- Flyable - 12 x M10 rigging points for horizontal or vertical orientation
The Mackie DRM315 is a 15" 2300 W powered speaker designed for mid-sized theatres, large concert halls and outdoor sporting events, as well as DJs, large clubs, houses of worship, rental systems, and more. The integrated Class D amplifier uses professional protection and Power Factor Correction (PFC) technology to ensure optimal performance, while the Advanced Impulse DSP provides acoustic correction and time alignment via precisely tuned FIR filters for clear and punchy sound. The DRM control panel features a high-contrast colour display for quick access to EQ, vocal modes and more.
A professional 15" woofer, a 6.5" mid-range transducer and a 1.4" compression driver are housed in the 15 mm plywood enclosure with textured coating, together delivering a frequency range of 35 Hz to 20 kHz (-10 dB) with a peak SPL of 137 dB. The rear panel includes two XLR-1/4" combo inputs and accepts mic, line and instrument signals. In addition, a dedicated 3.5 mm stereo auxiliary input is available for connecting portable music devices. The versatile speaker features a dual-angle pole mount that provides optimal coverage and minimal reflections in most venues. The Mackie DRM315 has a rotatable horn allowing the speaker to be flown horizontally and vertically via twelve integrated M10 rigging points.
Features
- High-efficiency 2300 W Class D amplifier providing sufficient headroom for professional applications
- Universal power supply (100-240 VAC) with Power Factor Correction technology ensuring consistent performance even with unstable mains power
- Next-generation protection circuit protecting transducers and ensuring optimal performance in all applications
- Advanced Impulse DSP module
- Precision passive filters and transducer time alignment delivering reference-quality sound, consistent across the entire frequency range
- Linear-phase FIR filtering significantly reducing inherent anomalies, phase issues and muddy mids for crystal-clear sound
- The DRM control panel features a high-contrast colour display for easy single-button access to configuration, processing and more
- View current EQ and vocal mode, high-resolution metering, and more from a single overview window
- Application- and venue-specific modes offer easy sound reinforcement with minimal setup time. Available modes: Live, Club and Speech plus independent Sub option
- Adjustable 3-band parametric equaliser allowing additional customisation and tuning for your application and venue
- Alignment delay control for delayed stacks
- Save and recall up to 6 user presets for various applications and venues
- Screen saver plus brightness and contrast control
- System lock with 4-digit code
- Two independent inputs supporting mic, line and instrument signals, plus a dedicated 3.5 mm stereo auxiliary input
- Premium speaker components and enclosure design
- Tour-grade 15 mm plywood construction and internal bracing delivering optimal acoustic performance with tour-grade textured coating and robust powder-coated steel grille
- Single-port design delivering exceptionally smooth yet punchy low-frequency response while providing forced air cooling directly to the internal amplifier
- The complete rotatable waveguide assembly allows horizontal flown orientation while maintaining maximum coverage
- The 1.4" titanium diaphragm compression driver is perfectly matched to the amplifier for maximum transparency and clarity
- The 6.5" mid-range transducer delivers incredible mid-range clarity for punchy reproduction of vocals and instruments
- The 15" high-excursion woofer offers increased sensitivity, low-frequency response and reliability to withstand the most demanding applications
- Versatile configuration options
- Pole mount allows easy mounting on a DRM18S subwoofer
- Flyable - 12 x M10 rigging points for horizontal or vertical orientation
|
|
Technical specifications |
|
|
PA speaker |
|
|
|
Configuration |
3-way active |
|
|
Total power |
2300 W peak |
|
|
Amplifier class |
Class D |
|
|
Drivers |
|
|
|
High-frequency driver |
1 x 1.4" / 35.6 mm |
|
|
Mid-range driver |
1 x 6.5" / 165.1 mm |
|
|
Low-frequency driver |
1 x 15" / 38.1 cm woofer |
|
|
Performance |
|
|
|
Frequency response |
35 Hz to 20 kHz -10 dB |
|
|
Maximum SPL |
137 dB |
|
|
Coverage angle |
90° H x 50° V (Rotatable horn) |
|
|
Connectivity |
|
|
|
Audio inputs/outputs |
2 x XLR-1/4" combo line/mic inputs |
|
|
Signal processing |
|
|
|
Equalisation |
Yes |
|
|
Alignment delay |
Yes |
|
|
Power supply |
|
|
|
Mains power supply |
Universal: |
|
|
Physical characteristics |
|
|
|
Mounting |
12 x M10 |
|
|
Construction material |
Metal grille, Plywood |
|
|
Dimensions |
36.5 x 19 x 18" / 927.1 x 482.6 x 457.2 mm |
|
|
Weight |
68.3 lb / 31 kg |
The Mackie DRM315 is a 2300W 15 inches powered loudspeaker designed for medium-sized theaters, large music venues, and outdoor sporting events as well as DJs, large clubs, houses of worship, rental systems, and more.
