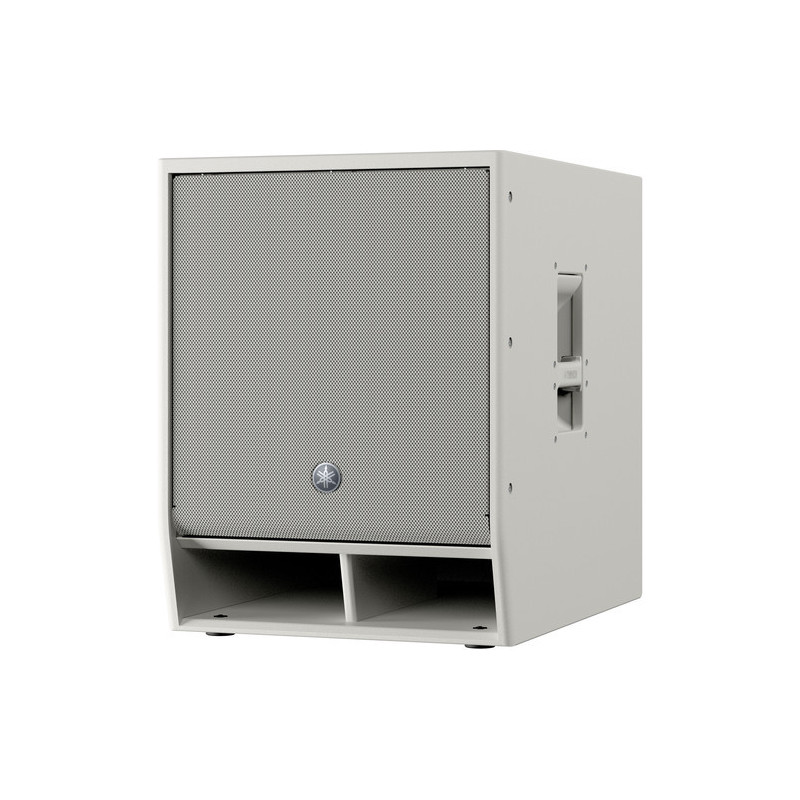

Yamaha CXS15XLFW - 800W 15" Passive Subwoofer (White)
1028179
4957812656696
The white Yamaha CXS15XLF is a passive subwoofer designed for extending the low frequency of full-range speakers and is well suited for use with any of the CZR-series passive loudspeakers.
Visuals Price
1,133.44 CHF
VAT excl.
1,225.25 CHF Inc. VAT
Manufacturer price 1 288,00 CHF VAT excluded
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Yamaha 800W 15" Passive Subwoofer (White)

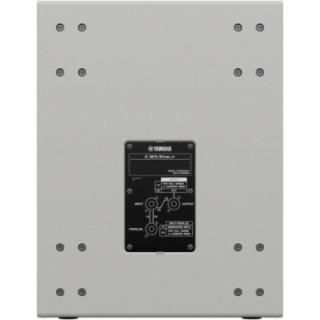

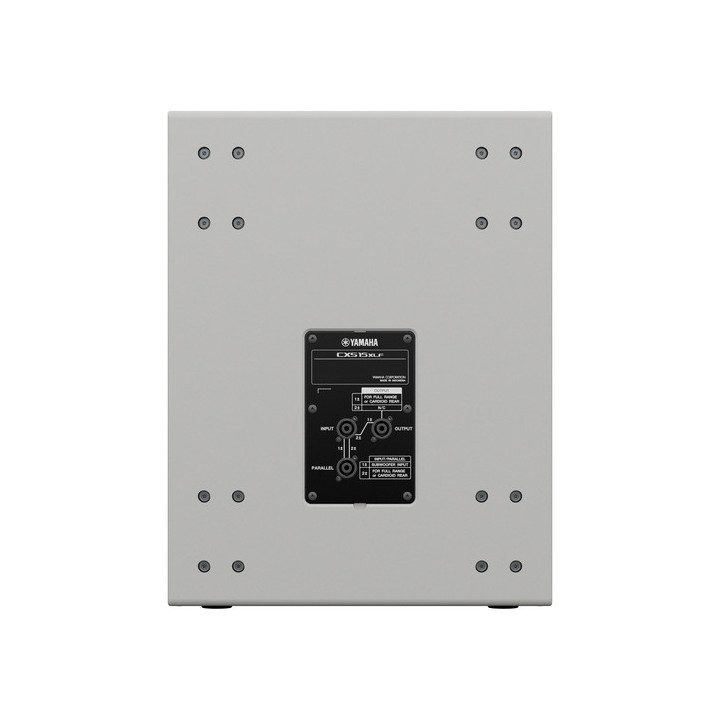

The white Yamaha CXS15XLF is a passive subwoofer designed to extend the low frequencies of full-range speakers and is perfectly suited for use with any passive speaker in the CZR series. The subwoofer requires 800W of power to drive the 15" woofer, offering a frequency range of 33 Hz to 150 Hz (-10 dB) with a maximum SPL of 130 dB. Yamaha recommends using a DSP speaker processor or power amplifier with built-in DSP, such as Yamaha's PX series amplifiers, to set filters, limiting and equalization to ensure the best performance. Additionally, two or more subwoofers can be deployed with a cardioid configuration (DSP dependent), which can effectively reduce stage volume while increasing low-frequency output directed towards the audience. The rear panel features three Neutrik speakON NL4MP connectors, which are configured with two input/parallel connectors for multiple subwoofers plus one output connector for flexible configuration to CZR full-range speakers or cardioid mode setup. The Yamaha CXS15XLF is equipped with both a 35mm pole mount socket and an M20 threaded pole mount socket to support a full-range speaker. Features - Passive reflex subwoofer - Woofer: 15" with 4" voice coil - Ideal for low frequency extension of all full-range speakers - Maximum SPL: 130 dB - Frequency range (-10 dB): 33 to 150 Hz - 800W high power input (PGM) - Cardioid mode possible with processors or power amplifiers with built-in DSP - 3 x speakON NL4MP (2 x parallel, 1 x output) - Lightweight yet highly durable plywood enclosure with premium polyurea coating - Dual pole mount socket
The white Yamaha CXS15XLF is a passive subwoofer designed to extend the low frequencies of full-range speakers and is perfectly suited for use with any passive speaker in the CZR series. The subwoofer requires 800W of power to drive the 15" woofer, offering a frequency range of 33 Hz to 150 Hz (-10 dB) with a maximum SPL of 130 dB. Yamaha recommends using a DSP speaker processor or power amplifier with built-in DSP, such as Yamaha's PX series amplifiers, to set filters, limiting and equalization to ensure the best performance. Additionally, two or more subwoofers can be deployed with a cardioid configuration (DSP dependent), which can effectively reduce stage volume while increasing low-frequency output directed towards the audience. The rear panel features three Neutrik speakON NL4MP connectors, which are configured with two input/parallel connectors for multiple subwoofers plus one output connector for flexible configuration to CZR full-range speakers or cardioid mode setup. The Yamaha CXS15XLF is equipped with both a 35mm pole mount socket and an M20 threaded pole mount socket to support a full-range speaker. Features - Passive reflex subwoofer - Woofer: 15" with 4" voice coil - Ideal for low frequency extension of all full-range speakers - Maximum SPL: 130 dB - Frequency range (-10 dB): 33 to 150 Hz - 800W high power input (PGM) - Cardioid mode possible with processors or power amplifiers with built-in DSP - 3 x speakON NL4MP (2 x parallel, 1 x output) - Lightweight yet highly durable plywood enclosure with premium polyurea coating - Dual pole mount socket
|
|
Specifications |
|
|
PA Speaker |
|
|
|
Configuration |
Passive subwoofer |
|
|
Speaker type |
Bass-reflex subwoofer |
|
|
Total power |
400W RMS 800W Program 1600W Peak |
|
|
System impedance |
8 Ohms (Nominal) |
|
|
Speakers |
|
|
|
Low frequency speaker |
1 x 15" / 381 mm Woofer |
|
|
Low frequency voice coil |
4" / 101.6 mm |
|
|
Magnet |
Ferrite |
|
|
Performance |
|
|
|
Frequency range |
33 Hz to 150 Hz -10 dB |
|
|
Maximum SPL |
130 dB (peak) |
|
|
Speaker sensitivity |
98 dB |
|
|
Connectivity |
|
|
|
Audio Inputs/Outputs |
2 x speakON NL4 Input/Through 1 x speakON NL4 Output |
|
|
Physical |
|
|
|
Mounting |
1 x 1.4" / 35 mm Pole mount socket (Top) 1 x M20 Pole mount socket (Top) |
|
|
Handles |
1 on each side |
|
|
Construction material |
Plywood |
|
|
Dimensions |
17.7 x 23.1 x 23.6" / 450 x 587 x 600 mm |
|
|
Weight |
78.5 lb / 35.6 kg |
The white Yamaha CXS15XLF is a passive subwoofer designed for extending the low frequency of full-range speakers and is well suited for use with any of the CZR-series passive loudspeakers.
