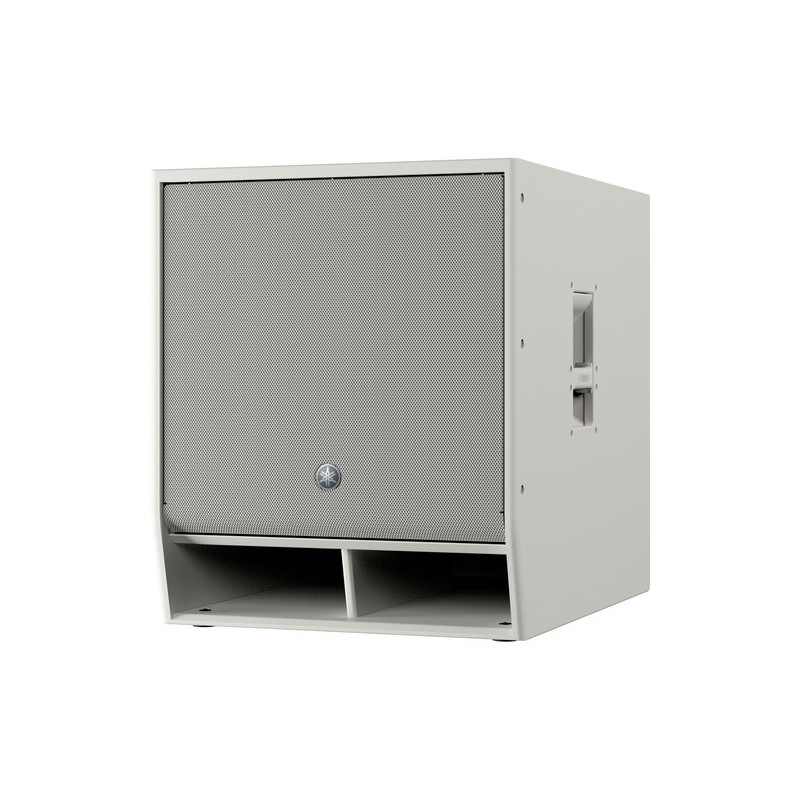

Yamaha CXS18XLFW - 1000W 18 inches Passive Subwoofer (White)
1,347.96 CHF Inc. VAT
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
The Yamaha CXS18XLF white is a passive subwoofer designed to extend the low frequencies of full-range speakers and perfectly suited for use with any powered speaker in the CZR series. The subwoofer requires 1000 W of power to drive the 18" speaker, offering a frequency range of 32 Hz to 150 Hz (-10 dB) with a maximum SPL of 133 dB.

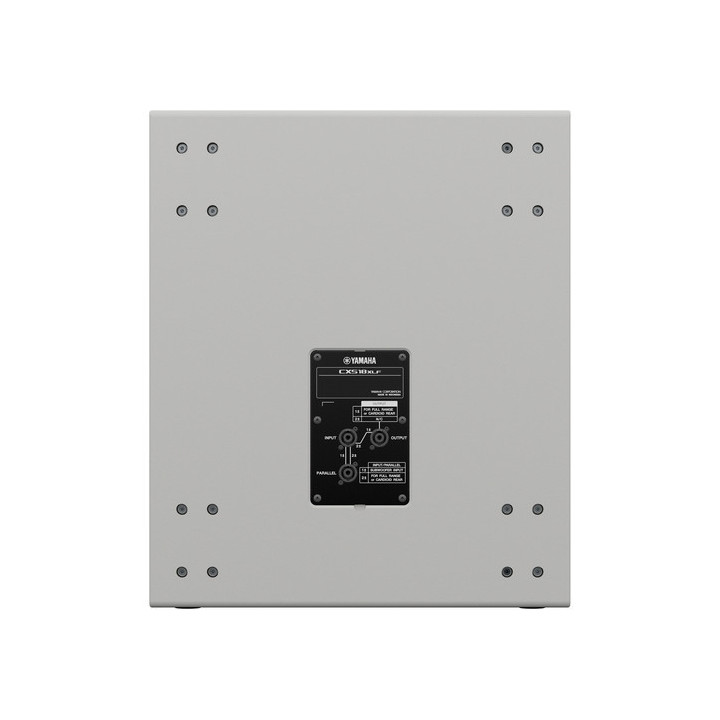

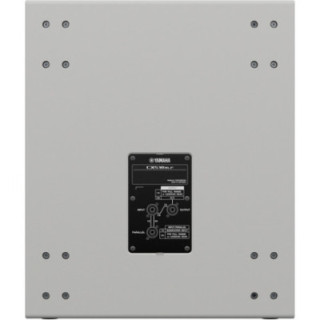

Yamaha recommends using a DSP speaker processor or a power amplifier with built-in DSP, such as Yamaha's PX series amplifiers, to adjust filters, limiting and equalisation for optimal performance. In addition, two or more subwoofers can be deployed in cardioid configuration (subject to DSP), which can effectively reduce stage volume while increasing the low-frequency output directed towards the audience. The rear panel features three Neutrik speakON NL4MP connectors, configured with two input/parallel connectors for multiple subwoofers plus one output connector for flexible configuration with CZR full-range speakers or for cardioid mode mounting. The Yamaha CXS18XLF is fitted with a 35 mm pole mount socket and an M20 threaded insert to support a full-range speaker.
Specifications
- Passive bass-reflex subwoofer
- LF speaker: 18" with 4" voice coil
- Ideal for extending the low frequencies of all full-range speakers
- Maximum SPL: 133 dB
- Frequency range (-10 dB): 32 to 150 Hz
- High power input 1000 W (PGM)
- Cardioid mode possible with processors or power amplifiers with built-in DSP
- 3 x speakON NL4MP (2 x parallel, 1 x output)
- Lightweight yet highly durable plywood cabinet with premium Polyurea coating
- Dual pole mount
|
|
Specifications |
|
|
Speaker |
|
|
|
Configuration |
Passive subwoofer |
|
|
Speaker type |
Bass-reflex subwoofer |
|
|
Total power |
500 W RMS, 1000 W Programme, 2000 W Peak |
|
|
System impedance |
8 Ohms (nominal) |
|
|
Speakers |
|
|
|
LF speaker |
1 x 18" / 457.2 mm LF speaker |
|
|
Low-frequency speaker voice coil |
4" / 101.6 mm |
|
|
Magnet |
Ferrite |
|
|
Performance |
|
|
|
Frequency range |
32 Hz to 150 Hz -10 dB |
|
|
Maximum SPL |
133 dB (peak) |
|
|
Speaker sensitivity |
100 dB |
|
|
Connectivity |
|
|
|
Audio inputs/outputs |
2 x speakON NL4 input/output, 1 x speakON NL4 output |
|
|
Physical characteristics |
|
|
|
Mounting |
1 x 1.4" / 35 mm pole mount (top), 1 x M20 pole mount (top) |
|
|
Handles |
1 on each side |
|
|
Construction material |
Plywood |
|
|
Dimensions |
21.7 x 25.9 x 28.3" / 550 x 657 x 720 mm |
|
|
Weight |
96.1 lb / 43.6 kg |
