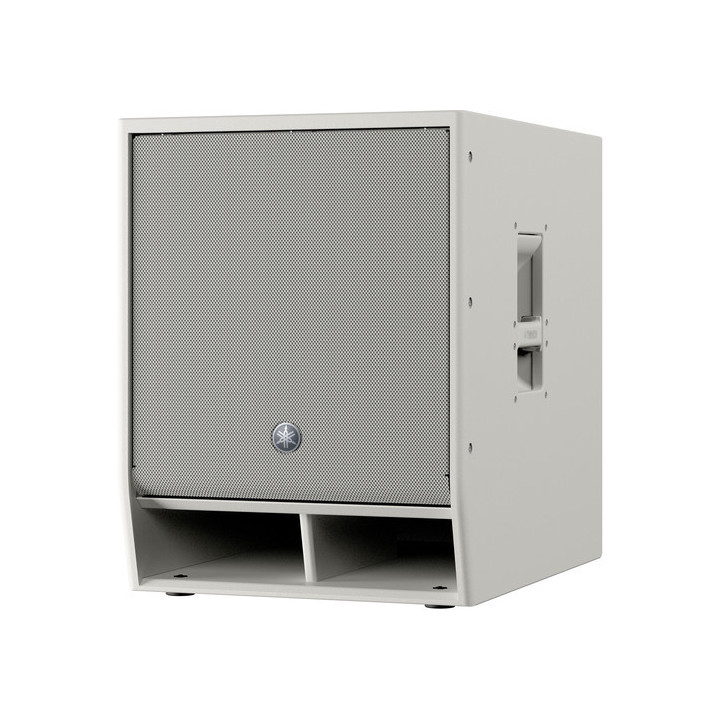

Yamaha DXS15XLF-DW - 1600W 15 inches Powered Subwoofer, White (Dante-Equipped)
1028188
4957812656467
The black Yamaha DXS15XLF-D is a Dante-equipped, powered subwoofer designed for extending the low frequency of full-range speakers and is well suited for use with any of the DZR-series powered loudspeakers. The 1600W Class-D amplifier powers the 15 inches woofer to provide a frequency range of 33 to 150 Hz (-10 dB) with a maximum SPL of 136 dB.
Visuals Price
1,839.20 CHF
VAT excl.
1,988.18 CHF Inc. VAT
Manufacturer price 2 090,00 CHF VAT excluded
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Yamaha 15-inch 1600 W active subwoofer, white (Dante-equipped)

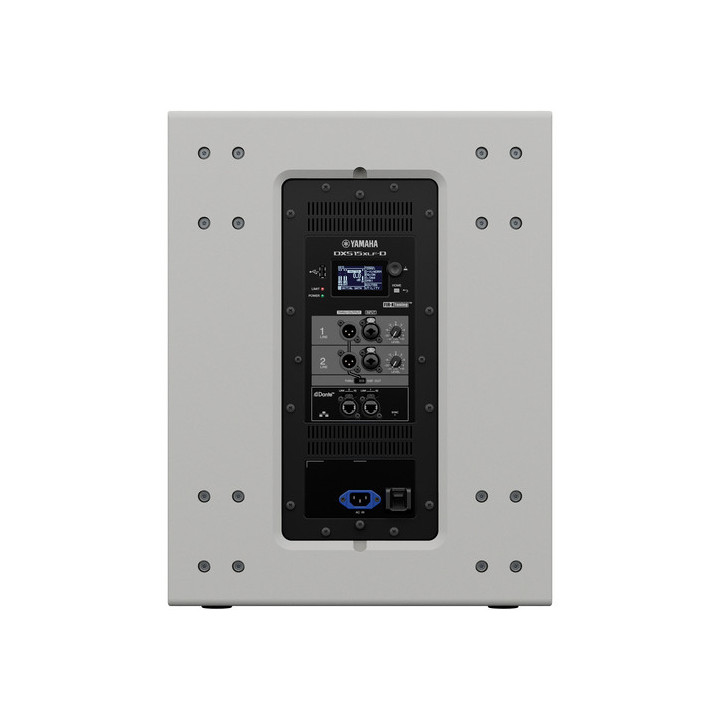

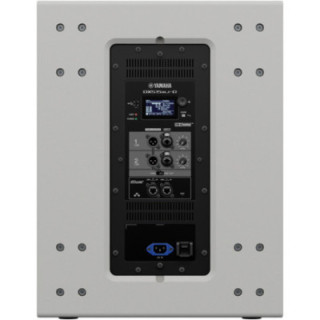

The Yamaha DXS15XLF-DW white is a Dante-equipped active subwoofer designed to extend the low frequencies of full-range speakers and perfectly suited for use with any active speaker in the DZR series. The 1600 W Class D amplifier powers the 15" loudspeaker to deliver a frequency response of 33 to 150 Hz (-10 dB) with a maximum sound pressure level of 136 dB. The integrated 96 kHz D-XSUB bass processor provides complete bass management. Normal mode is ideal for a balanced low-frequency response, while Boost mode delivers tighter and more precise bass with extra punch. Xtended LF mode pushes the low frequencies even lower for a sound with more bass. When using two or more subwoofers, selecting Cardioid mode can effectively reduce stage volume whilst increasing the low-frequency output directed towards the audience. The rear panel features two XLR-1/4" combo inputs with XLR thru/out outputs and dedicated level controls. A USB port enables system updates as well as preset configuration and storage. The DXS15XLF-DW is equipped with an additional panel featuring two etherCON connectors (2 inputs/2 outputs) for interfacing with other Dante-compatible equipment such as other Yamaha speakers and CL/QL/TF digital mixing consoles. The Yamaha DXS15XLF-DW is supplied with a standard IEC power cable. General features - Bass-reflex active subwoofer - Loudspeaker: 15" with 4" voice coil - Ideal for extending the low frequencies of all full-range speakers - Maximum sound pressure level: 136 dB - Frequency response (-10 dB): 33 to 150 Hz - 1600 W high-power Class D amplifier module - Lightweight yet extremely robust plywood cabinet with premium polyurea coating D-XSUB LF processing - DXS XLF subwoofers are powered by 96 kHz high-power DSP processors and use dynamic equalisation - The integrated D-XSUB LF processing provides total low-frequency management - Normal mode: Set for an ideally balanced low-frequency response - Boost mode: Delivers tighter and more precise bass with extra punch - Xtended LF mode: Pushes the low frequencies even lower for a sound with more bass Cardioid mode: - Works with two or more subwoofers - Effectively reduces sound pressure level on stage whilst increasing the low-frequency output directed towards the audience - Result: a much cleaner monitoring environment on stage DSP protection - DSP protection functions for maximum output and component longevity - Active subwoofers ensure that the transducer and amplifier combination is matched and optimised for the best possible performance - During development, Yamaha measured and tested the durability of each transducer and the overall amplifier output to define optimal limiting points using precise DSP control - Using numerous protection functions employed in top-of-the-range professional amplifiers, Yamaha's DSP constantly monitors the status of the power supply, power amplifiers, transducers and signal levels to protect each component in order to maintain optimal performance whilst extending component lifespan and usability Dante - Dante enables intelligent system integration with Yamaha consoles and other Dante devices via Dante I/O (2 inputs/2 outputs), which also includes SRC (Sample Rate Conversion) enabling compatibility with 48 kHz devices - Routing is greatly simplified with Yamaha CL/QL digital mixing consoles from the I/O device display - TF console users can select Quick Config for fast and easy setup and use of a sophisticated PA system - The combination of analogue I/O with Dante I/O opens up flexible routing and system configuration options - Dante's break-IN and break-OUT function adds even more flexibility by acting as a simple I/O box - Yamaha's customisable control software "ProVisionare Control" for Windows and "ProVisionare Touch" for iPad are also Dante-compatible, adding simpler remote management of your PA system
The Yamaha DXS15XLF-DW white is a Dante-equipped active subwoofer designed to extend the low frequencies of full-range speakers and perfectly suited for use with any active speaker in the DZR series. The 1600 W Class D amplifier powers the 15" loudspeaker to deliver a frequency response of 33 to 150 Hz (-10 dB) with a maximum sound pressure level of 136 dB. The integrated 96 kHz D-XSUB bass processor provides complete bass management. Normal mode is ideal for a balanced low-frequency response, while Boost mode delivers tighter and more precise bass with extra punch. Xtended LF mode pushes the low frequencies even lower for a sound with more bass. When using two or more subwoofers, selecting Cardioid mode can effectively reduce stage volume whilst increasing the low-frequency output directed towards the audience. The rear panel features two XLR-1/4" combo inputs with XLR thru/out outputs and dedicated level controls. A USB port enables system updates as well as preset configuration and storage. The DXS15XLF-DW is equipped with an additional panel featuring two etherCON connectors (2 inputs/2 outputs) for interfacing with other Dante-compatible equipment such as other Yamaha speakers and CL/QL/TF digital mixing consoles. The Yamaha DXS15XLF-DW is supplied with a standard IEC power cable. General features - Bass-reflex active subwoofer - Loudspeaker: 15" with 4" voice coil - Ideal for extending the low frequencies of all full-range speakers - Maximum sound pressure level: 136 dB - Frequency response (-10 dB): 33 to 150 Hz - 1600 W high-power Class D amplifier module - Lightweight yet extremely robust plywood cabinet with premium polyurea coating D-XSUB LF processing - DXS XLF subwoofers are powered by 96 kHz high-power DSP processors and use dynamic equalisation - The integrated D-XSUB LF processing provides total low-frequency management - Normal mode: Set for an ideally balanced low-frequency response - Boost mode: Delivers tighter and more precise bass with extra punch - Xtended LF mode: Pushes the low frequencies even lower for a sound with more bass Cardioid mode: - Works with two or more subwoofers - Effectively reduces sound pressure level on stage whilst increasing the low-frequency output directed towards the audience - Result: a much cleaner monitoring environment on stage DSP protection - DSP protection functions for maximum output and component longevity - Active subwoofers ensure that the transducer and amplifier combination is matched and optimised for the best possible performance - During development, Yamaha measured and tested the durability of each transducer and the overall amplifier output to define optimal limiting points using precise DSP control - Using numerous protection functions employed in top-of-the-range professional amplifiers, Yamaha's DSP constantly monitors the status of the power supply, power amplifiers, transducers and signal levels to protect each component in order to maintain optimal performance whilst extending component lifespan and usability Dante - Dante enables intelligent system integration with Yamaha consoles and other Dante devices via Dante I/O (2 inputs/2 outputs), which also includes SRC (Sample Rate Conversion) enabling compatibility with 48 kHz devices - Routing is greatly simplified with Yamaha CL/QL digital mixing consoles from the I/O device display - TF console users can select Quick Config for fast and easy setup and use of a sophisticated PA system - The combination of analogue I/O with Dante I/O opens up flexible routing and system configuration options - Dante's break-IN and break-OUT function adds even more flexibility by acting as a simple I/O box - Yamaha's customisable control software "ProVisionare Control" for Windows and "ProVisionare Touch" for iPad are also Dante-compatible, adding simpler remote management of your PA system
|
|
Specifications |
|
|
PA speaker |
|
|
|
Configuration |
Active subwoofer |
|
|
Speaker type |
Bass-reflex subwoofer |
|
|
Total power |
1600 W peak, 1200 W RMS |
|
|
Amplifier class |
Class D |
|
|
Speakers |
|
|
|
Low-frequency loudspeaker |
1 x 15" / 381 mm woofer |
|
|
Low-frequency voice coil |
4" / 101.6 mm |
|
|
Magnet |
Ferrite |
|
|
Performance |
|
|
|
Frequency response |
33 Hz to 150 Hz -10 dB |
|
|
Maximum SPL |
136 dB |
|
|
Maximum input level |
Line input : +24 dBu |
|
|
I/O impedance |
Input : 20 kilohms |
|
|
Connectivity |
|
|
|
Audio I/O |
2 x balanced/unbalanced female XLR-1/4" TRS combo inputs 2 x balanced male 3-pin XLR outputs |
|
|
Network I/O |
2 x etherCON (Dante) |
|
|
USB |
1 x USB Type-A (external storage, host connection) |
|
|
Signal processing |
|
|
|
Maximum sample rate/resolution |
96 kHz |
|
|
Power supply |
|
|
|
Mains power supply |
Universal : 100 to 240 V AC, 50 / 60 Hz |
|
|
Mains power connector |
1 x IEC (lockable) |
|
|
Power consumption |
40 W (standby) 180 W (1/8 power) |
|
|
Physical characteristics |
|
|
|
Mounting |
1 x 1.4" / 35 mm pole mount (top) 1 x M20 pole mount (top) |
|
|
Handles |
1 on each side |
|
|
Cooling |
Fan (variable speed) |
|
|
Construction material |
Plywood |
|
|
Dimensions |
17,7 x 23,1 x 23,6" / 450 x 587 x 600 mm |
|
|
Weight |
88.2 lb / 40 kg |
The black Yamaha DXS15XLF-D is a Dante-equipped, powered subwoofer designed for extending the low frequency of full-range speakers and is well suited for use with any of the DZR-series powered loudspeakers. The 1600W Class-D amplifier powers the 15 inches woofer to provide a frequency range of 33 to 150 Hz (-10 dB) with a maximum SPL of 136 dB.
