Yamaha DXS15XLFW - 1600W 15 inches Powered Subwoofer, White
1,807.43 CHF Inc. VAT
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks

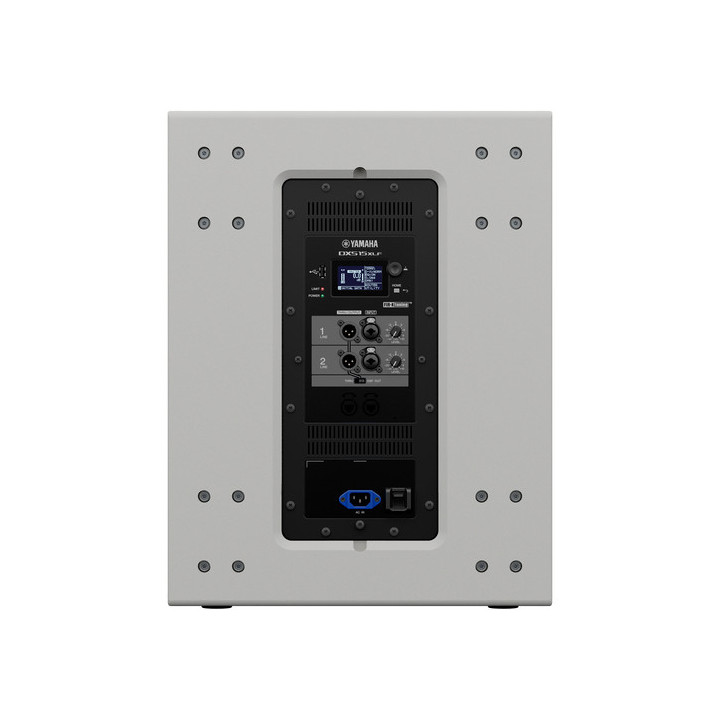

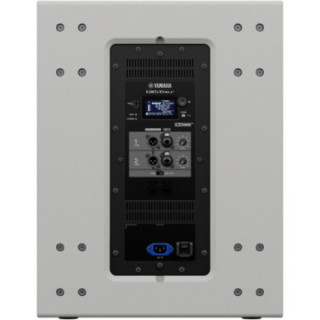

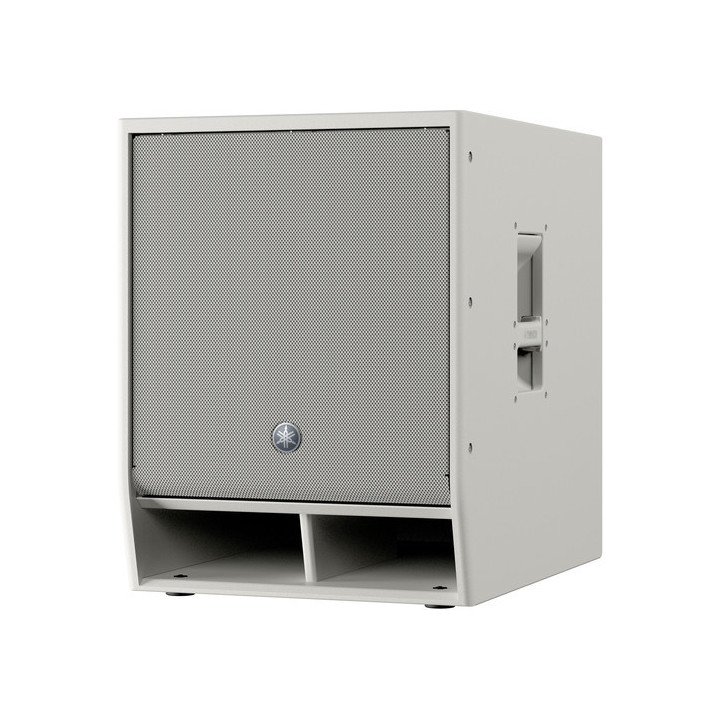

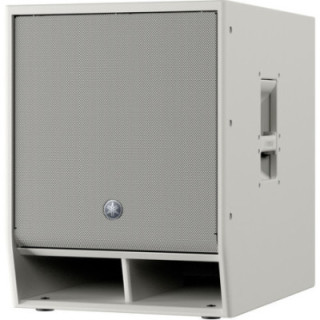

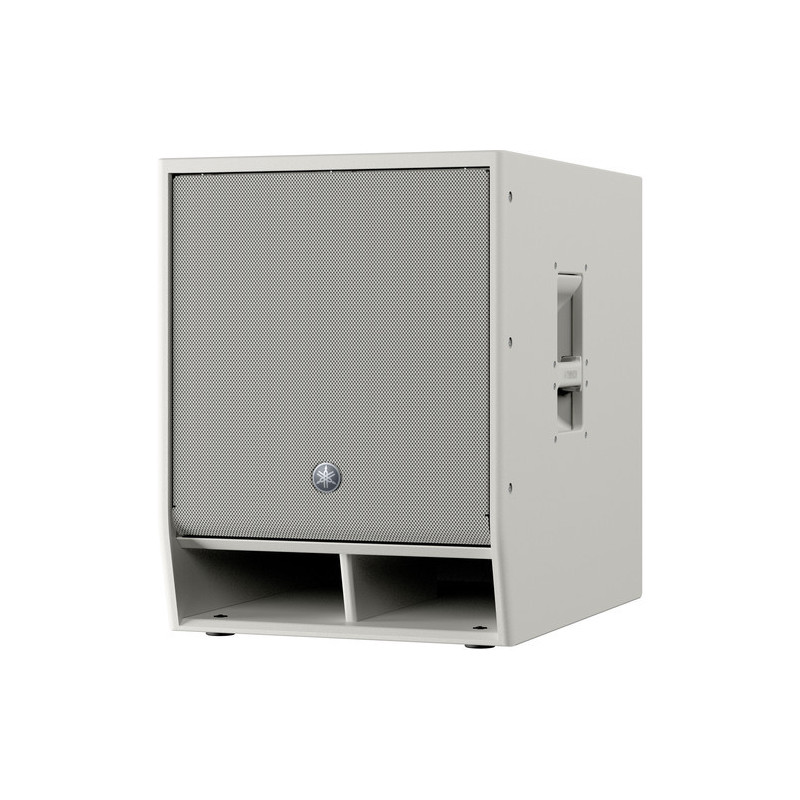

The Yamaha DXS15XLF white is a powered subwoofer designed to extend the low frequencies of full-range speakers and pairs perfectly with all powered speakers in the DZR series. The 1600W Class D amplifier powers the 15" speaker to deliver a frequency range of 33 to 150 Hz (-10 dB) with a maximum SPL of 136 dB. The integrated 96 kHz LF D-XSUB processor provides complete bass management. Normal mode is ideal for a balanced low-frequency response, while Boost mode delivers tighter, more precise bass with extra punch. Xtended LF mode goes even lower in the low frequencies for deeper bass. When using two or more subwoofers, selecting Cardioid mode can effectively reduce stage volume while increasing the low-frequency output directed towards the audience. The rear panel features two XLR-6.35 mm combo inputs with XLR thru/out outputs and dedicated level controls. A USB port allows system updates as well as preset configuration and storage. The Yamaha DXS15XLF is supplied with a standard IEC power cable. Features - Powered bass-reflex subwoofer - Speaker: 15" with 4" voice coil - Ideal for extending the low frequencies of all full-range speakers - Maximum SPL: 136 dB - Frequency range (-10 dB): 33 to 150 Hz - 1600W high-power Class D amplifier module - Lightweight yet highly robust plywood enclosure with premium polyurea coating LF D-XSUB Processing - DXS XLF subwoofers are driven by 96 kHz high-power DSP processors and use dynamic EQ - The integrated LF D-XSUB processing provides complete low-frequency management - Normal mode: Set for an ideally balanced low-frequency response - Boost mode: Provides tighter, more precise bass with extra punch - Xtended LF mode: Goes even lower in the low frequencies for deeper bass Cardioid mode: - Works with two or more subwoofers - Effectively reduces acoustic pressure on stage while increasing low-frequency output directed towards the audience - Results in a much cleaner monitoring environment on stage DSP Protection - DSP protection functions for maximum output and component longevity - Active subwoofers ensure that the transducer and amplifier combination is matched and optimised for the best possible performance - During development, Yamaha measured and tested the durability of each transducer and the overall amplifier output to define optimal limiting points using precise DSP control - Using many of the same protection functions as those used in top-of-the-range professional amplifiers, Yamaha's DSP continuously monitors power, amplifier, transducer and signal level conditions to protect each component in order to maintain optimal performance while extending component lifespan and usability
|
|
Specifications |
|
|
PA speaker |
|
|
|
Configuration |
Active subwoofer |
|
|
Speaker type |
Bass-reflex subwoofer |
|
|
Total power |
1600 W peak, 1200 W RMS |
|
|
Amplifier class |
Class D |
|
|
Speakers |
|
|
|
Low-frequency speaker |
1 x 15" / 381 mm speaker |
|
|
Low-frequency voice coil |
4" / 101.6 mm |
|
|
Magnet |
Ferrite |
|
|
Performance |
|
|
|
Frequency range |
33 Hz to 150 Hz -10 dB |
|
|
Maximum SPL |
136 dB |
|
|
Maximum input level |
Line input:, +24 dBu |
|
|
Input/output impedance |
Input:, 20 kilohms |
|
|
Connectivity |
|
|
|
Audio input/output |
2 x balanced/unbalanced female XLR-6.35 mm TRS combo inputs, 2 x balanced 3-pin male XLR outputs |
|
|
USB |
1 x USB Type-A (external memory, host connection) |
|
|
Signal processing |
|
|
|
Maximum sampling rate/resolution |
96 kHz |
|
|
Power supply |
|
|
|
Mains power supply |
Universal:, 100 to 240 VAC, 50 / 60 Hz |
|
|
Mains power connector |
1 x IEC (lockable) |
|
|
Power consumption |
40 W (idle), 180 W (1/8 power) |
|
|
Physical characteristics |
|
|
|
Mounting |
1 x 1.4" / 35 mm pole mount socket (top), 1 x M20 pole mount socket (top) |
|
|
Handles |
1 x Each side |
|
|
Cooling |
Fan (variable speed) |
|
|
Construction material |
Plywood |
|
|
Dimensions |
17.7 x 23.1 x 23.6" / 450 x 587 x 600 mm |
|
|
Weight |
88.2 lb / 40 kg |
