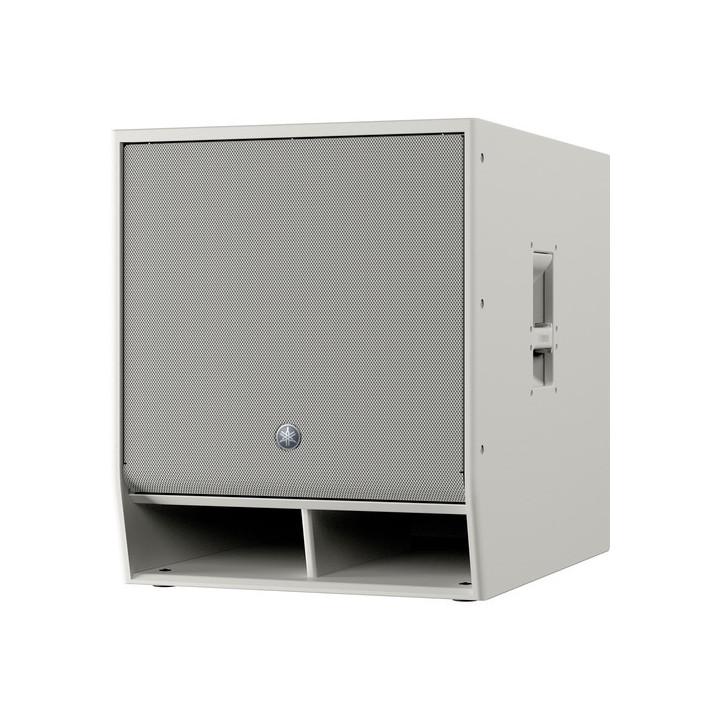

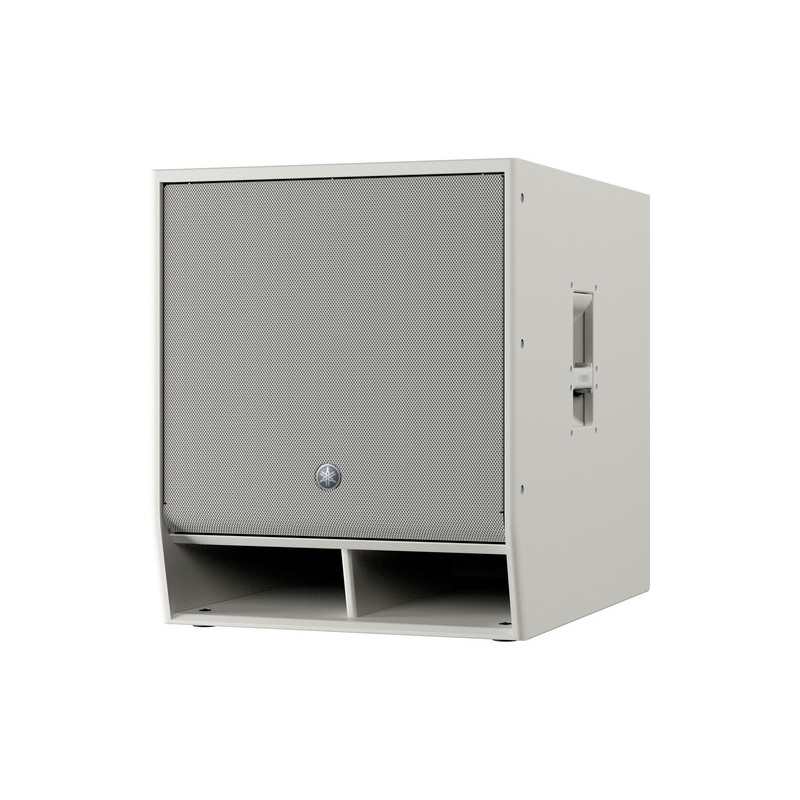

Yamaha DXS18XLFW - 1600W 18 inches Powered Subwoofer, White
1,933.95 CHF Inc. VAT
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
The Yamaha DXS18XLF white is a powered subwoofer designed to extend the low frequencies of full-range loudspeakers and is particularly suited for use with any powered loudspeaker in the DZR series. The 1600 W Class D amplifier drives the 18" woofer to deliver a frequency range of 30 to 150 Hz (-10 dB) with a maximum SPL of 136 dB.
The integrated 96 kHz D-XSUB LF DSP processor provides comprehensive bass management. Normal mode is ideal for a balanced low-frequency response, while Boost mode delivers tighter, more precise bass with extra punch. Xtended LF mode extends the low frequencies even further for deeper bass. When using two or more subwoofers, selecting Cardioid mode effectively reduces stage volume while increasing bass output directed towards the audience.

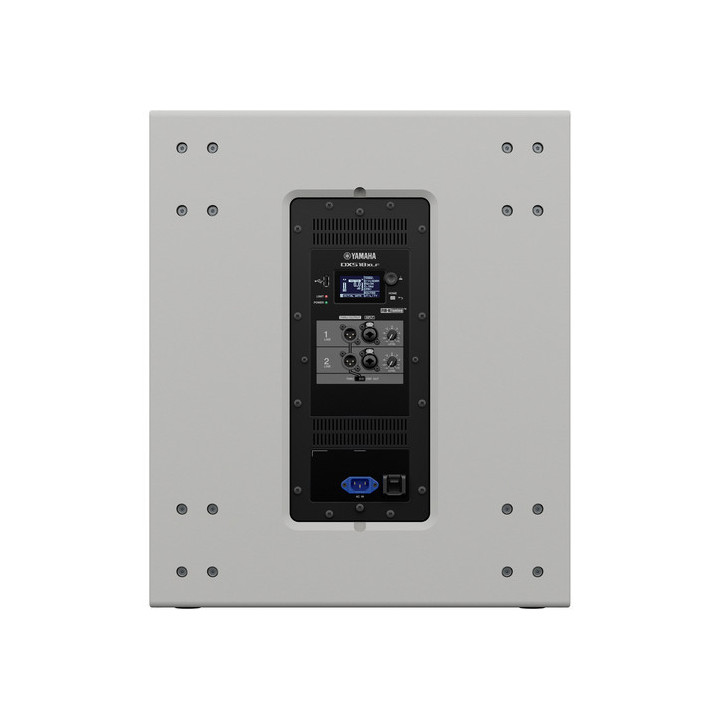

The rear panel features two XLR/6.35 mm jack combo inputs with direct XLR outputs and dedicated level controls. A USB port allows for system updates and preset configuration/storage. The Yamaha DXS18XLF comes with a standard IEC power cable.
Features
- Powered bass-reflex subwoofer
- Woofer: 18" with 4" voice coil
- Ideal for extending the low frequencies of all full-range loudspeakers
- Maximum SPL: 136 dB
- Frequency response (-10 dB): 30 to 150 Hz
- 1600 W high-power Class D amplifier module
- Lightweight yet highly robust plywood cabinet with premium Polyurea coating
D-XSUB LF Processing
- DXS XLF subwoofers are driven by 96 kHz high-power DSP processors and use dynamic equalisation
- The integrated D-XSUB LF processing provides comprehensive low-frequency management
- Normal mode: Set for an ideally balanced low-frequency response
- Boost mode: Delivers tighter, more precise bass with extra punch
- Xtended LF mode: Extends the low frequencies even further for deeper bass
Cardioid mode:
- Works with two or more subwoofers
- Effectively reduces acoustic pressure on stage while increasing bass output directed towards the audience
- Results in a much cleaner on-stage monitoring environment
DSP Protection
- DSP protection functions for maximum output and component longevity
- Active subwoofers ensure that the transducer/amplifier combination is matched and optimised for the best possible performance
- During development, Yamaha measured and tested the durability of each transducer and the overall output power of the amplifier to define optimal limiting points using precise DSP control
- Using many of the same protection functions found in top-of-the-range professional amplifiers, Yamaha's DSP continuously monitors the status of the power supply, power amplifiers, transducers and signal levels to protect each component in order to maintain optimal performance whilst extending the service life and usability of the components
|
|
Features |
|
|
PA loudspeaker |
|
|
|
Configuration |
Active subwoofer |
|
|
Enclosure type |
Bass-reflex subwoofer |
|
|
Total power |
1600 W peak |
|
|
Amplification class |
Class D |
|
|
Loudspeakers |
|
|
|
Bass enclosure |
1 x 18" / 457.2 mm woofer |
|
|
Woofer voice coil |
4" / 101.6 mm |
|
|
Magnet |
Ferrite |
|
|
Performance |
|
|
|
Frequency response |
30 Hz to 150 Hz -10 dB |
|
|
Maximum SPL |
136 dB |
|
|
Maximum input level |
Line input: |
|
|
I/O impedance |
Input: |
|
|
Connectivity |
|
|
|
Audio inputs/outputs |
2 x balanced/unbalanced female XLR/6.35 mm TRS jack combo inputs |
|
|
USB |
1 x USB Type-A (external memory, host connection) |
|
|
Signal processing |
|
|
|
Maximum sampling frequency/resolution |
96 kHz |
|
|
Power |
|
|
|
Mains power supply |
Universal: |
|
|
Mains power connector |
1 x IEC (lockable) |
|
|
Power consumption |
40 W (standby) |
|
|
Physical characteristics |
|
|
|
Mounting |
1 x 1.4" / 35 mm pole cup (top) |
|
|
Handles |
1 x on each side |
|
|
Cooling |
Fan (variable speed) |
|
|
Construction material |
Plywood |
|
|
Dimensions |
21.7 x 25.9 x 28.3" / 550 x 657 x 720 mm |
|
|
Weight |
107.8 lb / 48.9 kg |
