Yamaha HS5 W - Bi-Amped 2-Way Bassreflex Studio Monitor (White)
1028194
4957812558259
Bi-Amped 2-Way Bassreflex Studio Monitor, 45 Watt + 25 Watt (pc), Color: Black
Visuals Price
168.96 CHF
VAT excl.
182.65 CHF Inc. VAT
Manufacturer price 192,00 CHF VAT excluded
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks

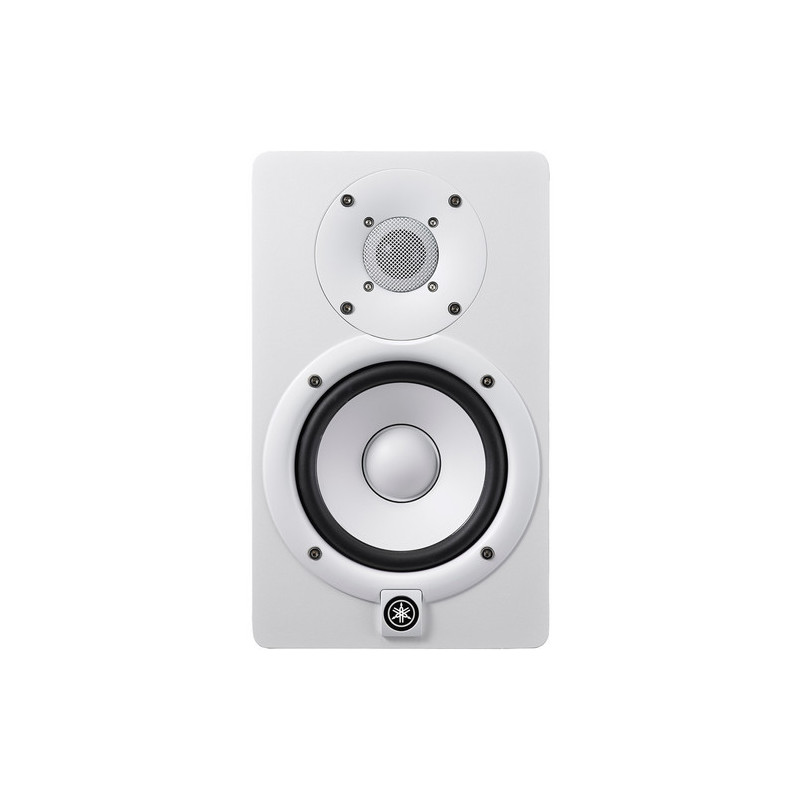

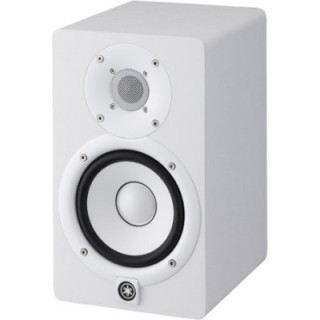

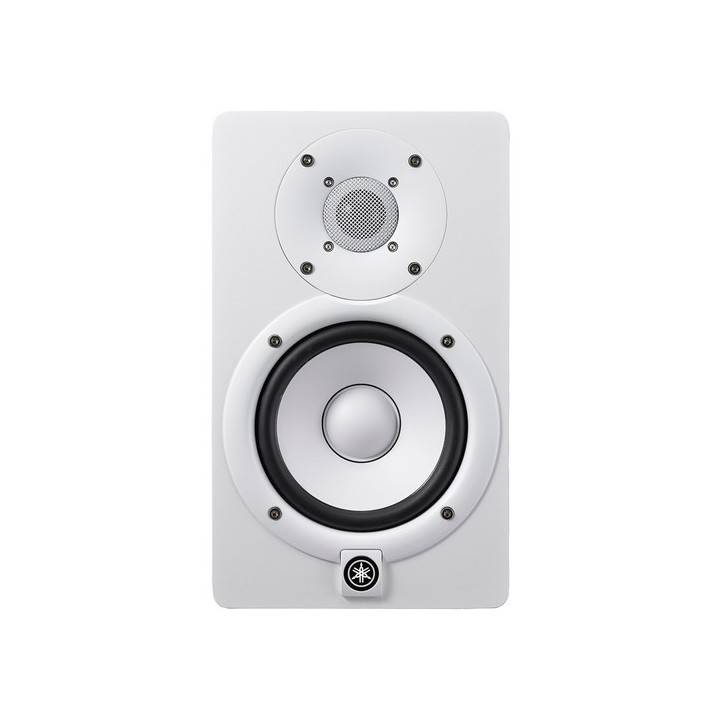

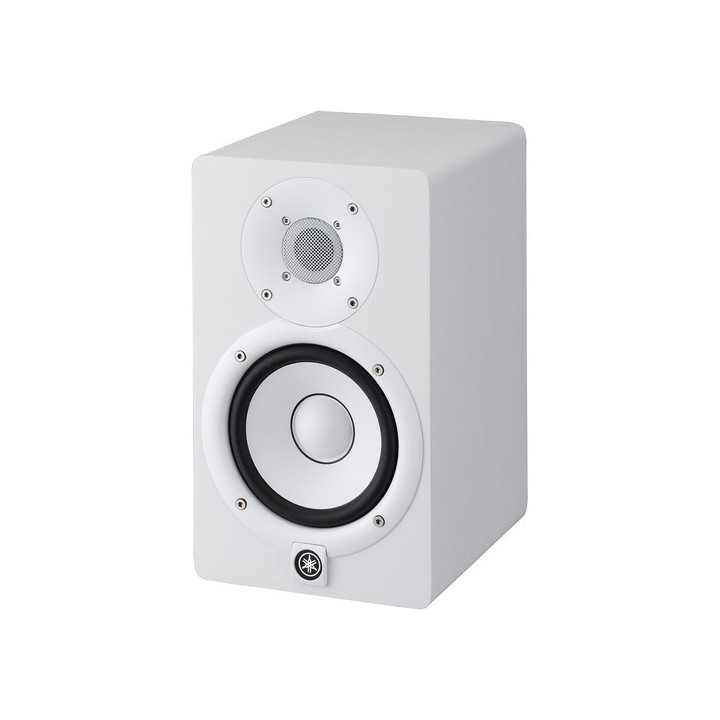

Yamaha 2-way bass-reflex bi-amplified studio monitor (White)
The Yamaha HS5 White amplified studio monitor is a 2-way reference speaker designed for mixing and monitoring in your home studio or studio. Equipped with a 70 W bi-amplification system driving a 5" woofer and a 1" tweeter, the HS5 is designed to deliver maximum headroom, minimal distortion and an extended response up to 30 kHz. The HS5 features an XLR input and a 1/4" TRS input that accept balanced or unbalanced signals for maximum flexibility in various studio configurations. Low-Resonance Cabinet Design HS Series speakers are designed to eliminate unwanted resonances and increase the accuracy of sound reproduction at their extreme limit. The speakers are constructed from dense MDF with a damped acoustic response. HS Series engineers also employed a traditional three-part mitre joint assembly technique. Common in architectural design, this construction firmly anchors the corners of the cabinet to improve durability and eliminate unwanted resonances that can influence the overall sound. Noise Reduction Technology The design of the speaker port can greatly influence overall sonic clarity. Often, a vortex at each end of the port can generate air vibrations inside the port, causing unwanted noise. By adopting a noise reduction technology that incorporates the analysis of a visual representation of sound, Yamaha engineers are able to control and reduce the vortex. Through this analysis, Yamaha has achieved a port design that reduces noise by up to 6 dB. Controls and Connectivity Full-range models in the HS Series feature two response controls with settings that allow them to adapt to the surface acoustics of rooms of various shapes and sizes. ROOM CONTROL allows attenuation of exaggerated and unnatural low frequencies that can often occur when speakers are placed near walls, while HIGH TRIM allows more flexible control of the high-frequency response. For inputs, HS full-range speakers can accommodate a range of balanced and unbalanced sources such as mixers, keyboards and audio interfaces with XLR and TRS connectors.
The Yamaha HS5 White amplified studio monitor is a 2-way reference speaker designed for mixing and monitoring in your home studio or studio. Equipped with a 70 W bi-amplification system driving a 5" woofer and a 1" tweeter, the HS5 is designed to deliver maximum headroom, minimal distortion and an extended response up to 30 kHz. The HS5 features an XLR input and a 1/4" TRS input that accept balanced or unbalanced signals for maximum flexibility in various studio configurations. Low-Resonance Cabinet Design HS Series speakers are designed to eliminate unwanted resonances and increase the accuracy of sound reproduction at their extreme limit. The speakers are constructed from dense MDF with a damped acoustic response. HS Series engineers also employed a traditional three-part mitre joint assembly technique. Common in architectural design, this construction firmly anchors the corners of the cabinet to improve durability and eliminate unwanted resonances that can influence the overall sound. Noise Reduction Technology The design of the speaker port can greatly influence overall sonic clarity. Often, a vortex at each end of the port can generate air vibrations inside the port, causing unwanted noise. By adopting a noise reduction technology that incorporates the analysis of a visual representation of sound, Yamaha engineers are able to control and reduce the vortex. Through this analysis, Yamaha has achieved a port design that reduces noise by up to 6 dB. Controls and Connectivity Full-range models in the HS Series feature two response controls with settings that allow them to adapt to the surface acoustics of rooms of various shapes and sizes. ROOM CONTROL allows attenuation of exaggerated and unnatural low frequencies that can often occur when speakers are placed near walls, while HIGH TRIM allows more flexible control of the high-frequency response. For inputs, HS full-range speakers can accommodate a range of balanced and unbalanced sources such as mixers, keyboards and audio interfaces with XLR and TRS connectors.
|
|
Specifications |
|
|
System type |
2-way bi-amplified active studio monitor |
|
|
Frequency response |
54 Hz to 30 kHz |
|
|
Filter frequency |
2 kHz |
|
|
Transducer |
LF: 5" (127 mm) cone, HF: 1" (25 mm) dome |
|
|
Output power |
Total: 70 W, LF: 45 W, HF: 25 W |
|
|
Input sensitivity |
-10 dBu / 10 kΩ |
|
|

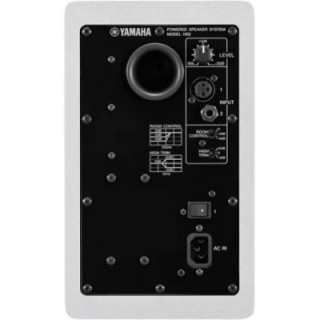

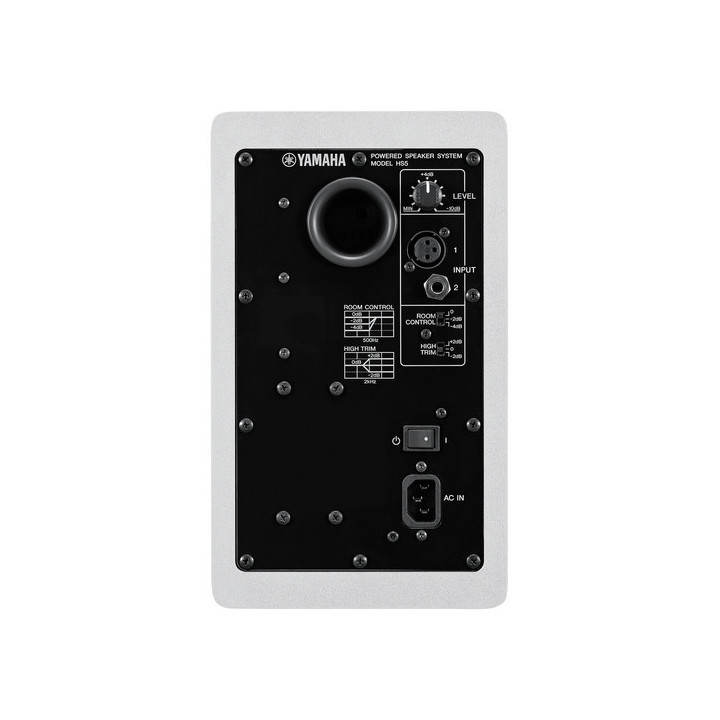

Inputs |
1x balanced XLR3-31, 1x 1/4" (6.35 mm) balanced TRS |
|
|
Controls |
Level control (+4 dB/centre click), EQ: High Trim switch (+/- 2 dB @ HF), Room Control switch (0, -2, -4 dB below 500 Hz) |
|
|
Indicators |
1x white power LED |
|
|
Power consumption |
45 W |
|
|
Cabinet |
Type: bass-reflex, Material: MDF |
|
|
Dimensions (W x H x D) |
6.7 x 11.2 x 8.7" (170 x 285 x 222 mm) |
|
|
Weight |
11.7 lb (5.3 kg) |
Bi-Amped 2-Way Bassreflex Studio Monitor, 45 Watt + 25 Watt (pc), Color: Black
