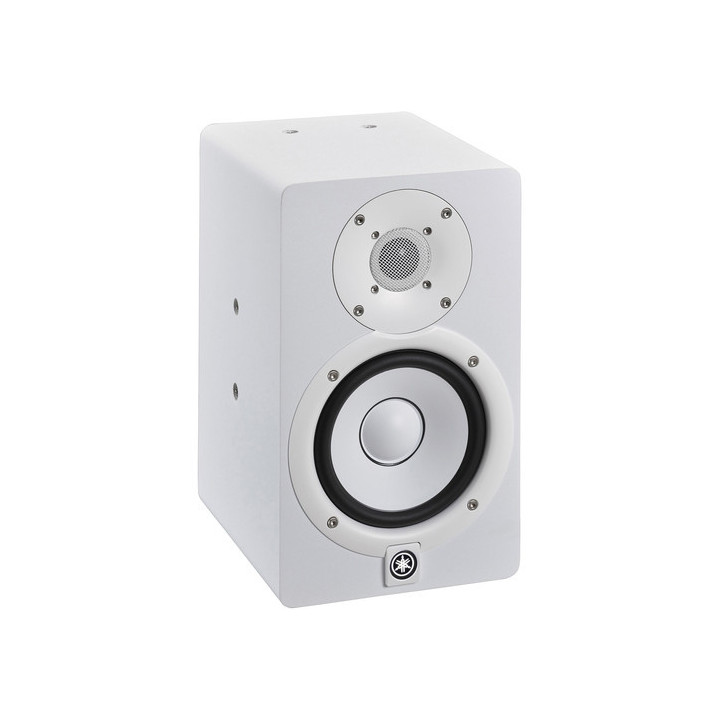

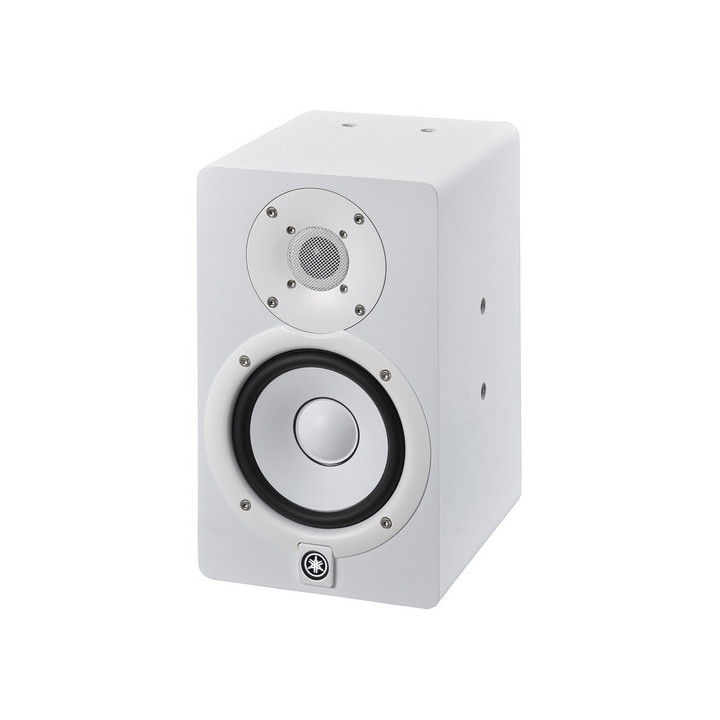

Yamaha HS5IW - Bi-Amped 2-Way Bassreflex Studio Monitor Speaker (White)
215.94 CHF Inc. VAT
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
The Yamaha white HS5I 2-way bi-amplified active studio monitor delivers 70W output power, a 5" cone woofer, 1" dome tweeter, response adjustment controls to adapt speaker output to a wide range of acoustic spaces, and a standard XLR connector as well as a jack input for direct connection of electronic musical instruments and other sources. The active studio monitor can be used to reproduce audio in various environments such as recording studios, home studios, cafes, restaurants, and more., Designed with a low-resonance enclosure, the HS series MDF cabinet provides damped acoustic response perfectly suited for reference monitors. The bi-amplified design features a 45W amplifier for the woofer and a 25W amplifier for the tweeter. Other features include noise reduction technology that reduces audible noise by up to 6 dB at the speaker port. Additionally, the HS5I studio monitor can be wall or ceiling mounted., Highly Efficient Transducers, The HS series features updated transducers that provide smooth response across a wide bandwidth. These transducers use a magnetic field design that regulates magnetic response to provide natural, seamless sound transitions., - Tweeter: 1" dome tweeter, - Woofer: 5" cone, High-Performance Amplification Unit, HS series speakers employ an amplification unit matched to the transducers used in each model of the series. Featuring a bi-amplified design with a separate dedicated amplifier for the woofer and tweeter, this amplification unit ensures that each HS series speaker delivers high-resolution sound with flat response across the sound spectrum., Low-Resonance Enclosure Design, The monitor cabinets are designed to eliminate unwanted resonances and increase the accuracy of sound reproduction. The enclosures are constructed from very dense and strong MDF with a damped acoustic response well suited for reference monitors., Noise Reduction Technology, Speaker port design can affect overall sound clarity. Often, a vortex at either end of the port can generate air vibrations inside the port, causing unwanted noise. By adopting advanced noise reduction technology, audible noise reduction is decreased by up to 6dB. This allows HS series studio monitors to meet the demands of the most strict professional production environments., Controls and Connectivity, HS series full-range models feature two response controls with detailed settings that allow them to adapt to the acoustics of room surfaces of varying shapes and sizes. The room control allows you to attenuate unnatural, exaggerated low frequencies that can occur when speakers are placed near walls, while the treble adjustment allows better control of high-frequency response. For inputs, HS full-range speakers can accommodate a wide range of balanced and unbalanced sources such as mixers, keyboards, and audio interfaces with XLR and TRS connectors., Wall or Ceiling Mounting, By adding mounting points to the original HS monitor, the HS-5I model is now compatible with two types of optional brackets - wall and ceiling - adding the flexibility needed to adapt to a wide range of sound environments.
|
|
Specifications |
|
|
Studio Monitor |
|
|
|
Monitor Type |
Active 2-way |
|
|
Enclosure |
Bass-reflex, shielded |
|
|
Rated Power |
70 W peak |
|
|
Speakers |
HF Driver: 1 x 1" / 25 mm Tweeter, LF Driver: 1 x 5" / 12.7 cm Cone |
|
|
Amplification |
HF Amplifier: Rated power 25 W, LF Amplifier: Rated power 45 W |
|
|
Performance |
|
|
|
Frequency Range |
74 Hz to 24 kHz (-3 dB), 54 Hz to 30 kHz (-10 dB) |
|
|
Analog Input Sensitivity/Gain |
-10 dBu (Continuously Variable) |
|
|
Signal Processing |
|
|
|
Equalization |
1 x HF Shelf: -2 to +2 dB, 1 x LF Shelf: -4 to 0 dB at 500 Hz (2 dB Steps) |
|
|
Crossover |
|
|
|
Crossover Frequency |
2 kHz |
|
|
Connectivity |
|
|
|
Audio Inputs/Outputs |
1 x Balanced XLR Analog Input (10 kilohms), 1 x Balanced 1/4" TRS Analog Input |
|
|
Power Supply |
|
|
|
Power Consumption |
45 W |
|
|
General |
|
|
|
Cabinet Material |
MDF |
|
|
Mounting Points |
2 x M5 (Side panels, Top panel, Bottom panel) |
|
|
Dimensions (W x H x D) |
6.7 x 11.2 x 8.7" / 170 x 285 x 222 mm |
|
|
Weight |
12.1 lb / 5.5 kg |
