Specifications

Configuration

Passive 2-way

Enclosure type

Bass-reflex enclosure

Total power capacity

175 W RMS
350 W Programme
700 W Peak

Constant voltage / Transformer taps

None

System impedance

8 Ohms

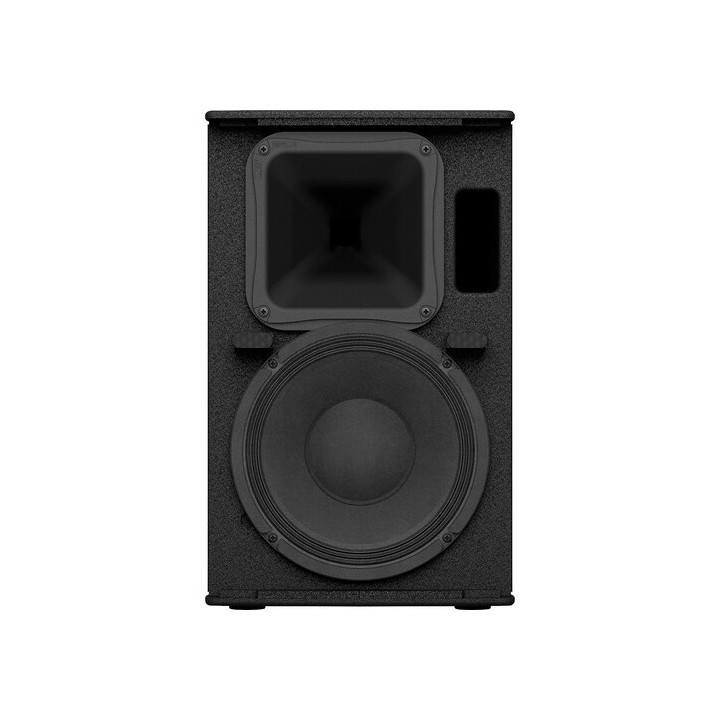

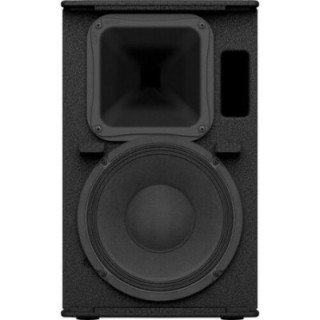

Loudspeakers

High-frequency driver

1 x 1.4" / 35.6 mm rotatable horn compression driver with 1" / 25 mm throat

Mid-frequency driver

None

Low-frequency driver

1 x 10" / 254 mm woofer

LF voice coil

2" / 50.8 mm

Magnet

Ferrite

Performance

Frequency range

55 Hz to 20 kHz -10 dB

Maximum SPL

122 dB

Coverage angle

90° H x 60° V (Rotatable horn)

Speaker sensitivity

93 dB SPL

Connectivity

Audio I/O

2 x speakON NL4 speaker input/output (lockable)

Signal processing

Filter

2.5 kHz

Phase adjustment

None

Physical characteristics

Mounting

2 x M10 rigging point (Top)
1 x M10 rigging point (Rear)
1 x 1.4" / 35 mm pole mount socket (Bottom)

Handles

1 x Top

Construction material

Perforated metal grille, Plywood, Polyurethane

Dimensions

19.5 x 12 x 11.8" / 495.3 x 304.8 x 299.7 mm

Weight

30.2 lb / 13.7 kg
