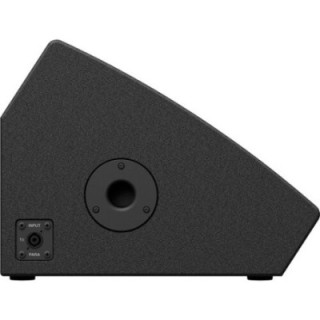

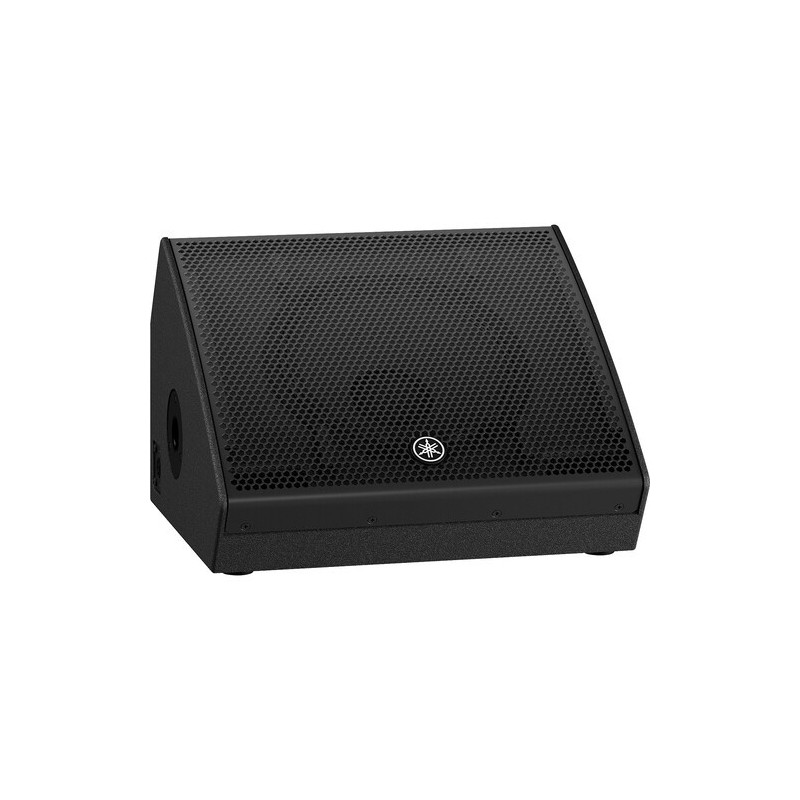

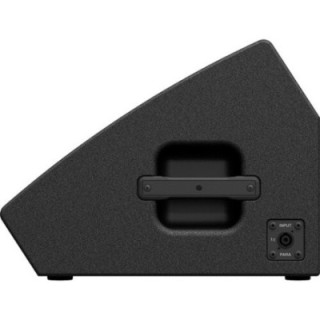

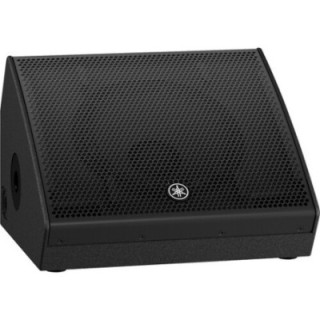

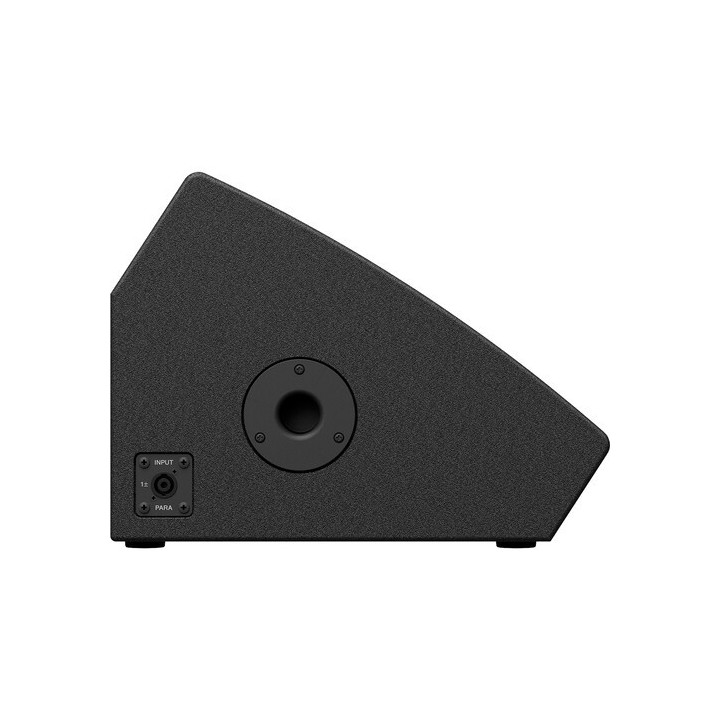

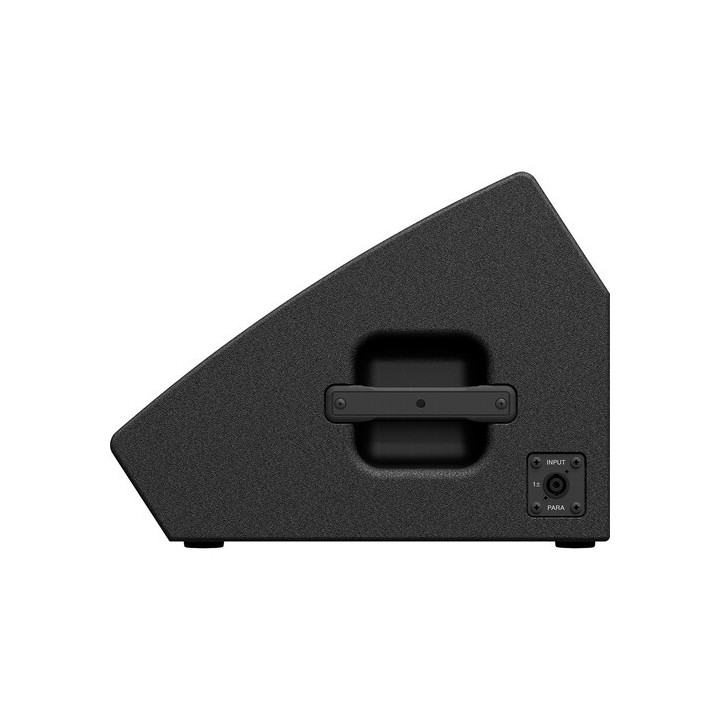

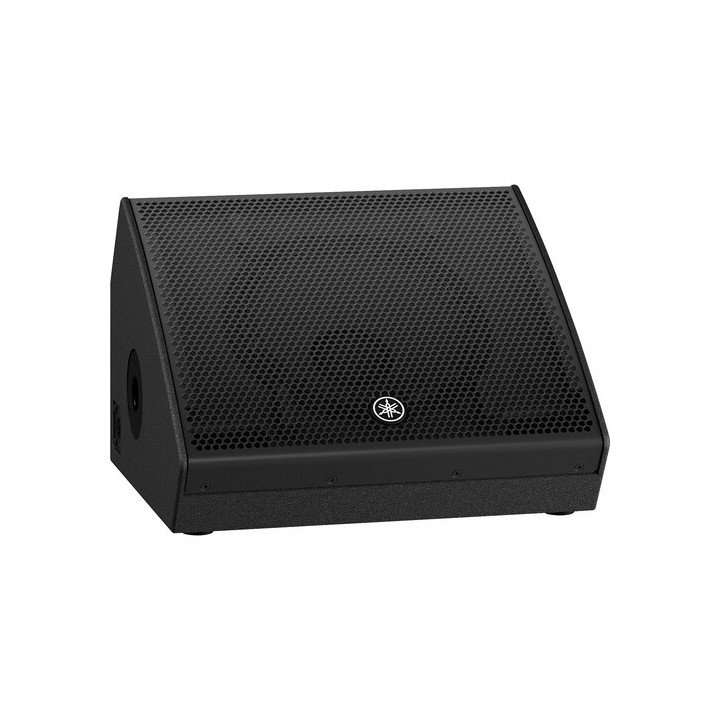

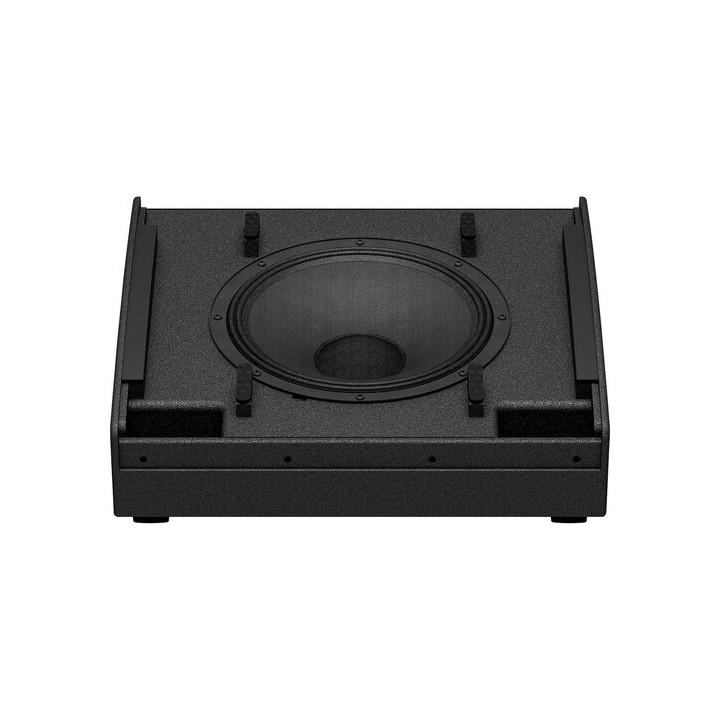

Yamaha CHR12M - 2-Way Coaxial 12" Passive Floor Monitor / Loudspeaker
477.54 CHF Inc. VAT
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
|
|
Specifications |
|
|
Configuration |
2-way passive |
|
|
Cabinet Type |
Bass-reflex Cabinet / Stage Monitor |
|
|
Total Power |
250 W RMS |
|
|
Constant Voltage / Transformer Taps |
None |
|
|
System Impedance |
8 Ohms |
|
|
Speakers |
|
|
|
HF Speaker |
1 x 1.75" / 44.45 mm Compression Driver with 1" / 25 mm Horn |
|
|
MF Speaker |
None |
|
|
LF Speaker |
1 x 12" / 304.8 mm Woofer |
|
|
LF Voice Coil |
2.5" / 63.5 mm |
|
|
Magnet |
Ferrite |
|
|
Performance |
|
|
|
Frequency Response |
61 Hz to 20 kHz -10 dB |
|
|
Maximum SPL |
123 dB |
|
|
Coverage Angle |
90° H x 90° V |
|
|
Cabinet Sensitivity |
93 dB SPL |
|
|
Connectivity |
|
|
|
Audio Inputs/Outputs |
2 x SpeakON NL4 Speaker Input/Output (lockable) |
|
|
Signal Processing |
|
|
|
Filter |
1.5 kHz |
|
|
Phase Adjustment |
None |
|
|
Physical Characteristics |
|
|
|
Mounting |
1 x Speaker Stand Socket 1.4" / 35 mm (bottom, side) |
|
|
Monitor Angle |
57° |
|
|
Handles |
1 x Side |
|
|
Construction Material |
Plywood, Polyurethane |
|
|
Dimensions |
19.7 x 17.9 x 13.5" / 500.4 x 454.7 x 342.9 mm |
|
|
Weight |
34.4 lb / 15.6 kg |
