Specifications

PA speaker

Configuration

Passive 2-way

Speaker type

Bass-reflex enclosure

Total power

Passive:
400 W RMS
800 W Programme
1600 W peak
Bi-amp / Woofer:
400 W RMS
800 W Programme
1600 W peak
Bi-amp / Tweeter:
50 W RMS
100 W Programme
200 W peak

System impedance

8 Ohms (passive),
Woofer:
8 Ohms (bi-amp)
Tweeter:
16 Ohms (bi-amp)

Motors

Tweeter motor

1 x Titanium compression driver with rotatable horn with 1" / 25.4 mm throat

Tweeter voice coil

2" / 50.8 mm

Woofer motor

1 x 12" / 30.5 cm woofer

Woofer voice coil

3" / 76.2 mm

Magnet

Tweeter:
Neodymium
Woofer:
Neodymium

Performance

Frequency response

43 Hz to 20 kHz -10 dB

Maximum SPL

129 dB SPL (peak, passive)
129 dB (woofer, peak, bi-amp)
131 dB SPL (tweeter, peak, bi-amp)

Coverage angle

90° H x 60° V (rotatable horn)
60° H x 90° V (monitor)

Speaker sensitivity

Passive:
97 dB SPL
Bi-amp/Woofer:
97 dB
Bi-amp/Tweeter:
108 dB SPL

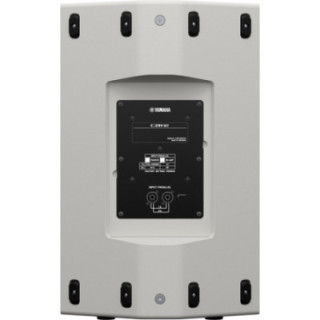

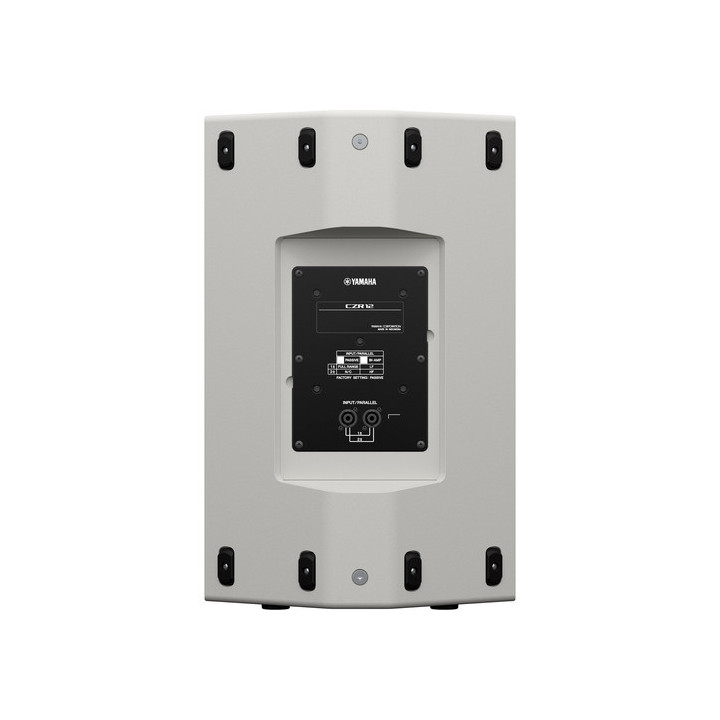

Connectivity

Audio input/output

2 x speakON NL4

Signal processing

Filter

2 kHz

Physical specifications

Mounting

12 x M10 hanging points
2 x 1.4" / 35 mm pole mount (dual angle, top)

Tilt angle

50°

Handles

1 x On each side

Construction material

Plywood

Dimensions

410 x 646 x 394 mm / 16.1 x 25.4 x 15.5"

Weight

18 kg / 39.7 lb
