Specifications

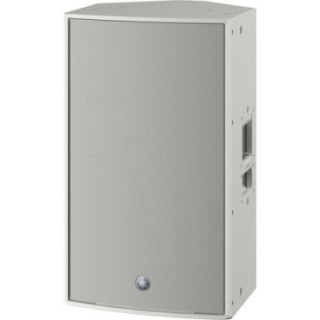

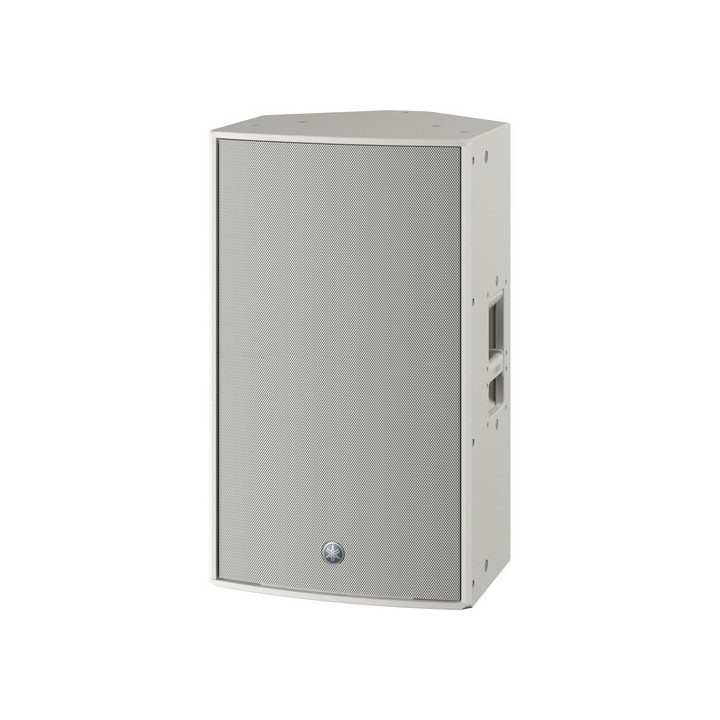

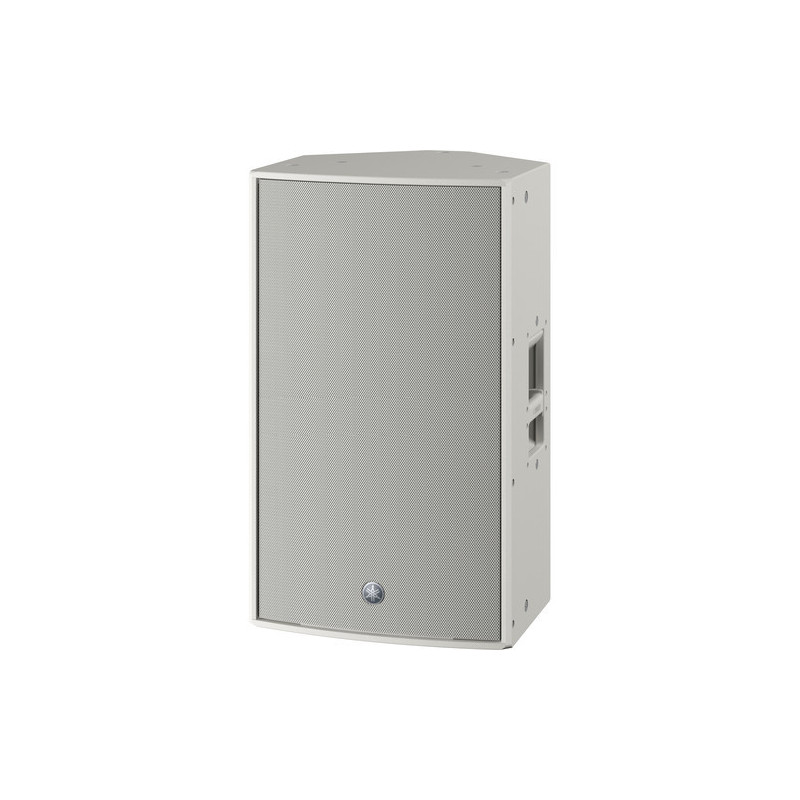

PA speaker

Configuration

2-way passive

Speaker type

Bass-reflex speaker

Total power

Passive:
400W RMS
800W Programme
1600W Peak
Bi-amplification / LF:
400W RMS
800W Programme
1600W Peak
Bi-amplification / HF:
50W RMS
100W Programme
200W Peak

System impedance

8 ohms (Passive)
LF:
8 ohms (Bi-amplification)
HF:
16 ohms (Bi-amplification)

Speakers

HF driver

1 x Titanium compression driver with rotatable horn and 1" / 25.4 mm throat

HF voice coil

2" / 50.8 mm

LF driver

1 x 15" / 381 mm woofer

LF voice coil

3" / 76.2 mm

Magnet

HF:
Neodymium
LF:
Neodymium

Performance

Frequency response

43 Hz to 20 kHz -10 dB

Maximum SPL

129 dB SPL (Peak, Passive)
131 dB (LF, Peak, Bi-amplification)
131 dB SPL (HF, Peak, Bi-amplification)

Coverage angle

90° H x 50° V (Rotatable horn)
90° H x 50° V (Monitor)

Speaker sensitivity

Passive:
97 dB SPL
Bi-amplification/LF:
99 dB
Bi-amplification/HF:
108 dB SPL

Connectivity

Audio inputs/outputs

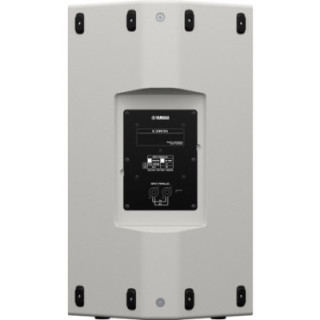

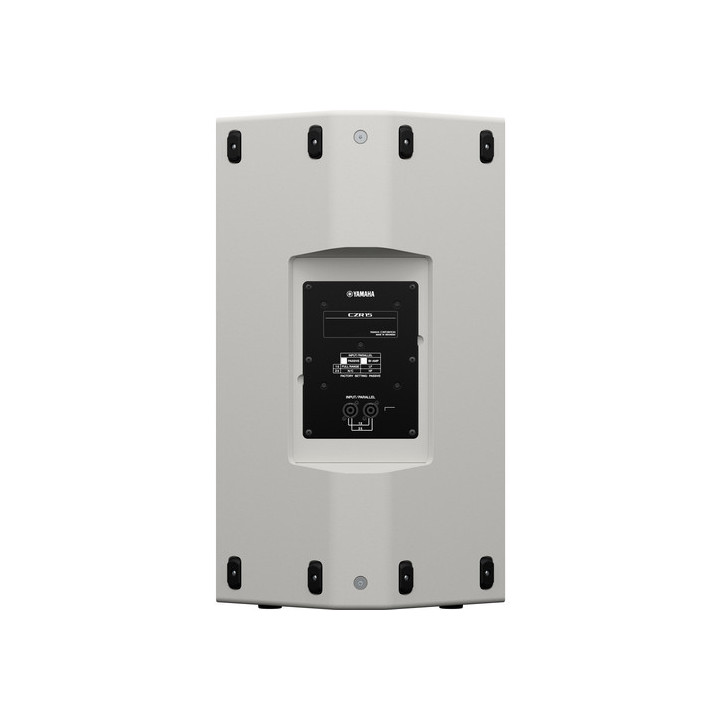

2 x speakON NL4

Signal processing

Crossover filter

2 kHz

Physical characteristics

Mounting

12 x M10 mounting points
2 x 1.4" / 35 mm pole mount socket (Dual angle, Top)

Monitor angle

50°

Handles

1 x Each side

Construction material

Plywood

Dimensions

17.7 x 30 x 18.1" / 450 x 762 x 460 mm

Weight

47 lb / 21.3 kg
