Specifications

Configuration

Active 2-way bi-amplification

Speaker type

Bass-reflex enclosure

Total power

325 W RMS
700 W peak

Amplifier rated power

Bass:
500 W peak
Treble:
200 W peak

Amplifier class

Class D

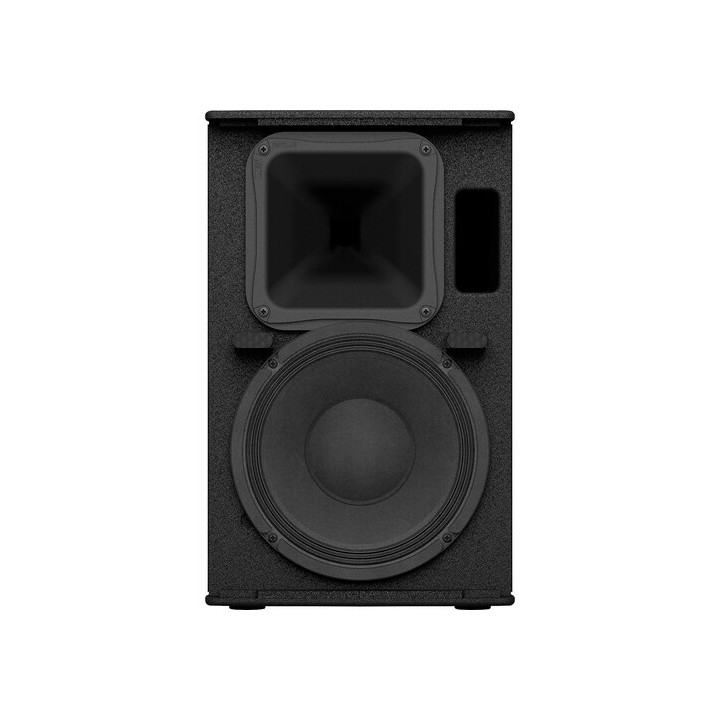

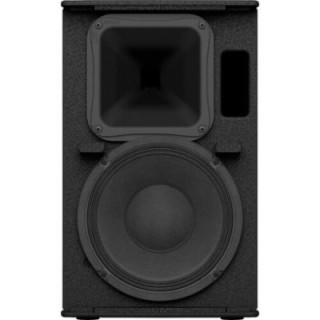

Speakers

HF speaker

1 x 1.4" / 35.6 mm compression driver with rotary horn with 1" / 25 mm throat

MF speaker

None

Bass speaker

1 x 10" / 254 mm woofer

Bass voice coil

2" / 50.8 mm

Magnet

Ferrite

Performance

Frequency response

52 Hz to 20 kHz -10 dB

Maximum SPL

128 dB

Coverage angle

90° H x 60° V (rotary horn)

Protection

DC fault, Dynamic clipping, Overcurrent, Overvoltage, Power supply, Thermal

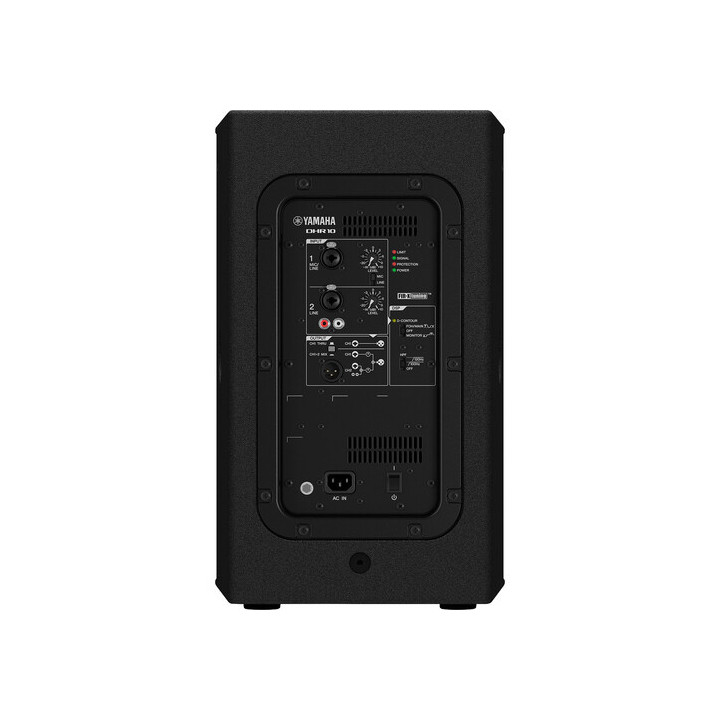

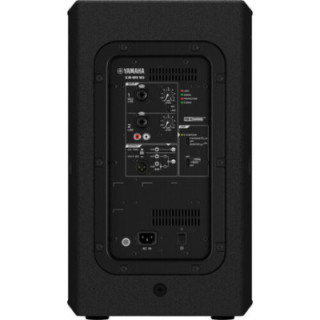

Connectivity

Audio inputs/outputs

1 x Balanced/unbalanced mic/line combo input XLR-6.35 mm jack 3-pin female
1 x Balanced/unbalanced line combo input XLR-6.35 mm jack 3-pin female
1 x Unbalanced stereo RCA line input female
1 x Balanced line output/link XLR 3-pin male

Network inputs/outputs

None

USB

None

Wireless connectivity

None

Signal processing

Filter

1.9 kHz

Equaliser

None

Parametric equaliser

None

Semi-parametric equaliser

None

Filters

High-pass:
100 Hz / 120 Hz

Alignment delay

None

Phase adjustment

None

Digital signal processing

Room settings

Maximum sampling frequency/resolution

48 kHz / 24 bit

Power supply

AC input power supply

100 to 240 VAC, 50 / 60 Hz

AC power connector

1 x IEC input

Power consumption

18 W (standby)
60 W (1/8 power)

Physical characteristics

Mounting

2 x M10 mounting points (top)
1 x M10 mounting point (rear)
1 x 1.4" / 35 mm stand socket (bottom)

Handles

1 x High

Construction material

Perforated metal grille, Plywood, Polyurethane

Dimensions

495.3 x 304.8 x 299.7 mm / 19.5 x 12 x 11.8"

Weight

15 kg / 33.1 lb
