Features

PA speaker

Configuration

2-way active

Speaker type

Bass-reflex enclosure

Total power

2000 W peak
950 W RMS

Amplifier power

LF:
1000 W peak
850 W RMS
HF:
1000 W peak
100 W RMS

Amplifier class

Class D

Speakers

HF driver

1 x 1" / 25.4 mm titanium compression driver with rotatable horn

HF voice coil

2" / 50.8 mm

LF driver

1 x 12" / 30.5 cm Woofer

LF voice coil

3" / 76.2 mm

Magnet

HF:
Neodymium
LF:
Neodymium

Performance

Frequency response

39 Hz to 20 kHz -10 dB

Maximum SPL

139 dB

Coverage angle

90° H x 60° V (Rotatable horn)
60° H x 90° V (Monitor)

Maximum input level

Line input:
+24 dBu

I/O impedance

Input:
20 kilohms

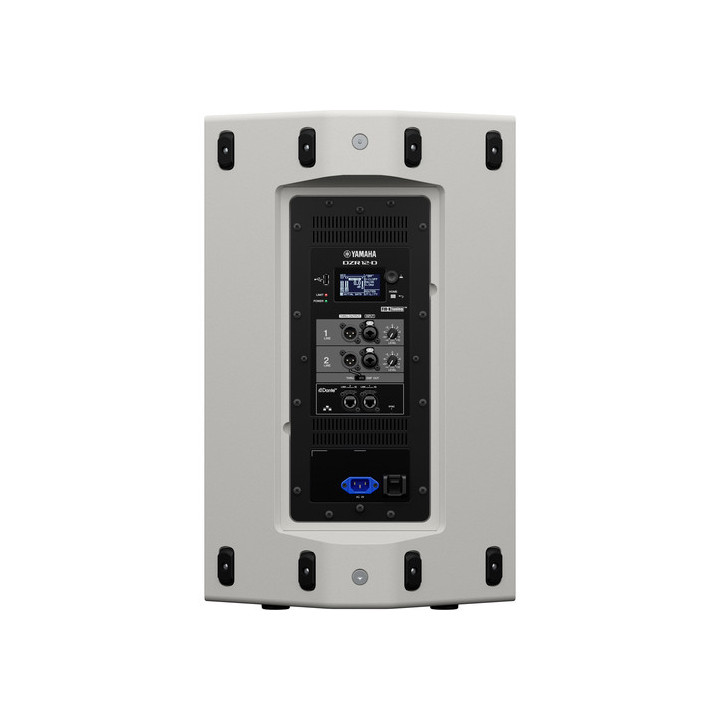

Connectivity

Audio I/O

2 x Combo XLR-1/4" TRS female balanced/unbalanced input
2 x XLR 3-pin male balanced output

Network I/O

2 x etherCON (Dante)

USB

1 x USB Type-A (External memory, host connection)

Signal processing

Filter

1.8 kHz

Maximum sampling frequency/resolution

96 kHz

Power

AC power

Universal:
100 to 240 VAC, 50 / 60 Hz

AC power connector

1 x IEC (lockable)

Power consumption

45 W (idle)
150 W (1/8 power)

Physical characteristics

Mounting

12 x M10 rigging points
2 x 1.4" / 35 mm pole sockets (Dual-angle, bottom)

Monitor angle

50°

Handles

1 x Per side

Cooling

Fan (variable speed)

Construction material

Plywood

Dimensions

16.1 x 25.4 x 15.5" / 410 x 646 x 394 mm

Weight

47.2 lb / 21.4 kg
