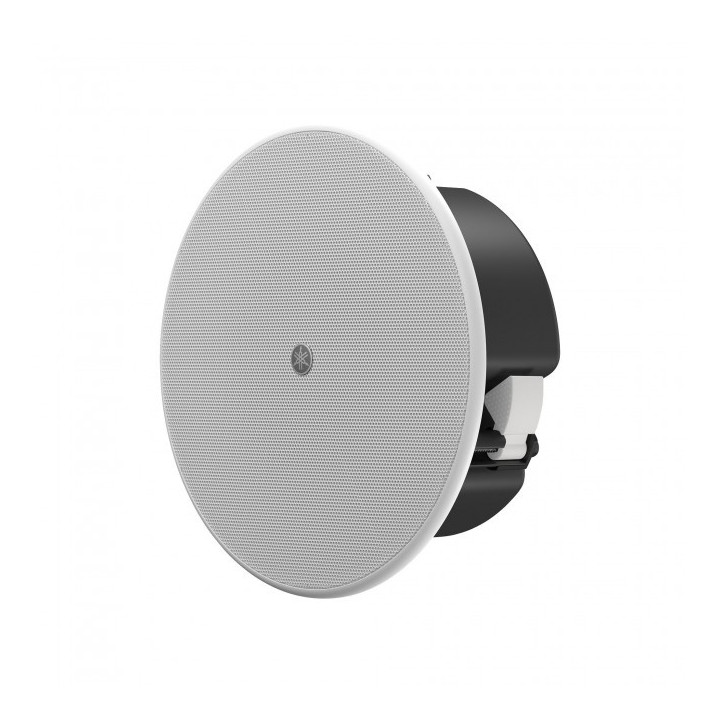

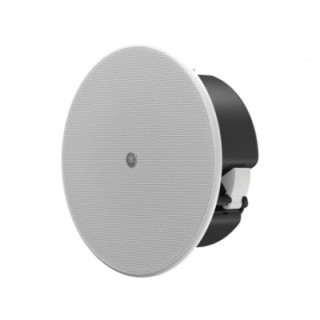

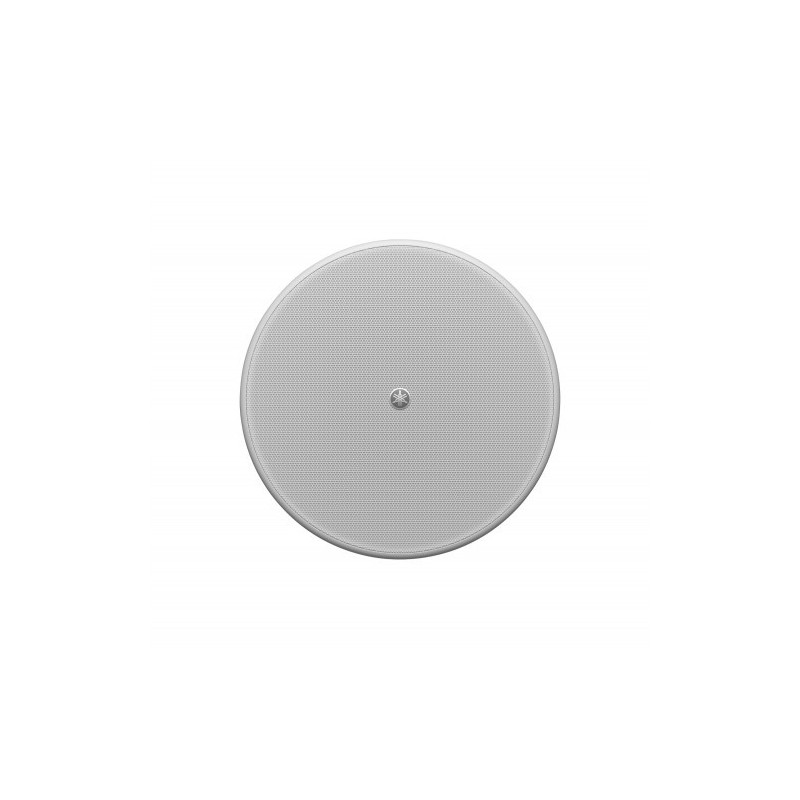

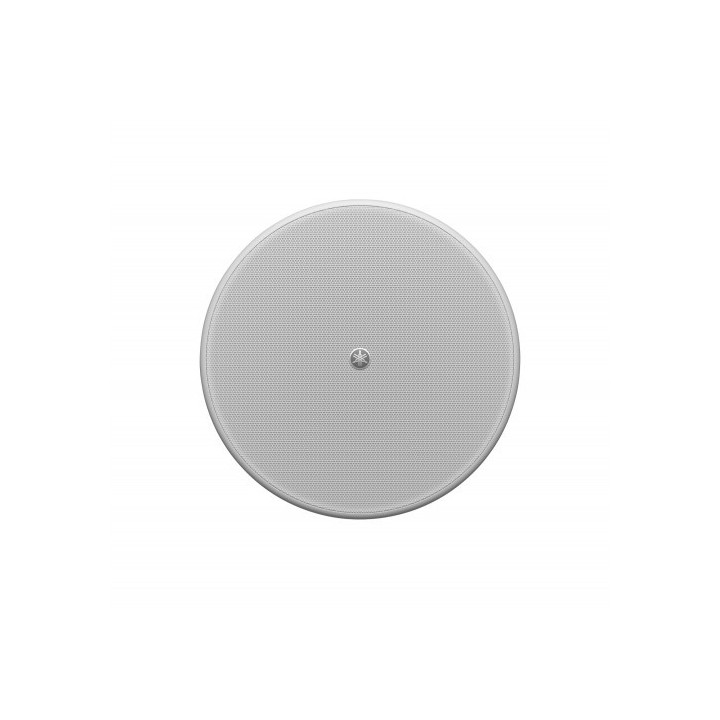

Yamaha VC6W - Ceiling Speaker, White
1060682
4957812672856
Ceiling Speaker with 6.5-inch woofer and 0.8-inch tweeter, white
Visuals Price
117.04 CHF
VAT excl.
126.52 CHF Inc. VAT
Manufacturer price 133,00 CHF VAT excluded
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
|
|
Specifications |
|
| General specifications | ||
| Speaker type | 2way Coaxial type, Acoustic Suspension | |
| Frequency range (-10dB) | 104 Hz – 20 kHz (Half-space: 2π) | |
| Nominal coverage | 120° conical (Half-space: 2π) | |
| Components | ||
| LF | 6.5" Cone | |
| HF | 0.8" Soft dome | |
| Power rating | ||
| NOISE | 25 W | |
| PGM | 50 W | |
| PEAK | 100 W | |
| Nominal impedance | 16 Ω | |
| Transformer taps | ||
| 100V | 12 W, 6 W, 3 W | |
| 70V | 12 W, 6 W, 3 W, 1.5 W | |
| SPL | ||
| Sensitivity (1W; 1m on axis) | 89 dB SPL (Half-space:2π) | |
| Peak (Calculated) | 109 dB SPL (Calculated, 1 m) | |
| I/O connectors | Euroblock (4 pin) ×1 (input: +/ - , loop - thru: +/ - ), Wire size : Min. AWG24 (0.2 sq), Max. AWG12 (3.5 sq) | |
| Protection circuit | ||
| Load protection | Full-range power limiting to protect network and transducers | |
| Finish | VC6B: Black (approx. Munsell N3), VC6W: White (approx. Munsell N9.3) | |
| Dimensions | ||
| Diameter | 286 mm (11 - 2/8") | |
| D | 106 mm (4 - 1/8") | |
| Net weight | 3.3 kg (7.3 lbs) | |
| Cutout size | Ø247 mm (Ø9 - 3/4") | |
| Required ceiling board thickness | 2 mm – 37 mm | |
| Accessories | C-Ring, Tile Rails x 2, Grille, Safety wire, Cutout template, Owner's Manual | |
| Packaging | Single package | |
| Certificate | UL1480, NFPA70, CE, EAC, RoHS | |
| Options | - | |
Ceiling Speaker with 6.5-inch woofer and 0.8-inch tweeter, white
