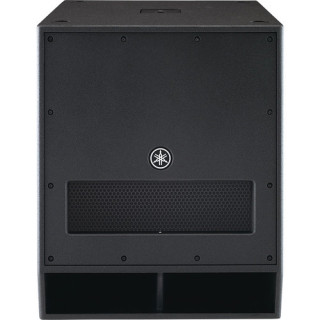

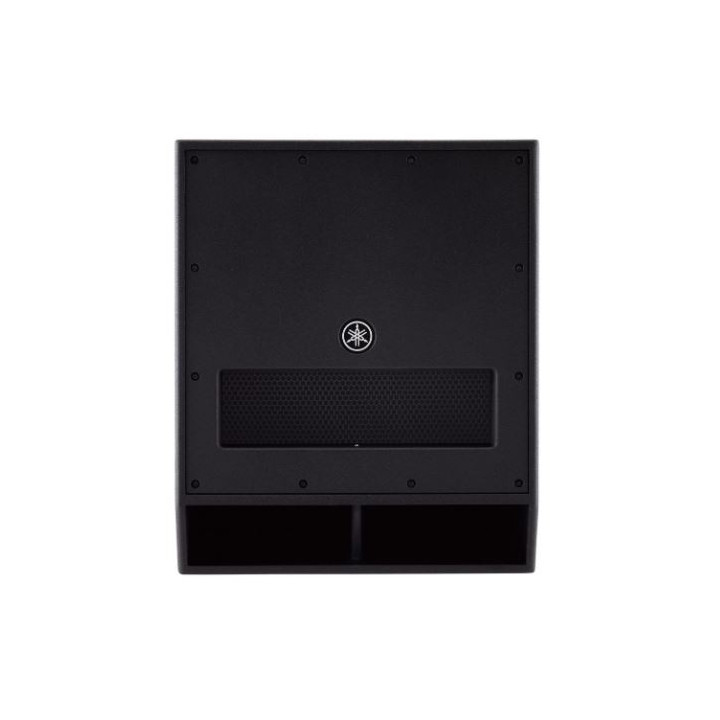

Yamaha DXS18 - Powered Subwoofer, 18 inches
1,536.32 CHF Inc. VAT
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
The Yamaha DXS18 18" 1020W active subwoofer delivers powerful bass reinforcement in a compact design, ideal for use with DXR and DSR full-range speakers. The subwoofer features a wooden enclosure with an optimized bandpass design that delivers high SPL levels with minimal distortion. The high-power 18" woofer is capable of reproducing frequencies down to 32Hz. It is finished with a durable Line-X elastomer coating.
The subwoofer is powered by a Class-D amplifier with 1020W peak power for clear, powerful bass. D-XSUB processing is built into the cabinet, allowing you to choose between Normal, Boost, or Xtended LF modes. For configurations including two or more DXS18 subwoofers, selecting the Cardioid Mode function effectively decreases stage-side sound pressure while increasing bass frequency output directed at the audience, resulting in a clearer stage monitoring environment and more pronounced bass experience out front. The rear panel features XLR input and output connectors for compatibility with a variety of speakers and sound systems. Standard M20 and 35mm pole mounts allow mounting a full-range speaker on top of the cabinet, while integrated handles provide convenient transport.
Features
- Ideal for bass reinforcement with DXR and DSR full-range speakers
- Compact wooden enclosure features an optimized bandpass design that delivers high SPL levels with minimal distortion
- High-power 18" woofer is capable of reproducing frequencies down to 32Hz
- Class-D amplifier has 1020W peak power for clear, powerful bass
- D-XSUB processing is built into the cabinet, allowing choice between Normal, Boost, or Xtended LF modes
- Cardioid Mode function effectively decreases stage-side sound pressure while increasing bass frequency output directed at the audience

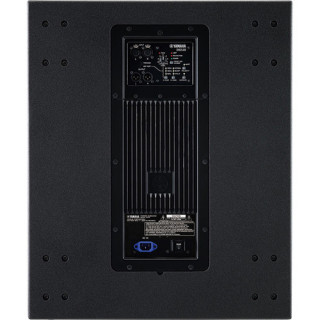

- Rear panel features XLR input and output connectors for compatibility with a variety of speakers and sound systems
- Standard M20 and 35mm pole mounts allow mounting a full-range speaker on top of the cabinet
- Integrated handles provide convenient transport
- Durable Line-X elastomer coating
|
|
Features |
|
|
PA Speaker |
|
|
|
Configuration |
Active Subwoofer |
|
|
Speaker Type |
Bandpass Subwoofer |
|
|
Constant Voltage / Transformer Taps |
None |
|
|
Amplifier Power |
1020 W Program |
|
|
Amplifier Class |
Class-D |
|
|
Drivers |
|
|
|
Low-Frequency Driver |
18" / 45.72 cm |
|
|
Low-Frequency Voice Coil |
4" / 10.16 cm |
|
|
Performance |
|
|
|
Frequency Response |
32 Hz to 120 Hz -10 dB |
|
|
Maximum SPL |
136 dB |
|
|
Gain Range |
-20 dB to +10 dB |
|
|
Protection |
Overcurrent, Thermal |
|
|
Connectivity |
|
|
|
Audio I/O |
2 x XLR 3-Pin Balanced Line Input |
|
|
Network I/O |
None |
|
|
USB |
None |
|
|
Wireless Connectivity |
None |
|
|
Signal Processing |
|
|
|
Filter |
High-pass: |
|
|
Equalization |
None |
|
|
Parametric EQ |
None |
|
|
Semi-Parametric EQ |
None |
|
|
Filters |
None |
|
|
Alignment Delay |
None |
|
|
Phase Setting |
0 / 180° |
|
|
Power Supply |
|
|
|
AC Power Input |
Universal: |
|
|
AC Power Connector |
IEC |
|
|
Power Consumption |
100 W |
|
|
Physical |
|
|
|
Mounting |
1 x M20 Pole Mount (Top) |
|
|
Handles |
1 x on each side |
|
|
Cooling |
Convection |
|
|
Construction Material |
Plywood |
|
|
Dimensions |
18.9 x 24.1 x 24.2" / 480 x 611 x 614 mm |
|
|
Weight |
79.4 lb / 36 kg |
