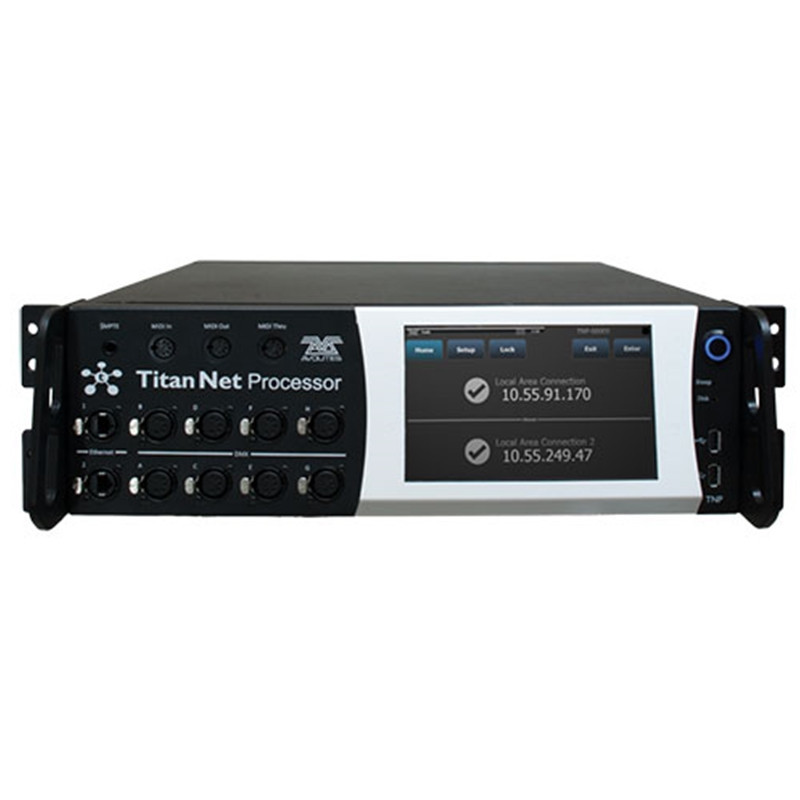

Avolites 30-01-1600, Titan Net Processor - Console Extension. 16 DMX universes processed internally; 8 physical DMX outputs; 7" front touchscreen; Built-in UPS; 19" rack unit; simple system configuration via Titan interface
Avolites' Titan Network Processor (TNP) allows any Titan console to be expanded up to 64 universes. Each Titan Network Processor processes up to 16 universes, of which 8 are provided as DMX512 on the unit and all 16 universes are available via Art-net on the dual Ethernet port. Each DMX output is optically isolated from the system and fully floating. The TNP has the same processing power as that used in the Sapphire Touch and other Titan consoles.
The complete processing unit and local SSD storage are mounted on a shock-resistant sub-frame inside the TNP enclosure. The TNP not only offers more universes but also shares the processing load of your show. Use our simple graphical interface to configure and manage your network. The clear, upward-tilted LCD touchscreen provides direct indication of system status and allows for quick configuration. The TNP is an integral part of the Titan console family and therefore has a dedicated user interface on the console to closely manage connected TNP units on a network.
The dual Gigabit network connections can be transferred to the rear of the unit so that structured cabling can be routed inside the rack for increased reliability. The TNP is equipped with a built-in UPS increasing network resilience against power failures. The TNP also features a balanced SMPTE input as well as Midi In thru and out on the front. Two USB ports are provided for non-network file transfer and configuration if necessary. The TNP is housed in a 19" 3U rack-mountable steel plated and powder-coated enclosure with convenient handles. The TNP is compatible with Titan consoles running Titan OS V7 and above.
16 Processed Universes
8 DMX512 outputs with optical and galvanic isolation
Balanced SMPTE input
MIDI in thru and Out
2 Gigabit Ethernet ports mounted either at the front or rear of the unit (factory-fitted at the front)
Bright 800x600 upward-tilted LCD touchscreen
Integral part of the Titan console family with a dedicated user interface on the console
Two USB2 ports on the front
Built-in UPS (5 sessions of 5 minutes without recharging)
100~240v AC mains input
Intel i5 processor, 2GB RAM, fast SSD for the system
Processing unit mounted on a shock-resistant frame
3U x 19" x 368mm deep (from front) plated and painted steel enclosure, 58mm protrusion from front
