AJA - 4K/UltraHD 4 x 3G-SDI to 4K HDMI 2.0 with 60p support

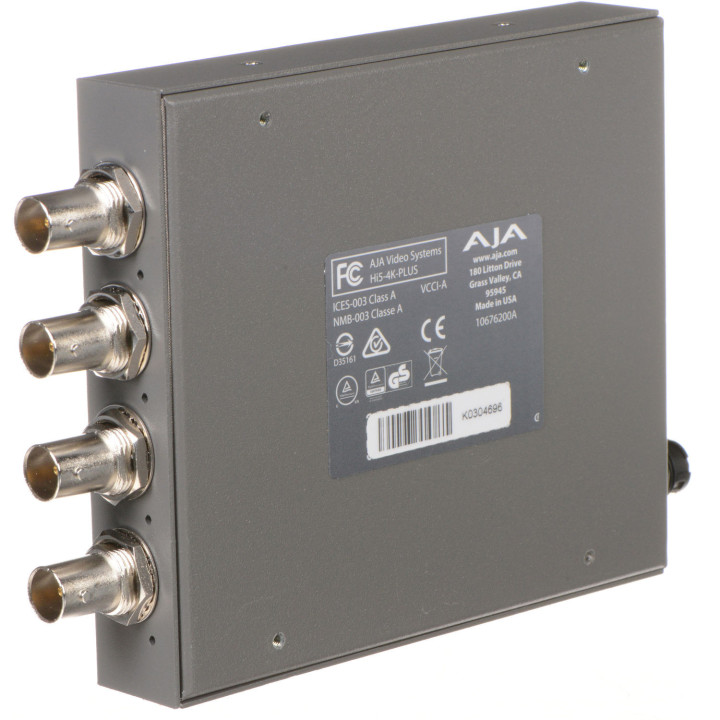

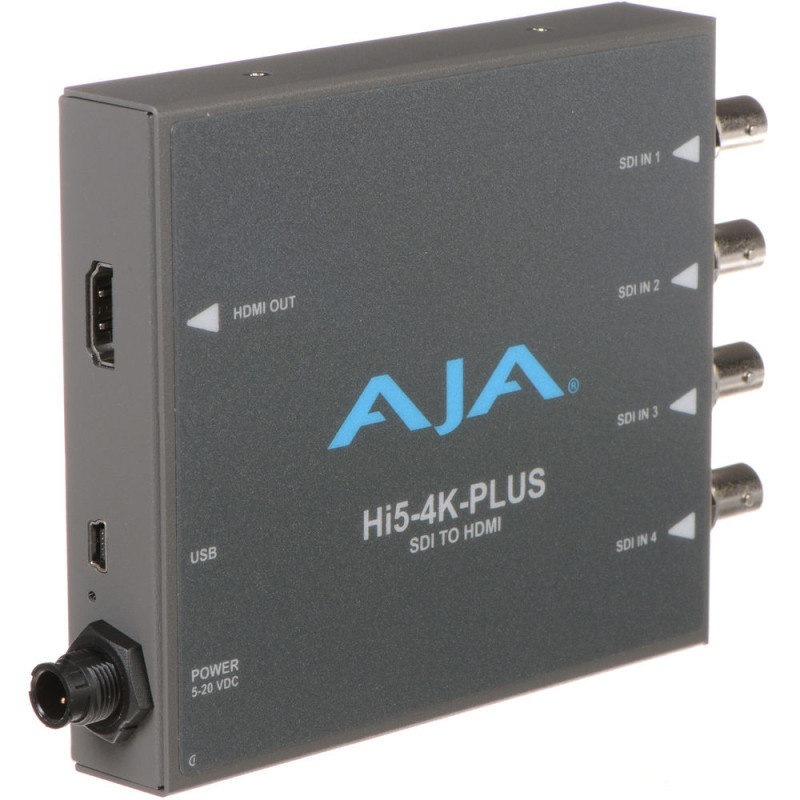

AJA Hi5-4K-Plus - 4K/UltraHD 4 x 3G-SDI to 4K HDMI 2.0 with 60p support
666.23 CHF Inc. VAT
-
Delivery
- Shipped in 2 to 3 weeks
-
In-store pickup
- Available in 2 to 3 weeks
Aja 4K/UltraHD 4 X 3G-SDI To 4K HDMI 2.0 With 60p Support
The Hi5-4K-Plus 3G-SDI to HDMI 2.0 Converter from AJA offers an HFR support for up to 60p for 4K/UltraHD SDI to HDMI 2.0 conversion. It provides a simplified monitoring connection from professional 4K devices using quad 3G-SDI, quad 1.5G-SDI, or dual 3G-SDI outputs to displays with HDMI 2.0 inputs, for efficient monitoring for 4:2:2/4:4:4 60p professional workflows.
Connectivity
- Integrates 4K monitors that utilises an HDMI 2.0 connection through a single cable, with the ones that use four SDI cables to carry the full resolution image
Audio
- Up to 8 channels of embedded audio in the incoming SDI signal are carried through seamlessly into the HDMI output, ensuring your audio is always in sync and can be easily played back on the connected monitor
4K and UltraHD
- Hi5-4K-Plus allows allowing UltraHD monitors to be used in 4K productions and 4K monitors to be used in 3840 x 2160 resolution
- Supports High Frame Rate (HFR) inputs, 4K/UHD signals at 50 or 60 fps can be fed into the converter and output at up to 60p for viewing with appropriate HDMI 2.0 capable displays
HD Support
- When you're not working in 4K, Hi5-4K-Plus Converter can still be a useful tool for converting HD-SDI to HDMI
- A single HD-SDI signal coming into the converter will be sent out as an HD resolution HDMI signal
Compact and Portable
- The Hi5-4K-Plus Mini-converter is small enough to fit behind a monitor, in the back of a rack or directly on a camera rig
- A locking power connector can't accidentally pull loose and an optional D-TAP power cable allows for battery power in remote locations
General
- 4 x 3G-SDI inputs
- Support for 4:2:2/4:4:4 HDMI 2.0 output
- HD conversion supported
- Embedded audio support
- Configure via USB port and supplied MiniConfig software
- Uses 5 to 20 VDC power
|
|
Specifications |
|
|
Video Formats |
4 x 3 GB SDI (Level A or B-Dual Link) |
|
|
Video Input Digital |
4 x 3G-SDI BNC, SMPTE-259/292/424 |
|
|
Video Output Digital |
1 x HDMI Type A connector |
|
|
HDCP |
The Hi5-4K-PLUS does not encode the HDMI with HDCP encryption. By definition, HD-SDI inputs to the Hi5-4K are unencrypted.The HDMI specification requires HDMI monitors to support unencrypted inputs |
|
|
Audio Input Digital |
SDI embedded audio, 24-bit, 8-Channel |
|
|
Audio Output Digital |
SDI embedded audio, 24-bit, 8-Channel |
|
|
Power |
5 to 20 VDC regulated, 8 W, power supply required (included with purchase) |
|
|
Environment |
Operating Temperature: 32 to 104°F (0 to 40°C) |
|
|
Dimensions (W x D x H) |
4.0 x 5.8 x 0.9" (10 x 15 x 23 cm) |
|
|
Weight |
0.5 lb (0.3 kg) |
