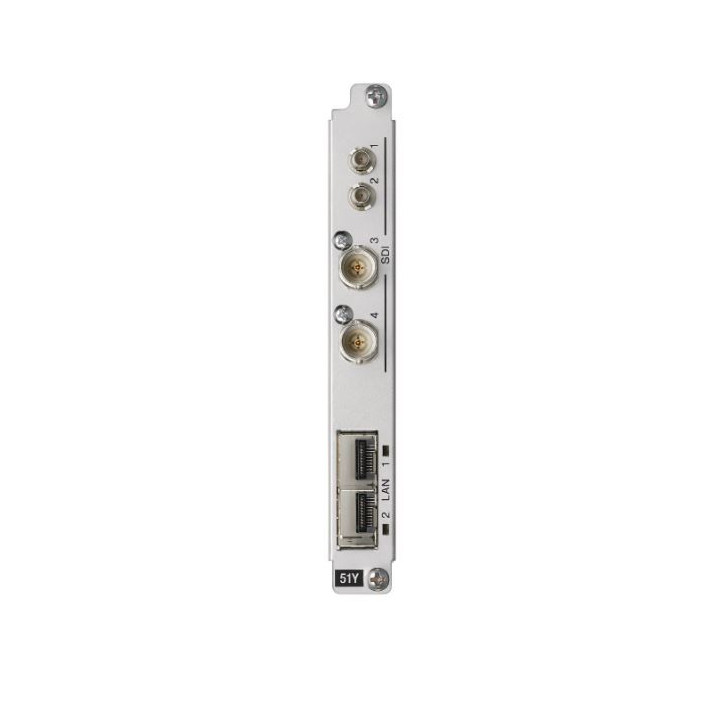

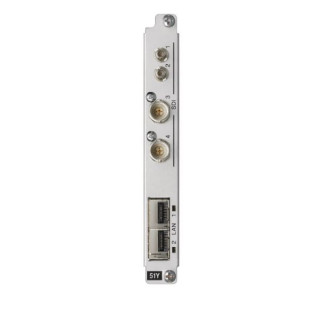

Sony NXLK-IP51Y - 12G SDI-IP Converter Board with two 1.5/3G-SDI and two 12G-SDI ports

1014942
5013493394544
Sony NXLK-IP51Y - 12G SDI-IP Converter Board with two 1.5/3G-SDI and two 12G-SDI ports
Sony NXLK-IP51Y - 12G SDI-IP Converter Board with two 1.5/3G-SDI and two 12G-SDI ports
Sony NXLK-IP51Y - 12G SDI-IP Converter Board with two 1.5/3G-SDI and two 12G-SDI ports
Sony NXLK-IP51Y - 12G SDI-IP Converter Board with two 1.5/3G-SDI and two 12G-SDI ports
The NXLK-IP51Y 12G SDI-IP Converter Board offers two 1.5/3G-SDI bi-directional and two 12G-SDI x2 bi-directional ports, plus dual SFP28 (25Gb Ethernet) ports for network connection redundancy.
... learn more
Visuals Price
12,055.50 CHF VAT excl.

13,032.00 CHF Inc. VAT

Manufacturer price 12 690,00 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 1 to 2 weeks
  • In-store pickup
    • Available in 1 to 2 weeks

Sony 12G SDI-IP converter card with two 1.5/3G SDI ports and two 12G SDI ports
12G SDI-IP converter card with two 1.5/3G SDI ports and two 12G SDI ports, supporting SMPTE ST 2110 in HD/4K and HDR
The NXLK-IP51Y 12G SDI-IP converter card offers two bidirectional 1.5/3G SDI ports and two bidirectional 12G-SDI x2 ports, plus two SFP28 ports (25 Gb Ethernet) for network connection redundancy. Compatible with ST 2110-20/30/40 broadcast formats and offering very low-latency signal conversion, it is ideal for integration into real-time Live IP production environments.
Features
Versatile SDI-IP conversion of 4K/HD/HDR signals
The NXLK-IP51Y supports 4K and HD video signals. Equipped with two 1.5/3G SDI I/O ports and two 12G-SDI ports, it can convert signals from SDI to IP and from IP to SDI. As standard, it supports SDI-IP conversion with frame synchronisation. This function can be optionally extended to up/down conversion and SDR/HDR conversion.
Low-latency long-distance transmission via SFP28 interface
The NXLK-IP51Y can transmit signals over distances of up to 300 m via multimode fibre optic cable, using the optional SFP28 transceiver module, OTM-25GSR.
Supports SNMP to reduce equipment downtime
The NXLK-IP51Y supports SNMP (Simple Network Management Protocol) for remote monitoring and efficient maintenance planning, thus minimising interruptions to production operations.
The NXLK-IP51Y 12G SDI-IP Converter Board offers two 1.5/3G-SDI bi-directional and two 12G-SDI x2 bi-directional ports, plus dual SFP28 (25Gb Ethernet) ports for network connection redundancy.
