Datavideo - Multifunctional touchpanel
Datavideo 2205-1900 - TPC-700 - Multifunctional touchpanel
1035523
0672255008713

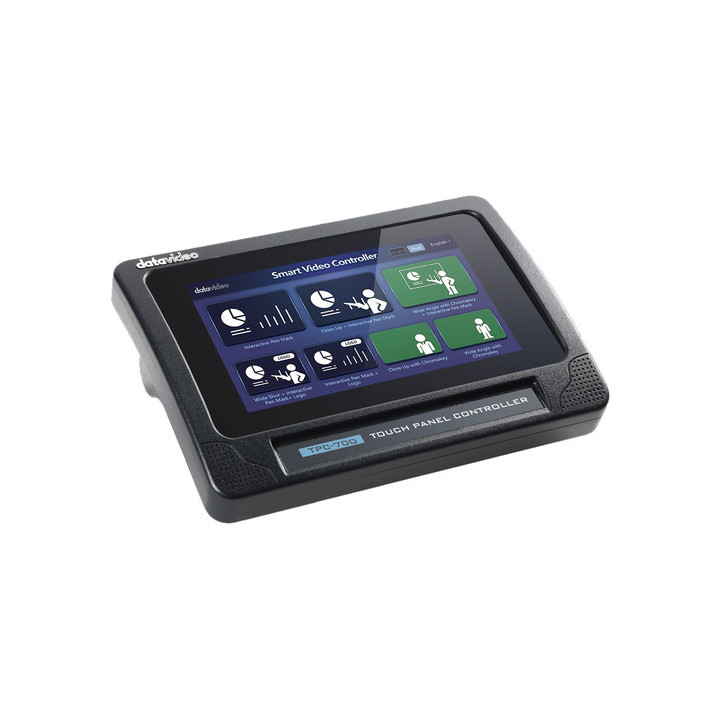

TPC-700 is a multifunctional touch panel controller for Datavideo peripherals. This controller will receive multiple firmware versions that can control Datavideo hardware in various scenarios. The debut firmware will control the SE-3200 switcher in a corporate presentation scenario.
Visuals Price
1,004.70 CHF
VAT excl.
1,086.08 CHF Inc. VAT
Manufacturer price 1 182,00 CHF VAT excluded
Made to order
-
Delivery
- Shipped in 2 to 3 weeks
-
In-store pickup
- Available in 2 to 3 weeks
Datavideo Multifunctional Touch Panel

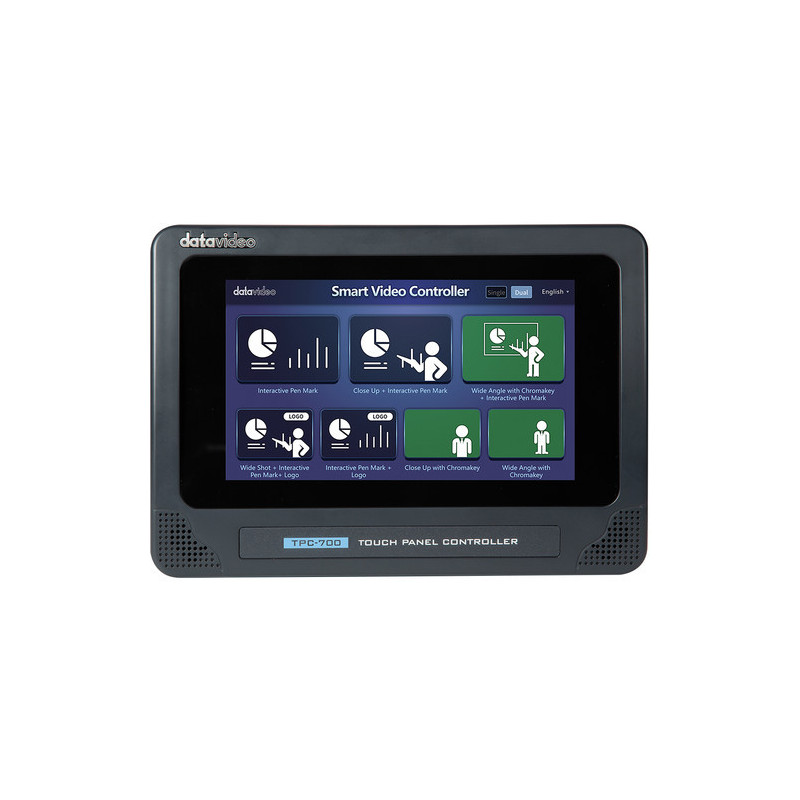

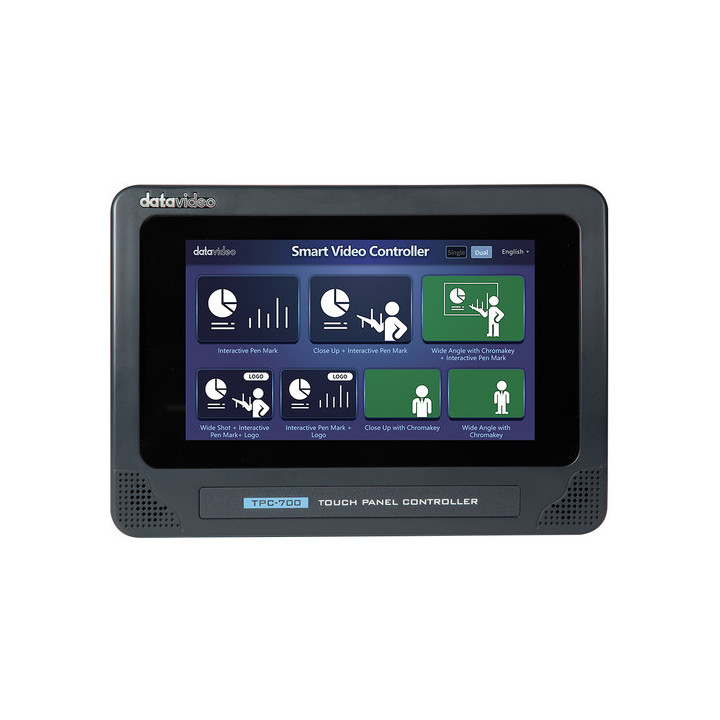

The 7" touch screen controller for Datavideo HS/SE-3200 and VGB-2000 provides you with a touch interface to work with all Datavideo 3200 and VGB-2000 mixers. Simply connect this 800 x 480 resolution touch screen to a compatible mixer, and it allows you to customise the mixer keys. You can use the TPC-700 as a virtual multi-camera switching studio controlling a compatible mixer. The TCP-700 supports RS-232 and DVIP protocols, and has a dedicated RJ45 port for each protocol. Connect to the HS/SE-3200 mixer series using DVIP, and use the RS-232 port to connect to the VGB-2000. The touch panel can be wall-mounted, and features 75 x 75 mm and 100 x 100 mm VESA mounting patterns. Built-in HS/SE-3200 Application Interface The TPC-700 comes with a pre-installed control application for the HS/SE-3200 mixer. This appears as selectable tabs for Virtual Studio, AUX, Cross-Point, Flex Source, PIP and Setup. Browsing through these tabs and their content allows you to easily configure and control your SE-3200 mixer from the touch pad. Pre-recorded Virtual Scenes with SE-3200 and TPC-700 The TPC-700 will recall virtual scenes No. 101 to No. 108 that are pre-recorded on the SE3200.
The 7" touch screen controller for Datavideo HS/SE-3200 and VGB-2000 provides you with a touch interface to work with all Datavideo 3200 and VGB-2000 mixers. Simply connect this 800 x 480 resolution touch screen to a compatible mixer, and it allows you to customise the mixer keys. You can use the TPC-700 as a virtual multi-camera switching studio controlling a compatible mixer. The TCP-700 supports RS-232 and DVIP protocols, and has a dedicated RJ45 port for each protocol. Connect to the HS/SE-3200 mixer series using DVIP, and use the RS-232 port to connect to the VGB-2000. The touch panel can be wall-mounted, and features 75 x 75 mm and 100 x 100 mm VESA mounting patterns. Built-in HS/SE-3200 Application Interface The TPC-700 comes with a pre-installed control application for the HS/SE-3200 mixer. This appears as selectable tabs for Virtual Studio, AUX, Cross-Point, Flex Source, PIP and Setup. Browsing through these tabs and their content allows you to easily configure and control your SE-3200 mixer from the touch pad. Pre-recorded Virtual Scenes with SE-3200 and TPC-700 The TPC-700 will recall virtual scenes No. 101 to No. 108 that are pre-recorded on the SE3200.
|
|
Specifications |
|
|
Touch Screen |
Size: 7" Type: Capacitive Resolution: 800 x 480 |
|
|
Control Protocol |
RS-232 |
|
|
Connectors |

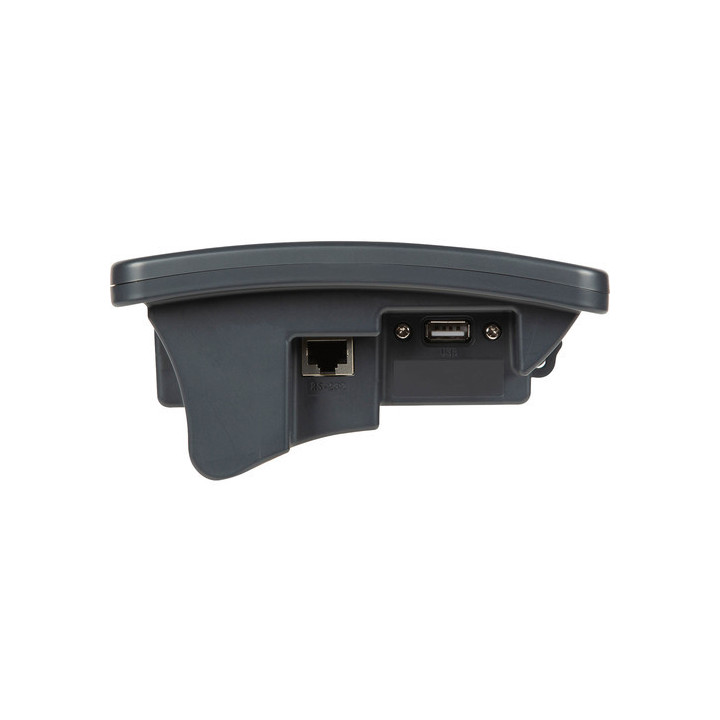

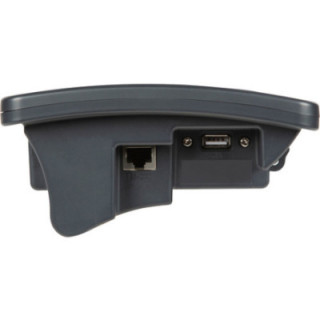

RS-232: 1 x RJ45 DVIP: 1 x RJ45 Firmware and Software Update: 1 x USB 2.0 Type-A |
|
|
Mounting |
VESA, 75 x 75 mm, 100 x 100 mm |
|
|
Operating Temperature |
32 to 104°F / 0 to 40°C |
|
|
Power |
Voltage: 12 VDC Power Consumption: 10 W Connector: Coaxial |
|
|
Dimensions |
8.66 x 5.98 x 3.11" / 22 x 15.2 x 7.9 cm |
|
|
Weight |
1.87 lb / 0.85 kg |
TPC-700 is a multifunctional touch panel controller for Datavideo peripherals. This controller will receive multiple firmware versions that can control Datavideo hardware in various scenarios. The debut firmware will control the SE-3200 switcher in a corporate presentation scenario.
