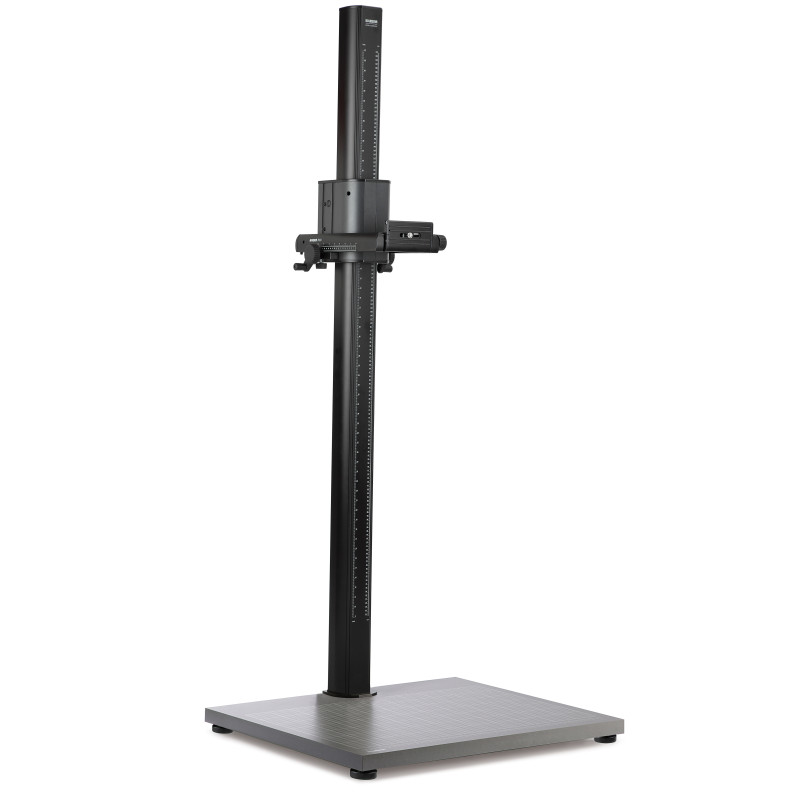

Kaiser - RSDmot 1.8 Copy Stand

Kaiser K5600 - RSDmot 1.8 Copy Stand

1008121
4001072056007
Kaiser K5600 - RSDmot 1.8 Copy Stand
Kaiser K5600 - RSDmot 1.8 Copy Stand
Column made of special aluminum multisection tubing, matt black anodized, with cm and inch scales. Camera carrier made of aluminum section, can be horizontally adjusted over approx. 25 cm (9.8 in.) with rack-and-pinion parallel guides
... learn more
Visuals Price
2,770.47 CHF VAT excl.

2,994.88 CHF Inc. VAT

Made to order
  • Delivery
    • Shipped in 2 to 3 weeks
  • In-store pickup
    • Available in 2 to 3 weeks

Copy stand RSDmot 1.8
Column in multi-section special aluminium tube, matt black anodised, with cm and inch scales.
Camera mount in aluminium profile, horizontally adjustable over approximately 25 cm (9.8 inches) with parallel rack-and-pinion guides. Left-hand/right-hand operation, two locking screws prevent inadvertent changes of the set position. Camera mounting plate tiltable to ± 90°. Horizontally adjustable connection screw. Motorised height adjustment, with two speeds. Wired remote control. Constant adjustment speed, independent of load. Automatic limit switch via magnetic sensor.
Large, matt grey, anti-glare baseboard with printed grid, cm and inch scales. Feet
height-adjustable. Spirit level.
Technical specifications:
- Baseboard (LxWxD): 900 x 38 x 730 mm (35.4 x 1.5 x 28.7 inches)
- Column height: 1.80 m (5.9 feet)
- Column section: 105 x 74 mm (4.1 x 2.9 inches)
- Load capacity: 8 kg (17.6 lbs)
- Camera mounting plate: 130 x 78 mm (5.1 x 3.1 inches)
- Reversible mounting thread: 1/4" / 3/8" interchangeable
Column made of special aluminum multisection tubing, matt black anodized, with cm and inch scales. Camera carrier made of aluminum section, can be horizontally adjusted over approx. 25 cm (9.8 in.) with rack-and-pinion parallel guides
