Kaiser - RSD Copy Stand

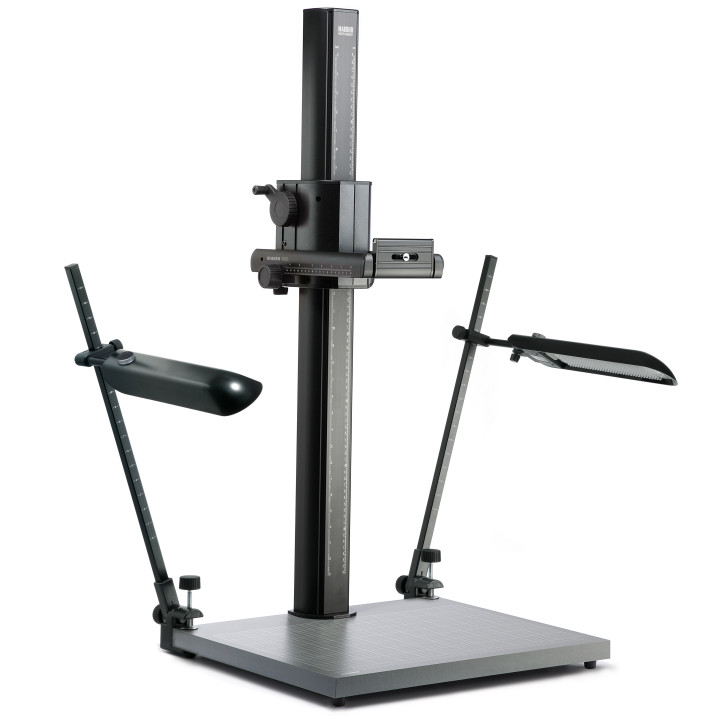

Kaiser K5602 - RSD Copy Stand

1008122
Kaiser K5602 - RSD Copy Stand
Kaiser K5602 - RSD Copy Stand
Kaiser K5602 - RSD Copy Stand
Kaiser K5602 - RSD Copy Stand
Hand-cranked, rack-and-pinion height adjustment, additionally counter-balanced by a built-in coil spring. Blocking screw to stop accidental changing of height
... learn more
Visuals Price
1,847.90 CHF VAT excl.

1,997.58 CHF Inc. VAT

Made to order
  • Delivery
    • Shipped in 2 to 3 weeks
  • In-store pickup
    • Available in 2 to 3 weeks

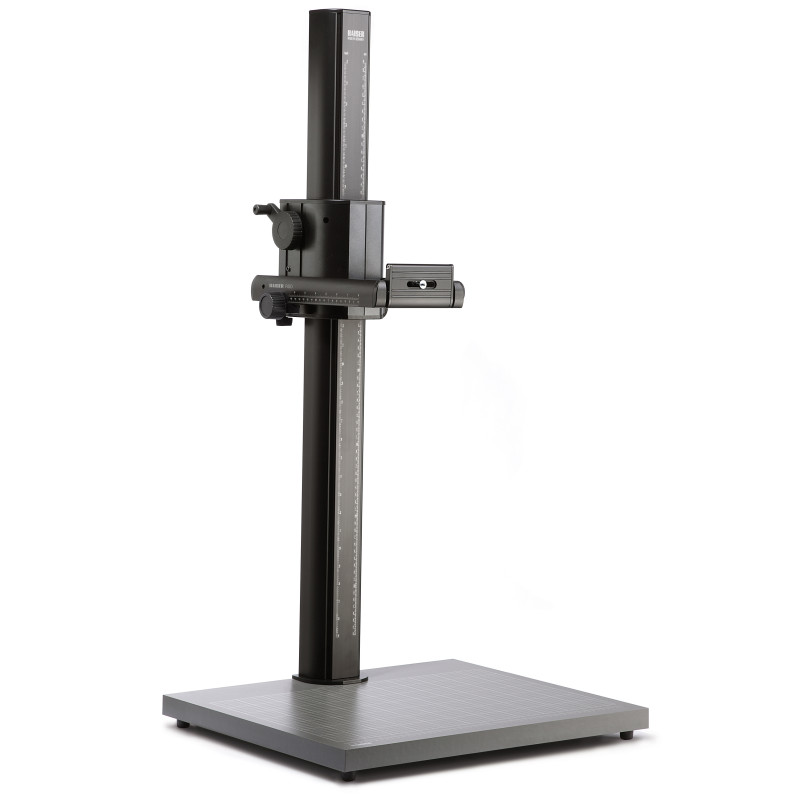

RSD reproduction column
Multi-section special aluminium tube column, matt black anodised, with scales in cm and inches. Camera mount in aluminium profile, horizontally adjustable over approx. 16 cm (6.3 inches) with parallel rack-and-pinion guides. Left/right-hand use, two locking screws prevent unintentional change of the set position. Camera mounting plate tiltable to ± 90°. Horizontally adjustable connection screw. Height adjustment with crank (5602) or motorised (5603). Large matt grey anti-reflective baseboard with printed grid, scales in cm and inches. Height-adjustable feet. Spirit level.
Technical specifications:
- Baseboard (WxHxD): 680 x 38 x 570 mm (26.8 x 1.5 x 22.4 inches)
- Column height: 1.20 m (3.9 feet)
- Column section: 105 x 74 mm (4.1 x 2.9 inches)
- Load capacity: 8 kg (17.6 lb)
- Camera mounting plate: 130 x 78 mm (5.1 x 3.1 inches)
- Reversible mounting thread: 1/4" / 3/8" interchangeable
RSD reproduction column:
- Rack-and-pinion height adjustment, manually operated, balanced by an integrated helical spring. Locking screw to prevent accidental height changes.
