Visuals Price
2,014.80 CHF
VAT excl.
2,178.00 CHF Inc. VAT
1 piece(s) in stock
-
Delivery
- Available, shipped today
-
In-store pickup
- Geneva, pickup available within 1H
- Zurich, pickup available within 24H
The Matthews Mini Max is the smaller compact version of Matthews' popular Max. Like its larger counterpart, the Mini Max allows placement of a fixture in locations where no other lighting support system can go.

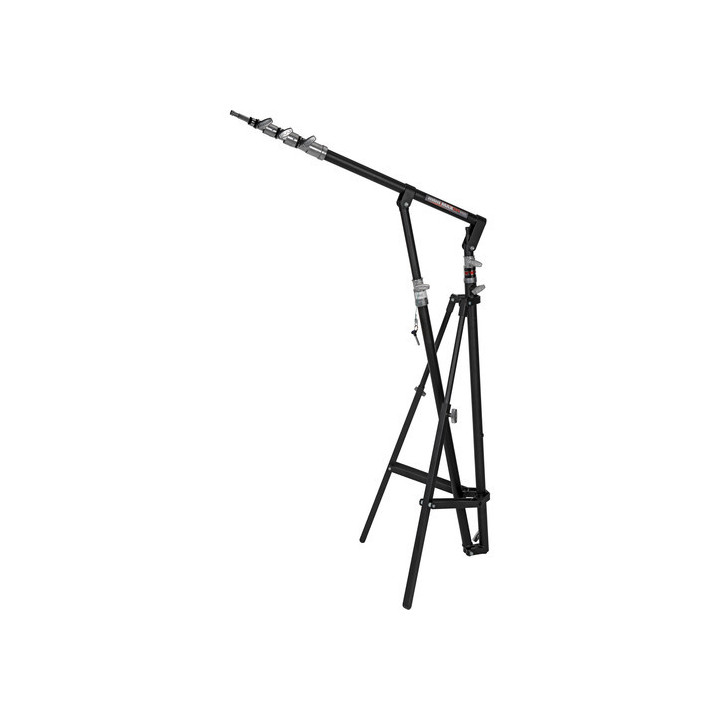

The Mini Max operates on a maximum arc of 105" from 14' high to below horizontal. It features two rocky mountain legs at the front and an adjustable main column for use on stairs or uneven terrain.
The Mini Max can "fly" directly, allowing strategic placement of a key or backlight.
It can support a 20 lb fixture at a height of 9' with a horizontal extension of 9'.
A 3:1 weight ratio is recommended for safe operation of the Mini Max.
|
|
Specifications |
|
| Stand type | 1 x Boom stand | |
| Maximum working height | 2.7 m / 9', with boom arm 4.3 m / 14', with boom arm in vertical position |
|
| Minimum working height | Not specified by manufacturer | |
| Load capacity | 20 lb / 9.1 kg, with boom arm at maximum extension | |

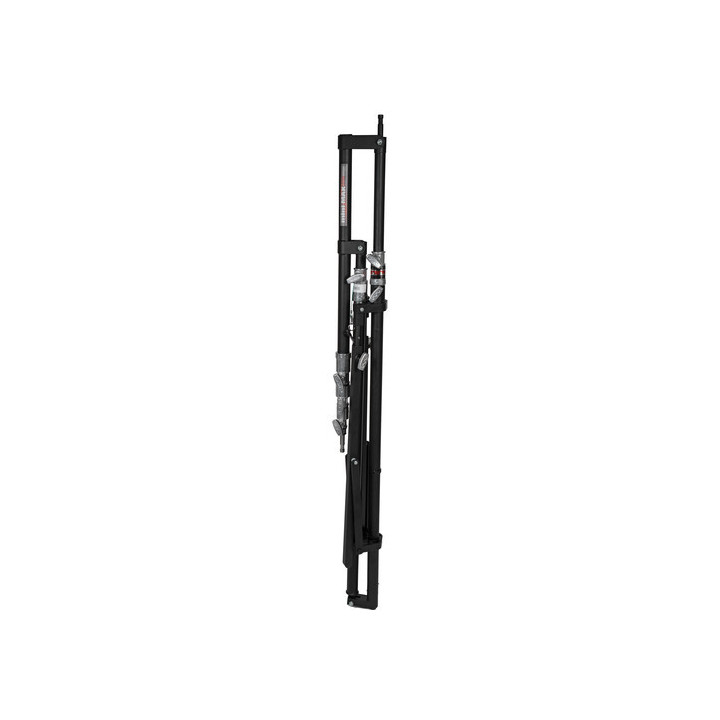

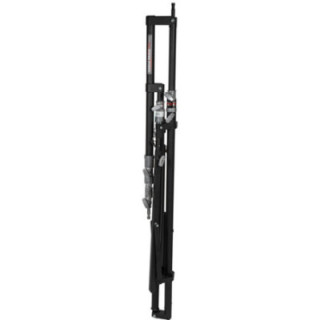

| Closed length | 1.7 m / 5.6' | |
| Mounting | ||
| Arm mounting (to light/accessory) | 5/8" tenon | |
| Features | ||
| Accepts a second extension | No | |
| Wheels | Not compatible | |
| Air cushioned | No | |
| Removable base | No | |
| Levelling stand | Yes | |
| Inverted legs | No | |
| General | ||
| Arm length | 2.74 m / 9' | |
| Weight | Not specified by manufacturer | |
| Warranty period | None | |
| Packaging information | ||
| Package weight | 43 lb | |
| Box dimensions (LxWxH) | 71 x 12.5 x 7.75" | |
Mini Max
