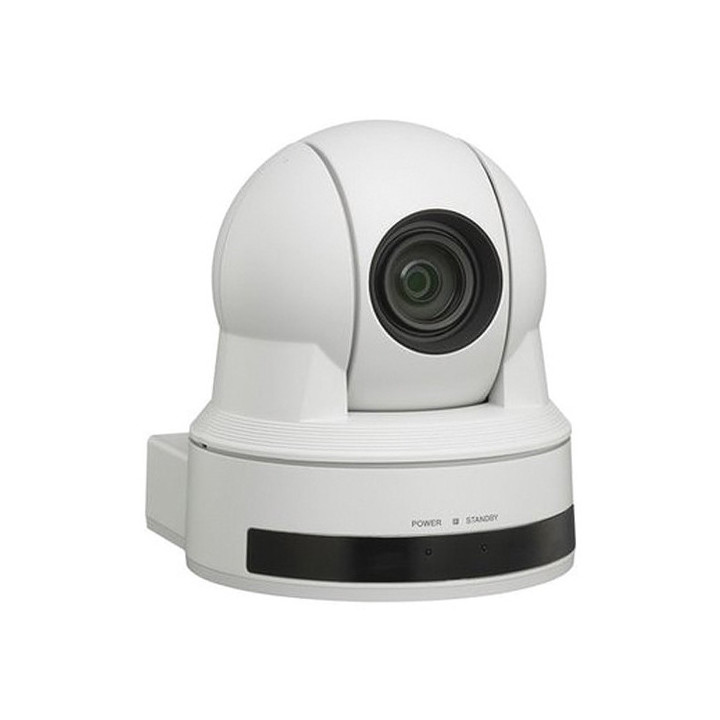

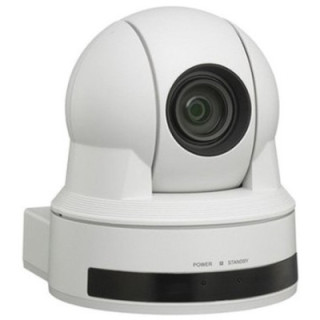

Sony EVI-D90PW - Standard Definition PTZ camera, White

Name: Sony EVI-D90PW - Standard Definition PTZ camera, White
Brand: Sony
SKU: 1010124
Price: 676.59 CHF
Availability: BackOrder

SKU 1010124

EAN 5013493236158

Sony EVI-D90PW - Standard Definition PTZ camera, White

28x Optical and 12x Digital zoom PTZ PAL Video Camara (White) with 1/4" CCD Image Sensor, Horizontal Viewing Angle : 55.8 deg (Wide) to 2.1 deg (Tele). 3 Years Prime Support

... learn more

Visuals Price

676.59 CHF VAT excl.

731.39 CHF Inc. VAT

Manufacturer price 712,20 CHF VAT excluded

Made to order

Delivery
- Shipped in 1 to 2 weeks
In-store pickup
- Available in 1 to 2 weeks

Description

Description

Standard definition PTZ camera, white

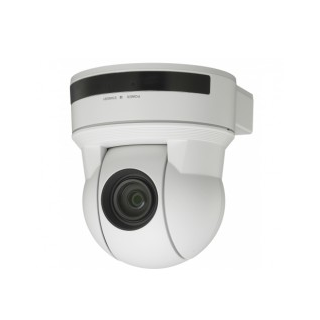

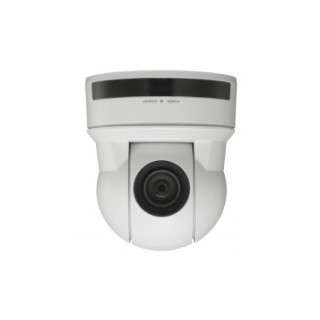

The Sony EVI-D90 white PTZ camera is a standard definition video camera featuring a 1/4" EXview HAD CCD sensor, 28x optical zoom lens and robotic pan, tilt and zoom. SD video is output via composite or S-Video connections. The camera can store up to 6 preset positions and uses RS-232C or RS-422 VISCA standard for remote interfacing. An infrared remote control is also included.

The lens has a fast maximum aperture of f/1.35 - 3.7 and a focal length of 3.5 - 98 mm, which corresponds to a 35 mm equivalent of approximately 40 - 1059.4 mm. The minimum object distance is 10 mm at wide-angle and 150 cm at telephoto. When mounted upside down, the E-flip function will automatically flip the image so that the video displays the right way up. The camera can pan 170° in each direction and tilt +90/-20°. Sony's Wide D technology helps protect against blocked shadows and burnt-out highlights.

- Standard definition colour video output via Composite or S-Video

- 1/4" EXview HAD CCD image sensor with S/N ratio>50 dB

- 28x optical zoom lens with fast f/1.35-3.7 maximum aperture

- Robotic pan, tilt and zoom with up to six different preset positions

- Standard RS-232C and RS-422 VISCA control protocol

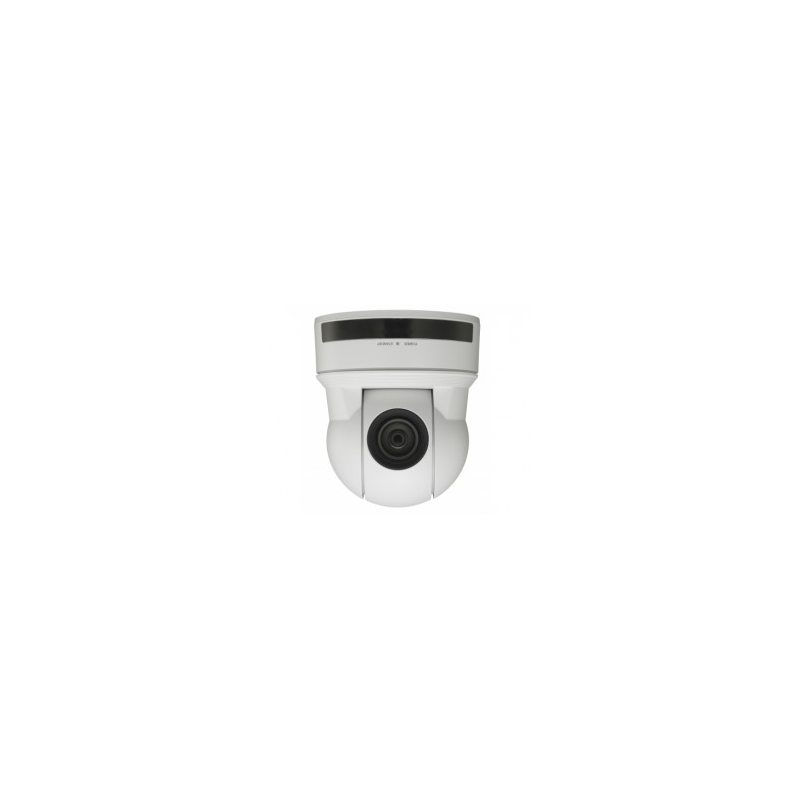

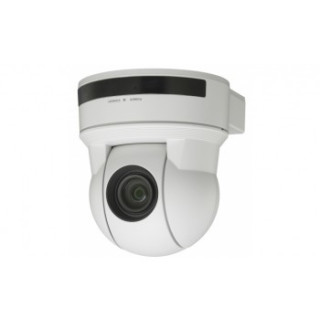

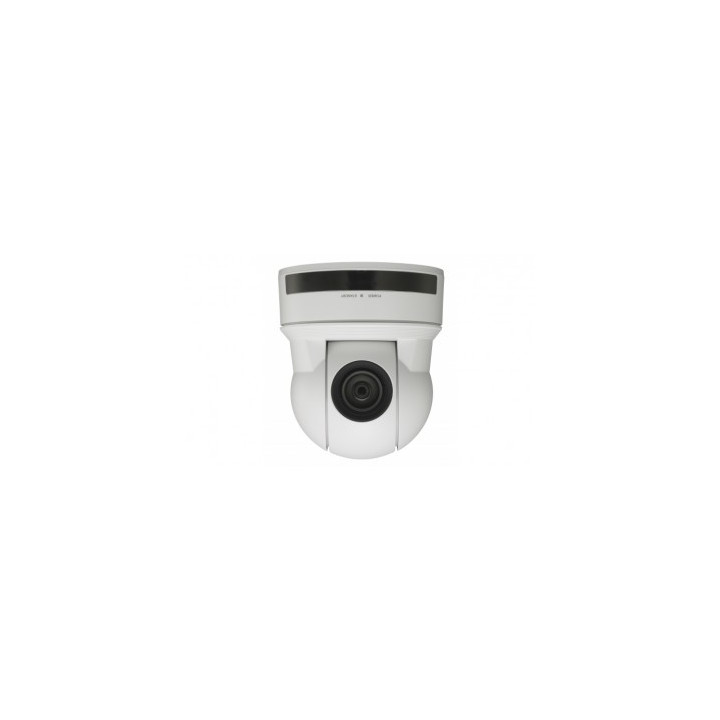

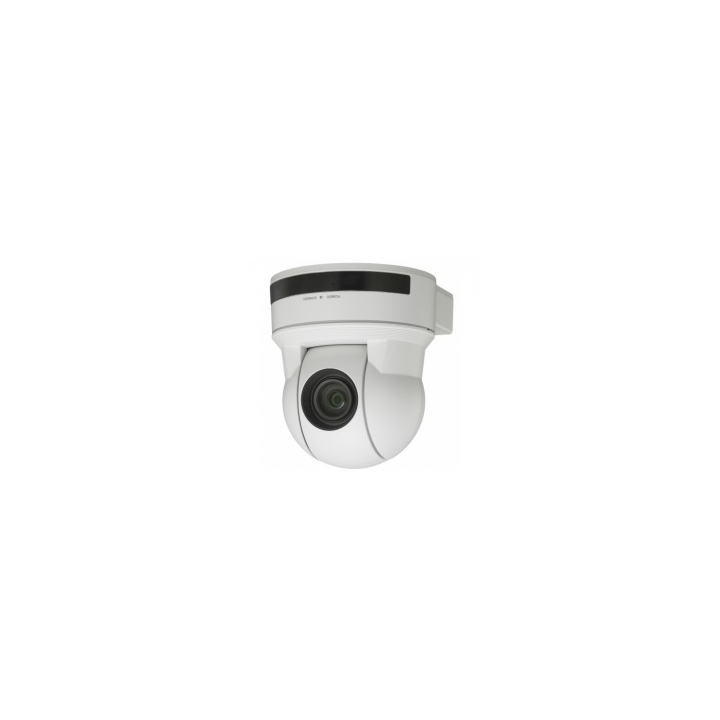

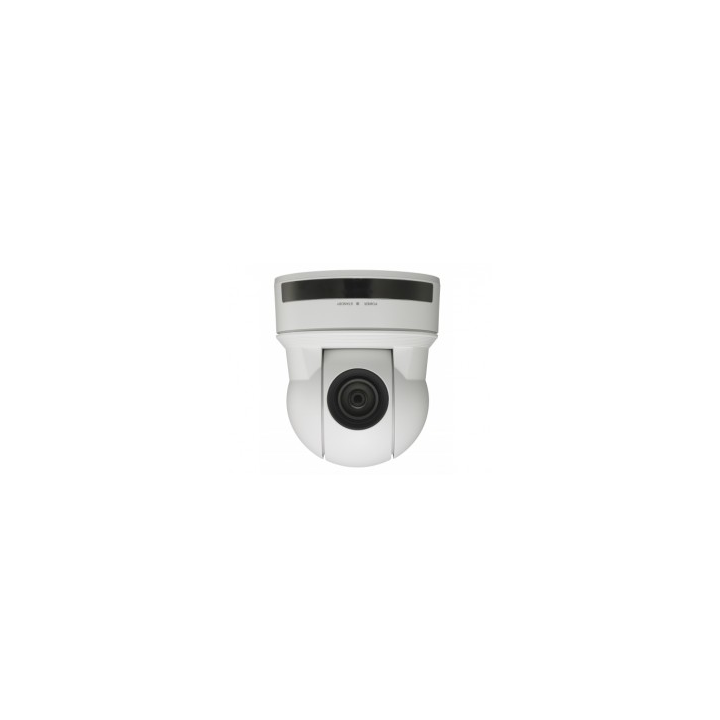

- E-Flip for mounting the camera upside down

- Sony's Wide D technology enhances dynamic range

- Interlaced or progressive scan modes with 550 TV line resolution

- Low minimum illumination (0.65 lux)

- Auto exposure and image stabilisation

	Specifications
	Sensor	1/4-type EXview HAD CCD
	Focal length	f=3.5 to 98 mm F1.35 to F3.7
	Optical zoom	28x
	Digital zoom	12x
	Minimum object distance	0.39 - 59" (10 mm - 150 cm) Default: 11.4" (30 cm)
	Horizontal viewing angle	55,8 - 2,1°
	Focus systems	Auto, One-Push AF, Manual, Infinity
	Minimum illumination	0.65 lx (F1.35, 50 IRE)
	Shutter speed	1 - 1/10,000 second
	Gain	Auto / Manual / Max. gain limit AE (-3 dB to +28 dB, 2 dB steps)
	White balance	Auto, Indoor, Outdoor, One-Push, Manual
	Wide-D	Yes
	Exposure control	Auto, Manual, Priority mode (shutter speed priority and aperture priority), Bright, EV compensation, Slow shutter AE
	S/N ratio	More than 50 dB
	Pan	Angle: +/-170° Max. speed: 100°/s
	Tilt	Angle: +90°/-20° Max. speed: 190°/s
	Preset positions	6

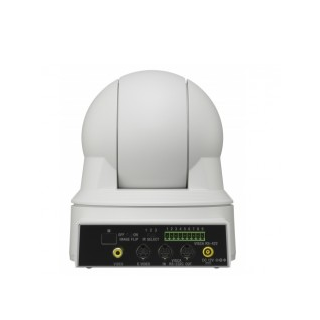

	Video output	Composite, S-Video
	Camera control	Interface: RS-232C/RS-422 Protocol: VISCA
	Power supply required	DC 12 V
	Power consumption	8 W
	Operating temperature	32 to 104 °F (0 to 40 °C)
	Storage temperature	-4 to +140 °F (-20 to +60 °C)
	Dimensions	5.75 x 6.5 x 6.5" (14.5 x 16.4 x 16.4 cm)
	Weight	3.18 lb (1.44 kg)
