649.35 CHF Excl. VAT
701.95 CHF Inc. VAT

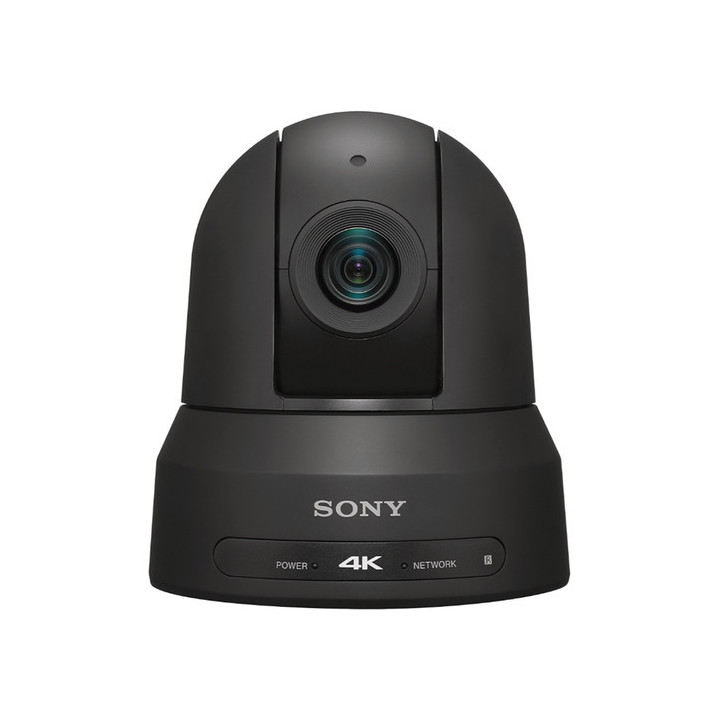

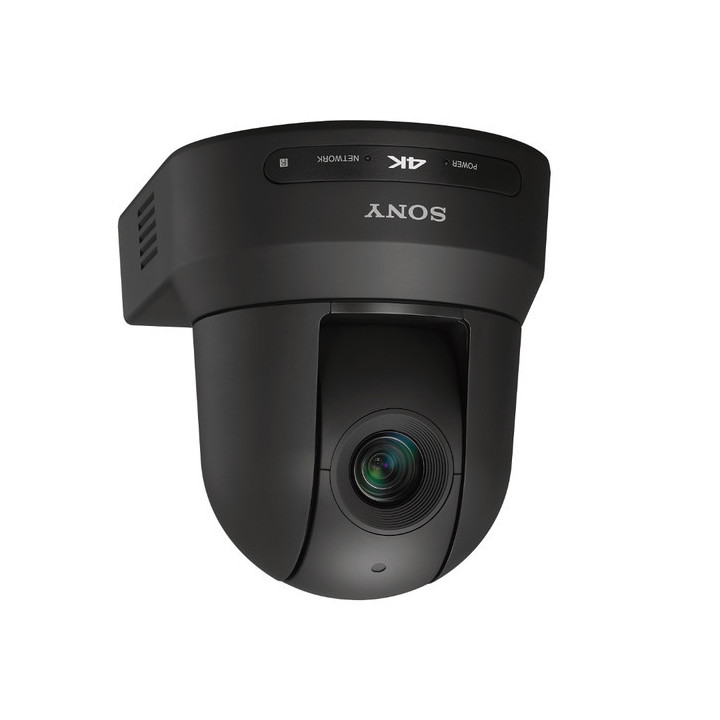

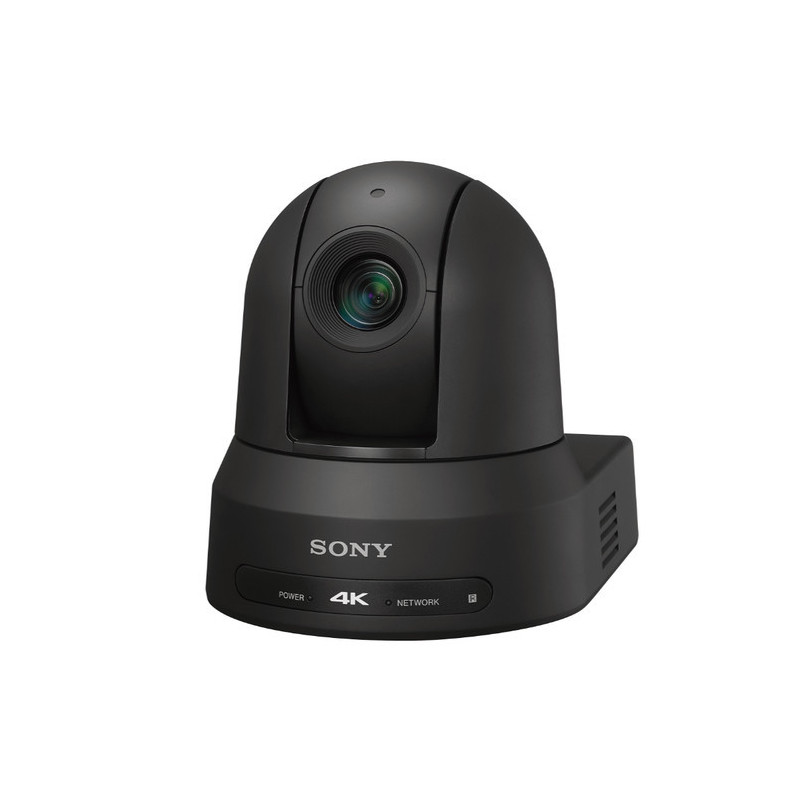

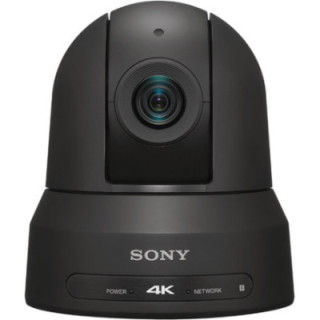

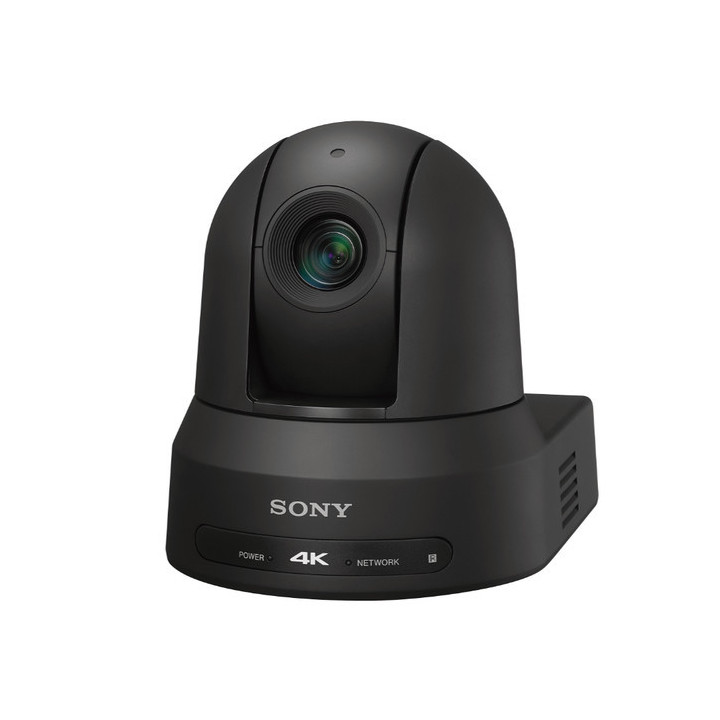

Sony BRC-X400/B - IP 4K Pan-Tilt-Zoom Camera with NDI-HX capability, Black
1017900
4548736104754
The versatile BRC-X400 PTZ camera is ideal for use in a wide range of environments - from broadcast studios and remote on-air suites to sports stadiums, arenas, houses of worship and lecture halls.
Visuals Price
3,661.30 CHF
VAT excl.
3,957.87 CHF Inc. VAT
Manufacturer price 3 854,00 CHF VAT excluded
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Sony 4K Pan-Tilt-Zoom IP Camera with NDI-HX Capability, Black
Capture every perspective in 4K with the Sony BRC-X400 Black 4K PTZ Camera with HDMI, IP and 3G-SDI Output. Equipped with an 8.3 MP CMOS sensor and a 4.4 to 88 mm lens, the camera captures video at resolutions of up to 3840 x 2160 at 60 fps within a field of view of up to 70°. Clear Image Zoom technology can extend the 20x optical zoom up to 80x, enabling full-screen close-ups in Full HD.
The built-in pan/tilt system allows 340° pan and 110° tilt at a maximum speed of 300° and 126° per second respectively. Focus can be set manually or adjusted automatically. The camera delivers video via its HDMI, IP and 3G-SDI interfaces. PoE+ technology simplifies installation by allowing you to power the camera directly via its network connection.
Features
- 1/2.5" Exmor R sensor for UHD 4K images with very little noise, even in low-light environments down to 1.6 lux
- 20x optical zoom
- Up to 30x total zoom in 4K with Clear Image Zoom
- Up to 80x total zoom in Full HD with Clear Image Zoom in Tele Convert mode
- Responsive autofocus ensuring images remain clear and sharp, even at high zoom settings
- Horizontal angle of view of approximately 70° to cover the entire scene in large spaces such as sports arenas and amphitheatres
- NDI|HX compatibility via optional licence
- PTZ and other camera functions can be controlled remotely via S700PTP, CGI and VISCA protocols
- RTSP (Real Time Streaming Protocol) support for remote viewing over the Internet from a web browser
- PoE+ simplifies installation - a single IP cable can carry camera power, video image output and control signals
- Genlock enables seamless multi-camera switching during live events
- Built-in tally indicator for use in live productions, reality TV shows, etc.
Camera Features
- Day/night, visibility enhancement, image stabilisation, image flip, predefined image profile
- Colour gain (15 levels), colour hue (15 levels)
- Colour matrix modes include Standard, High Saturation, FL Light, Movie, Still, Cinema, Pro, ITU709 and B&W
- Gamma modes include Standard, Straight, 512 Pattern, Movie, Still, Cine1, Cine2, Cine3, Cine4 and ITU709
- Gamma level (15 levels), black level (97 levels), black gamma (15 levels)
- Knee point (15 levels), knee slope (15 levels), flicker suppression (on/off)
Capture every perspective in 4K with the Sony BRC-X400 Black 4K PTZ Camera with HDMI, IP and 3G-SDI Output. Equipped with an 8.3 MP CMOS sensor and a 4.4 to 88 mm lens, the camera captures video at resolutions of up to 3840 x 2160 at 60 fps within a field of view of up to 70°. Clear Image Zoom technology can extend the 20x optical zoom up to 80x, enabling full-screen close-ups in Full HD.
The built-in pan/tilt system allows 340° pan and 110° tilt at a maximum speed of 300° and 126° per second respectively. Focus can be set manually or adjusted automatically. The camera delivers video via its HDMI, IP and 3G-SDI interfaces. PoE+ technology simplifies installation by allowing you to power the camera directly via its network connection.
Features
- 1/2.5" Exmor R sensor for UHD 4K images with very little noise, even in low-light environments down to 1.6 lux
- 20x optical zoom
- Up to 30x total zoom in 4K with Clear Image Zoom
- Up to 80x total zoom in Full HD with Clear Image Zoom in Tele Convert mode
- Responsive autofocus ensuring images remain clear and sharp, even at high zoom settings
- Horizontal angle of view of approximately 70° to cover the entire scene in large spaces such as sports arenas and amphitheatres
- NDI|HX compatibility via optional licence
- PTZ and other camera functions can be controlled remotely via S700PTP, CGI and VISCA protocols
- RTSP (Real Time Streaming Protocol) support for remote viewing over the Internet from a web browser
- PoE+ simplifies installation - a single IP cable can carry camera power, video image output and control signals
- Genlock enables seamless multi-camera switching during live events
- Built-in tally indicator for use in live productions, reality TV shows, etc.
Camera Features
- Day/night, visibility enhancement, image stabilisation, image flip, predefined image profile
- Colour gain (15 levels), colour hue (15 levels)
- Colour matrix modes include Standard, High Saturation, FL Light, Movie, Still, Cinema, Pro, ITU709 and B&W
- Gamma modes include Standard, Straight, 512 Pattern, Movie, Still, Cine1, Cine2, Cine3, Cine4 and ITU709
- Gamma level (15 levels), black level (97 levels), black gamma (15 levels)
- Knee point (15 levels), knee slope (15 levels), flicker suppression (on/off)
|
|
Specifications |
|
|
Image Sensor |
|
|
|
Image Sensor |
1/2.5" Single-Chip CMOS Sensor |
|
|
Horizontal Resolution (TV Lines) |
1700 TV Lines |
|
|
Sensor Resolution |
3840 x 2160 (8.3 MP) |
|
|
Gain |
0 to 48 dB |
|
|
Minimum Illuminance |
1.6 lux at 1/30 shutter speed |
|
|
Camera |
|
|
|
Shutter Speed |
1/1 to 1/10,000 s |
|
|
Max. Digital Zoom |
80x (at 1080p) |
|
|
Flip / Mirror Support |
Image Flip |
|
|
Lens |
|
|
|
Optical Zoom Ratio |
20x |
|
|
Focal Length |
4.4 to 88 mm |
|
|
Field of View |
Horizontal: 70° |
|
|
Maximum Aperture |
f/2 to 3.8 |
|
|
Minimum Focus Distance |
Wide Angle: 3.1" / 8.0 cm |
|
|
Focus Control |
Autofocus |
|
|
Video Output |
|
|
|
Output Formats |
HDMI, RJ45: 3840 x 2160p at 23.98, 25, 29.97 fps |
|
|
Built-in Audio |
SDI: 2 channels |
|
|
Control |
|
|
|
Presets |
256 via IP |
|
|
Movement Speed |
Pan: 0.5 to 300°/s |
|
|
Movement Range |
Pan: 340° (-170 to 170°) |
|
|
Tally Indicator |
Yes |
|
|
Supported Control Protocols |
IP |
|
|

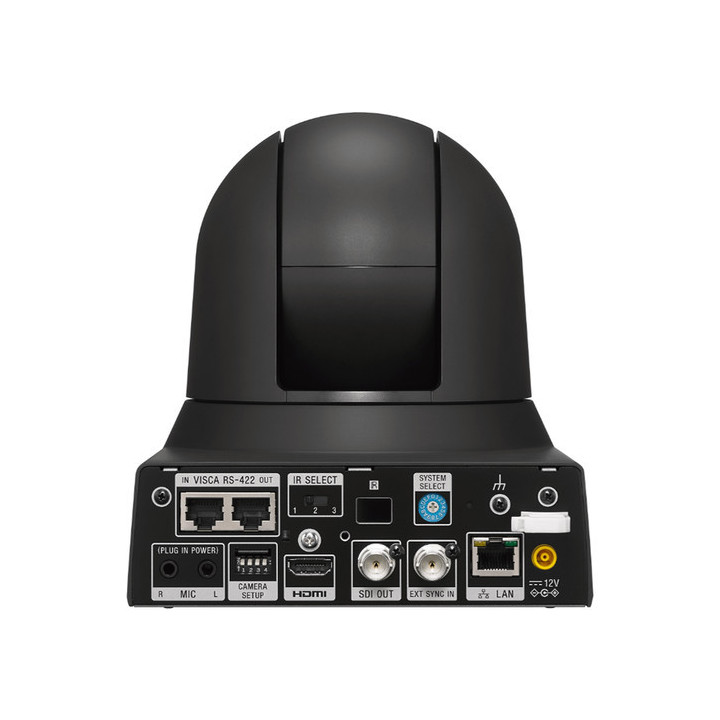

Interfaces |
|
|
|
Video Output Connectors |
1 x BNC (3G-SDI) Female |
|
|
Audio I/O |
2 x 1/8" / 3.5 mm stereo mic/line level inputs |
|
|
Control Interface |
1 x RJ45 Input (RS-422, VISCA) |
|
|
Other I/O |
1 x BNC Input (Sync) |
|
|
Power Supply |
|
|
|
PoE Support |
PoE+ 802.3at |
|
|
Power Connectors |
1 x JEITA (10.8 to 13.2 VDC) |
|
|
Power Consumption |
25.5 W |
|
|
Environment |
|
|
|
Operating Temperature |
32 to 104°F / 0 to 40°C |
|
|
Storage Temperature |
-4 to 140°F / -20 to 60°C |
|
|
General |
|
|
|
Tripod Mount Thread |
1 x 1/4"-20 Female |
|
|
Dimensions |
7.88 x 6.99 x 6.24" / 200.2 x 177.5 x 158.4 mm |
|
|
Weight |
3.97 lb / 1.8 kg |
