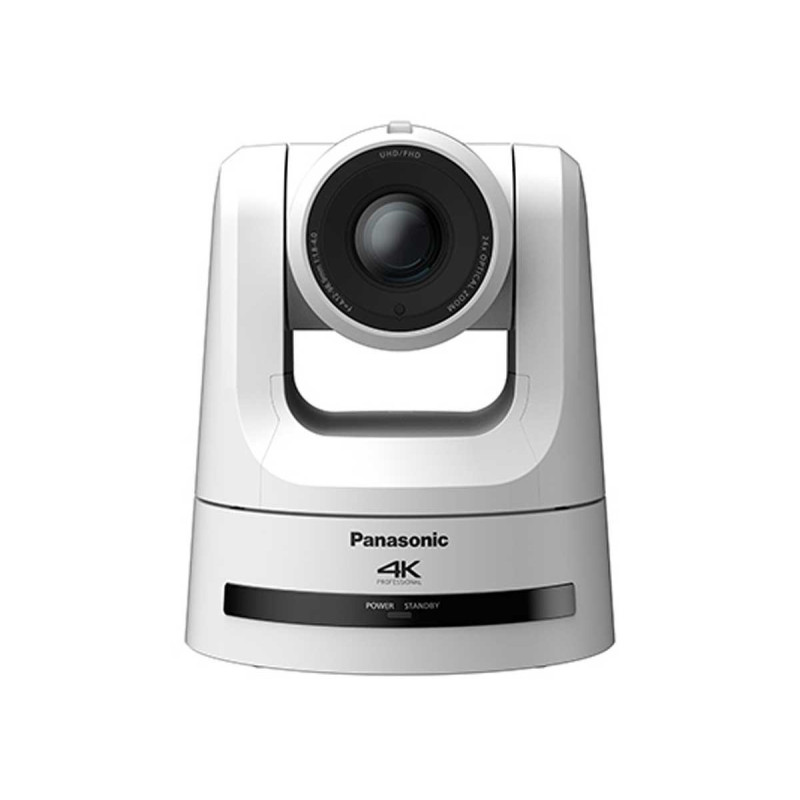

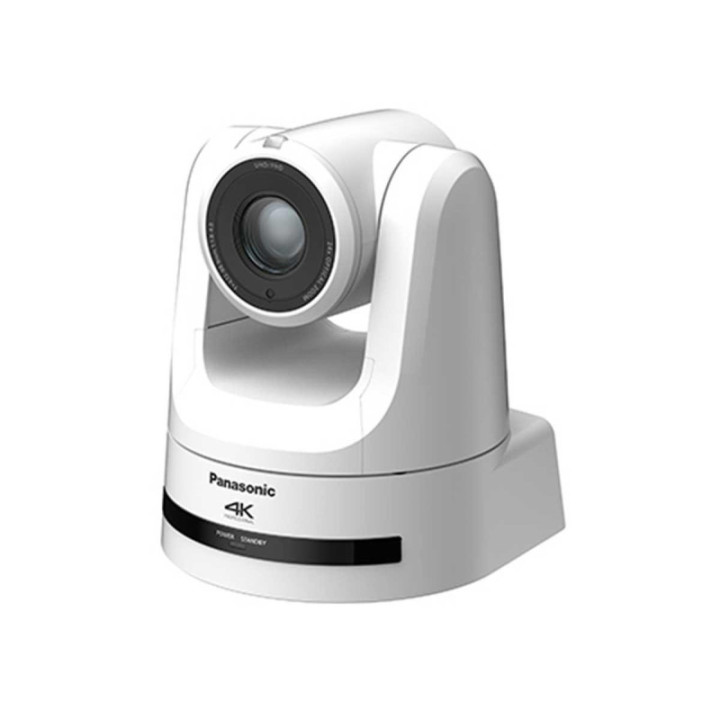

Panasonic AW-UE100 – Advanced 4K NDI Professional PTZ Camera for Production

Production Discover the Panasonic AW-UE100, a high-performance 4K NDI Pro pan-tilt-zoom (PTZ) camera that revolutionises live production and remote broadcasting. Equipped with a powerful 1/2.5" 4K MOS sensor, this camera delivers stunning 4K UHD video up to 60p/50p, ensuring ultra-smooth capture of fast-action scenes.
Superior Image Quality and Precision Zoom
With a 24x optical zoom, the AW-UE100 maintains perfectly sharp image quality over long distances. Additionally, i.Zoom extends the range up to 36x in Full HD mode and 28x in 4K mode whilst preserving detail. The ultra-wide 74.1° horizontal field of view makes it ideal for large indoor spaces such as arenas, stages and conference halls.
Flexible Broadcast and Connectivity
The industry's first PTZ camera to support NDI 4K/60p and wideband SRT, the AW-UE100 enables high-quality, low-latency IP broadcasting. It also includes NDI|HX, RTMP/RTMPS and protocols for live streaming, ideal for platforms such as YouTube Live and Facebook Live. Choose from multiple output options including 12G-SDI, 3G-SDI, HDMI and PoE++ Ethernet for clean, simplified cabling and efficient power management.
AR/VR Integration and Stable Operation
Ideal for immersive production, the camera supports the FreeD protocol, providing real-time pan/tilt/zoom/focus/iris synchronisation data for seamless integration with AR/VR workflows. With its Direct Drive motor, pan and tilt movements are smooth, responsive and ultra-quiet, perfect for studios and environments requiring strict noise control. Additionally, combined optical and electronic image stabilisation (OIS/EIS) ensures shake-free footage, even in dynamic setups.
Remote Control and Professional Workflow
Control the AW-UE100 remotely via IP (e.g. via a browser) or serial input (RS-422), offering flexible integration into various production workflows. This reduces installation costs, simplifies engineering and enhances scalability. Built-in Tally functions, multi-platform compatibility (including Panasonic's KAIROS system) and simplified crop/zoom functions further streamline studio workflows.

Imaging

Image Sensor	1/2.5" MOS Type
Horizontal Resolution (TV Lines)	1500 TV Lines
Sensor Resolution	Effective: 8.49 Megapixels
Focus Control	Autofocus Manual Focus
Exposure Control
Shutter Speed	1/10000 to 1/24 second
ISO/Gain Sensitivity	Gain: 0 to 36 dB
Precise Pan Speed Control	Yes
Signal-to-Noise Ratio	60 dB
Minimum Illumination	3 lux
Flip/Mirror Support	Image Rotation
White Balance	Range: 2000 to 15000 K Presets: ATW, AWB

Lens

Focal Length	4.1 to 98.9 mm (35 mm Equivalent: 25 to 600 mm)
Maximum Optical Zoom	24x
Maximum Digital Zoom	36x (at 1080p)
Field of View	Horizontal: 74.1 to 3.3° Vertical: 46 to 1.9° Diagonal: 81.8 to 3.8°
Maximum Aperture	f/1.8 to 4
Minimum Focus Distance	47.2" / 120 cm

Video Capture

Video Output	SDI/BNC 3840 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1920 x 1080PsF at 23.98/25/29.97 fps 1280 x 720 at 50/59.94 fps 4:2:2 10-bit via HDMI 3840 x 2160 at 25/29.97/50/59.94 fps 1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1920 x 1080PsF at 23.98/25/29.97 fps 1280 x 720 at 50/59.94 fps
Audio Recording	24-bit 48 kHz AAC Audio 16-bit 48 kHz
Broadcast Output	NTSC/PAL
IP Streaming	H.264/H.265/MJPEG via NDI/NDI|HX/RTMP/RTMPS/RTP/RTSP/SRT/TCP/UDP 3840 x 2160 at 23.98p, 25p, 29.97p, 50p, 59.94p 320 x 180 to 1920 x 1080 at 1p, 4p, 5.00p, 12.5p, 12p, 14.99p, 23.98p, 25p, 29.97p, 50p, 59.94p

Control

Pan/Tilt	Pan: 350° (-175 to 175°) from 0.08 to 180°/s Tilt: 240° (-30 to 210°) from 0.08 to 180°/s
Tally Indicator	Yes
Supported Control Protocols	FreeD IP RS-422

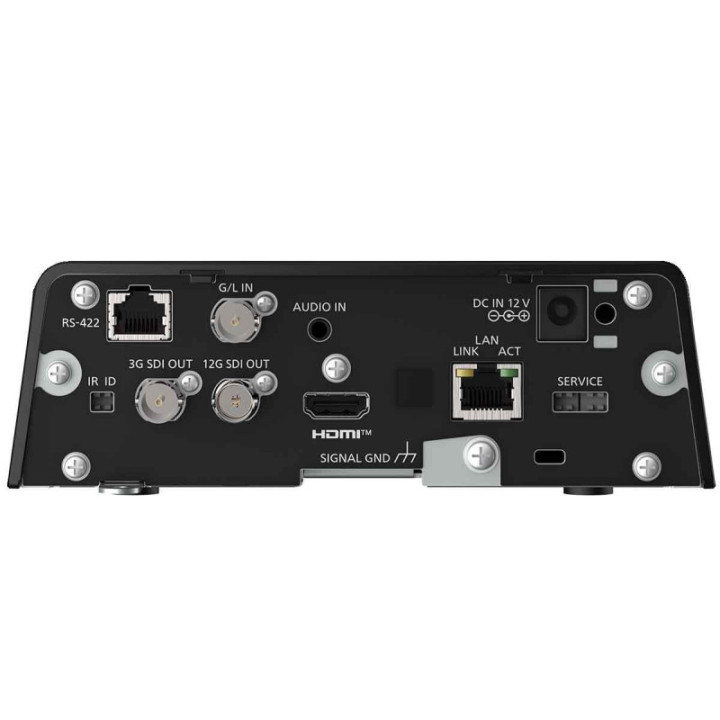

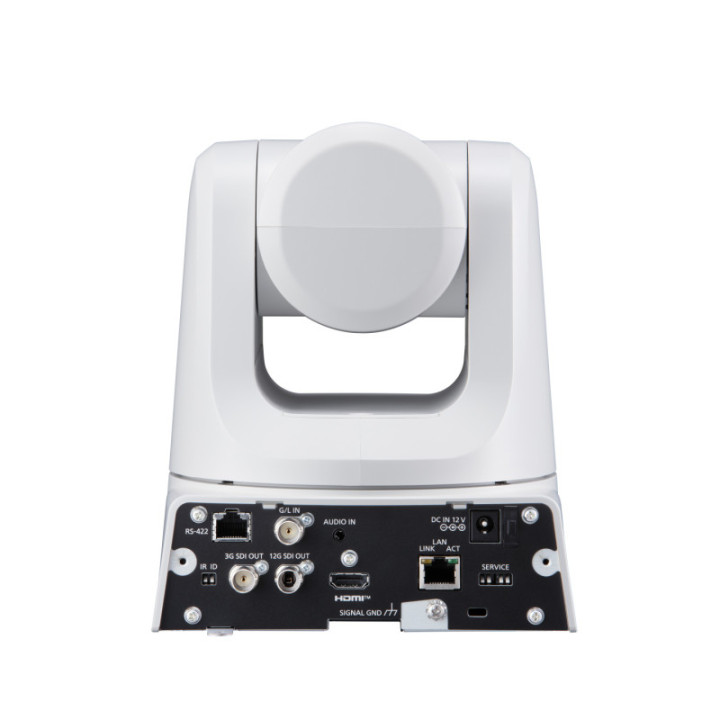

Interface

Video Input/Output	1 x BNC Output (12G-SDI) 1 x BNC Output (3G-SDI) 1 x HDMI 2.0 Output
Audio Input/Output	1 x 1/8" / 3.5 mm TRS Stereo Line Input
Other I/O	1 x BNC Input (Genlock) 1 x RJ45 Control Input (RS-422) 1 x RJ45 (LAN, NDI) Control (Shared with Power Input, Video Output)
Built-in Microphone	No
Built-in Speaker	No

Power Supply

PoE Support	PoE++ 802.3bt
Power Input/Output	1 x Barrel Input (10.8 to 13.2 VDC)
Power Consumption	Camera: 3 A Power Supply: 3 A PoE: 42 to 57 VDC at 1.2 A

Environment

Operating Conditions	32 to 72°F | 0 to 40°C at 20 to 90% Humidity
Storage Conditions	-4 to 122°F / -20 to 50°C
Shock Resistance	No
Environmental Resistance	No

General

Mounting	1 x 1/4"-20 Female Thread
Certifications	FCC Part 15 Class A
OS Compatibility	Computer: Windows 10 or Later / macOS 10.13 to 10.15 Mobile: iPadOS Only
Security Lock Support	Threaded Mounting
Dimensions (W x H x D)	6.7 x 8.1 x 6.7" / 169.2 x 204.6 x 170.6 mm
Weight	2.3 lb / 2.3 kg (Body Only)

Packaging Information

Package Weight	9.22 lb
Body Dimensions (W x D x H)	15 x 13.7 x 11.9"
