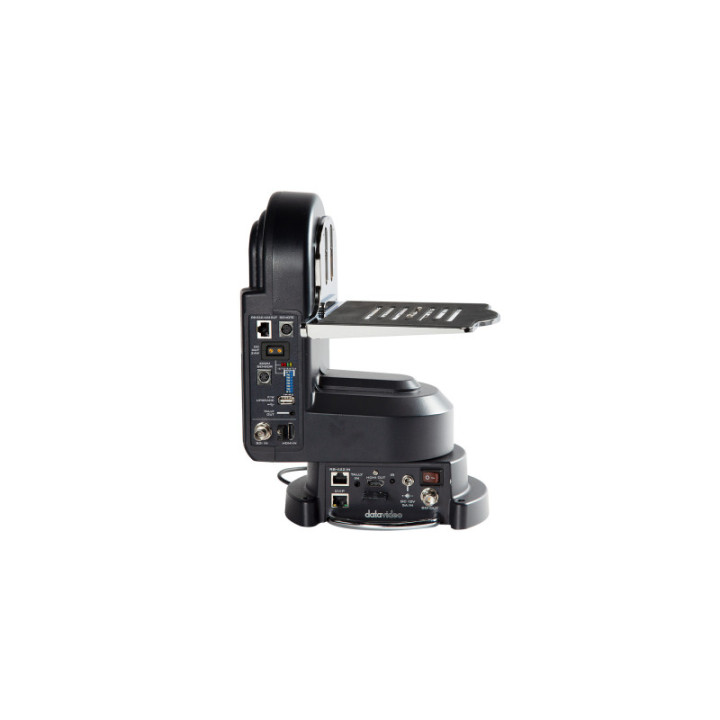

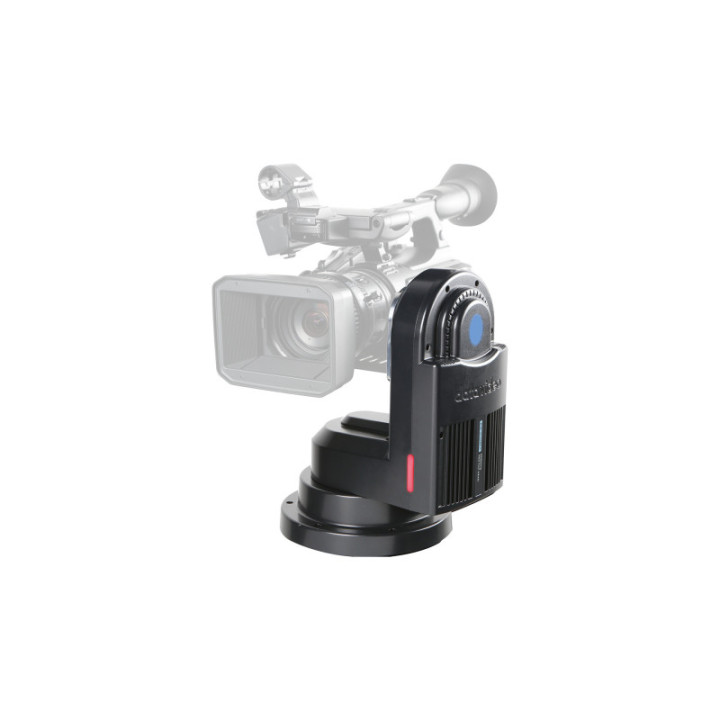

Datavideo - Professional Robotic Pan/Tilt head

Datavideo 7000-2051 - PTR-10MKII - Professional Robotic Pan/Tilt head

1039172
0672255008638
Datavideo 7000-2051 - PTR-10MKII - Professional Robotic Pan/Tilt head
Datavideo 7000-2051 - PTR-10MKII - Professional Robotic Pan/Tilt head
Datavideo 7000-2051 - PTR-10MKII - Professional Robotic Pan/Tilt head
Datavideo 7000-2051 - PTR-10MKII - Professional Robotic Pan/Tilt head
The NVS-34 is an Dual H.264 multi-platform video streaming server, which offers two distinct bit rate options, for streaming and recording streaming simultaneously. Additionally, the NVS-34 supports vertical video streaming. The encoder accepts SDI and HDMI inputs, along with embedded or analog RCA unbalanced audio.
... learn more
Visuals Price
2,514.30 CHF VAT excl.

2,717.96 CHF Inc. VAT

Manufacturer price 2 958,00 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 2 to 3 weeks
  • In-store pickup
    • Available in 2 to 3 weeks

Datavideo 7000-2051 - PTR-10MKII Specs

Model number PTR-10 MARK II
Video Interface HDMI x 1
SDI x 1
Video Output 2160p 29.97/25
1080p 59.94/50
1080i 59.94/50
720p 59.94/50
Control Unit RMC-180
RMC-300A
RMC-300C
ShowCast 100
VISCA Protocol Controller
IP Control
IR remote
Genlock
Timecode ---
Panning / Tilting Range Pan: 340°
Tilt: ±45°
Panning / Tilting Speed Pan: 0.12~15° /Sec
Tilt: 0.06~10° /Sec
Preset Pan/Tilt position 50
Control Distance 1,200M by RS422
100M by DVIP
Control Protocol Sony VISCA
DVIP
Control Input RS-422
DVIP
Maximum Load 4 KG Max
Control Output RS-232
RS-422
BX-Lens
LanC
Power Requirement DC 12V~ 18V, 3A (Without Camera)
DC 12V~ 18V, 5A (With Camera)
Power Supply DC 12/10/8.4/7.4V, 24W Max
Operating Temp. Range 0~40 C°
Operating Humidity Range 10~80%
Storage Temp. Range -10~60C°
Storage Humidity Range 5~80%
Weight 3.4 kg
Dimension (LxWxH) 230 x 190 x 300 mm
Optional accessories ZEK-1
WM-10
WM-11
CM-10
