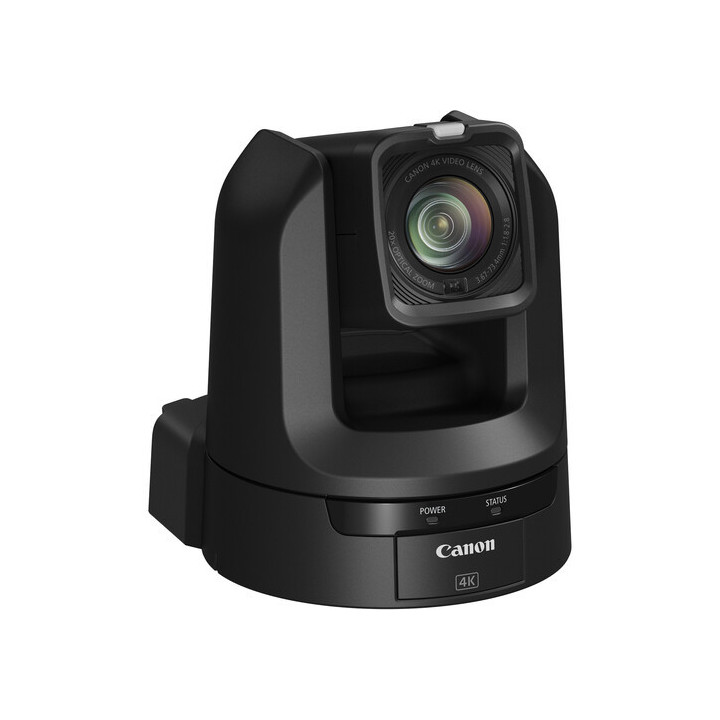

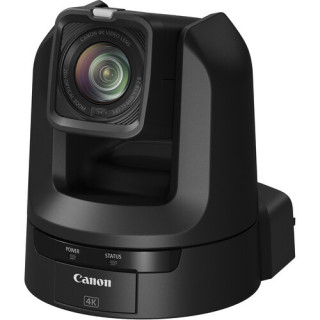

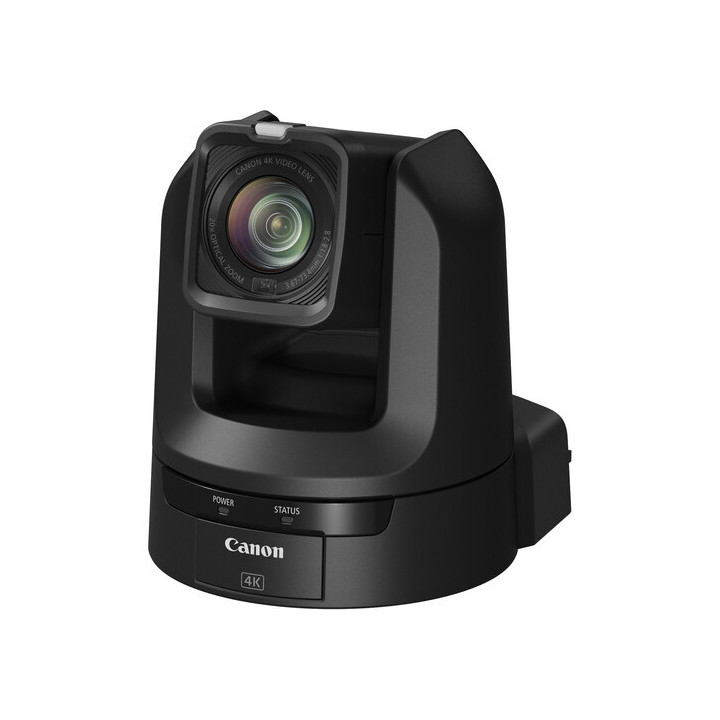

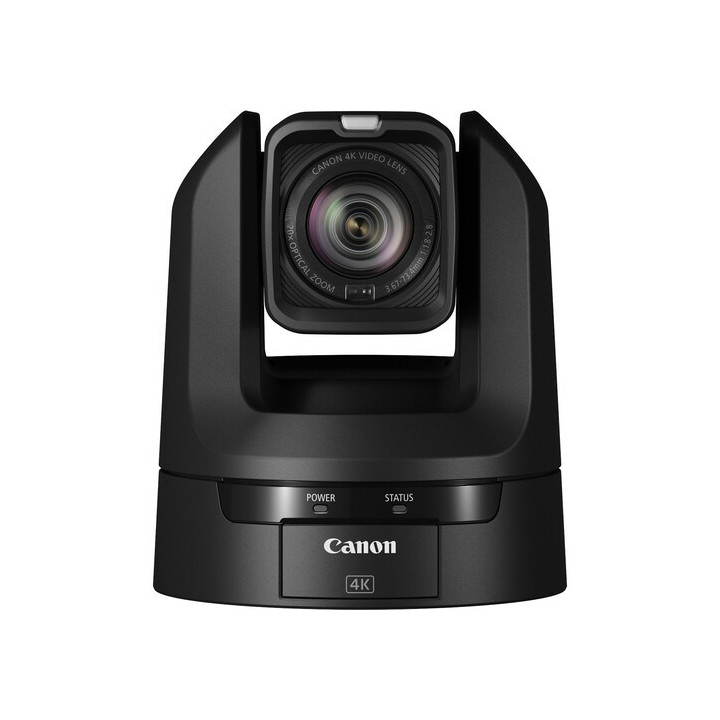

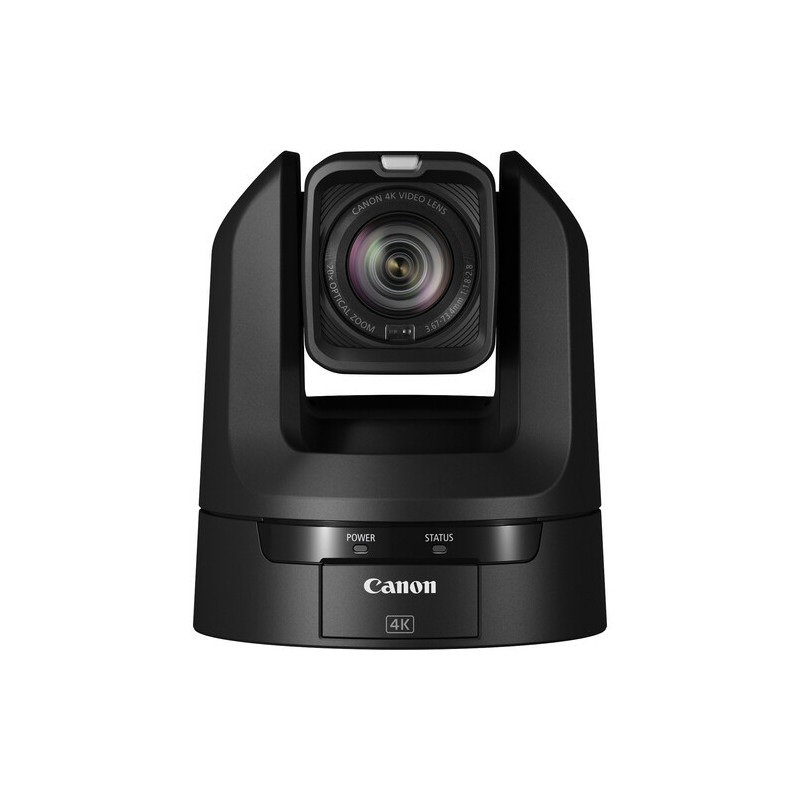

Canon - CR-N300 4K NDI PTZ Camera 20x Zoom (Satin Black)

Canon 5157C003AA - CR-N300 4K NDI PTZ Camera with 20x Zoom (Satin Black)

1039622
4549292186338
Canon 5157C003AA - CR-N300 4K NDI PTZ Camera with 20x Zoom (Satin Black)
Canon 5157C003AA - CR-N300 4K NDI PTZ Camera with 20x Zoom (Satin Black)
Canon 5157C003AA - CR-N300 4K NDI PTZ Camera with 20x Zoom (Satin Black)
Canon 5157C003AA - CR-N300 4K NDI PTZ Camera with 20x Zoom (Satin Black)
Equipped with 4K UHD resolution, a 20x optical zoom, Hybrid Auto Focus, numerous IP streaming and control protocols, you can engage your audience in new ways.
Visuals Price
2,458.00 CHF VAT excl.

2,657.10 CHF Inc. VAT

Manufacturer price 2 534,03 CHF VAT excluded
2 piece(s) in stock
  • Delivery
    • Available, shipped today
  • In-store pickup
    • Geneva, pickup available within 1H
    • Zurich, pickup available within 24H

Canon CR-N300 Black - 4K PTZ Camera with NDI and 20x Zoom, Black
If you have a professional production requiring remotely controlled cameras with minimal staff and high-resolution output, the Canon CR-N300 4K PTZ Camera with NDI and 20x Zoom in Satin Black will fit perfectly into your place of worship, corporate meeting room, government application, courtroom, streaming broadcast production, event space, or even to add an additional camera to your documentary shoot. The CR-N300 has many features of a Canon camcorder such as a 1/2.3" UHD 4K Dual Pixel CMOS sensor, hybrid autofocus, Canon DIG|C DV6 image processor, scene modes, 20x optical zoom, 20x digital zoom, microphone input and video recording up to UHD 4K. The camera also includes NDI|HX support without requiring a separate licence, allowing you to integrate the camera into your existing NDI network with minimal setup. What sets the PTZ camera apart from camcorders are its remote control capabilities such as control via IP, RS-422 serial, IR or Wi-Fi, as well as HDMI, 3G-SDI and USB Type-C video outputs, and compatibility with Canon's RC-IP100 IP PTZ controller. It can perform smooth and precise pan, tilt and zoom movements with a speed range of 0.2 to 300° per second. Microphone-level audio can be captured via a 3.5 mm mini-jack, then embedded in HDMI and 3G-SDI outputs, or your NDI, RTP/RTMP/RTSP or USB multicast output. The USB Type-C port allows you to use the camera as a webcam and also supports UVC control data, allowing you to control the camera using Canon's camera control software. The camera can also be powered by PoE+ (Power-over-Ethernet) via its LAN port, allowing it to integrate directly into your existing PoE+ network infrastructure without requiring the use of a local power supply to save on cabling. The camera supports extended dynamic range, 1.5 lux brightness, and its lens has a 35 mm equivalent focal length of 29.3 to 601 mm. The camera can use an external controller via RS-422/VISCA or Canon's proprietary XC protocol on a secure private local network, using the optional RC-IP100 PTZ controller. Or, if you prefer to use Canon's camera control software, the free downloadable application can run on a Windows operating system, allowing you to control all camera functions from a laptop or tablet. The software offers 9x9 live view, control of up to 100 cameras, parameter download and configuration, and tally functions. An infrared remote control and power adapter are included.
.Key Features 1/2.3" Dual Pixel CMOS sensor
The CR-N300 is equipped with Canon's 1/2.3" UHD 4K CMOS image sensor, capable of capturing UHD 4K video at 30p and up to 60p in Full HD, making this PTZ camera a serious contender for professional production.
Canon DIG!C DV6 processor
The CR-N300 PTZ camera incorporates Canon's DIG|C DV 6 image processor, essential for delivering high image quality, advanced performance and practical ease of use. This advanced core technological component provides the processing power and speed required for features such as UHD 4K video capture and precision hybrid autofocus.
Hybrid AF
The CR-N300 is equipped with the Hybrid AF system, an autofocus system that combines high-precision contrast-detection AF technology and high-speed phase-detection AF technology to confirm the camera's autofocus. This hybrid autofocus system enables faster and more reliable autofocus than contrast-detection AF alone.
Canon 4K UHD lens
The CR-N300 is equipped with a 20x optical zoom lens and offers a wide field of view of 65.6° (horizontal) in 4K. In the wide-angle position, the 29.3 mm lens (35 mm equivalent) is capable of capturing expansive scenes in confined shooting spaces such as indoor events for cinematic wide shots. The camera uses aspherical optical elements to achieve 4K image quality whilst minimising various aberrations across the entire zoom range.
HD oversampling processing
Full HD recording (HD oversampling processing) fully exploits the image information acquired by the 4K sensor to generate superb Full HD high-definition videos. This helps content creators to produce remarkably sharp FHD videos when using the CR-N300.
Smooth and responsive pan and tilt performance
The CR-N300 is equipped with a PT drive mechanism that can vary the pan/tilt speed in increments. This allows the operator to adjust speeds according to desired preferences to enable smooth PT movement. The CR-N300 has a variable pan speed of 0.2 to 300°/second and a variable tilt speed of 0.2 to 170°/second.
Four scene modes for impressive videos
The CR-N300 offers scene modes that provide four preset shooting modes suited to the desired application. There are four types of scene modes:
  • Portrait mode: displays a blurred background whilst the subject is sharp
  • Sport mode: improves the capture of moving subjects
  • Low light mode: improves the capture of bright images even in dark places
  • Projector mode: enhances the capture of beautiful images of subjects illuminated by a projector
By selecting a scene mode, capture can be performed without having to adjust multiple parameters in the camera menu, facilitating quick setup and allowing the operator to start filming with an impressive image expression.
Webcam via USB connection
The CR-N300 supports USB in addition to IP, SDI and HDMI. It is equipped with UVC (Video: USB Video Class Ver. 1.1) and UAC (Audio: USB Audio Class Ver. 1.0) specifications, which are standard connection standards between USB cameras and computers. This enables video and audio output by connecting to a USB-compatible device. Additionally, driver settings are not required to connect to the computer. It can also be used as a webcam by connecting to a computer on which a video conferencing application is installed. The CR-N300 provides video up to Full HD 1920 x 1080 for high-quality video conferencing.
Easy integration into IP streaming
In addition to SDI and HDMI connections, the CR-N300 is equipped with a dedicated RJ45 interface for IP communication, which supports high-resolution video for distribution. The CR-N300 supports multiple protocols that can be used for video, audio and control. Canon's original RC-IP100 controller uses the XC protocol to control the CR-N300. The CR-N300 can also be combined with third-party equipment for control purposes. This IP system can contribute to efficient and cost-effective camera operations in the field of video production, broadcasting and beyond.
IP multicast support
The CR-N300 can stream video over multiple protocols via IP simultaneously. Simultaneous streaming is also known as multicasting, and the CR-N300 can stream a total of three video streams at once. Additionally, if the HDMI/SDI video output is 30 fps or less, the CR-N300 can stream two video streams, 4K H.264 and 360p H.264, at the same time. These multi-stream IP capabilities support parallel workflows where the same video is used simultaneously in remote environments.
RTMP broadcast protocol support
The CR-N300 is capable of streaming video and audio using RTMP (Real-Time Messaging Protocol). Even large high-quality video/audio files such as broadcast programmes are played back simultaneously with streaming without waiting for the download to complete. For example, using a live streaming service, viewers' direct access to the streaming URL configured on the camera will broadcast the "live" video captured by the camera. With RTMP streaming, multiple viewers can watch the programme simultaneously, even in a remote environment.
Support for NDI|HX live video production protocol
The CR-N300 supports the NDI (Network Device Interface) protocol, well established in the field of video production and broadcasting, as well as the RTP (Real-Time Transport Protocol) protocol. The NDI protocol was developed and led by NewTek as a protocol supporting the live video production workflow over an IP network. By creating a system using NDI-compatible devices and tools, it is possible to use video and audio resources on the network, including live video from cameras. This enables a "live video production" workflow.
Standard VISCA protocol
The CR-N300 supports the VISCA protocol, an industry standard for remote camera control via IP. When connecting a remote control compatible with the VISCA protocol to the camera via IP or RS-422 serial, the camera can be controlled remotely and shooting settings can be adjusted using the remote control. The VISCA protocol, an industry standard, is widely used in video production, broadcasting and many other markets. The CR-N300 supports the VISCA protocol, considered an industry standard and suitable for use in existing workflows.
Canon XC protocol support
The XC protocol is a newly developed IP protocol that controls Canon video production equipment. By supporting the XC protocol, the CR-N300 can be controlled remotely whilst supporting a wide range of applications, including sport, music, live events, conference recording, corporate video production and much more.
Multiple interfaces supported for various environments
The CR-N300 is equipped with four output interfaces. The IP and HDMI outputs are suitable for capture in UHD 4K at 30p or Full HD resolution at 59.94p. The SDI output is capable of Full HD resolution and is suitable for applications requiring high-quality video at 59.94p. The USB output is capable of Full HD resolution for high-quality video conferencing.
3.5 mm mini-jack
The CR-N300 offers a high-quality sound recording method via an internal stereo mini-jack microphone.
Single-operator operation
The CR-N300 can be controlled via IP, infrared, USB and Wi-Fi. Canon's hardware controller, the RC-IP100, is capable of controlling up to 100 cameras and 100 presets, allowing the operator to control multiple cameras in a larger production. The CR-N300 is perfectly suited to many applications in broadcasting, education, places of worship, events, theatre and much more.
Completely new design
The CR-N300 impresses with its distinctive style. A uniform exterior colour and a shape that appears to have been sculpted from a cone, with a size that gives an impression of robustness whilst remaining stable and compact. This PTZ camera maintains design harmony with other Canon professional imaging products such as Canon's 4K camera systems and established lenses. The CR-N300 is available in two different colours, satin black and titanium white.
Equipped with tally indicators
The CR-N300 is equipped with tally indicators that display the camera's status. The tally indicators are located at the front of the lens section and light up red when the camera is recording, providing clear visual cues to staff and presenters to indicate which camera is recording live. Supported wireless remote controls In addition to the IP interface, the CR-N300 can also connect via Wi-Fi. This allows the operator to access the camera's settings page from a wireless tablet equipped with a compatible HTTP browser. When multiple cameras are used simultaneously, the user can set up and use other cameras in the same way by entering the IP address assigned to the camera in the web browser of the tablet or any other device. Additionally, the CR-N300 includes an infrared remote control, which is used to control the camera wirelessly.
User-friendly Settings Page and Discovery Tool
The CR-N300 supports the Camera Discovery Tool, a Windows application. The Camera Discovery Tool allows you to define IP addresses for multiple cameras, helping installers and integrators to configure the CR-N300 in an existing network infrastructure. Additionally, the CR-N300 supports the "Settings Page" web application. The Settings Page allows users to configure the camera's operating parameters, accessible via a web browser. Video quality settings, such as exposure and white balance, which are usually performed by the camera operator on site, can now be adjusted and set whilst viewing the video from their computer via the Settings Page. The Camera Discovery Tool and Settings Page enhance usability through remote control.
Remote camera control application
The Remote Camera Control application can be used to control the CR-N300. Remote Camera Control is a Windows application for centralised control of multiple cameras. It is possible to use up to nine cameras and display the videos simultaneously, thus enabling "multi-camera operation". On a video production or broadcast site, an operator can select a camera from the videos displayed in the application's "connected camera list" and use it from the "camera control area" of the software control panel. The software is included and can be installed immediately without having to prepare a hardware controller beforehand, making it easier for the operator to use while creating an efficient single-operator operation.



Technical specifications



Image sensor
Image sensor 1/2.3" single CMOS sensor
Sensor resolution Effective: 21.14 megapixels
Effective: 8.29 megapixels (3840 x 2160)
Gain 0 to 36 dB
Minimum illumination 1.5 lux
White balance range 2000 to 15000 K
Camera
Shutter speed 1/6 to 1/2000 s
Maximum digital zoom 20x
Lens
Optical zoom factor 20x
Focal length 3.7 to 73.4 mm
35 mm equivalent focal length 29.3 to 601 mm
Field of view Horizontal: 3.6 to 65.6°
Vertical: 2 to 39.8°
Maximum aperture f/1.8 to 2.8
Minimum focus distance Wide angle: 0.4" | 1.0 cm
Telephoto: 23.6' | 60.0 cm
Image stabilisation Optics
Focus control Autofocus
Manual focus
Video output
Broadcast system compatibility NTSC, PAL
Output formats HDMI: 3840 x 2160p at 23.98, 25, 29.97 fps
1920 x 1080p at 23.98, 25, 29.97, 50, 59.94 fps
1920 x 1080i at 50, 59.94 fps
1280 x 720p at 50, 59.94 fps
SDI: 1920 x 1080p at 23.98, 25, 29.97, 50, 59.94 fps
1920 x 1080i at 50, 59.94 fps
1280 x 720p at 50, 59.94 fps
RJ45: 3840 x 2160p at 29.97 fps
1920 x 1080p at 29.97, 59.94 fps
1280 x 720p at 29.97, 59.94 fps
640 x 360p at 29.97, 59.94 fps
USB: 1920 x 1080p at 50, 59.94 fps
1280 x 720p at 50, 59.94 fps
640 x 360p at 50, 59.94 fps
Built-in audio HDMI | SDI | USB Type-C
IP streaming H.264, RTMP, RTP, RTSP: 1080p, 720p, 360p at 29.97p, 59.94p, 60p
IP multicast support Simultaneous
RTMP, RTP, RTSP: 1080p, 720p, 360p at 29.97p, 59.94p
Control
Presets 100 via IP, VISCA
Pan/tilt speed Pan: 2 to 300°/s
Tilt: 0.2 to 170°/s
Pan/tilt range Pan: 340° (-170 to 170°)
Tilt: 130° (-30 to 100°)
Camera tally indicator Yes
Supported control protocols Canon XC
IR
RS-422
VISCA

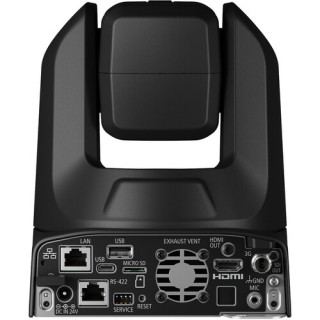

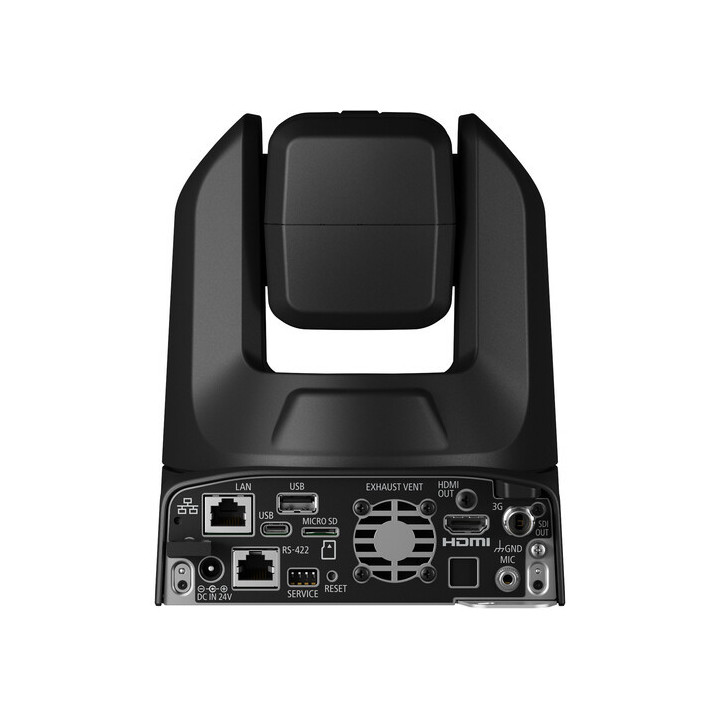

Interfaces
Video output connectors 1 x BNC (3G-SDI) female
1 x HDMI Type A female
1 x RJ45 (HX | NDI) female
1 x USB 3.0 Type-C (USB video) female
Audio inputs/outputs 1 x 3.5 mm stereo mini-jack | 1/8" for microphone line level
Control interface 1 x RJ45 input (RS-422, VISCA)
Other I/O 1 x USB Type-A input
Power supply
PoE support PoE+ 802.3at
Power connectors 1 x coaxial | barrel (24 V DC)
Power Consumption PoE: 16.2 W
Power: 24 V DC 15 W
Environment
Operating Temperature 32 to 104 °F | 0 to 40 °C
Storage temperature 32 to 104 °F | 0 to 40 °C
Operating Humidity 10 to 90%
Storage humidity 10 to 90%
General
Dimensions 17.81 x 16.41 x 15.39 cm (excluding protruding parts)
Weight 2.2 kg
