Panasonic - Full-HD 50 / 60p integrated PTZ camera, black
Panasonic AW-HE145KEJ - Full-HD 50 / 60p integrated PTZ camera, black
1047932
5025232922024
Full-HD 50 / 60p integrated PTZ camera, black; 1-type large-sized sensor; 75.1 degree viewing angle (widest in its class); Various interfaces (3G-SDI, HDMI and IP); Optical 20x zoom + iZoom; PoE ++ support; High speed pan / tilt mode; SRT support
Visuals Price
6,061.12 CHF
VAT excl.
6,552.07 CHF Inc. VAT
Made to order
-
Delivery
-
Delivery time 3 to 5 weeks
Order now, we'll deliver as soon as possible.
Contact us for alternatives:
022 561 07 07.
-
Delivery time 3 to 5 weeks
-
In-store pickup
- Available in 3 to 5 weeks
Full-HD 50 / 60p integrated PTZ camera, black

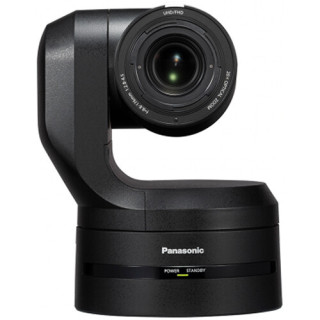

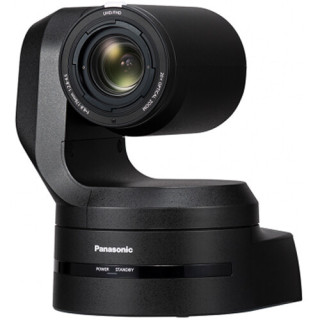

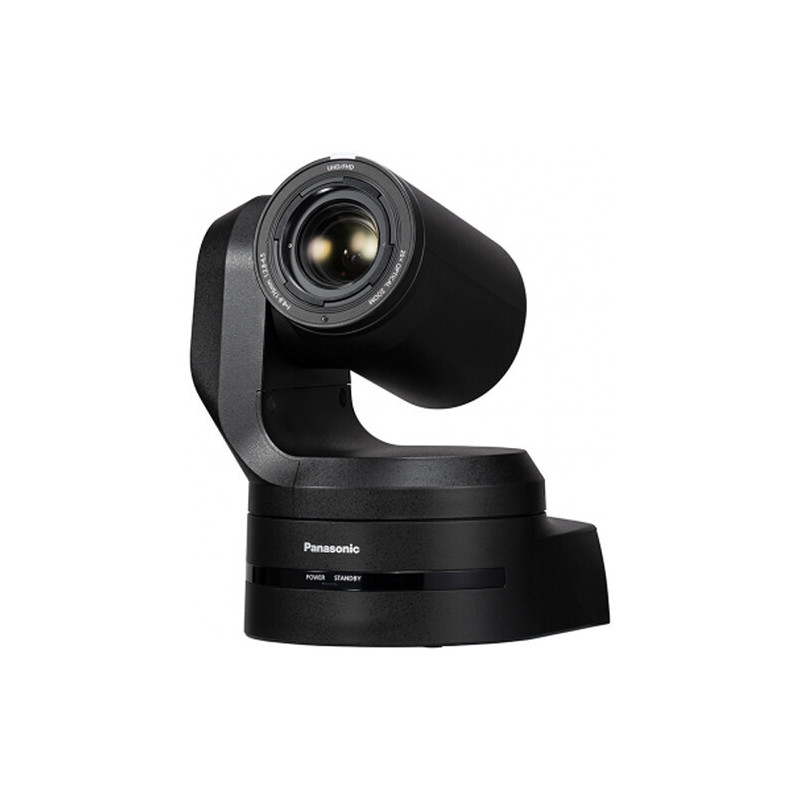

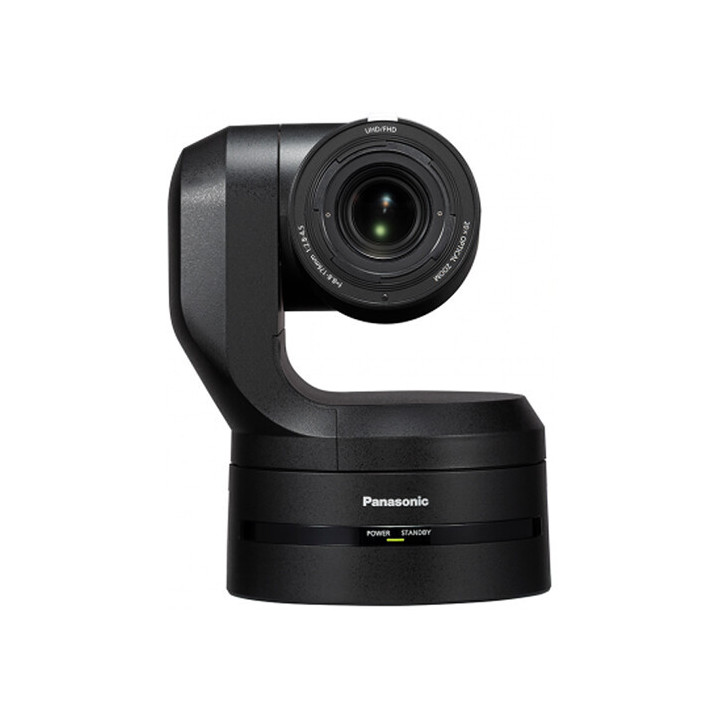

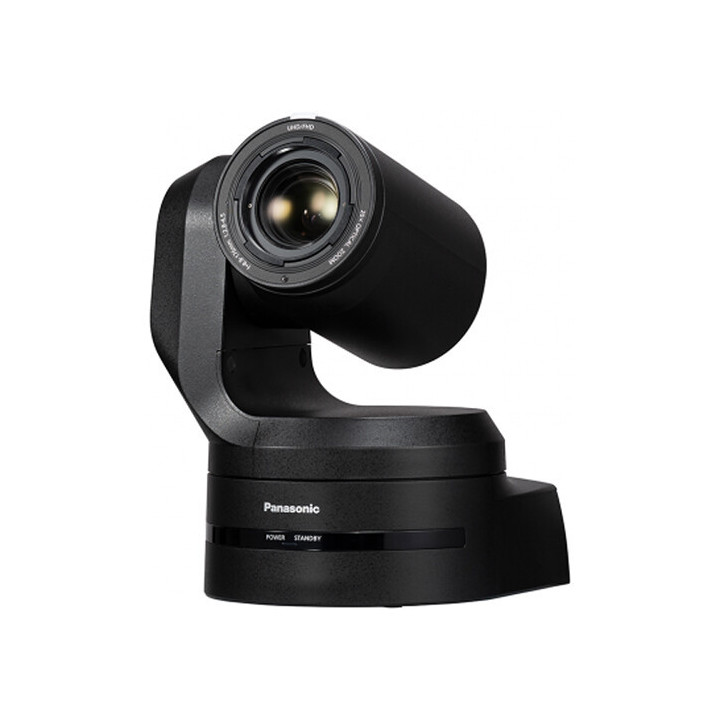

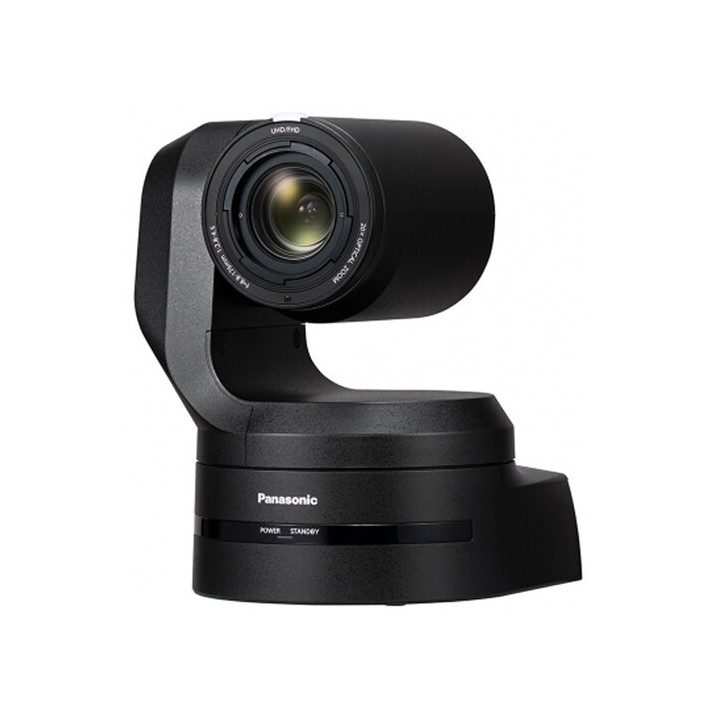

Capture high-quality 1080p video in your conference room, house of worship, or education locations with the black AW-HE145 HD Integrated PTZ Camera with 20x Optical Zoom from Panasonic. The camera features a 1" MOS sensor, HDMI and 3G-SDI outputs, RJ45 LAN streaming support, mic/line audio input, and serial control. When connected to the Internet, this IP camera allows you to control PTZ actions and monitor the surveillance area from a remote location via a Web browser. This provides you with several advantages like reduced integration costs, easy remote production and engineering, and lower cost for multiple location systems. Equipped with a 8.8 to 176mm zoom lens (35mm equivalent zoom of 24.5 to 490mm), 20x optical zoom, 10x digital zoom, and 32x iZoom, this PTZ camera enables you to zoom in on activity in the monitoring area for a closer look. It features Night Mode and features high-quality performance in low-light situations with little to no noise. Other features include auto white balance, RS-422 serial control, genlock input, 175° panning range, -30 to 90° tilt range, H.265/H.264/MJPEG video compression, RTSP/RTMP streaming, AAC-LC audio compression, and a built-in 4-stage ND filter system. The camera supports mic and line audio input, allowing you to capture and embed audio within the video signal. It is also PoE+ compatible, allowing you to power the unit using only the single LAN cable rather than adding additional power adapter cables. An optional Auto-Tracking software upgrade allows the camera to utilize facial recognition technology for face tracking and body detection so the camera will follow the subject around the room automatically. If you are using an NDI-enabled network, you can also purchase an optional NDI|HX license to transmit high-quality, low-bandwidth NDI|HX video streams.Key Features
-1" MOS sensor with 20x optical zoom, extendable to 10x with digital zoom
-Video output up to 1080p60 with 3G-SDI, HDMI, and IP outputs to get you a reliable live video production workflow
-High Dynamic Range function (HDR), suitable for backlit condition
-A single-cable solution for remote video and audio capture; optional NDI|HX support is available
-Supports PoE+ (Power-over-Ethernet+) for lower installation costs -SRT, a next-generation video transmission protocol with strong security suitable for unstable network environments, is supported
-Switching to Night Mode manually or automatically makes shooting possible even in low-light conditions in which shooting is normally difficult, such as when observing wildlife
-The AW-HE145 can be upgraded to an NDI|HX compatible model if purchasing a license from the Panasonic website to enable excellent broadcast streaming by encoding and transmitting high-quality video in real time
-Using an IP browser, the camera can be controlled from a remote location and IP video monitoring and remote camera control can be performed from a computer or mobile terminal such as a smartphone or tablet, enabling easy operations
-The camera also supports stereo analog audio input, embedding and encoding, and audio output to IP is also supported Compatible with a wide range of software, including the PTZ Control Center and Auto Tracking Software to simplify the workflow of the PTZ camera shooting and reduces the burden of operation and management
-Compatible with Panasonic AW-RP150, AW-RP60, AK-HRP1000GJ, AK-HRP1015GJ, and AK-HRP250GJ controllers
|
|
Specifications |
|
|
Image Sensor |
|
|
| Image Sensor | 1-Chip 1" MOS Sensor | |
| Horizontal Resolution (TV Lines) | 1000 TV Lines | |
| Gain | 0 to 36 dB | |
| Signal-to-Noise Ratio | 60 dB | |
| Minimum Illumination | 2 Lux at 1/60 Shutter Speed | |
| White Balance | 2000 to 15,000K | |
|
Camera |
|
|
| Shutter Speed | 1/60 to 1/10,000 sec (In 60p/60i Mode) 1/50 to 1/10,000 sec (In 50p/50i Mode) 1/30 to 1/10,000 sec (In 30p Mode) 1/25 to 1/10,000 sec (In 25p Mode) 1/24 to 1/10,000 sec (In 24p Mode) |
|
| Precise Scan Rate Control | Yes | |
| Max Digital Zoom | 10x | |
| Built-In ND Filter | Mechanical Filter Wheel with Clear, 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters | |
|
Lens |
|
|
| Optical Zoom Ratio | 20x | |
| Focal Length | 8.8 to 176mm | |
| 35mm Equivalent Focal Length | 24.5 to 490mm | |
| Field of View | Horizontal: 4 to 75.1° Vertical: 2.3 to 46.7° Vertical: 4.6 to 82.8° |
|
| Maximum Aperture | f/2.8 to 4.5 | |
| Minimum Focus Distance | Wide: 3.3' / 100.0 cm Telephoto: 3.9" / 10.0 cm |
|
| Focus Control | Autofocus Manual Focus |
|
|
Video Output |
|
|
| Broadcast System Compatibility | NTSC, PAL | |
| Output Formats | HDMI: 1920 x 1080p at 25, 29.97, 50, 59.94 fps 1920 x 1080PsF at 25, 29.97 fps 1920 x 1080i at 50, 59.94 fps 1280 x 720p at 50, 59.94 fps SDI: 1920 x 1080p at 25, 29.97, 50, 59.94 fps 1920 x 1080PsF at 25, 29.97 fps 1920 x 1080i at 50, 59.94 fps 1280 x 720p at 50, 59.94 fps |
|
| Embedded Audio | HDMI/SDI: 2-Channel | |
| IP Streaming | H.264, H.265, MJPEG, RTP, RTSP, TCP, UDP: 1080p, 720p, 480p, 360p at 24p, 25p, 30p, 50p, 60p (0.5 to 24.00 Mb/s) | |
|
Recording |
|
|
| Audio Recording | None | |
|
Control |
|
|
| Move Speed | Pan: 0.08 to 180°/sec Tilt: 0.08 to 180°/sec |
|
| Movement Range | Pan: 350° (-175 to 175°) Tilt: 240° (-30 to 210°) |
|
| Tally Light | Yes | |
| Supported Control Protocols | IP RS-422 |
|
| Max Cable Length | 328.1' / 100 m (Cat 5e, Cat 6) 3280.8' / 1000 m (Cat 5e, Cat 6, RS-232) |
|
| Interface | ||

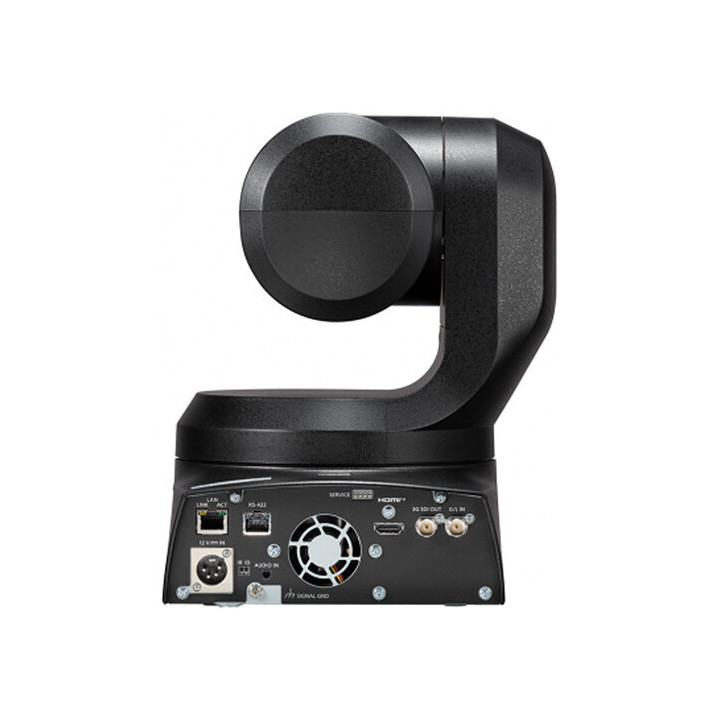

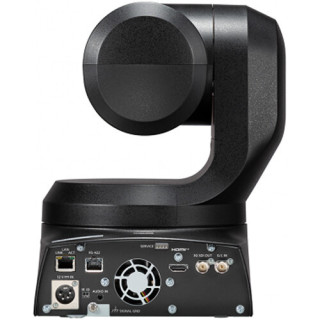

| Video Output Connectors | 1 x BNC (3G-SDI) Female 1 x HDMI Type A Female 1 x RJ45 Female |
|
| Audio I/O | 1 x 1/8" / 3.5 mm Stereo Mic/Line Level Input | |
| Control Interface | 1 x RJ45 (LAN) 1 x RJ45 (RS-422) |
|
| Other I/O | 1 x BNC (Genlock) Output 1 x 2-Pin Euroblock (IR) Input/Output |
|
| Power | ||
| PoE Support | Yes | |
| Power Connectors | 1 x 4-Pin XLR (12 VDC) | |
| Power Consumption | Power Supply: 4 A PoE: 1.2 A |
|
| Enviromental | ||
| Operating Temperature | 32 to 104°F / 0 to 40°C | |
| Storage Temperature | -4 to 122°F / -20 to 50°C | |
| Operating Humidity | 20 to 90% | |
| General | ||
| Dimensions | 10.5 x 8.6 x 8.4" / 267 x 219 x 213 mm (Excluding Protrusions) | |
| Weight | 9 lb / 4.1 kg | |
Full-HD 50 / 60p integrated PTZ camera, black; 1-type large-sized sensor; 75.1 degree viewing angle (widest in its class); Various interfaces (3G-SDI, HDMI and IP); Optical 20x zoom + iZoom; PoE ++ support; High speed pan / tilt mode; SRT support
