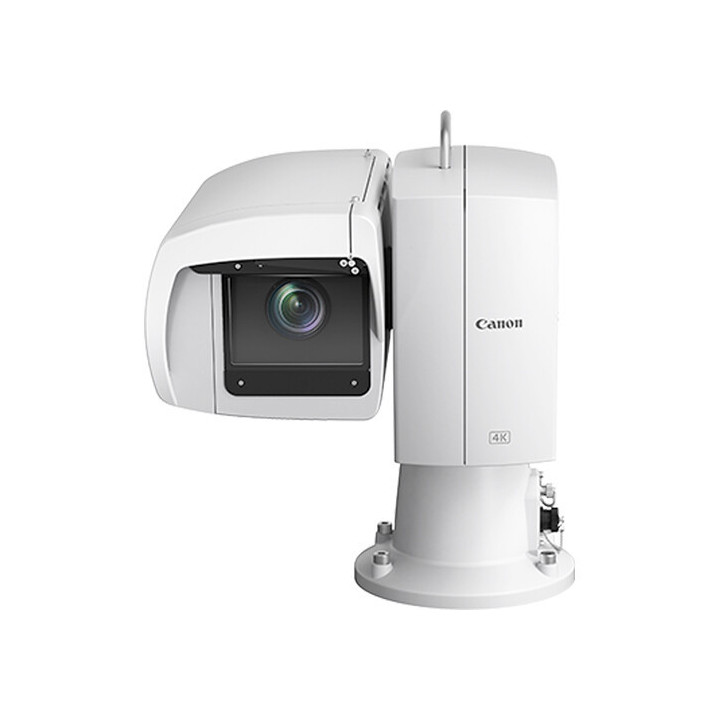

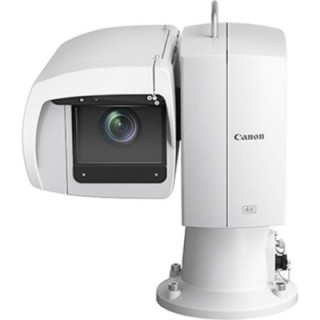

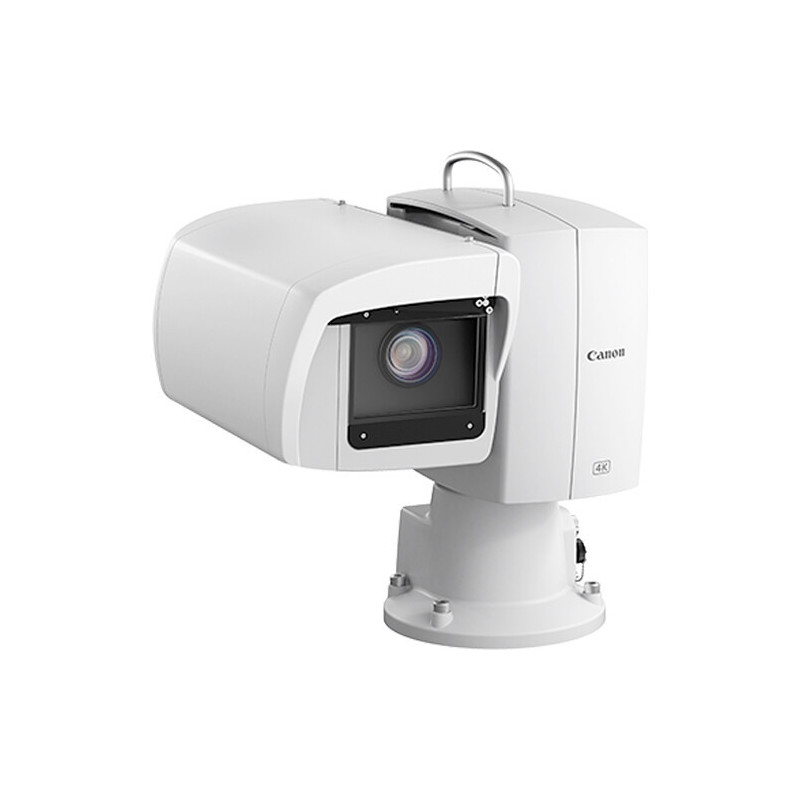

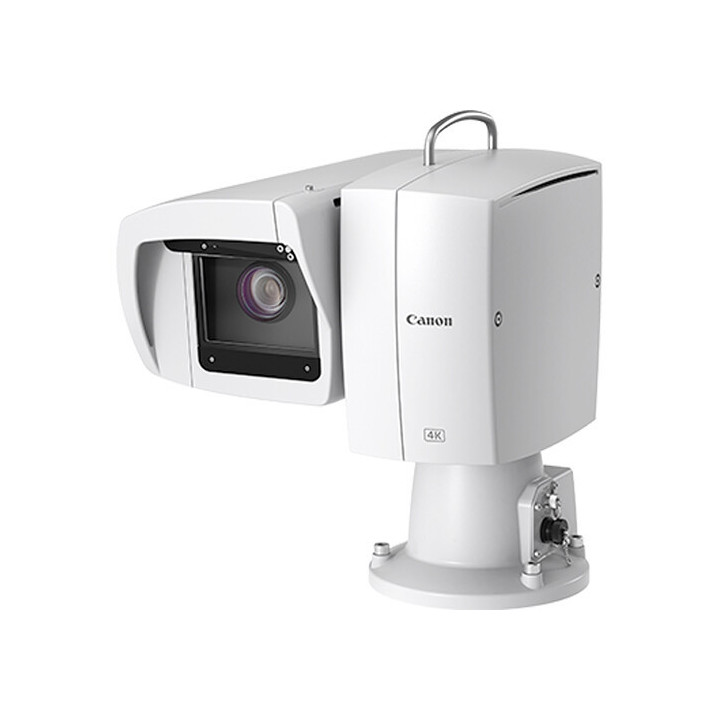

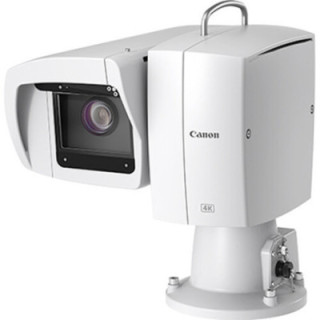

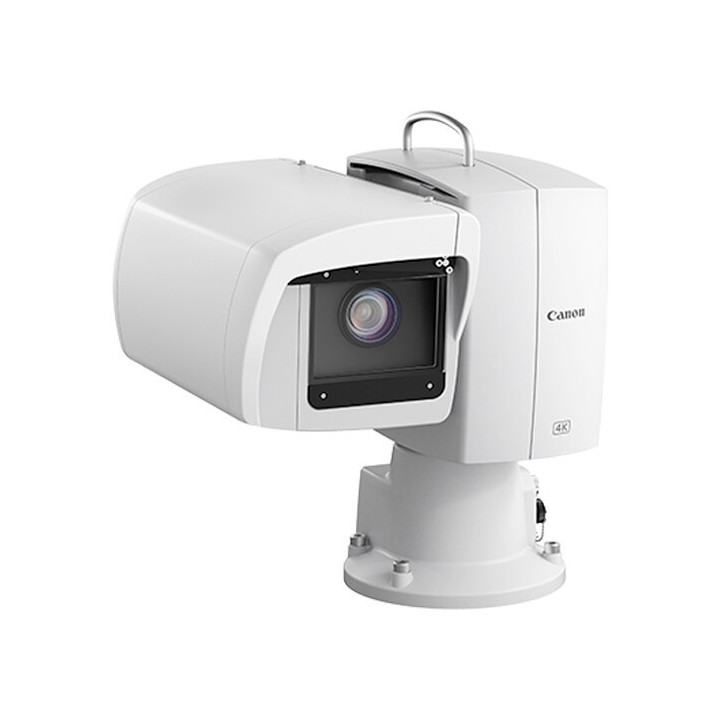

Canon 5424C003AB - CR-X500 Outdoor 4K PTZ Camera with 15x Optical Zoom (White)
1050880
4549292194272
If you're working on a field or studio production with a need to shoot outdoors in the elements, and remotely controlled cameras with minimal operating crew is required, the white CR-X500 Outdoor 4K PTZ Camera with 15x Zoom from Canon will fit right into your multi-camera shoot, event, streaming broadcast, reality show, or digital video production.
Visuals Price
23,400.00 CHF
VAT excl.
25,295.40 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
4K outdoor PTZ camera with 15x optical zoom (White)
|
|
Technical specifications |
|
|
Image sensor |
|
|
| Image sensor | 1" 1-chip CMOS sensor | |
| Sensor resolution | Actual: 13.4 megapixels Effective: 8.29 megapixels (3840 x 2160) |
|
| Gain | 0 to 33 dB | |
| Minimum illumination | 3 lux at 1/60 shutter speed | |
| Camera | ||
| Shutter speed | 1/3 to 1/1000 sec | |
| Maximum digital zoom | 30x (at 1080p) | |
| Built-in ND filter | Mechanical filter wheel with clear ND filters, 2 stops (1/4), 4 stops (1/16), 6 stops (1/64) | |
| Lens | ||
| Optical zoom ratio | 15x | |
| Focal length | 8.3 to 124.5 mm (35 mm equivalent focal length: 25.5 to 382.5 mm) | |
| Field of view | Horizontal: 5.7 to 73° Vertical: 3.2 to 45.2° |
|
| Maximum aperture | f/2.8 to 4.5 | |
| Image stabilisation | Optics | |
| Focus control | Autofocus Manual focus |
|
| Video output | ||
| Broadcast system compatibility | NTSC, PAL | |
| Output formats | SDI: 3840 x 2160p at 59.94 fps 1920 x 1080p at 23.98, 25, 29.97, 50, 59.94 fps 1920 x 1080i at 50, 59.94 fps 1280 x 720p at 50, 59.94 fps |
|
|
Control |
|
|
| Presets | 100 | |
| Movement speed | Pan: 0.5 to 25°/sec Tilt: 0.3 to 20°/sec |
|
| Movement range | Pan: 340° (-170 to 170°) Tilt: 80° (-50 to 30°) |
|
| Supported control protocols | IP RS-422 |
|

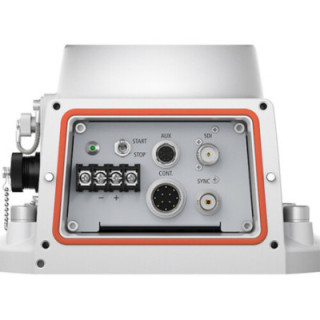

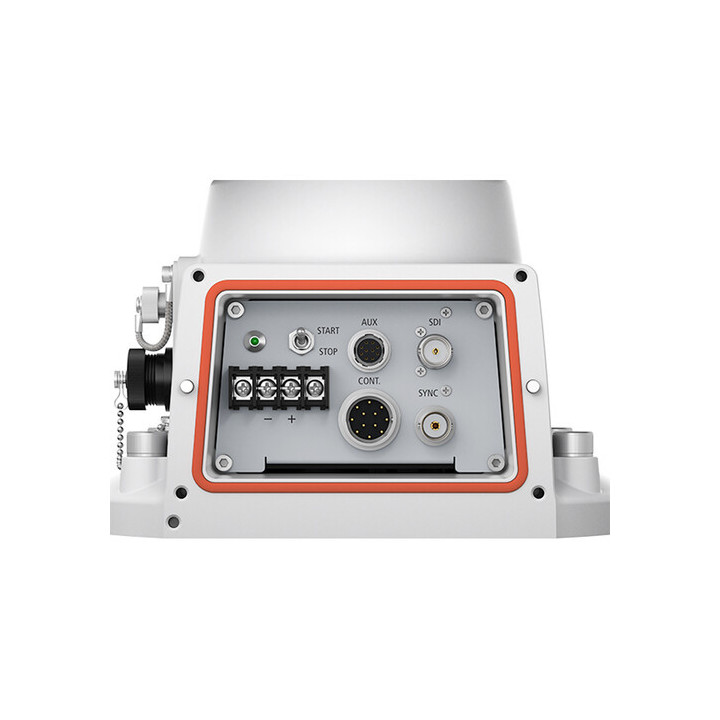

| Interfaces | ||
| Video output connectors | 1 x BNC (3G-SDI) Female | |
| Control interface | 1 x 9-pin Sub-D (RS-422) Input | |
| Other I/O | 1 x BNC (Genlock) Input/Output | |
| Power supply | ||
| PoE support | None | |
| Power connectors | 1 x Proprietary (10 to 15 V DC) | |
| Power consumption | Power supply: 10.5 to 15 V DC 90 W | |
| Environment | ||
| Operating temperature | 10 to 104°F / -15 to 40°C | |
| Operating humidity | 10 to 90% | |
| Storage humidity | 0,9 | |
| General | ||
| IP rating | IP55 | |
| Dimensions | 38.99 x 38.6 x 33.71 cm (excluding protruding parts) | |
| Weight | 37.5 lb / 17 kg | |
