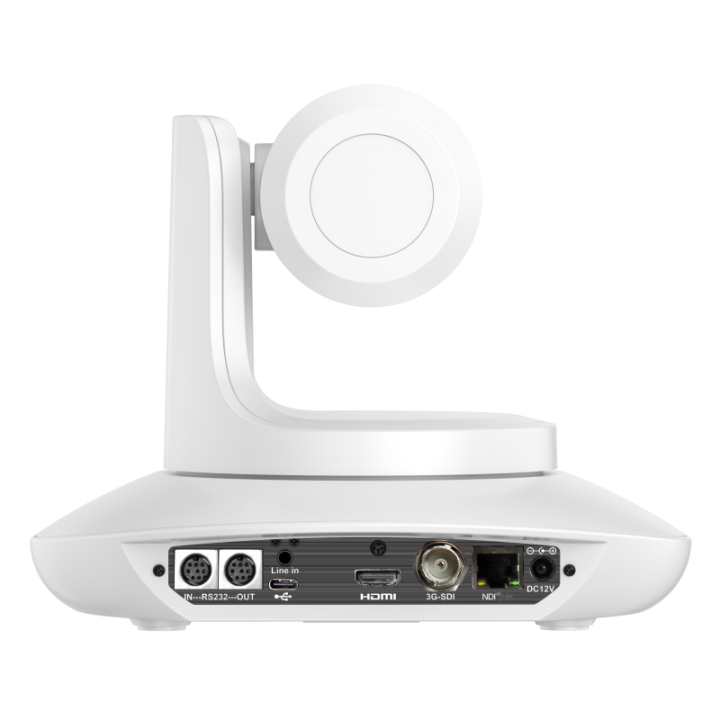

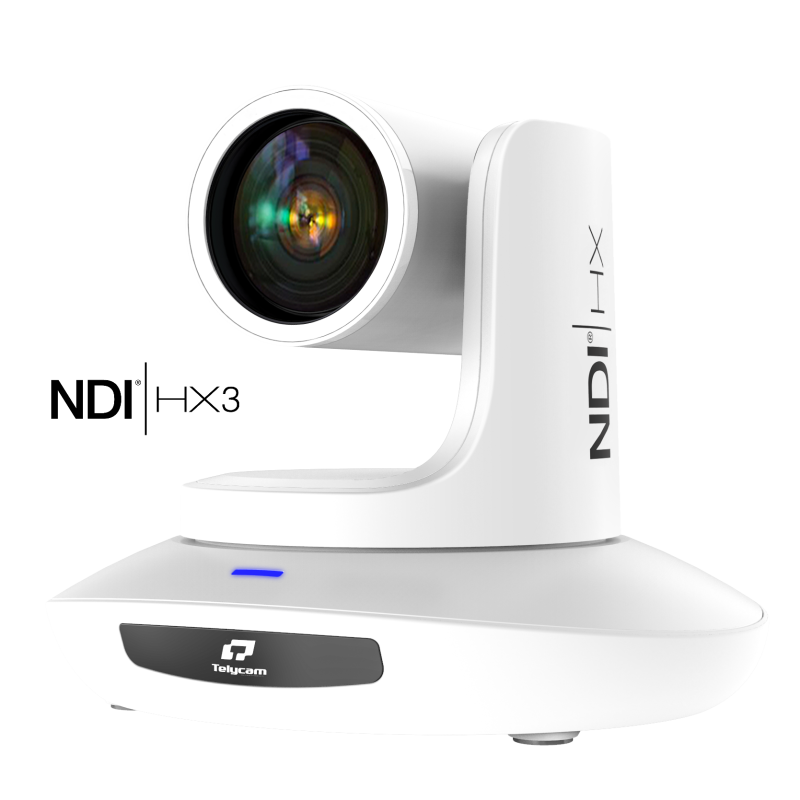

Telycam TLC-300-IP-20(NDI)-ABW - Vision+ N3 20X , NDI/HX3 PTZ Camera, White
1057107
0768486167043
TLC-300-IP-20 (NDI)-AB is a premium NDI ® |HX3 1080p60 20X PTZ camera, integrated with latest NDI®SDK, equipped with American most advanced image processing solution, 1/2.8 inch 2.4MP CMOS sensor, to deliver high definition and crystal clear image. NEW! With auto-tracking.
Visuals Price
1,691.06 CHF
VAT excl.
1,828.04 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 2 to 3 weeks
-
In-store pickup
- Available in 2 to 3 weeks
|
|
Specifications |
|
|
| Video Format | HDMI | 1920*1080P60/50/30/25/59.94/29.97/24/23.98; 1920*1080I60/50/59.94; 1280*720P60/50/30/25/59.94/29.97 | |
| NDI®|HX3 | Main stream: 1920*1080@15~60; 1280*720@15~60; 1024*576@15~60 Substream: 640*360@15~60 |
||
| 3G-SDI | 1920*1080P60/50/30/25/59.94/29.97/24/23.98; 1920*1080I60/50/59.94; 1280*720P60/50/30/25/59.94/29.97 | ||
| USB2.0 | NV12: 1920*1080p5; 1280*720p15; 1024*576P25; 800*448P30; YUY2: 1920*1080p5; 1280*720p10; 1024*576P15; 800*448P30; MJPG: 1920*1080P30; 1280*720P30; 1024*576P30; 800*448P30 H.264/HEVC: 1920*1080P30; 1280*720P30; 1024*576P30; 800*448P30 |
||
| Video Interface | NDI®|HX3, HDMI, 3G-SDI, USB2.0 | ||
| Audio Interface | Two 3.5 mm line inputs | ||
| Sensor | 1/2.8-inch 2.4 MP CMOS sensor | ||
| Optical Zoom | 20x Optical Zoom | ||
| Pan/Tilt Rotation Range | Pan: ±170°; Tilt: -30°~+90°, inversion supported | ||
| Pan/Tilt Rotation Speed | Pan: 0.1°-120°/s; Tilt: 0.1°-80°/s | ||
| Preset | 10 via remote control, 128 via serial, accuracy: 0.1° | ||
| Control Port | RS232, RS485, NDI®|HX3 | ||
| Network Port Speed | 1000M | ||
| Encoding Standard | H.264/H.265 | ||
| Bit Rate Control | Variable Bit Rate, Constant Bit Rate | ||
| Video Bit Rate | 1024Kbps~16384Kbps | ||
| Supported Protocol | TCP/IP, NDI®|HX3, HTTP, RTSP, DHCP, RTMP, ONVIF, VISCA over IP (TCP&UDP), HTML5, VISCA, PELCO P/D | ||
| POE+ | Supported | ||
| Daisy Chain Connection | Supported | ||
| Minimum Brightness | 0.01 lux | ||
| White Balance | Auto/Manual/Auto Tracking/One Push/Indoor/Outdoor | ||
| Exposure | Auto/Manual/Shutter Priority/Iris Priority/Brightness Priority | ||
| Focus/Iris/Shutter | Auto/Manual | ||
| Gamma/WDR/Backlight Compensation | Supported | ||
| 2D/3D Noise Reduction | Supported | ||
| Anti-flicker | OFF/50Hz/60Hz | ||
| Pan/Tilt Inversion | Supported | ||
| Power Supply | DC12V/POE+ (IEEE802.3at) | ||
| Colour | Black/White |
TLC-300-IP-20 (NDI)-AB is a premium NDI ® |HX3 1080p60 20X PTZ camera, integrated with latest NDI®SDK, equipped with American most advanced image processing solution, 1/2.8 inch 2.4MP CMOS sensor, to deliver high definition and crystal clear image. NEW! With auto-tracking.
